The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable, and intelligent families of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.

Mechanical, wired electrified, wireless electronic, and multi-point solutions allow a common aesthetic and consistent user experience throughout the building while lowering the total cost of ownership. And, with an extensive list of functions, keying, trim, levers, and finish options the L Series works for any application.

The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application. The ability to suit across electronic, tubular, exit trim and multi-point locks allow the Schlage L Series mortise lock to integrate seamlessly into any environment.

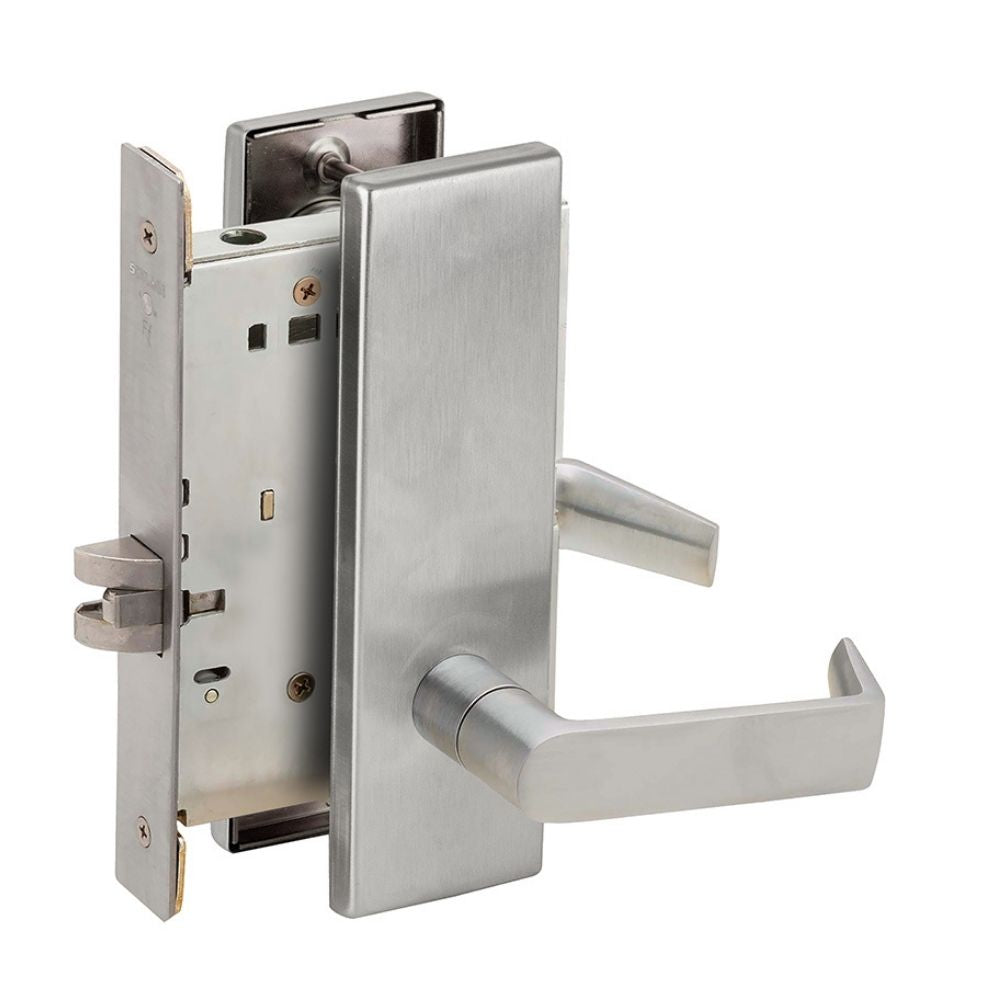

Passage Mortise Lock, 06N Design, Satin Chrome.

Features

• Case Material: CRS with zinc dichromate plating
• Case Size: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)
• Case Material: Knob or lever to cylinder: 3-7/8" (98 mm); knob or lever to thumb turn hub: 2-11/16" (68 mm)
• Door Thickness: Standard: 1-3/4" (44 mm). Optional: 1-3/8" (35 mm) to 2-1/2" (64 mm). Over 2-1/2" (64 mm) door ranges vary by function. Specify door thickness if other than 1-3/4" and position indoor EE, EI, EO, ED
• Handing: Field-reversible without disassembly
• Levers/Knobs: 33 lever designs: Forged brass or bronze and cast stainless steel
  Two knob designs: Heavy-duty wrought brass, bronze, or stainless steel
  Ligature resistant lever (SL1) and knob (SK1). HL6 hospital latch (available on 9010 and 9040 functions only). Tactile warning applied to outside lever; available on 01, 02, 03, 05, 06, 07, 12, 17, 18, M51, M52, M81, ME1, ME2, ME3 lever designs
• Roses/Escutcheons: L escutcheons: 7-15/16" x 1-3/4" x 7/16" (202 mm x 44 mm x 11 mm); cold-forged brass or bronze and stainless steel. N escutcheons: 7-7/8" x 2-1/2" x 7/16" (200 mm x 64 mm x 11 mm); heavy wrought reinforced brass, bronze, and stainless steel. Roses: A, B, C: wrought brass or bronze and stainless steel; AVA and MER: forged brass
• Finishes: 14 available: 605, 606, 609, 612, 613, 619, 622, 625, 626, 626AM, 629, 630, 630AM, 643e
• Combinations: Available with the knob on both sides, lever on both sides, or knob/lever combinations. Roses cannot be combined with escutcheons.
• Armor: Standard: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm). Optional: 1-1/16" x 8" x 7/32" (27 mm x 203 mm x 6 mm).
• Bolt: 1" (25 mm) throw stainless steel deadbolt. 3/4" (19 mm) throw stainless steel latch with anti-friction tongue
• Strike: Standard: ANSI curved lip strike 1-1/4" x 4-7/8" (32 mm x 124 mm) x 1-3/16" (30 mm) lip to center with dust box. Optional: Extended lip strike options (7/8", 1", 1-1/2", 1-3/4", 2")

Technical Specifications

• Base Material: Brass or Bronze
• BAA Qualified: Yes
• Limited Warranty: 3 Years

• Fire Rated: 3 Hours {A}
• Finish: 626/US26D
• Finish Description: Satin Chrome
• Function: 9010- Passage Latch
• ANSI Function: F01 - Passage
• Lever/Knob Design: 06 Lever
• Rose/Escutcheon Design: N Escutcheon
• Handing: Field Reversible
• Door Thickness: 1-3/4"
• Lock Face Size: 8" x 1-1/4"
• Bolt Projection: 3/4"
• Std. Strike Number: 10-072
• Std. Strike Type: ASA
• Std. Strike Height: 4-7/8"
• Std. Strike Width: 1-1/4"
• Dust Box: Plastic
• Screws: Combination
• Product Type: Mortise Lock

Product Literature

• Schlage L9010 06N 626 Instruction Manual
• Schlage L Series Mounting Plate Installations Instructions

• Schlage L9000 Indicator Handing Instructions
• Schlage L9000 Indicator Lever w/ Escutcheon Installations Instructions
• Schlage L9000 Indicator Lever w/ Sectional Installations Instructions
• Schlage L9000 Installation Instructions
• Schlage L9000 Knob Installation Instructions
