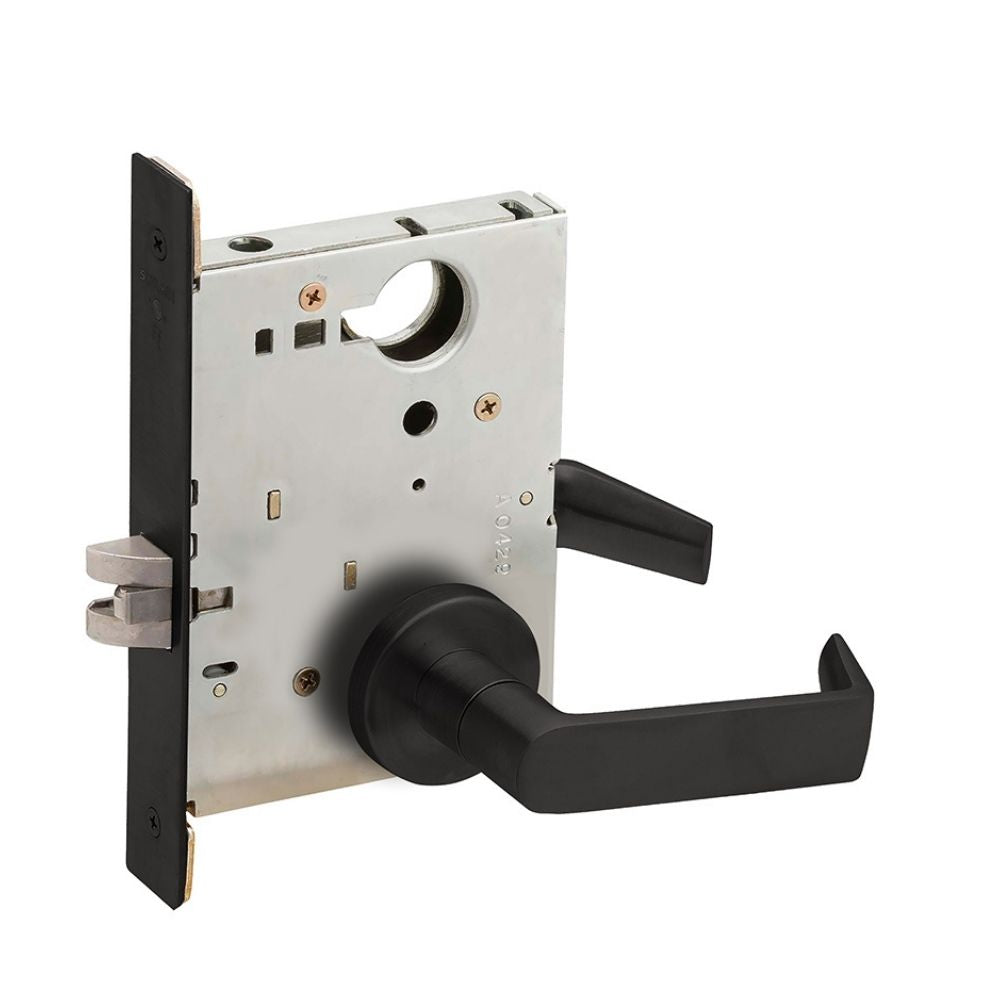

Schlage Passage Mortise Lock 06A Design (Flat Black Coated) | SCH-L9010-06A-622
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application. The ability to suit across electronic, tubular, exit trim and multi-point locks allow the Schlage L Series mortise lock to integrate seamlessly into any environment.
Features
- Exceeds ANSI/BHMA Grade 1 operational and security standards
- Supports standard, SFIC, and FSIC cylinder formats
- Spring-loaded fusible link inside lock case provides fail secure mode in case of fire
- Security blocking hub prevents lock picking by removing levers
- A two-piece anti-friction tongue reduces wear
- Floating mounting tabs automatically adjust to fit a beveled door edge
- Break-away spindle prevents unsecured failures and provides easy replacement
- Field reversible latch bolt allows change without opening the case
- Anti-saw pin prevents cut through; included on deadbolt functions
- Handing: Field-reversible without disassembly
- Case Material: CRS with zinc dichromate plating
-
Latchbolt retracted by lever/knob from either side at all times
-
Inside lever always free for immediate egress
- BAA Qualified: Yes
- Fire Rated: 3 Hours {A}
-
Limited Warranty: 3 Years
Technical Specifications
- Base Material: Bronze
- Finish: 622/US19
- Finish Description: Flat Black Coated
- Function: 9010-Passage Latch
- ANSI Function: F01 - Passage
- Lever/Knob Design: 06 Lever
- Rose/Escutcheon Design: A - Rose
- Case Size: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)
- Case Material: Lever to cylinder: 3-7/8" (98 mm)
- Armor: Standard: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm). Optional: 1-1/16" x 8" x 7/32" (27 mm x 203 mm x 6 mm).
- Door Thickness: 1-3/4"
- Lock Face Size: 8" x 1-1/4"
- Bolt Projection: 3/4" (19 mm) throw stainless steel latch with anti-friction tongue
- Std. Strike Number: 10-072
- Std. Strike Type: ASA
- Std. Strike Height: 4-7/8"
- Std. Strike Width: 1-1/4"
- Dust Box: Plastic
- Screws: Combination
- Product Type: Mortise Lock
