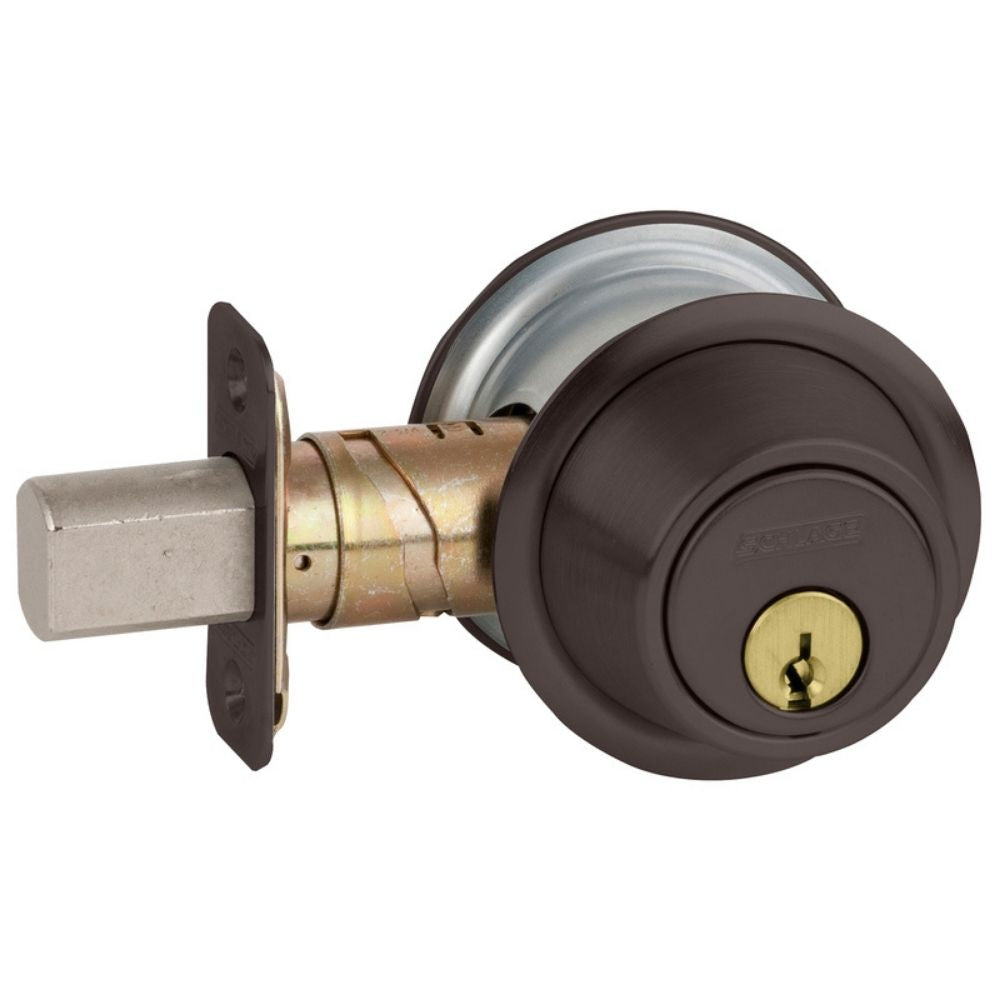

Schlage Grade 2 Single Cylinder Deadbolt (Adjustable 2-3/8" and 2-3/4" Backset, Dark Oxidized Satin Bronze Oil Rubbed Finish) | SCH-B560P-613
Designed by locksmiths for locksmiths, the B500 Series deadbolt can be fitted with any Schlage cylinder, fits virtually every door you service, enhances lock strength on the jamb side of the door, and will change forever the way you look at deadbolts.
Grade 2 Single Cylinder Deadbolt, Conventional Cylinder, Adjustable 2-3/8" and 2-3/4" Backset, Dark Oxidized Satin Bronze Oil Rubbed Finish.
Features
- ANSI A156.5, 2001 Grade 2
- Available UL Listed for three-hour fire door
- Quick, easy installation and adjustable backset lock into place
- Anti-pry shield protects the latch from attacks
- Metal dust box provides deep anchoring and added strength
- Primary or auxiliary locking for commercial buildings
- High-security locks for residential buildings
- Thicker metal security strike back-up on the jamb side
- Added space inside strike box for true deadlatch
- Seamless steel latch construction along the entire length of the bolt housing
- 10% larger diameter deadbolt
- Zinc bolt with spinning hardened steel pin inside
- Tapered front housing that can’t be unscrewed
- Integrated trim piece for fewer pieces out of the box
- Large, easy-to-use, ADA compliant thumbturn
- Can be suited with virtually all Schlage levers and knobs
Technical Specifications
- Grade: Grade 2
- Installation: Commercial
- Finish: 613/US10B
- Finish Description: Dark Oxidized Satin Bronze Oil Rubber
- Function: 560-Single Cylinder Deadbolt Lock
- ANSI Function: E0152 - Single Cylinder Deadbolt
- Cylinder Type: Conventional Cylinder
- Num Pins: 6
- Std. Keyway: C
- Door Thickness: 1-3/8 In. - 1-7/8 In.
- Std. Latch Number: 12-287
- Std. Latch Type: Deadbolt
- Std. Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
- Lock Face Size: 2-1/4 In. x 1 In.
- Bolt Projection: 1 In.
- Std. Strike Number: 10-094
- Std. Strike Type: Flat
- Std. Strike Height: 2-3/4 In.
- Std. Strike Width: 1-1/8 In.
- Dust Box: None
- Product Type: Deadbolts
