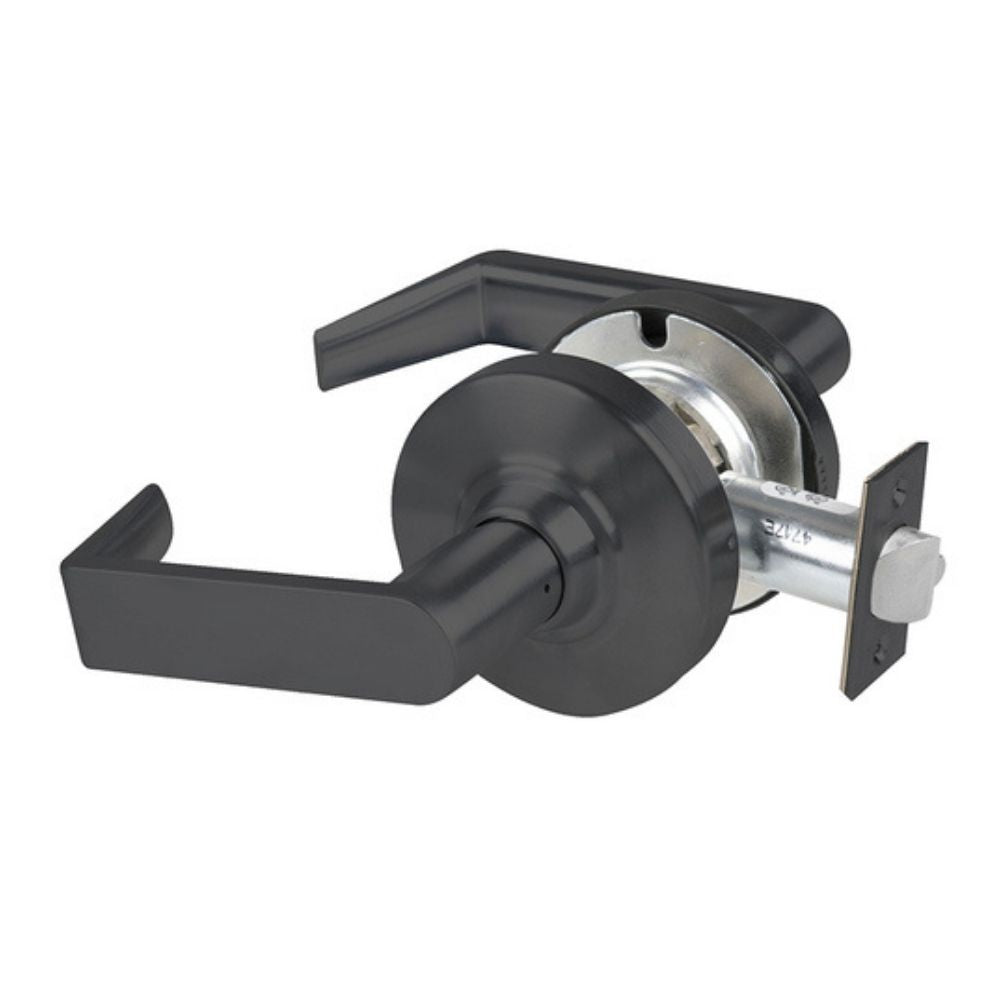

Schlage Grade 2 Passage Cylindrical Lock with Field Selectable Vandlgard (Matte Black Finish) | SCH-ALX10 RHO 622

Schlage Grade 2 Passage Cylindrical Lock with Field Selectable Vandlgard (Matte Black Finish) | SCH-ALX10 RHO 622

The AL-Series has always offered a combination of strength and durability alongside Schlage trusted key system options at a price point favorable to any application. Though these qualities remain, the lock has changed. ALX Series' features now deliver flexibility and value beyond strength and security. X-Factor qualities, born from modular design, define a lock that exceeds expectations. AL Series' evolution to the ALX Series is a revolution in lock design.

Door hardware should be as effective in helping people go about their lives as it is in securing their environments. The Schlage ALX Series is designed with this requirement in mind.

Features

• Accessibility — All Schlage ALX Series levers comply with the Americans with Disabilities Act (ADA), which requires that "Operable parts shall be operable with one hand and shall not require tight grasping, pinching, or twisting of the wrist. The force required to activate operable parts shall be 5 pounds (22.2 N) maximum."
• Life safety — The Schlage ALX Series is UL listed for use on 3-hour fire doors up to 4'0" x 8'0". The Boardwalk, Longitude, Omega, Rhodes, Saturn, Sparta, and Tubular levers comply with the California State fire code for return to within 1⁄2" of the door face.
• Tactile warning for the visually impaired — Tactile warning is a special texture that can be applied to either lever to alert the visually impaired to a potential hazard on the opposite side of the door (exit to the street, a workshop, or another hazardous area, etc). The tactile warning is specified by an 8 prefix on the lever design.
• Door handing — ALX Series locks can be configured during installation to support any door handing. As a result, it is not necessary to specify handing during the ordering process.
• Certifications Exceed ANSI/BHMA A156.2 Series 4000, Grade 2 standards UL/cUL: All locks listed for A label single fire door 4' x 8' and pair doors UL 437: Optional UL listed high-security cylinders Other: ADA compliant levers (all designs); CA Fire Code compliant levers (all with the return of 1⁄2" (64 mm) or less; ICC A117.1 compliant; meets Federal FF-H-106C Series 161; meets FL Building Code and Miami Dade requirements for hurricanes
• Warranty: 10-year limited

Technical Specifications

• UL Listing Type: UL/cUL
• ANSI Number: A156.2-2011 Series 4000, Grade 2
• Limited Warranty: 10 Years
• Fire Rated: 3 Hours {A}
• ADA Compliance: Yes
• Finish: 622/US19
• Finish Description: Matte Black
• Finish Family: Black
• Function: 10-Passage Latch
• Function Family: Passage
• ANSI Function: F75 - Passage
• Lever/Knob Design: RHO - Rhodes Lever
• Lever/Knob Design Family: Straight Return Lever
• Rose/Escutcheon Design: 3-7/16" Rose Diameter
• Rose/Escutcheon Dimensions: Rhodes
• Cylinder Type: Non-Keyed
• Handing: Non-handed
• Door Thickness: 1-3/8 In. - 1-3/4 In.
• Std. Latch Number: 47267038
• Std. Latch Type: Spring latch
• Std. Latch Backset Dim: 2-3/4 In.
• Latch Bore Diameter: 7/8 In.
• Lock Face Size: 1-1/8 In. x 2-1/4 In.
• Bolt Projection: 1/2 In.
• Bore Hole Diameter: 2-1/8 In.
• Std. Strike Number: 47267101
• Std. Strike Type: ANSI Strike
• Std. Strike Height: 4-7/8 In.
• Std. Strike Width: 1-1/4 In.
• Screws: Combination
• Product Type: Cylindrical Lock
• Chassis Material: Steel, zinc dichromate for corrosion resistance Door thickness: Fits 1 3⁄8" to 1 3⁄4" doors without adjustment Handing: Non-handed
• Functions Non-keyed functions: 10 Passage; 40 Privacy; 44 Hospital Privacy; 170 Single dummy; 172 Double dummy Keyed functions: 50 Entrance/office; 53 Entrance; 70 Classroom; 80 Storeroom
• Trim Levers: Pressure cast zinc, plated to match product finish Roses: Wrought brass, bronze or zinc plated to match finish, 3 7⁄16" diameter; blank outside rose is 3 1⁄2" diameter
• Latches Backset: 2 3⁄4" (standard) or 2 3⁄8" Faceplate: 1 1⁄8" x 2 1⁄4" square corners Bolt: 7⁄8" bolt diameter, up to 1" housing diameter, 1⁄2" throw in Stainless Steel Optional: 1" bolt diameter with 1⁄2" throw, 3⁄4" anti-friction fire latch
• Strike ANSI curved lip (1-1⁄4" x 4-7⁄8" x 1-3⁄16") Optional: T strike (see catalog for details)
• Keying Cylinder format: Conventional 6-pin in solid brass Optional: SL Conventional and FSIC; Full Size and Small Format IC cylinders; construction cylinders Keyway: Everest 29 S123 patented open keyway, keyed different Optional: Classic open, Everest 29 restricted, and legacy keyways
