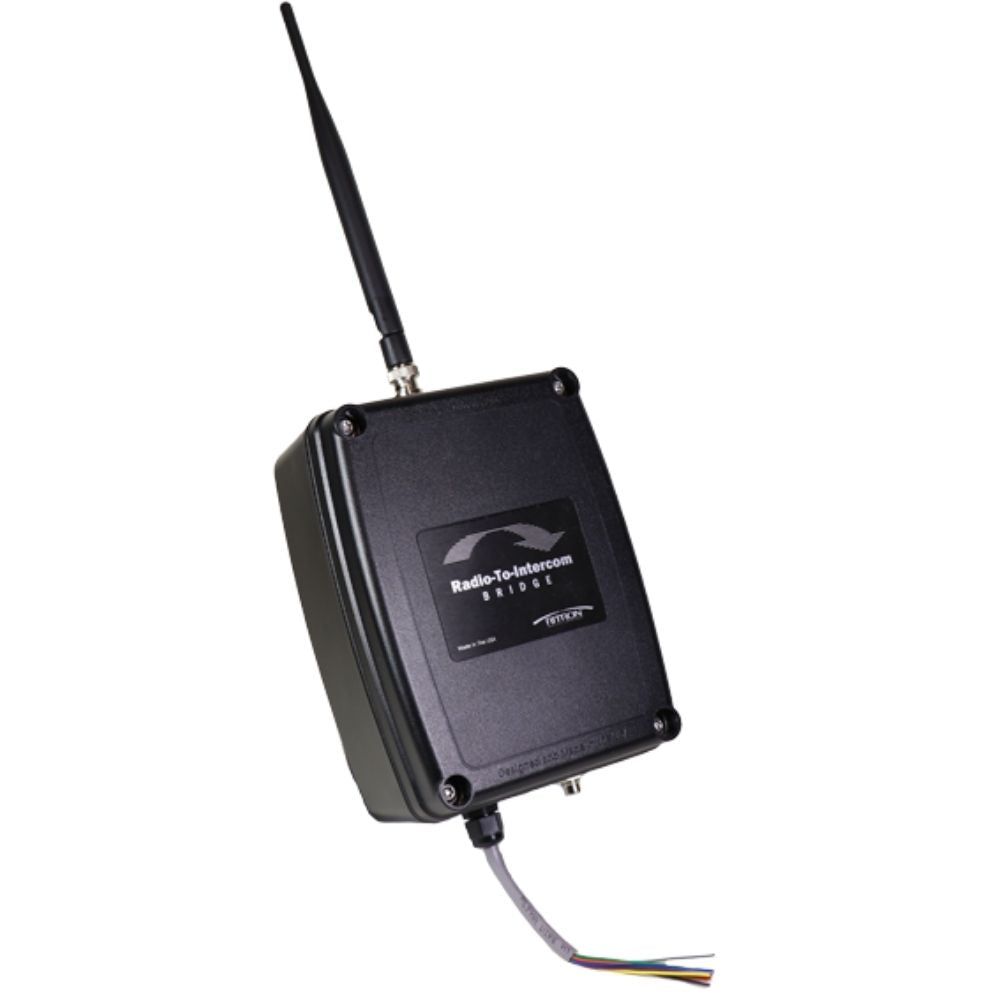

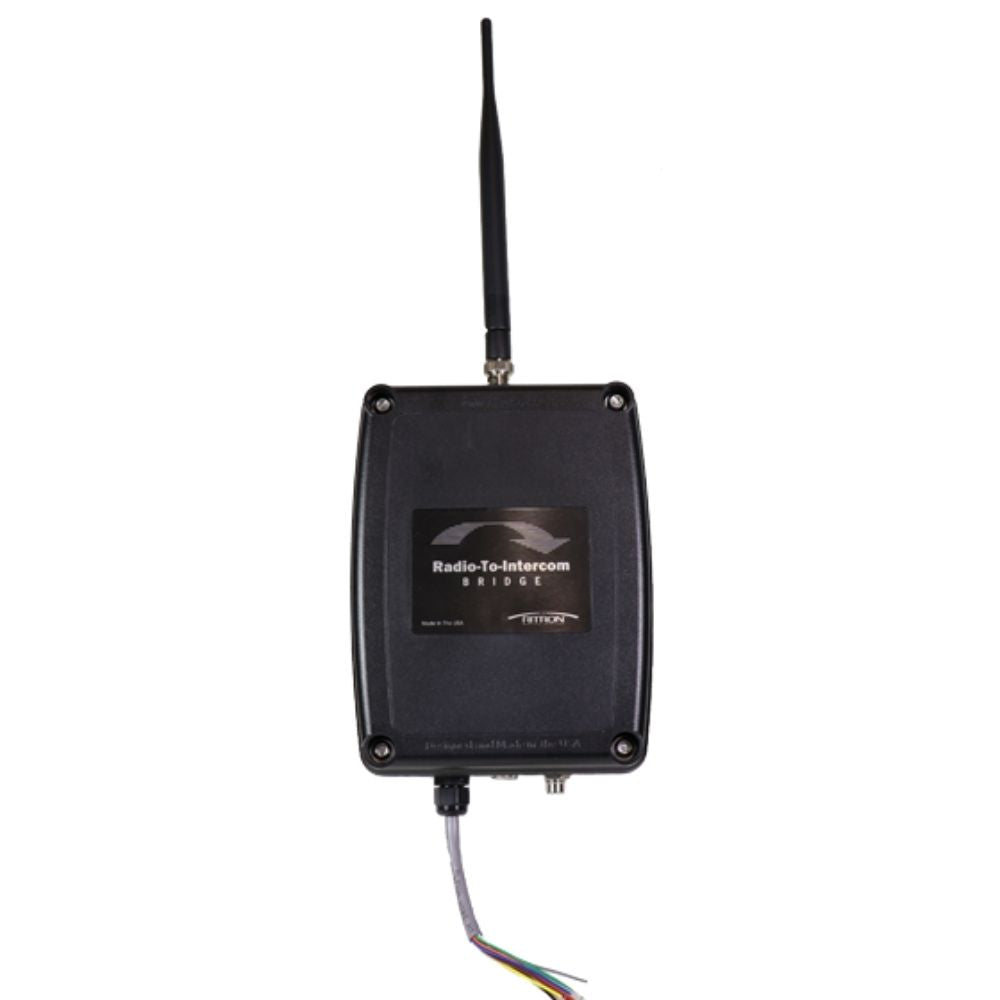

Ritron Radio-To-Intercom BridgeTM Receiver DMR Digital Only | RIT-RIB-700DMR

RitronSKU: RIT-RIB-700DMR

Price:
Sale price$700.00

Estimate shipping

Ritron Radio-To-Intercom BridgeTM Receiver DMR Digital Only | RIT-RIB-700DMR

The RIB-700DMR Radio-To-Intercom Bridge receiver is designed to interface to an existing wired Public Address Intercom system and allow PA or intercom announcements using your DMR Digital two-way radio. Can operate on a VHF LMR business band, UHF LMR business band, or VHF MURS 2-way radios, and can work through radio repeaters. Designed to leverage your existing intercom system and radio network and add a layer of security.

Wireless technology provides a cost-effective and flexible way to provide Public Address/Mass Notification coverage across your entire facility or to isolated pinpoint locations.

Includes
  • Whip antenna
  • AC adapter RPS-1B 12VDC-110/220V
  • External connection cable
  • Mounting bracket
Features
  • The Radio-To-Intercom Bridge is designed to be connected to an existing PA/intercom system with its own PA amplifier and wired speakers.
  • The Radio-To-Intercom Bridge does not include a backup battery since it is merely a component of a larger system usually powered by AC and its own battery backup system.
  • Provides compatibility with business band 2-way radios, License-FREE VHF business band radios (MURS), Family Radio Service, and GMRS radios.
  • Provides interconnection to the Public Address amplifier through a high impedance, unbalanced AUX input OR a 600Ω, balanced MIC input. Allows personnel to remain mobile while providing access via 2-way radios to existing PA speakers located throughout the facility.
  • "Record and Play" allows the use of radios in close proximity to PA speakers without feedback. The Radio-To-Intercom Bridge records/buffers received messages up to 24 seconds in length, then play them over the PA immediately after releasing the PTT button on the radio.
  • Easy "Plug and Play" installation.
  • Programmable volume control adjusts audio output level 5-99%. Allows custom adjustment for most applications.
  • Selective Decode Signaling DMR Digital: Individual Unit ID / Group Call / All Call to provide an added layer of access control to the PA system.
  • Pre-announce tone (similar to existing PA systems) with programmable on/off and volume level.
  • NOAA Weather Alert (VHF only).
  • Field or PC programmable to frequencies within the respective band (i.e. VHF 150-165 MHz, UHF 450-470 MHz).
  • The Radio-To-Intercom Bridge is for indoor use only.
  • With 1-year warranty
Technical Specifications
  • Receiver physical dimensions: 7.125” H x 5.5” W x 3.0” D
  • Receiver enclosure material: Hi-Impact Polycarbonate Thermoplastic
  • Receiver color: Black
  • Receiver weight: 1 lb. 15 oz. (with AFB-1545 antenna)
  • Receiver mounting: 2 aluminum brackets to the side of the radio
  • Relay: Connection - RIB-700DMR Interface cable - Green, Blue. Output - Switch closure on the received signal.
  • AUX: Connector - RCA Phono jack. Maximum Output - 1.35 VAC peak (RIB-700DMR received audio is adjustable). Output Impedance - 100 Ohms, unbalanced.
  • 600 Ohms Mic Out: Connection - RIB-700DMR Interface cable Yellow (COLD), Orange (HOT), Gray (ground). Maximum Output - 200mVAC peak. Output Impedance - 600 Ohms, balanced.
  • DC power connector: 2.1mm coaxial DC jack (size M)
  • Antenna connector: 50 Ohms BNC
  • Antenna: AFB-1545 dual-band (150-170 MHz, 450-470 MHz)
