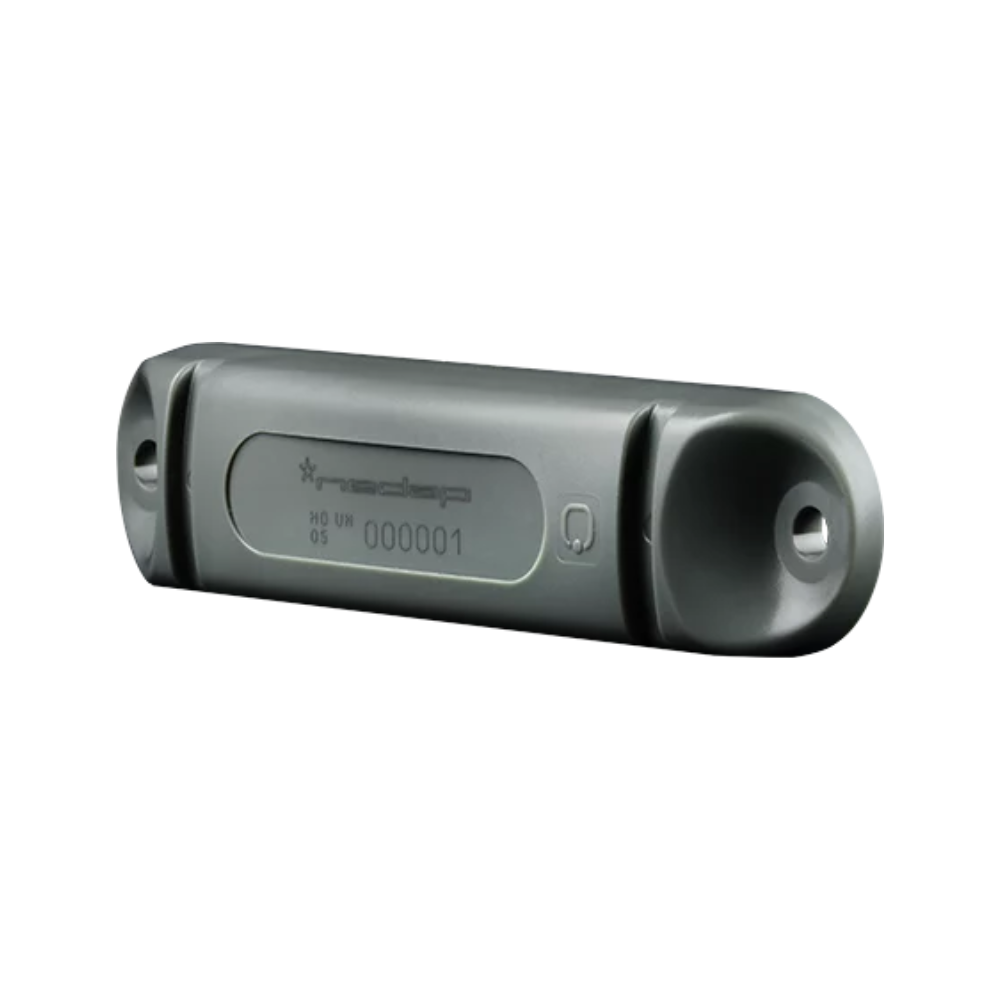

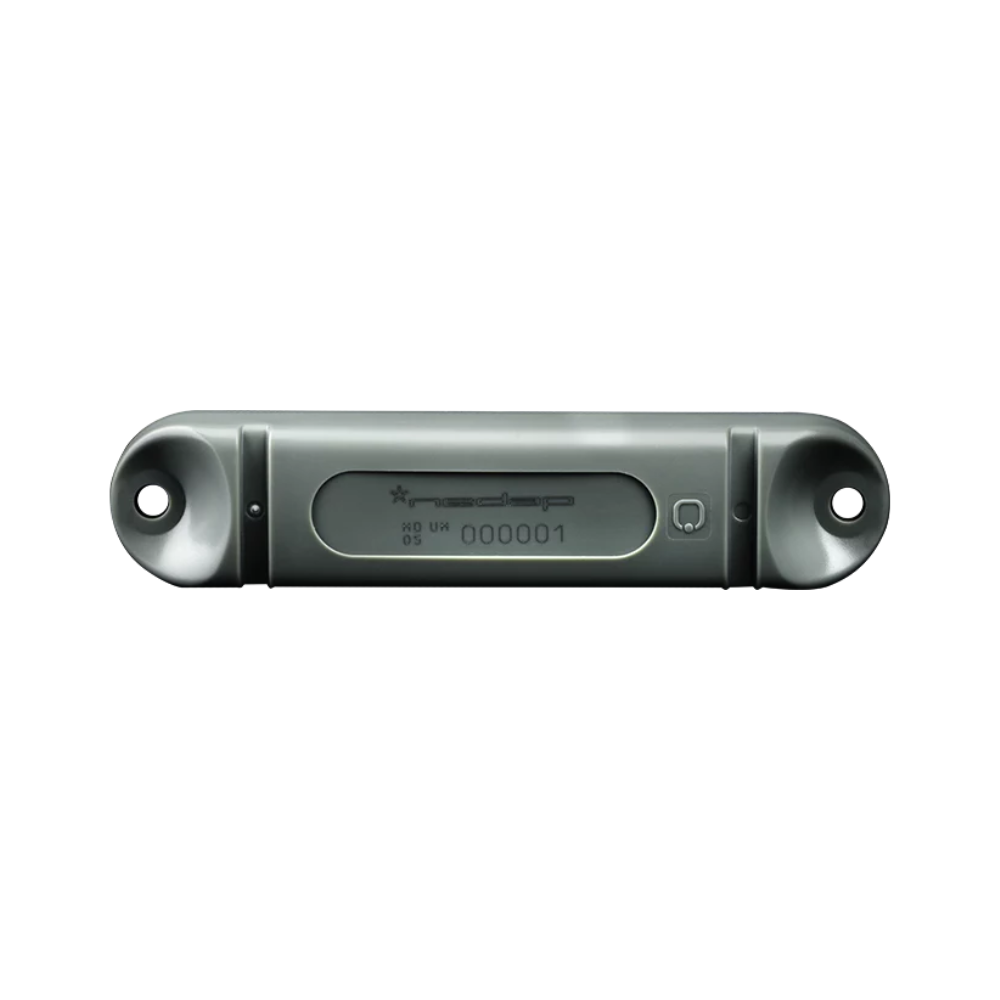

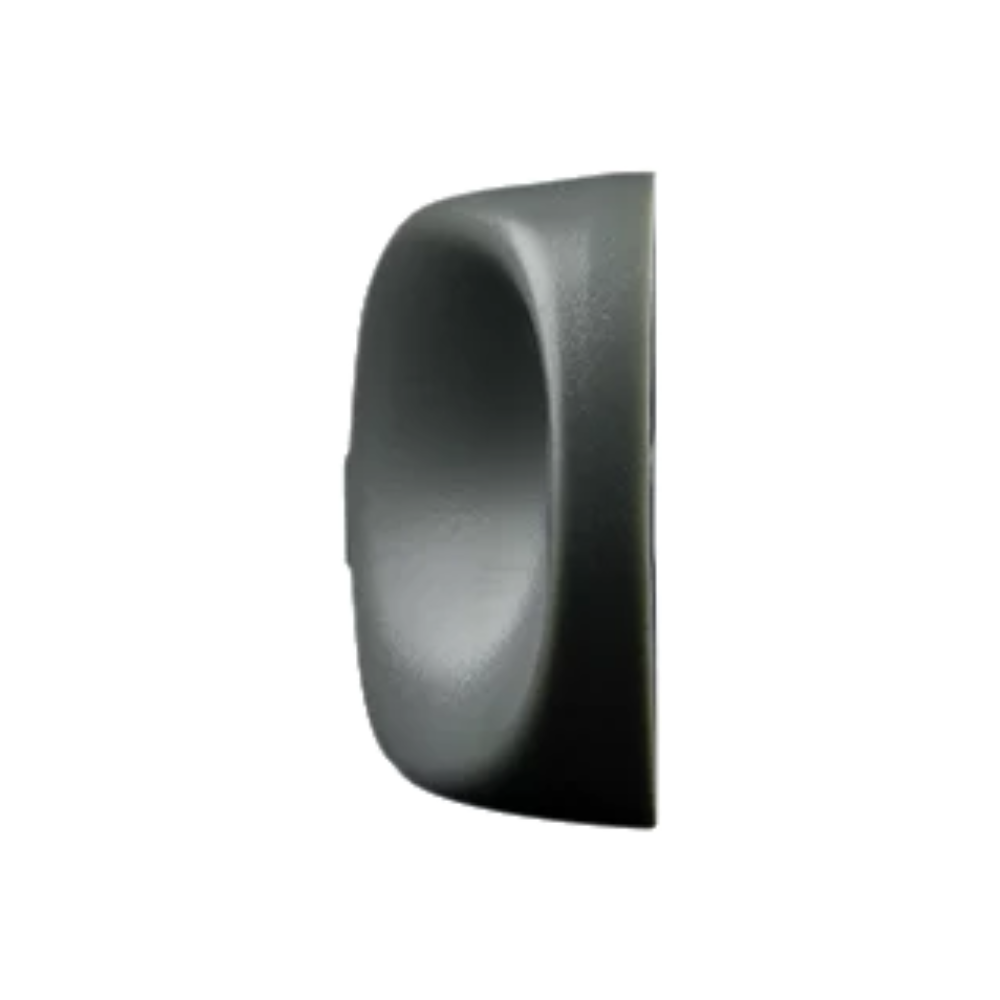

Nedap UHF Heavy Duty Tag (Pack of 10) | NED-9219641

NedapSKU: NED-9219641

Price:
Sale price$147.43
  • Estimated delivery 2 weeks.
  • Final sale. No returns or exchanges.

Estimate shipping

Nedap UHF Heavy Duty Tag (Pack of 10) | NED-9219641

Long-range vehicle identification tag.

Vehicle identification

The UHF Heavy Duty Tag is a vehicle identification tag. This tag features a rugged design for long term outdoor use in industrial environments. The UHF Heavy Duty Tag is a cost effective solution for installations that require the tag to be mounted onto the exterior of the vehicle. Based on passive UHF technology (± 900 MHz), the UHF Heavy Duty Tag is identified up to 10 meters (33 feet) with uPASS Target or 5 meters (16 feet) with uPASS Reach.

Applications

The card holder does not contain a battery and is maintenance free. Typical applications include secured vehicle access in vehicle logistics, industrial operations, automated truck activities and parking access.

Features
  • Automatic vehicle identification
  • Identification up to 10 meters (33 feet)
  • Passive, battery free tag
  • EPC Gen 2 compatible
  • Mounted on the exterior of the vehicle
  • High performance on metal surfaces
  • Chemical resistant housing
  • Water and shock proof

Note: This product is non-returnable and non-refundable.

Technical Specifications
  • Part number: 9219641 UHF Heavy Duty Tag
  • Dimensions: 110 x 25 x 12,85 mm (4.33 x 0.98 x 0.51 in)
  • Color: Grey
  • Weight: 26 g [0.92 oz]
  • Protection class: IP68
  • Material: ABS rigid plastic
  • Operating temperature: -20 ... +85°C (-4 … +185°F)
  • Storage temperature: -20 ... +85°C (-4 … +185°F)
  • Relative humidity: 10% ... 93% relative humidity, non-condensing
  • Read range: Up to 10 meters (33 feet) with uPASS Target, up to 5 meters (16 feet) with uPASS Reach
  • Operating frequency: 865 - 870 MHz / 902 - 928 MHz
  • Mounting: Onto the exterior of the vehicle using M5 screws. Fixation hole: 4,9 mm (0.19 in) / Screw center to center distance: 97,5 mm (3.84 in)
  • Compatible readers:
    • 9217363 uPASS Target (region 1)
    • 9217371 uPASS Target (region 2&3)
    • 9942319 uPASS Reach (region 1)
    • 9945466 uPASS Reach (region 2&3)
  • Standards EPC: Gen 2, CE
  • Vibration: MIL STD 810-F
  • Shock: MIL STD 810-F
  • Document version number: 5.1
