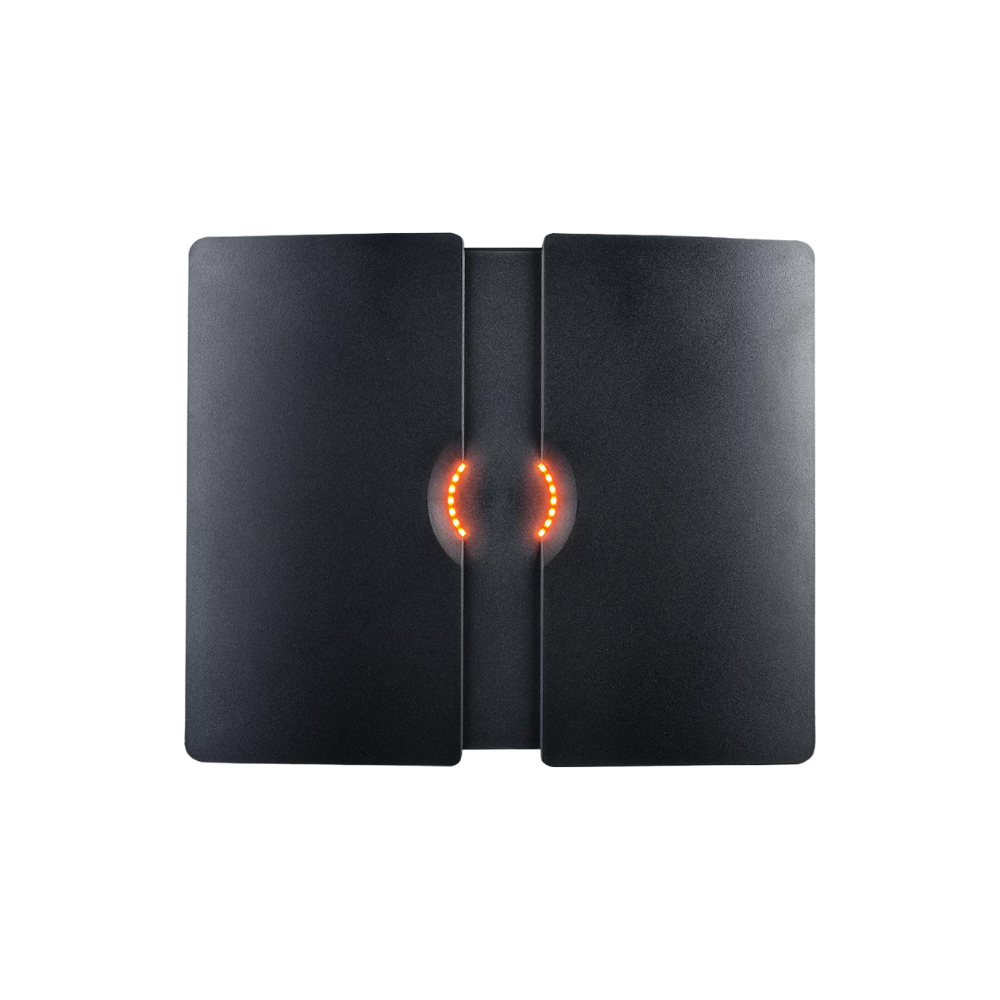

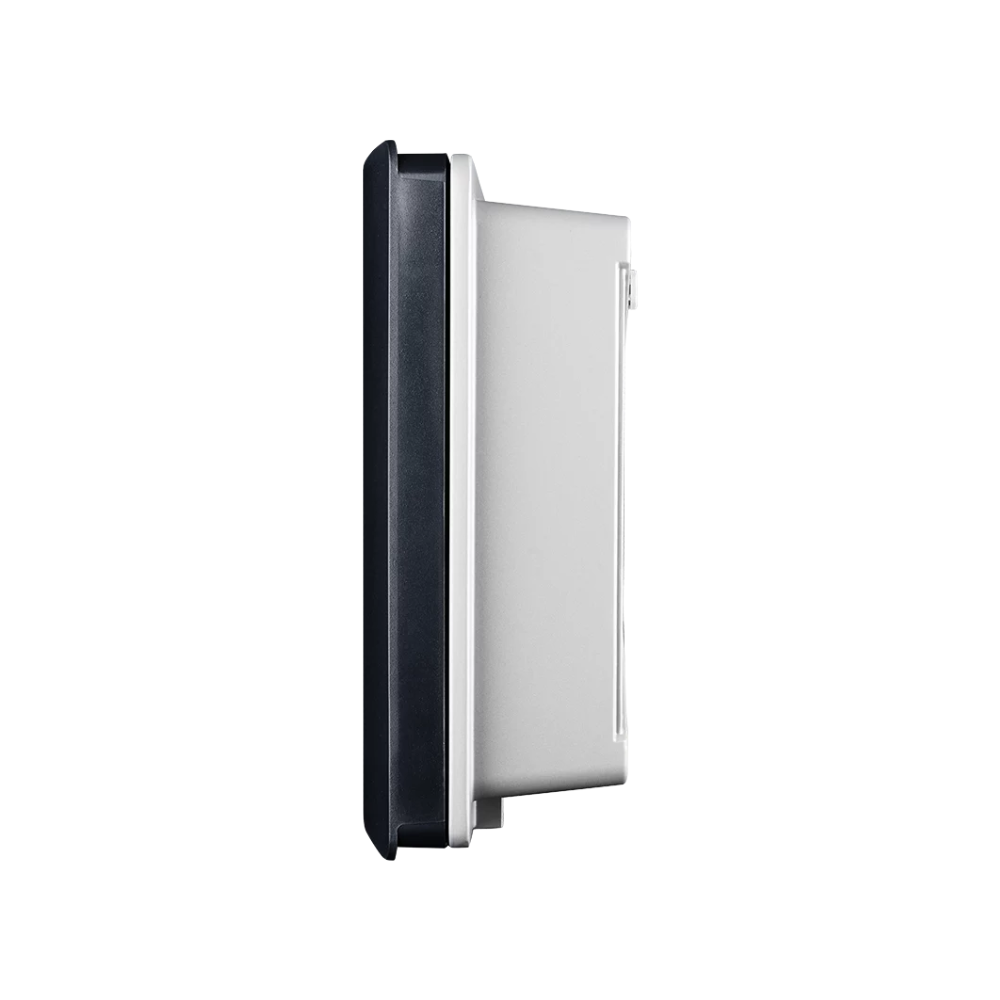

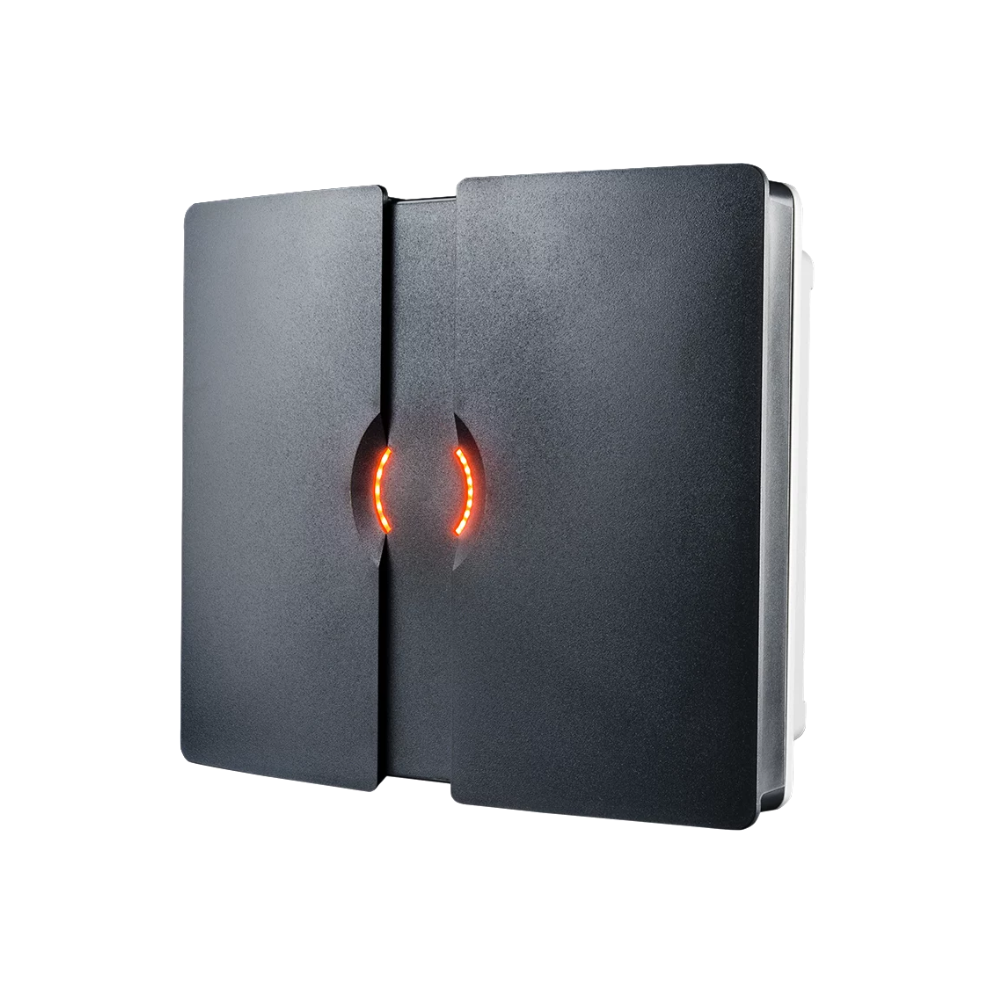

Nedap Transit Ultimate 33' Reader | NED-9215689

Nedap Transit Ultimate 33 ft. Reader | NED-9215689

Long-range vehicle and driver identification reader.

The TRANSIT Ultimate is an extremely robust RFID reader that enables simultaneous identification of vehicles and drivers in challenging situations. Based on semi active RFID technology, vehicles and drivers are identified at distances up to 10 meters (33 feet) and speeds up to 200 km/h (125 mph).

This high-end reader is designed to perform well in high security applications, demanding vehicular access control applications and under harsh environmental conditions. Typical applications include highly secured vehicle access at airports, seaports, mines, military bases and other installations where vehicles must be assigned to specific drivers.

Vehicle and driver identification

The TRANSIT Ultimate is an extremely robust RFID reader that enables simultaneous identification of vehicles and drivers in challenging situations. Based on semi active RFID technology, vehicles and drivers are identified at distances up to 10 meters (33 feet) and speeds up to 200 km/h (125 mph).

Applications

This high-end reader is designed to perform well in high security applications, demanding vehicular access control applications and under harsh environmental conditions. Typical applications include highly secured vehicle access at airports, seaports, mines, military bases and other installations where vehicles must be assigned to specific drivers.

Features

• Simultaneous vehicle and driver identification
• Read range up to 10 meters (33 feet)
• Object speed up to 200 km/h (125 mph)
• Tag authentication based on AES encryption
• Adjustable read range
• Bi-directional communication
• Variety of integrated communication interfaces
• Robust industrial design
• OSDP v2 supported including secure channel protocol

Technical Specifications

• Part number: 9215689 TRANSIT Ultimate
• Dimensions: 330 x 274 x 140 mm (13 x 10.8 x 5.5 in)
• Color: RAL 7016 (cover), RAL 7035 (housing)
• Weight: 4 kg (8.82 lbs)
• Protection class: IP66
• Material: Cover ABS, Housing Die-casting ADC12
• Operating temperature: -30 … +60°C (-22 … +140°F)
• Storage temperature: -30 … +60°C (-22 … +140°F)
• Relative humidity: 10% ... 93% relative humidity, non-condensing
• Power supply Input: 100-240 VAC, 0.3-0.6A (50 - 60 Hz) or 24 VDC, 0.7A; Output 24Vdc, 0.1A
• Power consumption: <25VA (on AC), <20 Watt (on DC)
• Read range: Up to 10 meters (33 feet)
• Object speed: Up to 200 km/h (124 mph) at appropriate distance
• Operating frequency: 2.438 – 2.457 GHz, 433.62 & 434.22 MHz (RX-Cat 3) Ton <5sec.
• Antenna polarization: Circular (LHC) (2450 MHz) integrated antenna; Horizontal (433 MHz); dedicated antenna.
• Air interface: 2.45 GHz: Nedap proprietary encoding standard
• 433 MHz: Encryption based upon diversified AES128; 300kbps/ GFSK 75 kHz;
• Duty cycle < 1%; LBT not applicable
• Communication interfaces:
• USB, Wiegand, OSDP V2, Magstripe (clock & data), Barcode (Code39).
• Default interface board: RS232 (default)
• Available interface boards: RS422/485, TCP/IP and HID Interface Board (HIB)
• Communication protocols:
• OSDP V2, CR/LF, DC2/DC4 and various OEM protocols.
• Depending upon installed firmware. See firmware manual for more details.
• Input: TTL read disable; 3x TTL general purpose inputs
• Output: 1 relay output (NO, common, NC), 24 VDC 2A, 120 V AC 1A
• Antenna input: Optional 1 external inductive antenna connection 120 kHz
• Antenna output: Nedap external reader antenna connection 120 kHz output
• Connectors: PCB screw connectors
• Tamper switch: Magnetic switch, normally closed
• Standards: CE, FCC, IC, ACMA, R-NZ, China_CMIIT, UL294
• Included accessories: 9984364 Wall Mounting Set
• Optional accessories:

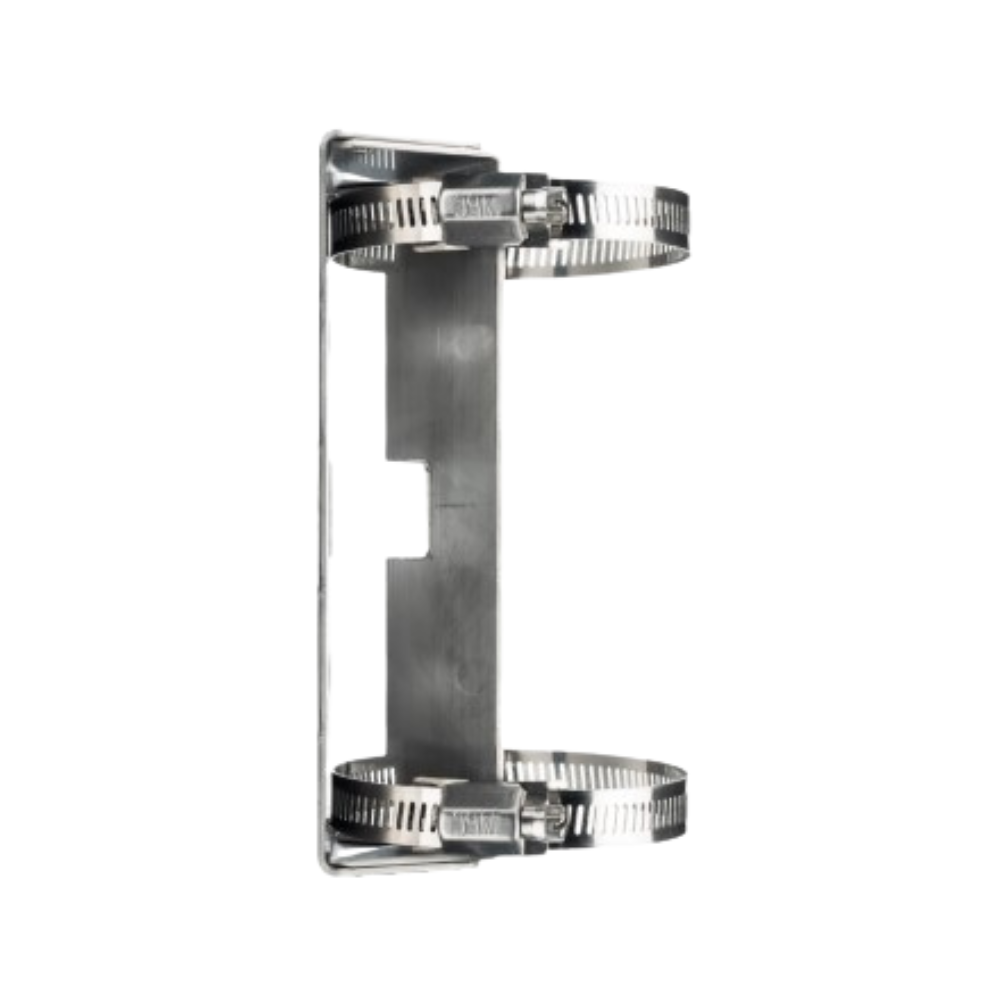

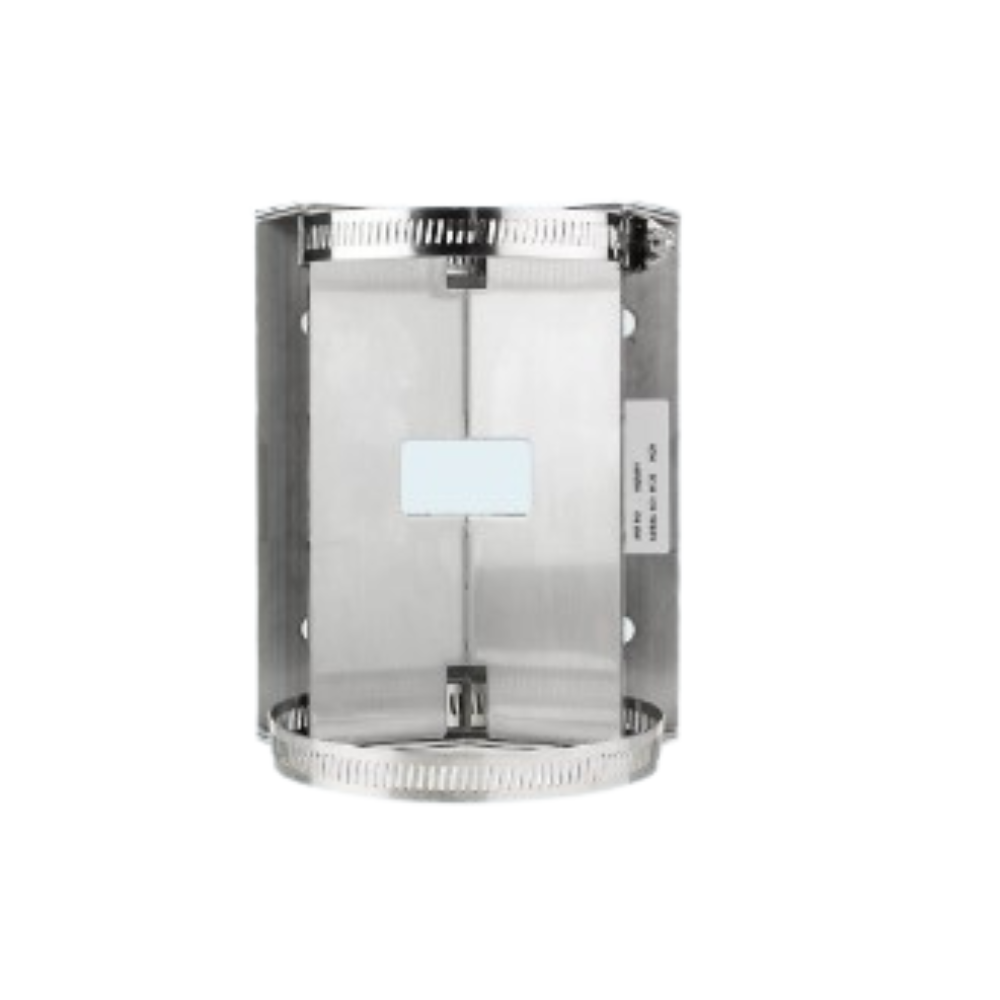

• 5626595 Pole Mounting Kit

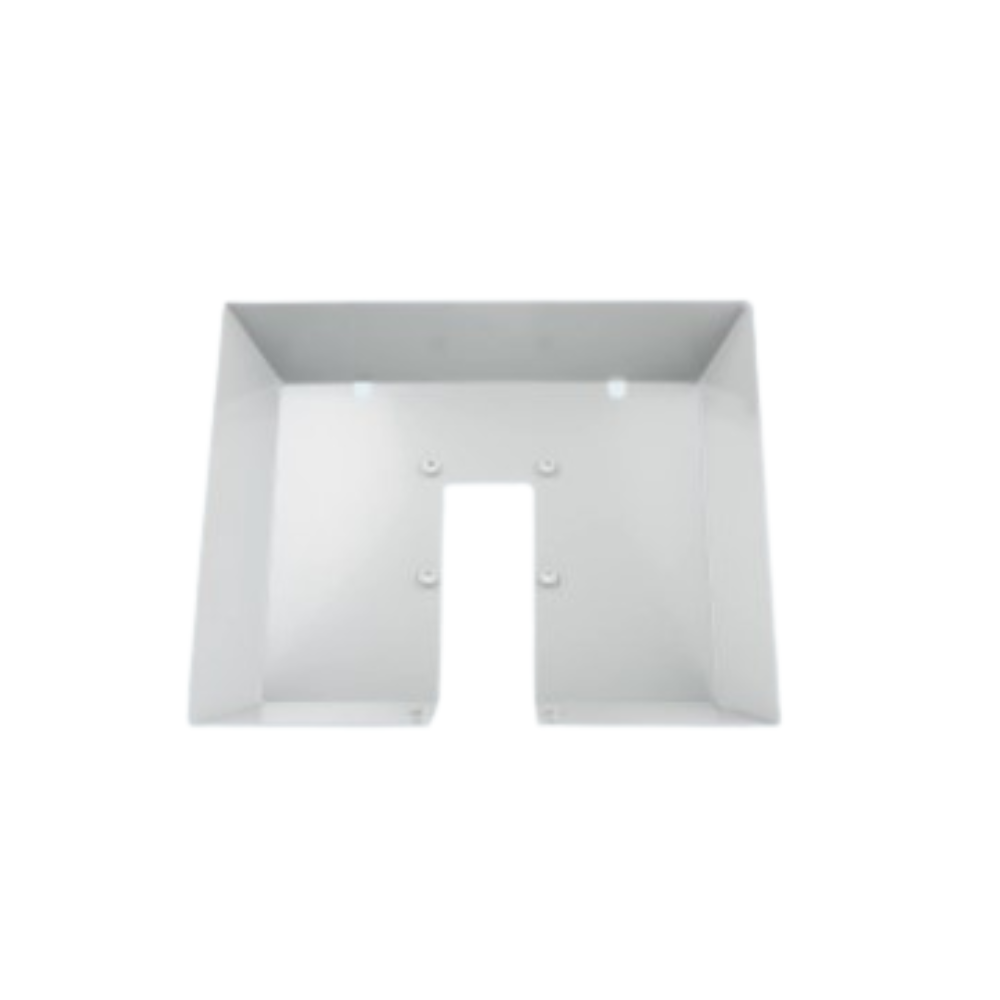

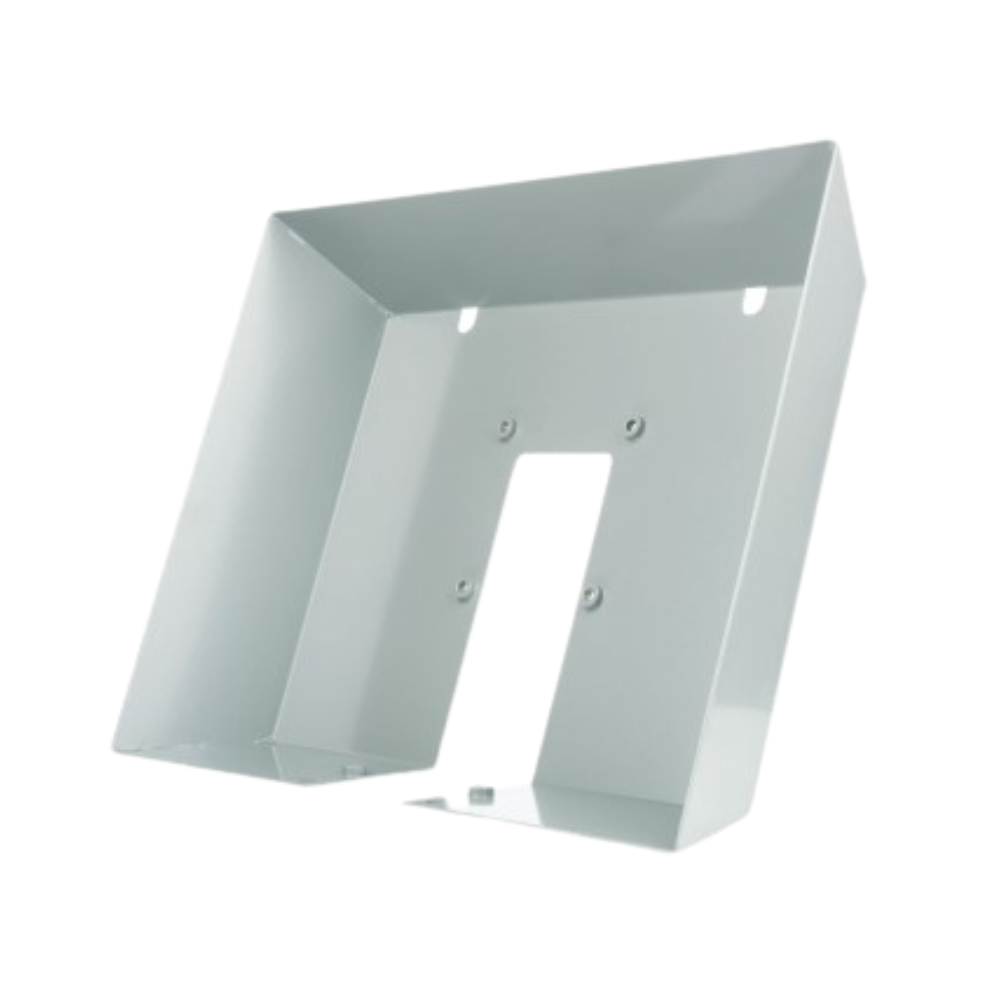

• 9218327 Weather Protection Hood
• 9216537 Security Key Pack
• Document version number: 2.4
