Multi-Code 2-Channel Remote 300 MHz | MUL-308301

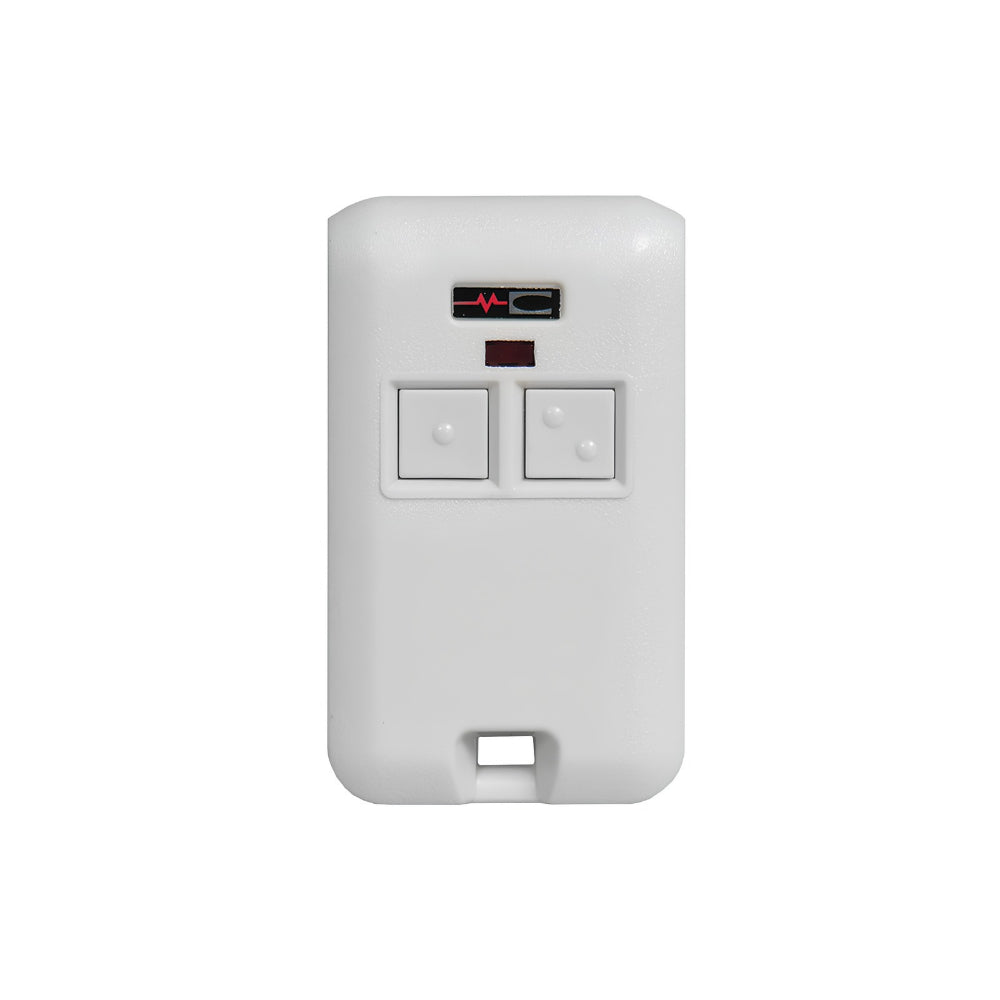

The Model 308301 2-Channel Key Ring Transmitter is a miniature style transmitter designed for automatic door and gate operator applications.

This transmitter is a two-channel device. Pressing the left button on the transmitter will send a channel one signal. Pressing the right button on the transmitter will send a channel two signal. A molded-in hole in the case is for attaching the transmitter to a key ring.

The transmitter is Multi-Code format with two 10-position coding switches providing 1,024 possible codes for each channel. Independent coding supports the activation of a common gate and a private door. The transmitter will only activate receivers set with the same code.

Features
  • Red test/operate LED
  • Raised-dimpled buttons for quick and simple identification
  • With (2) ten position-coding switches
  • The remote can be attached to a key ring.
  • Easily access battery and coding switches
Compatibility
  • Multi-Code 109950
  • Multi-Code 302850
Technical Specifications
  • Dimensions: 1.5" x 2.5" X .625"
  • Frequency: 300 MHz
  • Power: 12V battery power
  • Codes: 1.024 codes per channel
