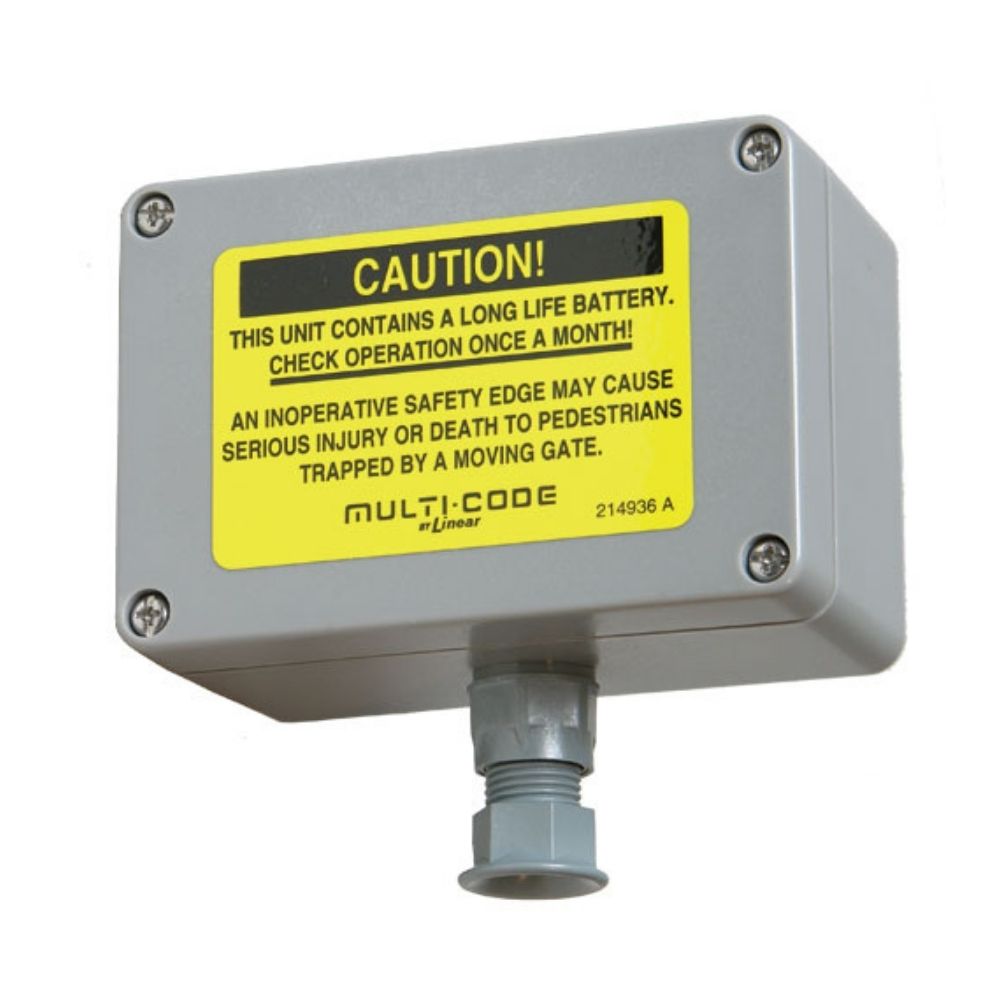

Multi-Code Safety Edge Transmitter | MUL-302210

This transmitter is for adding obstacle sensing for motorized gates or barrier arms. Using a safety edge transmitter is more economical and discrete than the traditional coiled cord connection method.

The transmitter mounts directly on the gate or barrier arm and wires to a standard exterior safety edge sensor (a Miller gate edge sensor is recommended). If an obstacle is encountered, the sensor will present a closed circuit across the connecting wires and the 302210 will transmit a message to the receiver signaling entrapment to the gate operator. The operator then stops or reverses the movement of the gate.

The 302210 transmitters are supplied in a weather-resistant, fiberglass box. Its circuit board is coated to prevent moisture damage. The enclosure mounts to the gate, door, or barrier arm through sealed interior mounting screws.

Compatibility
  • 300 MHz Multi-Code Receivers
  • Linear 109950 Receiver
  • Linear 302850 Receiver
Features
  • Safety edge transmitter
  • Activates receiver for a stop or reverse entrapment
  • No cables or coiled wires
  • Mounting hardware (4 screws) supplied
Technical Specifications
  • Power: 9-volt battery
  • Codes: 1,024 (set by dip switches)
  • RF frequency: 300 MHz
  • Dimensions: 4.28″ W x 2.875″ H x 2.25″ D
