Miller Edge Slide Gate Sensing Edge Monitored 5ft with Mounting Channel | MLE-MG110-K10-2E-05-T2

Miller EdgeSKU: MLE-MG110-K10-2E-05-T2

Price:
Sale price$109.30
Add to cart

Miller Edge Slide Gate Sensing Edge Monitored 5ft with Mounting Channel | MLE-MG110-K10-2E-05-T2

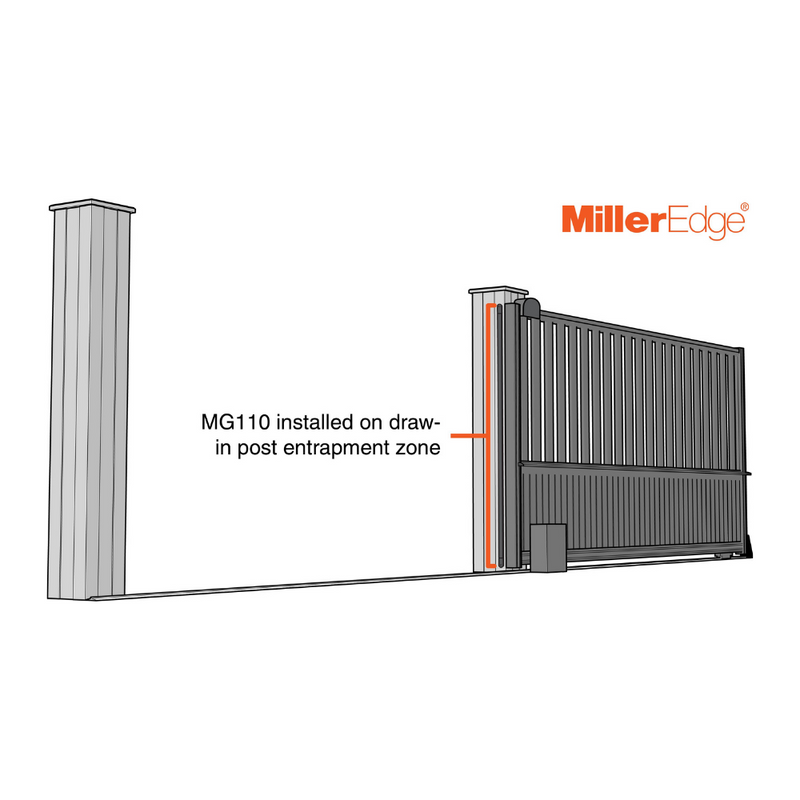

The small profile of the MG110 electric sensing edge is specially designed to protect draw-in posts, pockets, and pivot points in gate installations. When touched lightly, MG110 will send an immediate electrical signal to operator controls to stop and/or reverse gate operation.

Includes
  • 1 MG110 sensing edge
  • 1 ME110-C mounting channel
  • 2 molded nylon end caps
  • 2 stainless steel self-drilling mounting screws
Features
  • Small profile
  • Easy to install
  • Standard and custom lengths available
  • Molded end caps provide a clean, finished look
  • Patented Alumaglas™ for superior performance (electric option)
  • Mounts vertically or horizontally
  • Sealed assembly impervious to dust and debris
  • UL 325 Recognized Component
  • 1-year warranty
  • Made in the USA
Applications
  • Motorized gates
  • Slide gate draw-in posts
  • Pockets & pivot points
  • Barrier arms
Configurations
  • Monitored
  • 2-Wire
  • 10K resistor
  • 8.2K resistor
  • Diode capacitor
  • 4-Wire
Technical Specifications
  • Color: Black
  • Length: Order in 1/4 in. increments (manufacturing tolerance ±1/4 in.)
  • Maximum Length: 50 ft.
  • Sensitivity: Nominal 4-7 lbf
  • Lead Wire: SJTO, 22 gauge, 2 ft. length
  • Wire Outlet Location: Field selectable left or right
  • Electrical Maximum: 24 volts AC/DC, 1/2 amp
  • Electrical Configuration: Normally open
  • Operating Temperature: -30 °F to 155 °F (-34 °C to 68 °C)
  • Exterior Materials: Flexible PVC
  • Contact Element: Alumaglas™
  • Agency Approvals: UL 325 Recognized Component
    Product Literature
