Magnetic Autocontrol Toll HighSpeed 2 Right-Hand Barrier Gate Operator Only
For rapid toll processing
Rapid, reliable, and economical processing of vehicles is essential when collecting toll charges at bridges, tunnels, and on roads. Toll series barriers from Magnetic have been specially designed for this situation. The innovative MHTM™ drive at the heart of the barriers is characterized by its speed, lack of maintenance, and energy efficiency, thus keeping long-term costs down. The Toll barriers can be adapted to meet individual requirements: there are five models with opening times from 1.3–0.3 s, which can be equipped with a variety of control devices, flanges, and barrier arms.
CE Microdrive Toll Highspeed. Rapid, reliable, and economical processing of road users is essential when collecting toll charges at bridges, tunnels, and on roads. Toll Barriers from Magnetic have been specially designed for this situation.
Note
Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.

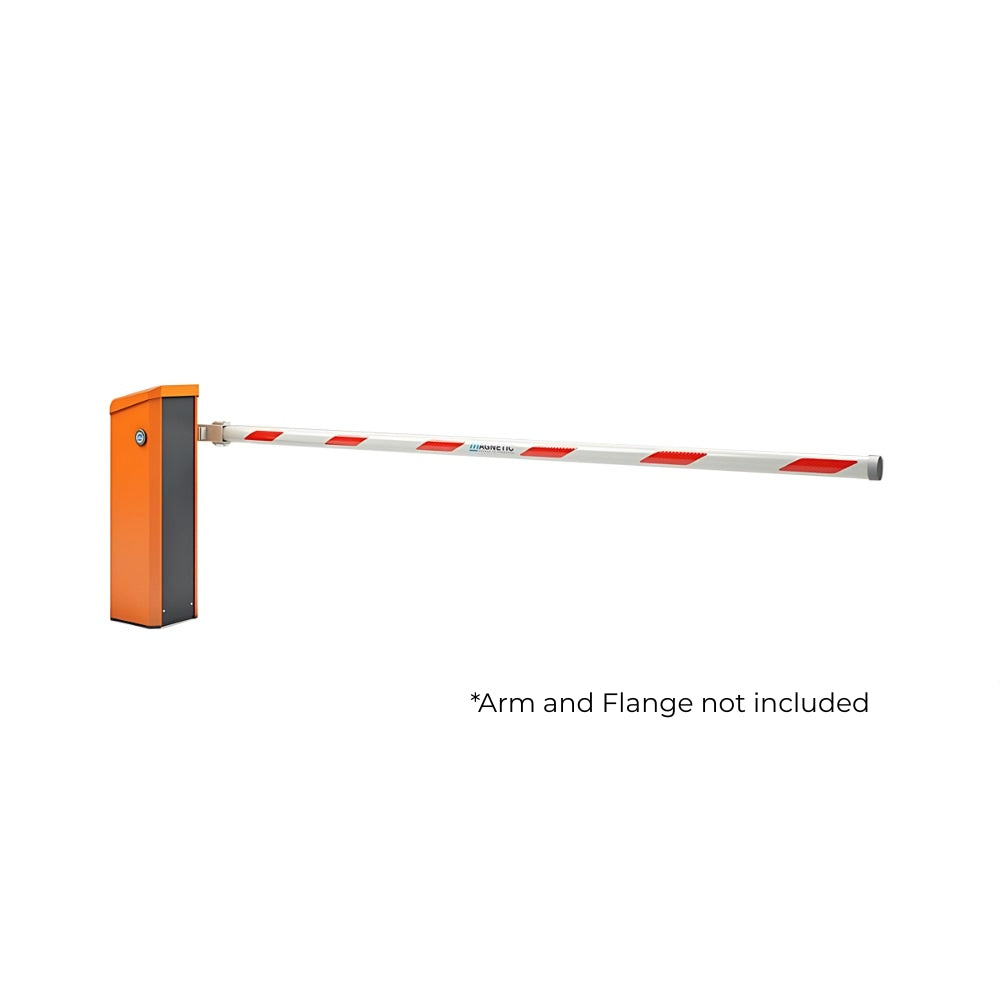

*Arm and Flange not included

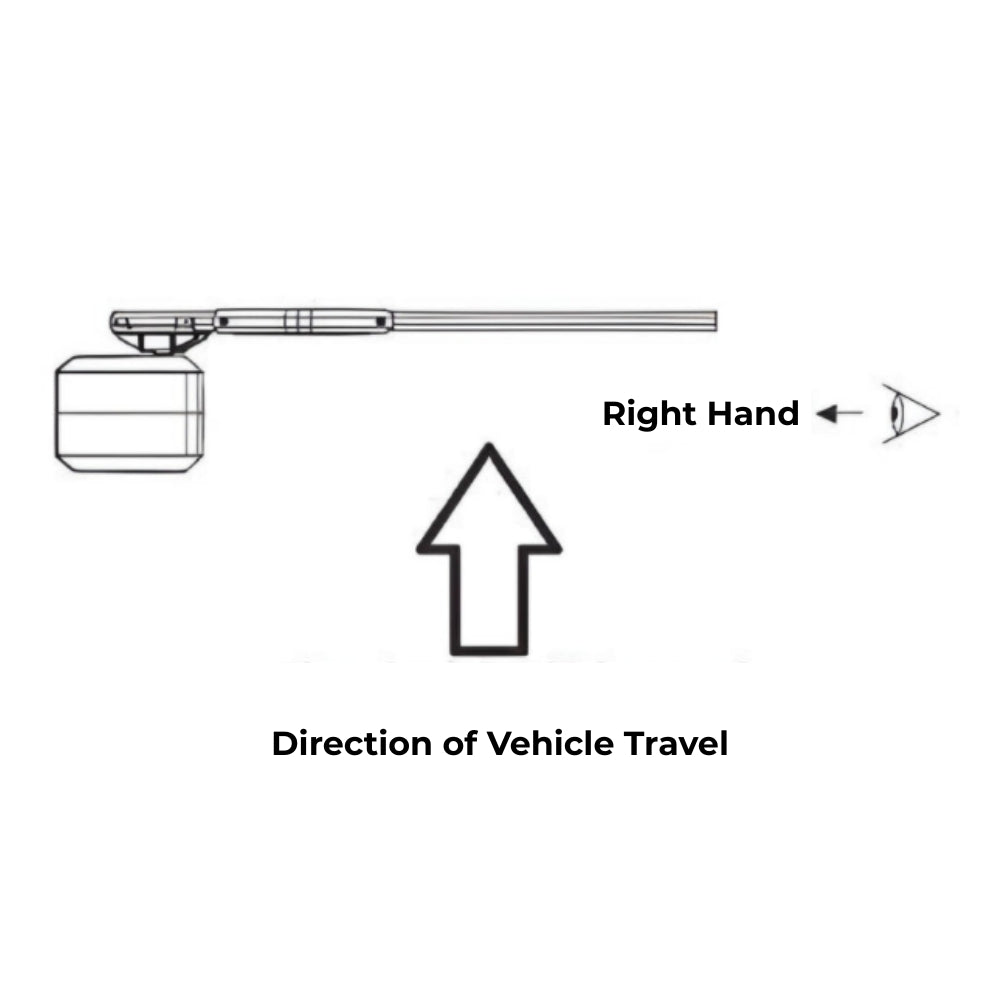

This configuration is for the right-hand operator version of the product.
If you need the left-hand version, click here.
Effective Toll Processing
Toll barriers from Magnetic are the optimum solution for all toll applications thanks to their speed, reliability, and low operating costs. Thanks to their high energy efficiency, extremely long service lives, and simple maintenance, barriers from Magnetic are particularly cost-effective – an investment that will certainly pay off!
Innovative drive technology
The MHTM™ drive unit operates energy-efficiently, quietly, and maintenance-free. Its high torque ensures the best possible operation even under extreme weather conditions.
Individual configuration
Five models, three control units, three different barrier arm types – the Toll barriers can be individually adapted to your requirements. Our staff can help you figure out which configuration best suits your application.
Easy access to components
Two simple steps: control systems and the drive unit are easily reached by removing the top cover and front plate. This increases user-friendliness and accelerates commissioning and service.
Features
- Opening and closing times of as fast as 0.3s
- Very low operating costs due to efficient and long-lived MHTM™ drive
- Very user-friendly and optimum accessibility
- Prize-winning design: 2014 German Design Award and 2012 Red Dot Award for design
- Designed for 10 million opening and closing processes
Manufacturer's Warranty Period
- 2 years or 2 million cycles (whichever occurs first)
Technical Specifications
- Lane Width: max. 12 ft. (with 2 barriers)
- Opening/closing time: 0.3 s
- Power consumption: max. 450 W (ea.)
- Drive technology: MHTM™
- Voltage: 85–264 VAC, 50/60 Hz
- Duty cycle: 100%

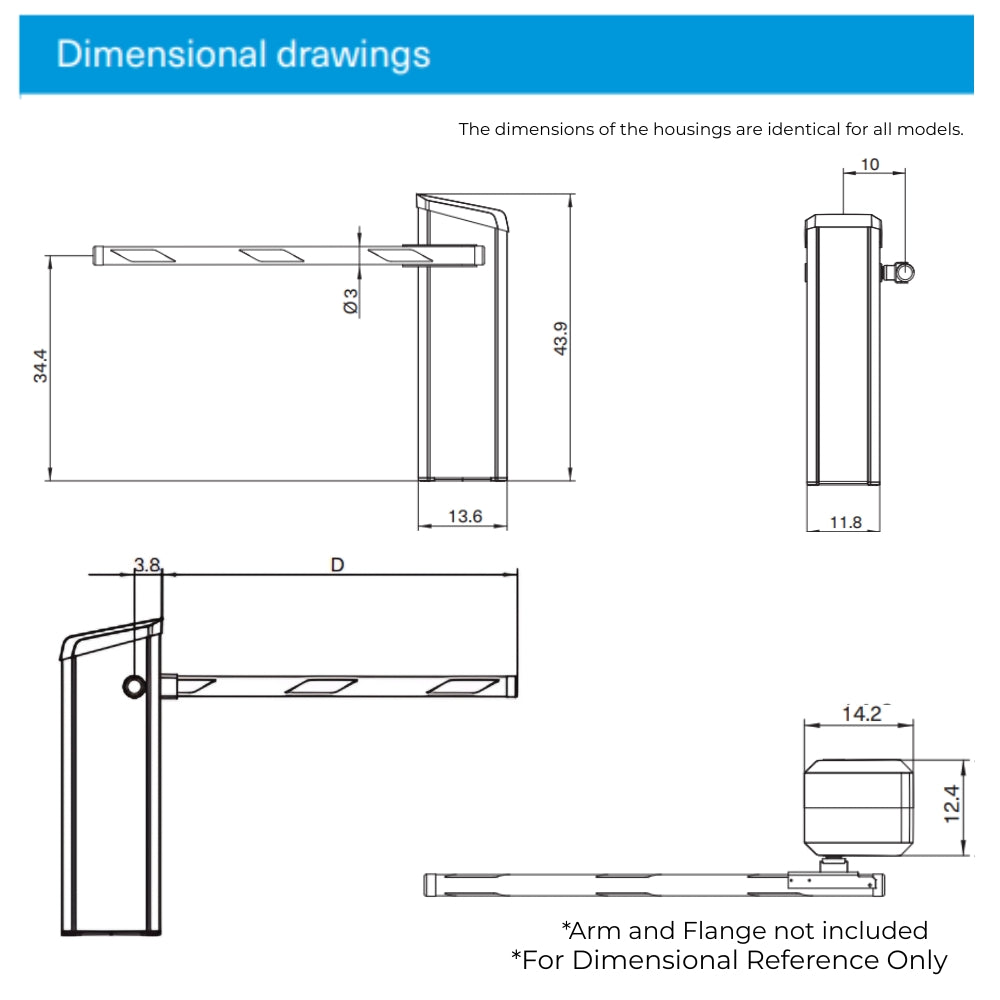

- Housing dimensions (W x D x H): 12.4" x 14.2" x 43.90"
- Enclosure rating: IP54
- Temperature range: −22 to +131°F (−30 to +55°C)
- Weight: Approx. 97 lbs.
-
Standard Color: Orange (RAL 2000), White (RAL 9010)
- Control system: MGC-H w/o loop detector
- Number of digital inputs: 8
- Input with test for safety light barrier/ laser scanner: 1
- Number of relay/digital outputs: 6/4
- Closing speed: Adjustable
