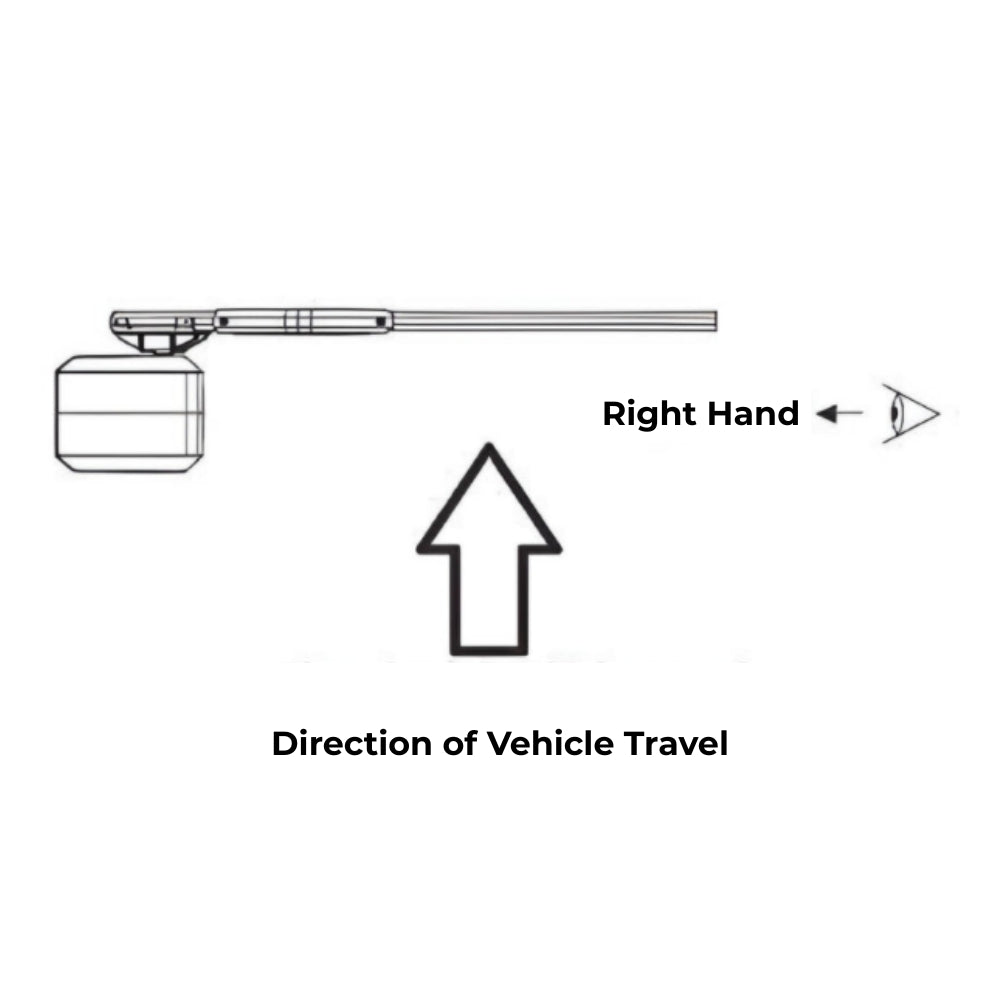

Magnetic Autocontrol Microdrive Parking Pro Right Hand with Breakaway Flange (VarioBoom 12' Passage)

Magnetic AccessSKU: MAG-PARKING-PRO-RCB1200

Model: Orange
Price:
Sale price$4,071.43
  • Estimated delivery 4 weeks.

Estimate shipping

Magnetic Autocontrol Microdrive Parking Pro Right Hand with Breakaway Flange (VarioBoom 12ft. Passage)

For heavily frequented parking and access control locations

Parking Pro barriers from Magnetic are the ideal solution for parking and access control applications with lanes up to 12 ft. Thanks to their configuration and security settings, Parking Pro barriers are designed for use in heavily frequented facilities where interaction with people can be ruled out. Rapid opening times (1.3 s) and the detection of tailgating vehicles ensures reliable processing for users, while low energy consumption, low-maintenance components and simple servicing keeps running costs down permanently.

The barrier arms are optimized for use in parking applications: with the breakaway option, for example, the barrier arm is completely detached in the case of a forced unauthorized passage – and it can be re-attached again without any impairment of function. In addition, visibility can be further increased by means of lighting elements and an expansion set. At the heart of the car park barrier is the innovative MHTMTM drive, characterized by its energy efficiency, lack of maintenance, and long service life – the Parking Pro is designed for 10 million opening and closing cycles.

Note

Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.

The breakaway flange cannot be used with an articulated arm.

Features
  • Reliable detection of tailgating vehicles
  • Very low operating costs thanks to efficient and durable MHTM™ drive
  • Optimum accessibility for easy maintenance
  • German Design Award 2014 and red dot design award 2012
  • Designed for 10 million opening and closing cycles
Manufacturer's Warranty Period
  • 2 years or 2 million cycles (whichever occurs first)
Technical Specifications
  • Barrier width: max. 12 ft
  • Barrier Arm Type: VarioBoom Breakaway
  • Opening/closing time: 1.3 s
  • Power consumption max.: 95 W
  • Drive technology: MHTMTM
  • Voltage: 85–264 VAC, 50/60 Hz
  • Duty cycle: 100%

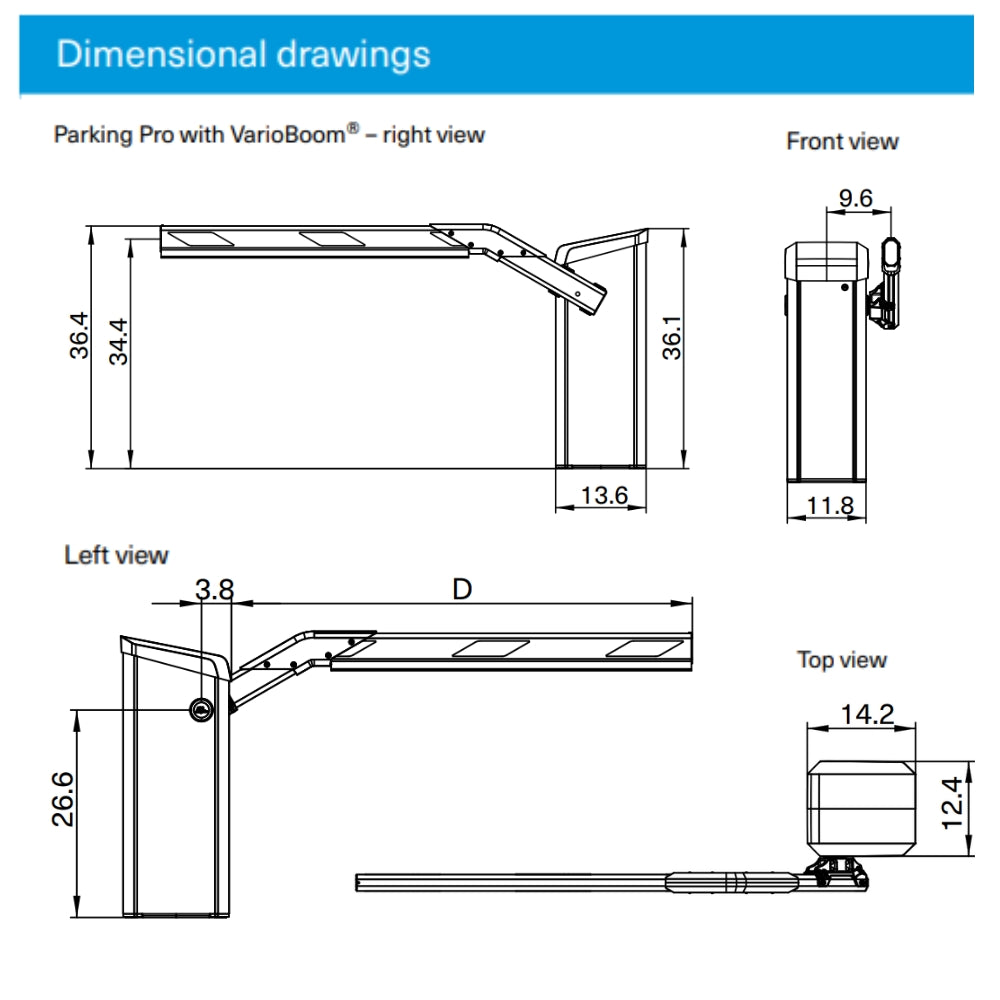

  • Housing dimensions: (W x D x H) 12.4 x 14.2 x 36.0 in
  • Enclosure rating: IP 54
  • Temperature range: −22 to +131° F
  • Standard colors: RAL 2000, 9006, 9007, 9010
  • VarioBoom barrier arm: Standard
  • Control system: MGC Pro
  • Integrated 2-channel detector for induction loops: Standard
  • Modular expansion of control system: Standard
  • Variable I/O assignment: Standard
  • No. of digital inputs: 8
  • No. of relays/digital outputs: 6/4
  • Selectable closing speed: Standard
  • Selectable opening speed: Standard
