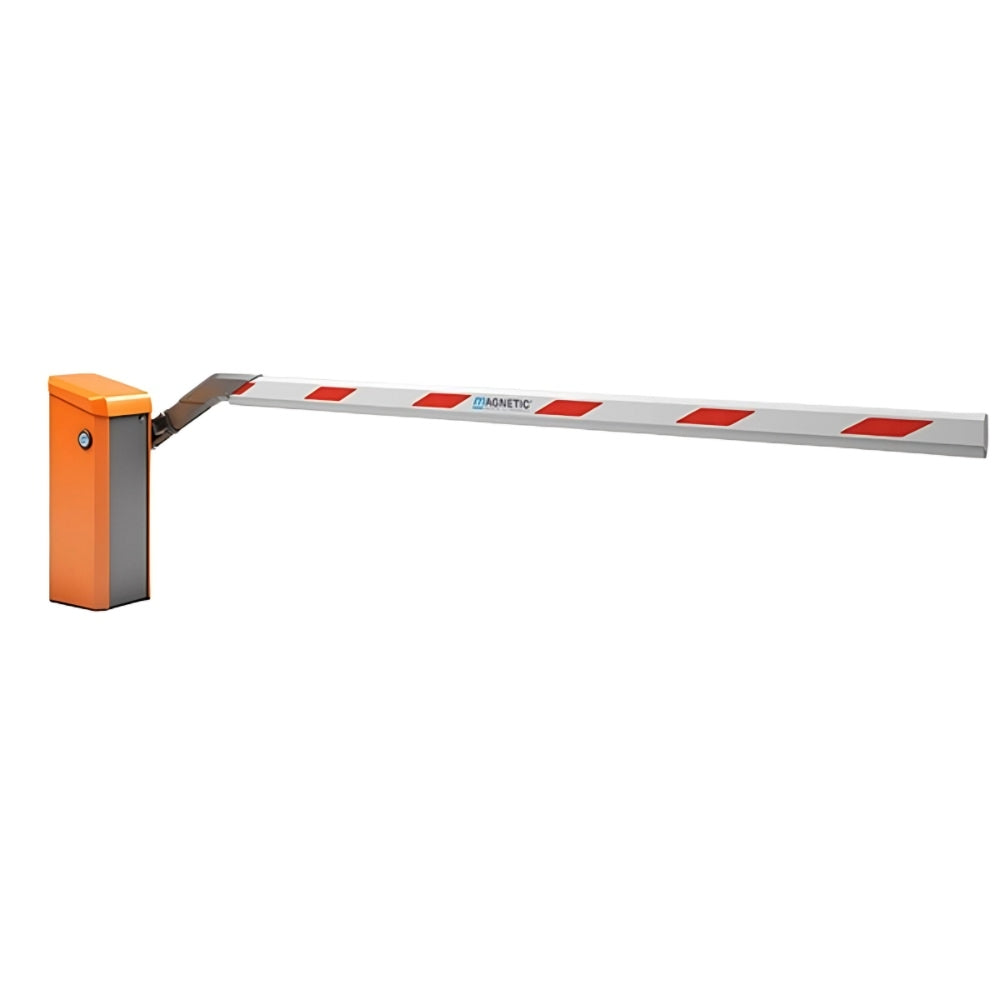

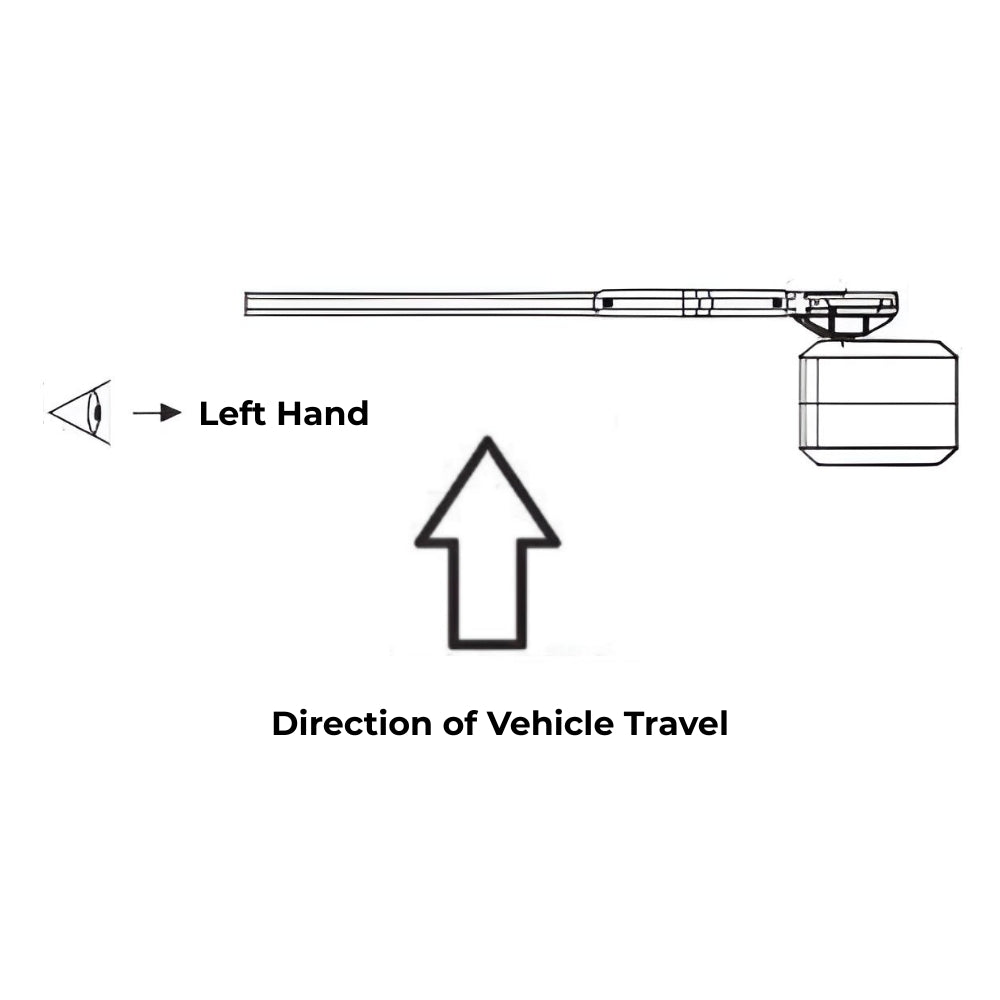

Magnetic Autocontrol Parking Pro Left-Hand Barrier Gate with 12' VarioBoom Arm

For heavily frequented parking and access control locations

Parking Pro barriers from Magnetic are the ideal solution for parking and access control applications with lanes up to 12 ft. Thanks to their configuration and security settings, Parking Pro barriers are designed for use in heavily frequented facilities where interaction with people can be ruled out. Rapid opening times (1.3 s) and the detection of tailgating vehicles ensure reliable processing for users, while low energy consumption, low-maintenance components, and simple servicing keep running costs down permanently.

The barrier arms are optimized for use in parking applications: with the breakaway option, for example, the barrier arm is completely detached in the case of a forced unauthorized passage – and it can be re-attached again without any impairment of function. In addition, visibility can be further increased by means of lighting elements and an expansion set. At the heart of the car park barrier is the innovative MHTM™ drive, characterized by its energy efficiency, lack of maintenance, and long service life – the Parking Pro is designed for 10 million opening and closing cycles.

Note

Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.

If you need the right-hand version, click here.

This product is a special order only, and it is not eligible for returns or refunds.

Advanced Access Control for High-Traffic Environments

Engineered for performance and reliability, the Magnetic Autocontrol Parking Pro Left-Hand Barrier Gate with a 12' VarioBoom Arm is the ideal choice for managing vehicle access in demanding environments such as commercial parking lots, industrial facilities, residential communities, and toll plazas. This premium barrier gate combines cutting-edge technology with robust construction, ensuring smooth, secure, and efficient operation for years to come.

Unmatched Speed and Durability:

The Parking Pro series is renowned for its exceptional speed and endurance. With an opening/closing time as fast as 1.3 seconds (depending on boom length and configuration), it minimizes wait times and keeps traffic flowing. Built with high-quality components and a durable housing, this gate is designed to withstand continuous operation in various weather conditions, making it a reliable solution for high-frequency use.

Intelligent Control and Safety Features:

Equipped with advanced control electronics, the Parking Pro offers a range of customizable settings and intelligent features. Integrated loop detectors, safety photocells, and various access control integrations ensure secure operation and prevent accidents. The VarioBoom arm is designed for flexibility and can be adjusted to specific requirements, offering optimal lane coverage. Its break-away function (optional, depending on boom type) can prevent damage to the barrier and vehicle in case of impact

Features

• Reliable detection of tailgating vehicles
• Very low operating costs thanks to efficient and durable MHTM™ drive
• Optimum accessibility for easy maintenance
• German Design Award 2014 and red dot design award 2012
• Designed for 10 million opening and closing cycles
• UL Approved
• 2-year warranty

Manufacturer's Warranty Period

• 2 years or 2 million cycles (whichever occurs first)

Technical Specifications

• Barrier width: max. 12 ft
• Opening width: 12 ft.
• Barrier Arm Type: VarioBoom
• Opening/closing time: 1.3 s
• Power consumption max.: 95 W
• Drive technology: MHTM™
• Voltage: 85–264 VAC, 50/60 Hz
• Duty cycle: 100%

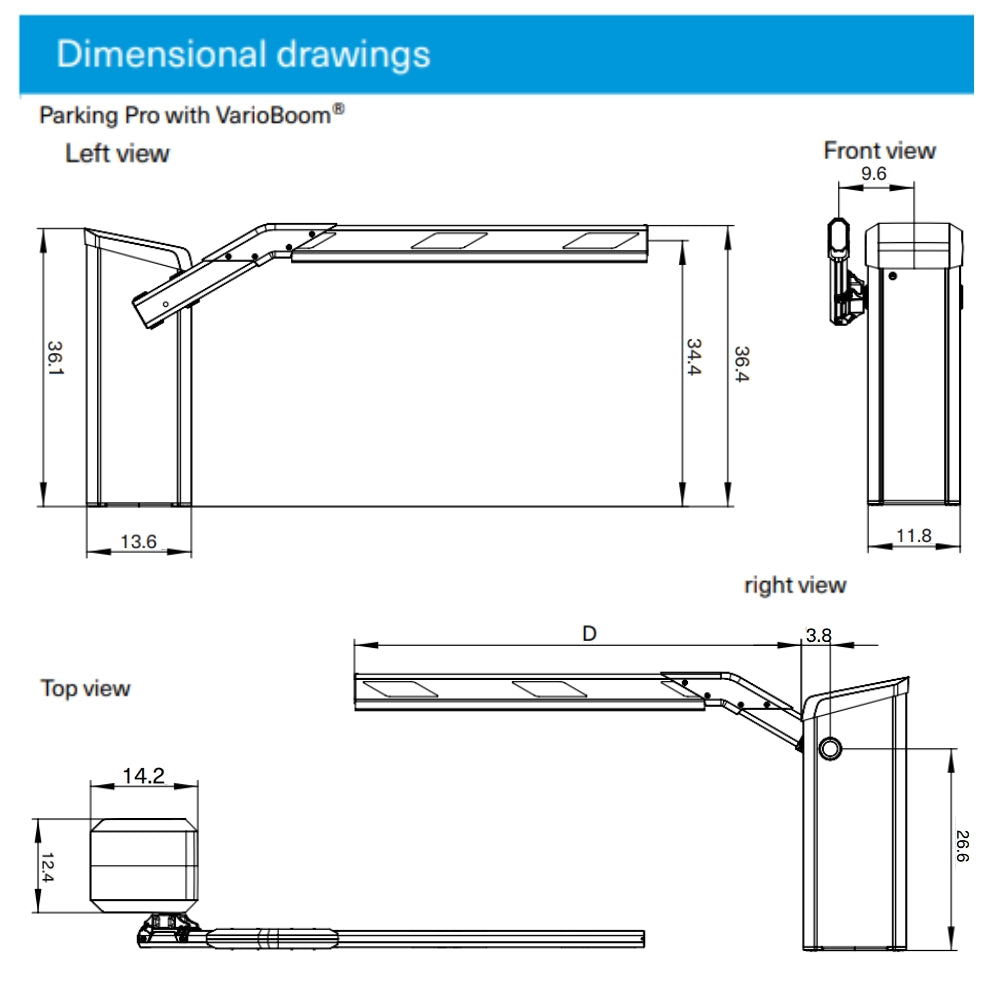

• Housing dimensions: (W x D x H) 12.4 x 14.2 x 36.0 in
• Enclosure rating: IP 54
• Temperature range: −22 to +131°F
• Standard colors: Orange, Dark Grey, Light Grey, White (RAL 2000, 9006, 9007, 9010)
• VarioBoom barrier arm: Standard
• Control system: MGC Pro
• Integrated 2-channel detector for induction loops: Standard
• Modular expansion of control system: Standard
• Variable I/O assignment: Standard
• No. of digital inputs: 8
• No. of relays/digital outputs: 6/4
• Selectable closing speed: Standard
• Selectable opening speed: Standard
• Safety Standards: UL 325 compliant.

Product Literature

• Magnetic Autocontrol Microdrive Parking Pro Brochure
• Magnetic Limited Warranty Policy
