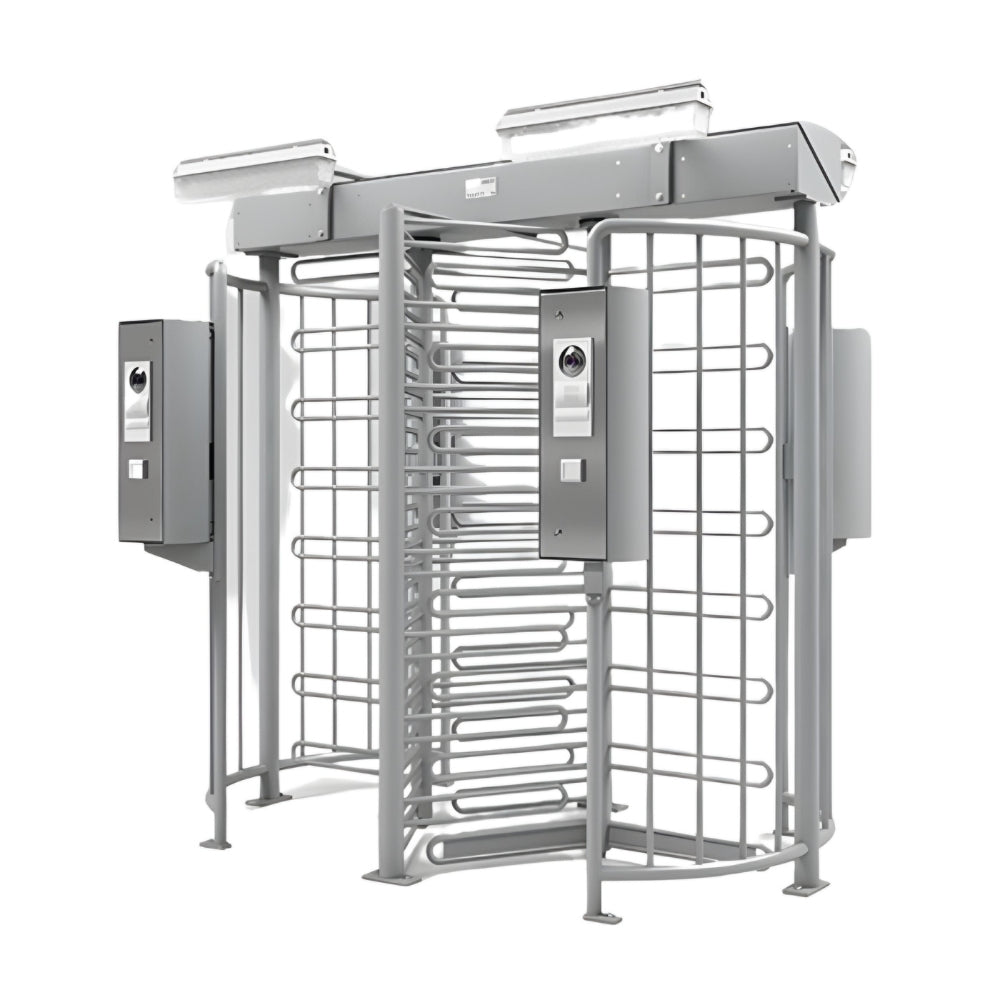

Magnetic Autocontrol MPT Full-height Turnstile Dual Lane Electro-Mechanical (RAL 7042/SS 316) | MAG-MPT53C-C340G
For persons in outdoor areas
MPT dual-lane turnstiles are the ideal solution for outdoor access control when two passage lanes are required and where space is limited. MPT turnstiles can be easily adapted to your requirements thanks to the drive variants offered. The MPT 53 has an electromechanical locking unit and the rotary movement is initiated by users themselves – a popular variant at leisure parks and stadiums. MPT turnstiles can also be individually adapted to your requirements in other ways: with a variety of material options, interlock variants, additional attachments and expansions for bicycles, wheelchairs, and the transport of material.
All MPT Full-Height Turnstiles now feature the well-known logic controller MGC (Magnetic Gate Controller). The MGC control unit is equipped with one plug-in module MFM01. Further functionality is possible with additional plug-in modules.
Note
Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.
Features
- Space-saving dual-lane system for two independent passageways
- Electromechanical or motorized designs available
- Sensitive impact detection for maximum safety
- Numerous options, e.g. expansion for wheelchair access
- Meets industry safety standards
Manufacturer's Warranty Period
- 2 years or 2 million cycles (whichever occurs first)
Technical Specifications
- Drive technology: ElectroMechanical
- Finishing Details: Frame and top cover are fully powder-coated in RAL 7042, Center column is SS 316
- Controller technology: MGC
- Number of wings (angle): 3 (120°)
- Voltage: 110 – 240 VAC, 50/60 Hz
- Power consumption: Approx. 50 W
- Duty cycle: 100 %
- Enclosure rating: IP 43
- Dimensions (L x W x H): 87 x 51.9 x 88 in.
- Weight: Approx. 992 lb.
- Temperature range: −22 to +131°F
Options
- Material: Powder-coated steel in standard colors, powder-coated steel in special colors, stainless steel 316
- Reaction to power failure: Free access or auto-locking (secure) on power failure
- Attachments: Overhead illumination, Gate End Display (GED), Access Control System/Coin Box Enclosure
- Expansions: Controlled access for bicycles, wheelchairs and the transport of material (MPG 162)
