Magnetic Autocontrol MPT Full-height Turnstile Single-lane Electromechanical (Custom Color) | MAG-MPT33C-C300GX

Magnetic AccessSKU: MAG-MPT33C-C300GX

Price:
Sale price$7,642.29

Estimate shipping

Magnetic Autocontrol MPT Full-height Turnstile Single-lane Electromechanical (Custom Color) | MAG-MPT33C-C300GX

For persons in outdoor areas

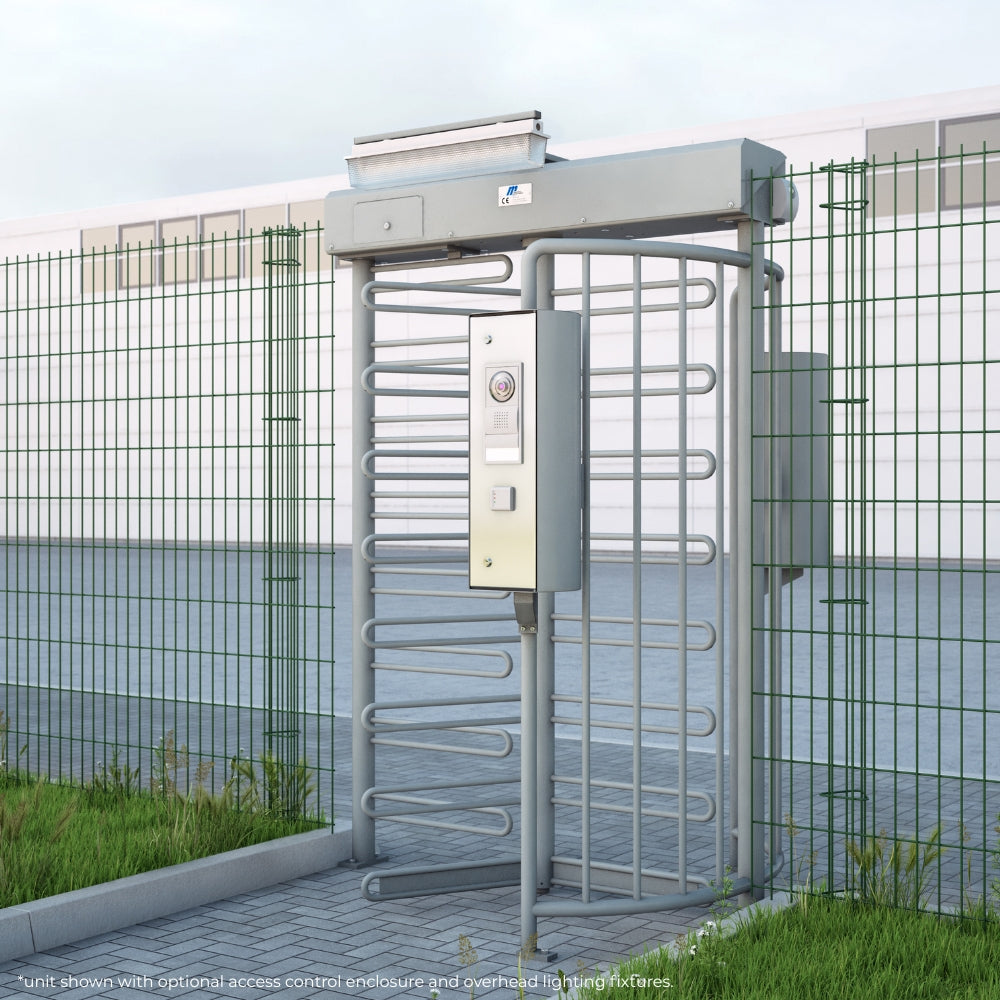

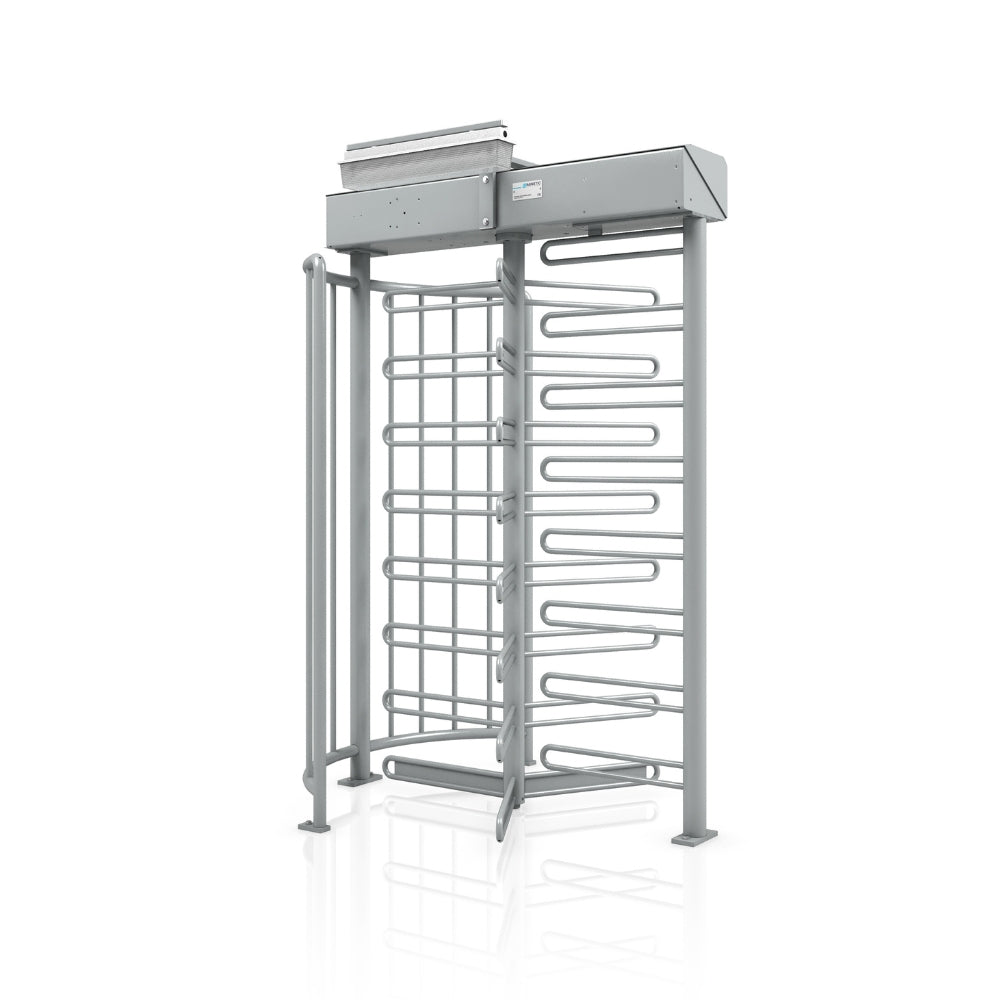

Magnetic MPT turnstiles are the ideal solution for controlling access indoors or outdoors where many people will enter or leave an area expediently. The MPT 333 has an electromechanical interlock unit and the rotary movement is initiated by users themselves – a popular variant at leisure parks and stadiums. Both drive versions can be controlled by means of all conventional access control systems and can be operated bi-directionally as an option. MPT turnstiles can also be individually adapted to your requirements in other ways: with a variety of material options, interlock variants, additional attachments, and expansions for bicycles, wheelchairs, and material carts.

All MPT Full-Height Turnstiles now feature the well-known logic controller MGC (Magnetic Gate Controller). The MGC control unit is equipped with one plug-in module MFM01. Further functionality is possible with additional plug-in modules.

Note

Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.

Features
  • Reliable securing of outdoor areas and company grounds with high rates of pedestrian traffic
  • Electromechanical or motorized designs available
  • Sensitive impact detection for maximum safety
  • Numerous options, e.g. expansion for wheelchair access
  • Designed for 10 million opening and closing actions
Manufacturer's Warranty Period
  • 2 years or 2 million cycles (whichever occurs first)
Technical Specifications
  • Controller Technology: MGC
  • Number of wings (angle): 3 (120°)
  • Drive technology: Electromechanical
  • Voltage: 110 – 240 VAC, 50/60 Hz
  • Power consumption: approx. 50 W (without accessories)
  • Duty cycle: 100 %
  • Enclosure rating: IP 43
  • Finishing Details: Fully powder coated in custom color
  • Dimensions (L x W x H): 59.4 x 59.1 x 88.0 in
  • Weight: approx. 550 lb
  • Temperature range: −13 to +131°F
Options
  • Material: Powder-coated steel in standard colors, powder-coated steel in special colors, stainless steel 316
  • Reaction to power failure: Free access or auto-locking (secure) on power failure
  • Attachments: Overhead illumination, Gate End Display (GED), base frame, base mounting set, Access Control System/Coin Box Enclosure
