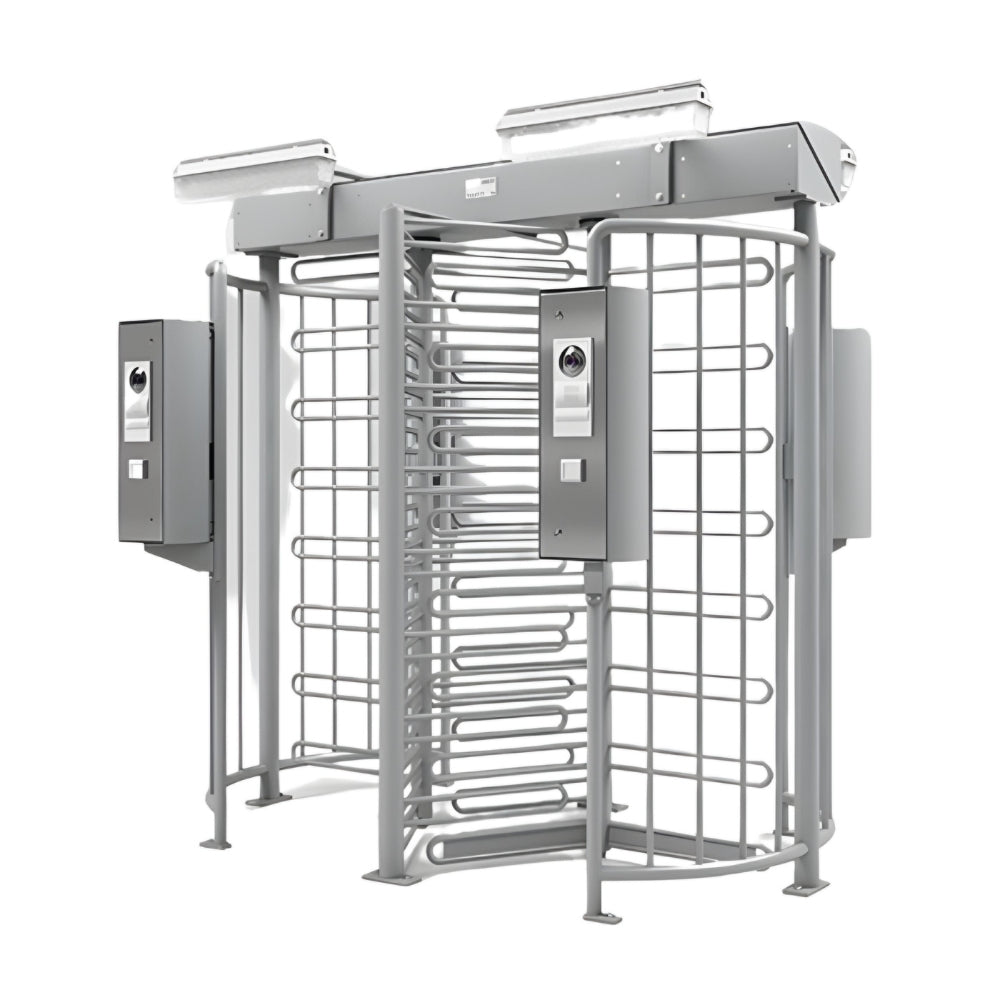

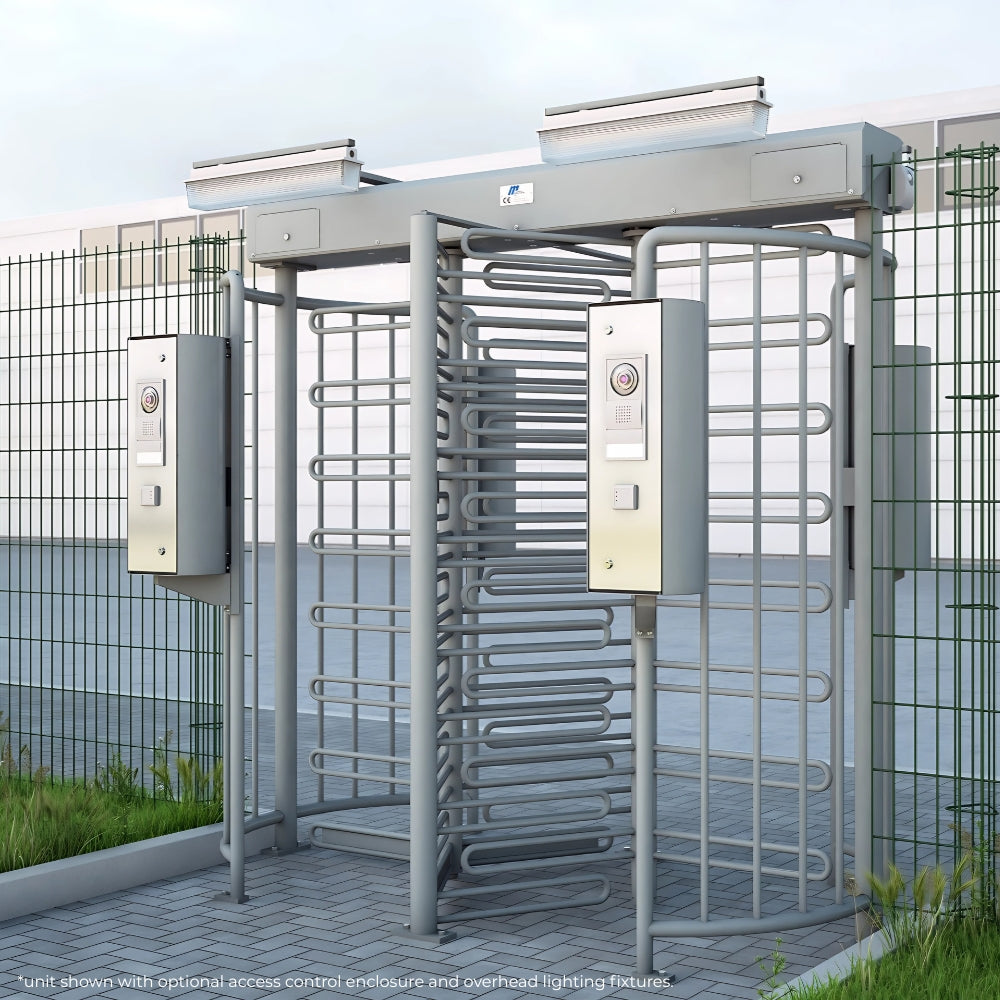

Magnetic Autocontrol MPT Full-Height Dual-Lane Motorized Turnstile (RAL 7042) | MAG-MPT152C-C300
For pedestrian control in outdoor applications
MPT dual-lane turnstiles are the ideal solution for outdoor access control. MPT turnstiles can be easily adapted to your requirements thanks to the drive variants offered: the electric motor-driven MPT 152 turnstile is set in motion by means of an energy-efficient, maintenance-free MHTM™ drive unit – the first choice for representative security for outdoor areas and company grounds.
Both drive versions can be controlled by means of all conventional access control systems and can be operated in both throughflow directions as an option. MPT turnstiles can also be individually adapted to your requirements in other ways.
All MPT Full-Height Turnstiles now feature the well-known logic controller MGC (Magnetic Gate Controller). The MGC control unit is equipped with one plug-in module MFM01. Further functionality is possible with additional plug-in modules.
Note
Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.
Two passages in one
MPT double turnstiles are the optimum solution when two separate passages are needed in tight spaces.
Innovative drive technology
The MHTM™ drive unit (optional) is maintenance-free, energy-efficient, and has an exceptional soft-start action.
Maximum safety
Low-impact force and sensitive contact detection offer optimum protection for pedestrians.
Easy access to components
All the components necessary for operation are contained in the main header beam, simplifying assembly, setup, and maintenance.
Features
- Space-saving dual-lane system for two independent passageways
- Electromechanical or motorized designs are available
- Sensitive impact detection for maximum safety
- Numerous options, e.g., expansion for wheelchair access
- Meets industry safety standards
Manufacturer's Warranty Period
- 2 years or 2 million cycles (whichever occurs first)
Technical Specifications
- Drive Technology: MHTM™ motor
- Power Type: Motorized
- Finishing Details: Fully powder-coated in RAL 7042
- Controller Technology: MGC
- Number of wings (angle): 3 (120°)
- Voltage: 110 – 240 VAC, 50/60 Hz
- Power consumption: Approx. 50 W
- Duty cycle: 100 %
- Enclosure rating: IP 43

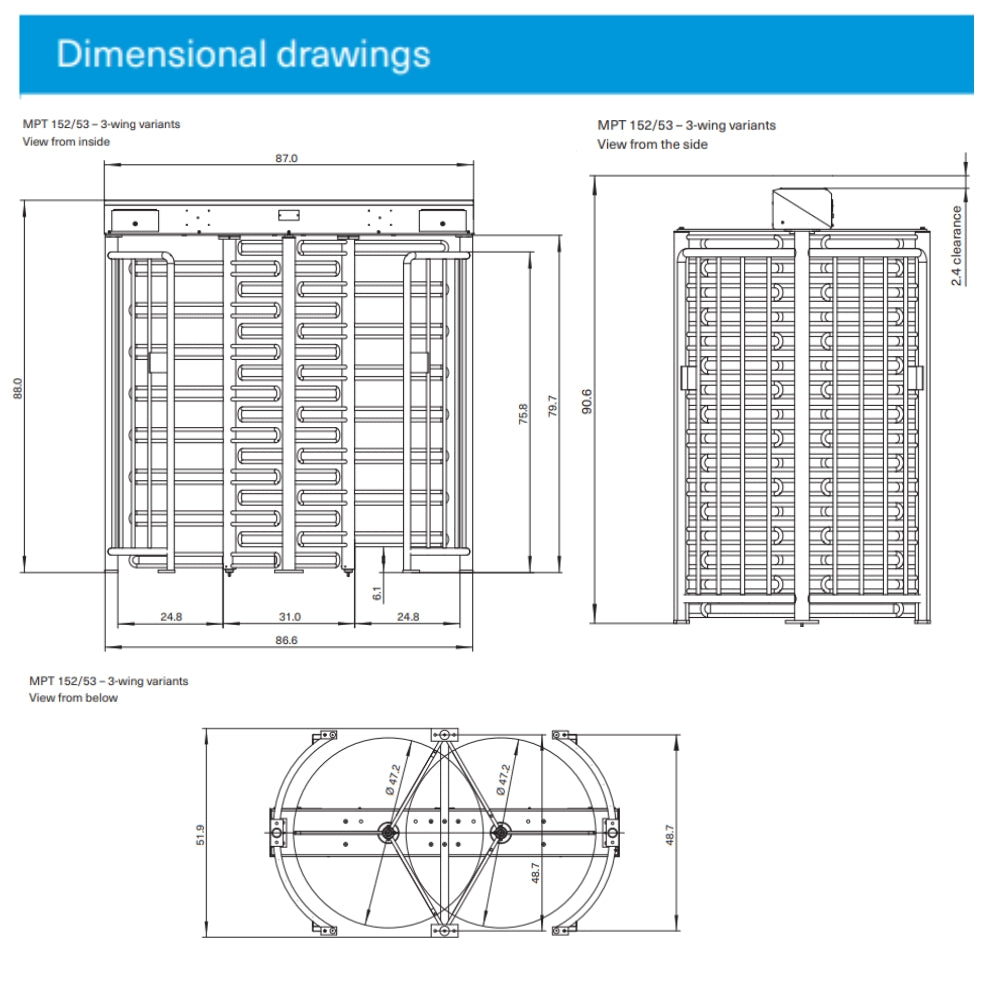

- Dimensions (L x W x H): 87" x 51.9" x 88"
- Weight: Approx. 992 lb.
- Temperature range: −13 to +131°F
Options
- Material: Powder-coated steel in standard colors, powder-coated steel in special colors, stainless steel 316
- Reaction to power failure: Free access or auto-locking (secure) on power failure
- Attachments: Overhead illumination, Gate End Display (GED), Access Control System/Coin Box Enclosure
- Expansions: Controlled access for bicycles, wheelchairs, and the transport of material (MPG 162)
