Magnetic Autocontrol MPG Standalone Motorized Pedestrian Gate 42' Passage Custom in Color | MAG-MPG-172C-C100X

Magnetic AccessSKU: MAG-MPG-172C-C100X

Price:
Sale price$15,054.00

Estimate shipping

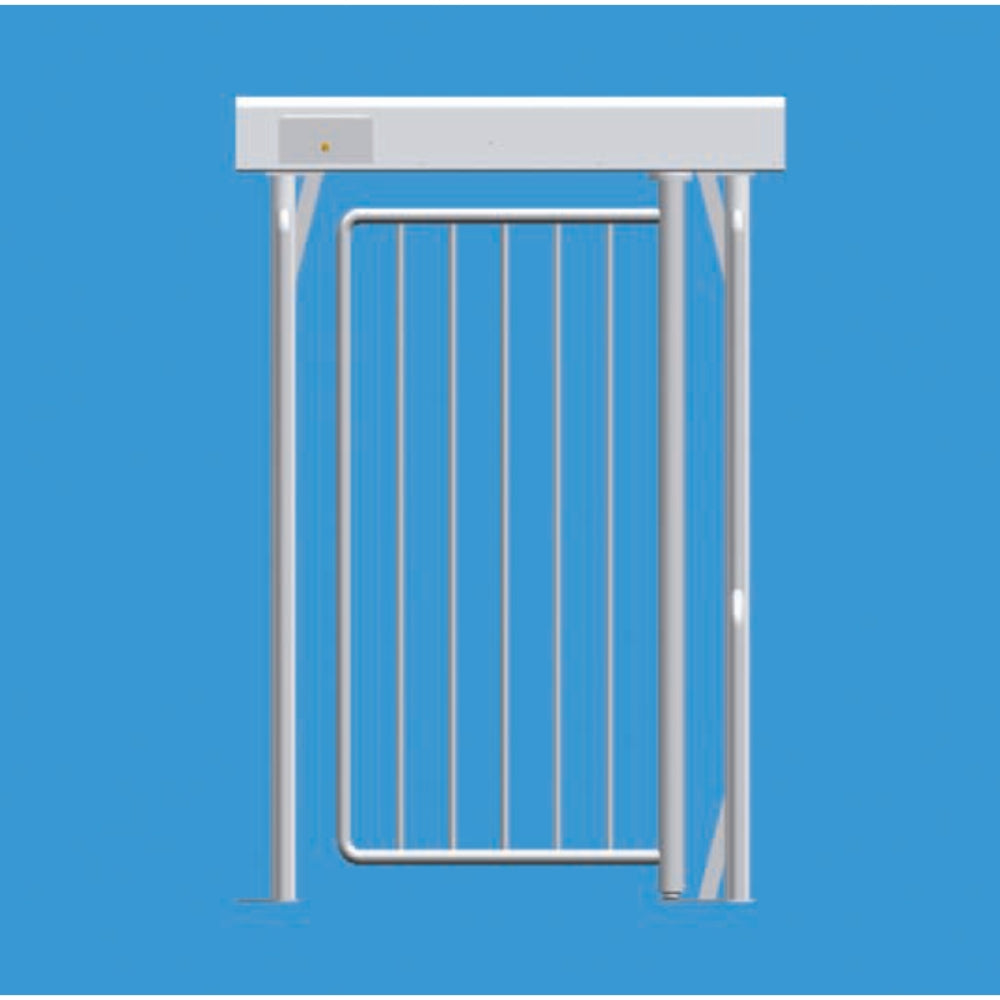

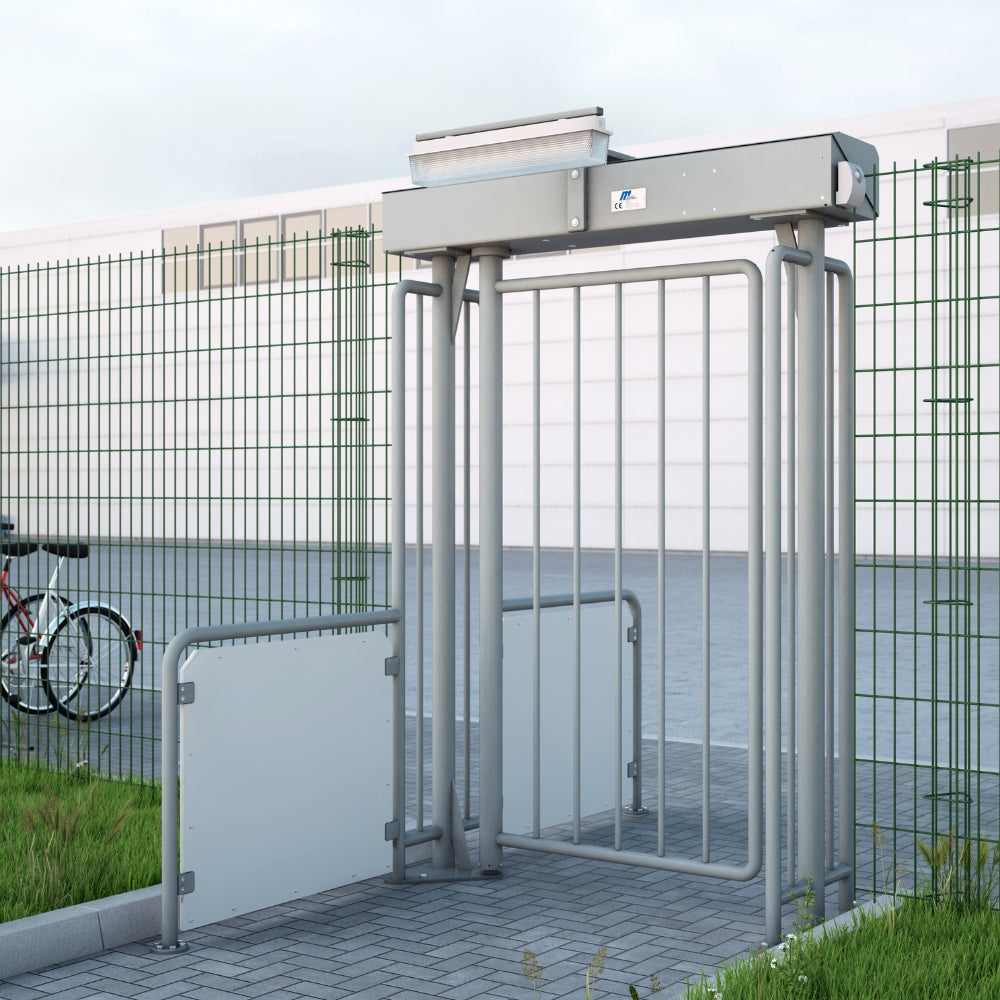

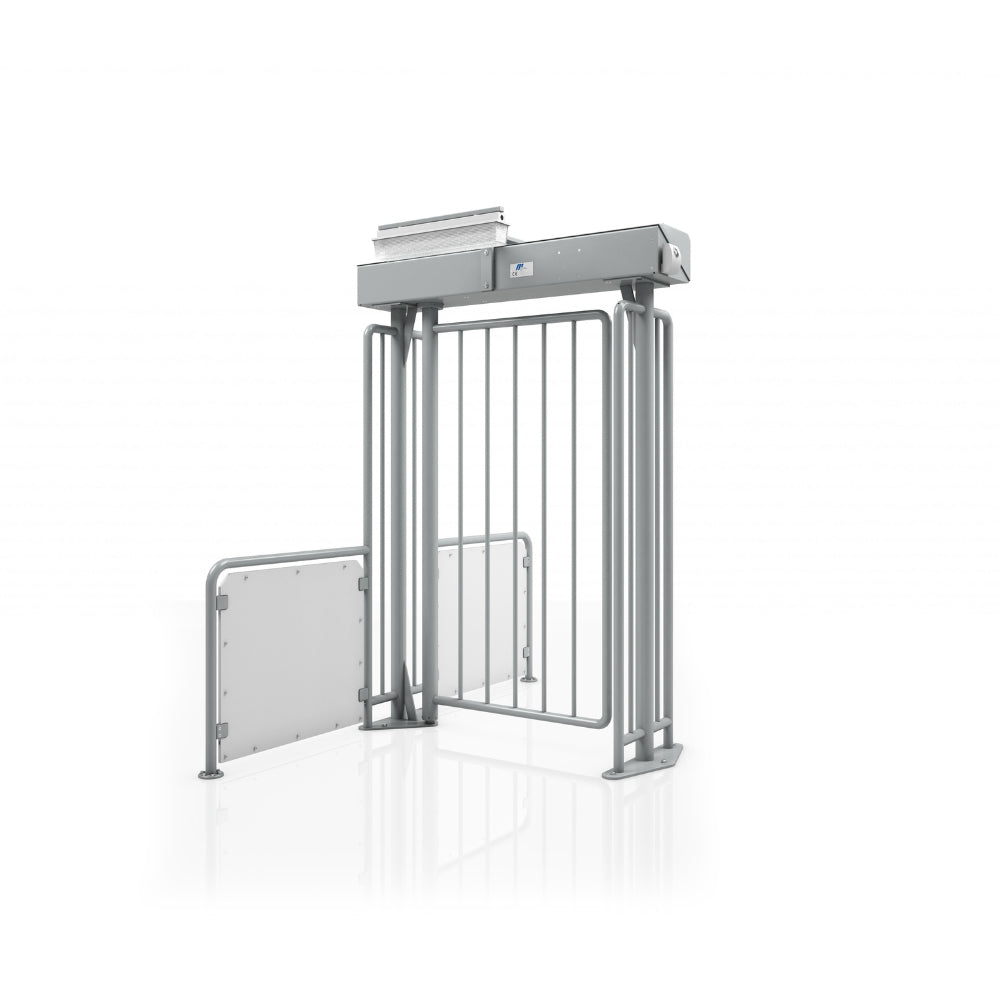

Magnetic Autocontrol MPG Standalone Motorized Pedestrian Gate 42 ft. Passage in Custom Color | MAG-MPG-172C-C100X

For wheelchairs, bicycles and goods deliveries

MPG swing gates are the optimum barrier solution when a large passage opening is required in indoor or outdoor access points. It can be free-standing or used in combination with a Magnetic MPT turnstile. The swing gate has an opening angle of 90° in both directions and can be controlled by most access control systems. As an option, the swing gate can be expanded with a single- or double-sized induction loop that reliably detects the presence of bicycles and wheelchairs. The swing gate is energy-efficient, maintenance-free, and quiet thanks to its MHTM™ drive technology. Low impact forces and sensitive contact detection ensure user safety and compliance with strict industry standards. With a variety of material options, interlocks, and supplementary attachments, MPG swing gates can be individually adapted to the desired purpose.

Note

Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.

Includes
  • Power failure kit (1031.5343)
Features
  • Fully-motorized operation
  • Controlled access for cyclists and wheelchair users
  • Sensitive impact detection for maximum safety
  • Induction loop sensor for detection of bicycles and wheelchairs (optional)
  • Low electricity consumption thanks to maintenance-free MHTM™ drive
  • Meets European safety standards, e.g. EN 13241
Manufacturer's Warranty Period
  • 2 years or 2 million cycles (whichever occurs first)
Technical Specifications
  • Installation: Free-standing
  • Finishing Details: Frame and top cover surfaces fully powder coated in custom color
  • Drive technology: MHTM™
  • Voltage: 110-240 VAC, 50/60 Hz
  • Power consumption: Approx. 50 W
  • Duty cycle: 100%
  • Opening/closing times: Approx. 3 s
  • Passage width: 42.1 in
  • Enclosure rating: IP 43

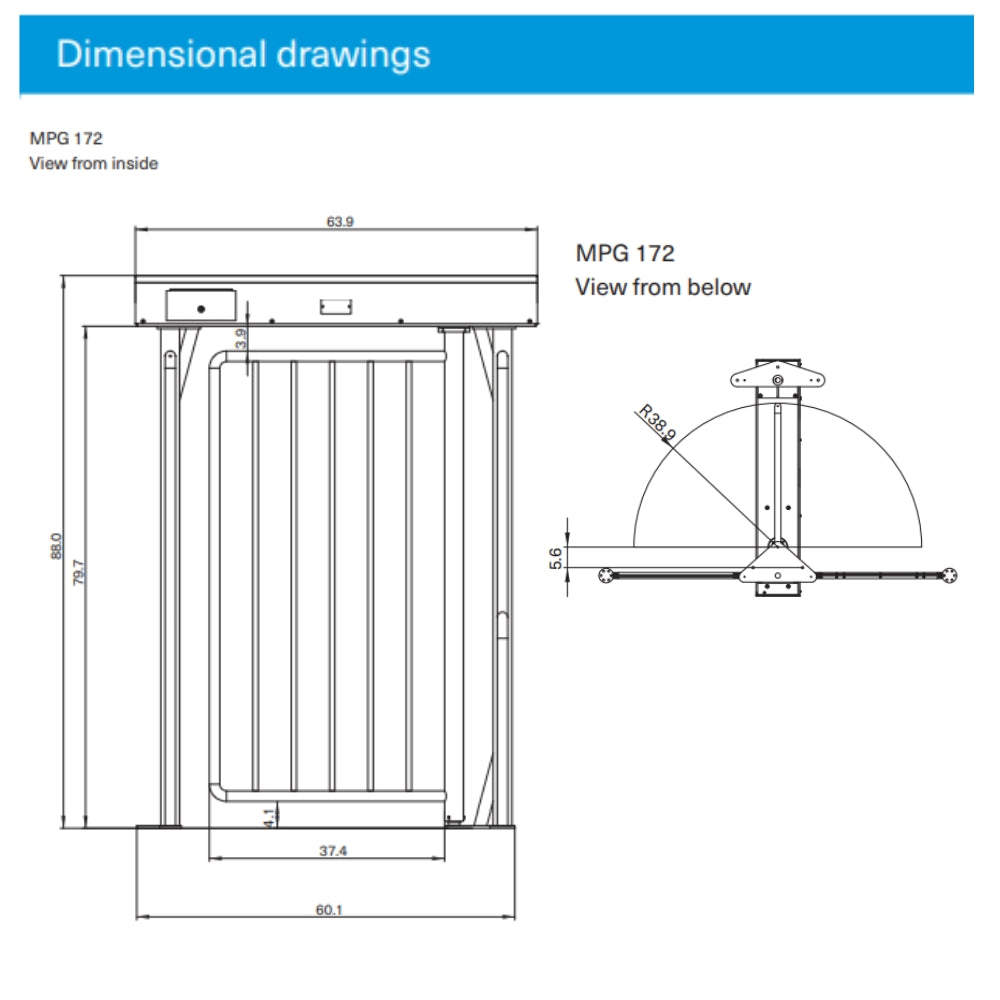

  • Dimensions (L x W x H): 63.9 x 19.7 x 88 in.
  • Weight: Approx. 550 lb.
  • Temperature range: -13 to +122°F
Options
  • Material; Galvanized steel, powder-coated steel in standard colors, powder-coated steel in special colors, stainless steel 316
  • Sensors: Single-sided/double-sided induction loop to detect wheelchairs and bicycles
  • Reaction to power failure: Free access or auto-locking on power failure
  • Attachments: Overhead Illumination, gate end display (GED)
    Product Literature
