Magnetic Autocontrol mWing Transition (Master-Slave) Center | MAG-FMWWS-ML
Optical wing-action gate
With an inviting see-through design, quick opening times, and no-contact passage – Magnetic’s mWing is the pinnacle in both security and elegance. Our fast and thin pedestrian e-gate is rapidly becoming the first choice for architects and building owners where sophisticated design is as important as securing the location. Whether it’s an office, cultural venue, or public building, the chic design, the warm comfortable material, and intuitive operation transform the building’s access control process into a pleasing, no-hassle activity for patrons. mWing not only advances user acceptance of access gates but also ensures that security levels for the site are achieved.
mWing is adaptable and configurable to meet nearly any customer’s requirements, thanks to its versatile configuration, options, and accessories: multiple bi-directional lanes are easily set up to address high patron throughput, and a wide-lane variant is available to accommodate groups, material carts, and personal mobility equipment. By selecting waist-high or higher barriers, customers can choose the appropriate security level they wish to enforce. As a result, mWing is equally suitable for monitored and non-monitored zones.

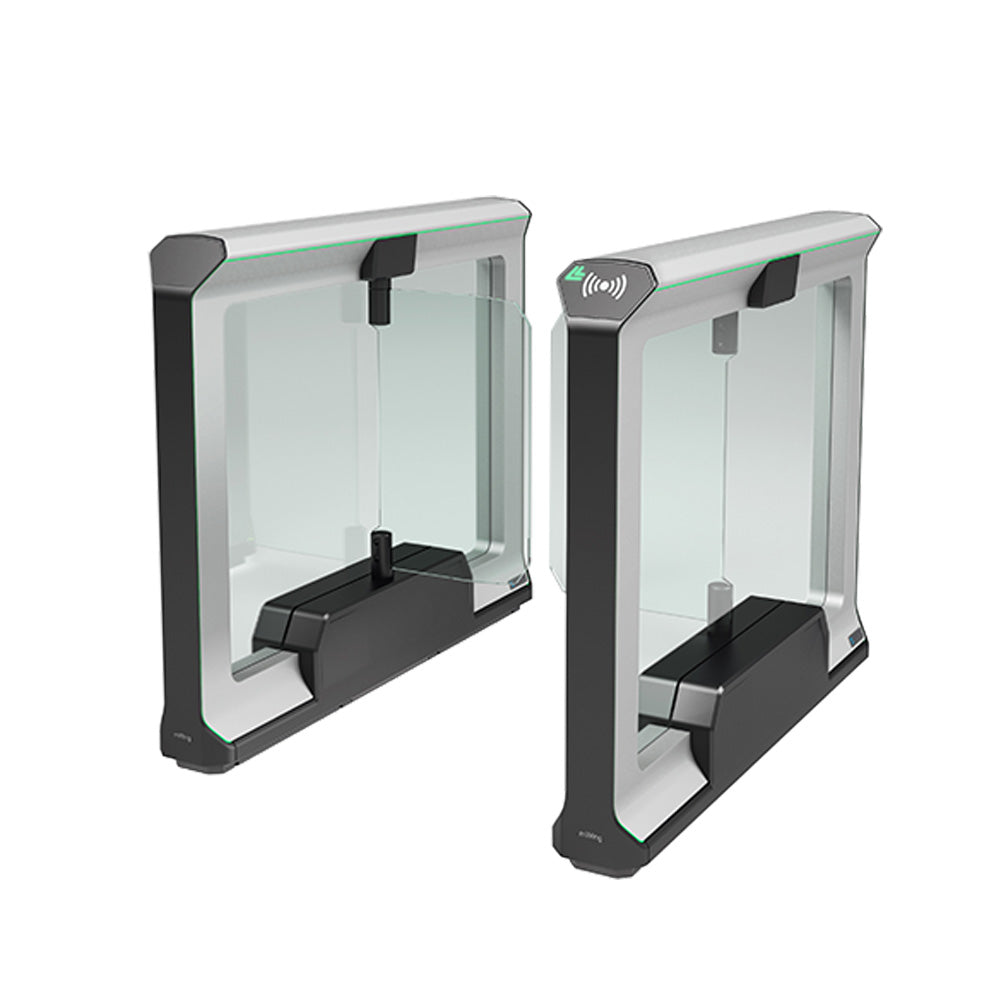

mWing Transition (Master-Slave) Center Standard (R) / Wide (L).
Note
Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.
Includes
- mWing in standard RAL9006 with frame illumination
Features
- High visitor throughput thanks to rapid opening times and preset operation modes
- Open-gate mode for extra fast throughput
- Optional high barriers for maximum security requirements are monitored and unmonitored areas
- Safe and secure with light-touch, auto-reverse barrier impact detection
- Free passage on power outages
- Designed for 10,000,000 opening and closing cycles
Manufacturer's Warranty Period
- 2 years or 2 million cycles (whichever occurs first)
Technical Specifications
- Application: Indoor and outdoor
- Passage width: 23.6” Left / 36.2” Right
- Total width for 1 line: 38 inches (with 23.6-inch passage width) / 51 inches (with 36.2-inch passage width)
- Height of barrier elements: 35"
- Opening/closing time: 0.6 –1 s, depending on barrier element dimensions
- Drive technology: MHTM™
- Control system: MGC
- Voltage: 100–240 VAC, 50/60 Hz
- Power consumption: Maximal 45 W
- Duty Cycle: 100%
- Housing material: mDure
- Housing dimensions (L x W x B): 51.2 x 41 x 7.1 inches
- Enclosure rating: IP 54
- Weight: About 265 lb per module (glass not included)
- Temperature range: −22 to +131 °F
