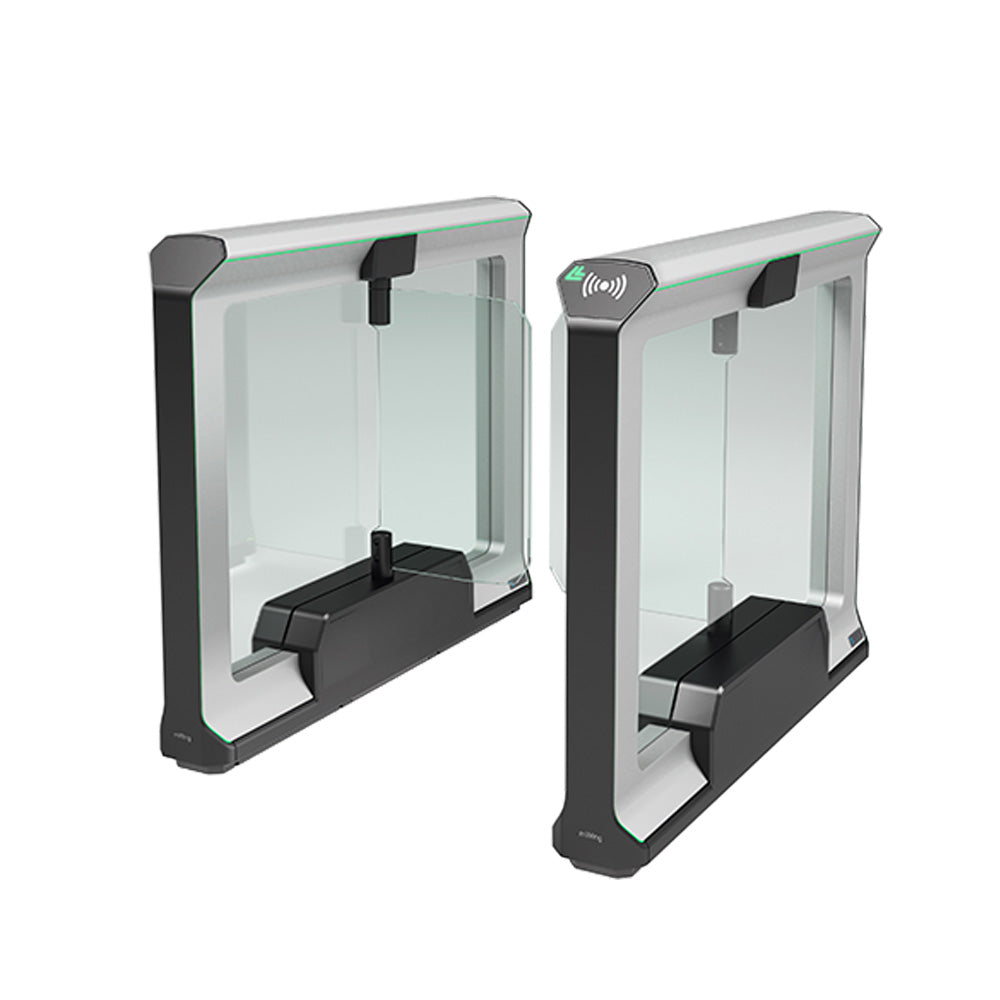

Magnetic Autocontrol mWing Center C Pedestrian Gate with 35" Glass Panel (Wide Width) | MAG-FMWCW-ML
Optical wing-action gate
With an inviting see-through design, quick opening times, and no-contact passage – Magnetic’s mWing is the pinnacle in both security and elegance. Our fast and thin pedestrian e-gate is rapidly becoming the first choice for architects and building owners where sophisticated design is as important as securing the location. Whether it’s an office, cultural venue, or public building, the chic design, the warm, comfortable material, and intuitive operation transform the building’s access control process into a pleasing, no-hassle activity for patrons. mWing not only advances user acceptance of access gates but also ensures that security levels for the site are achieved.
mWing is adaptable and configurable to meet nearly any customer’s requirements, thanks to its versatile configuration, options, and accessories: multiple bi-directional lanes are easily set up to address high patron throughput, and a wide-lane variant is available to accommodate groups, material carts, and personal mobility equipment. By selecting waist-high or higher barriers, customers can choose the appropriate security level they wish to enforce. As a result, mWing is equally suitable for monitored and non-monitored zones.
Note
Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.
If you need a standard passageway, click here.
High individualization security
High barrier elements discourage climbing over and effectively separate different lanes from one another. The desired level of security can be easily modified through different heights of the glass barriers.
Comprehensive functions
Discreet illumination, optional electronic barrier locking to discourage unauthorized entry, free passage during emergency events – the mWing has numerous unique functions. Features such as error logging and cycle counting are already part of the basic functionality.
Non-contact passage
Photoelectric sensors in the passageway reliably detect persons and objects. They enable non-contact passage and sound an alarm on attempts to fraudulently pass through the gate.
Direct control
The integrated controller display allows all settings to be made directly – without
any adapter cable or notebook computer. System configurations and training costs are considerably reduced because we also use the MGC controller in our vehicle barrier gates.
Includes
- mWIng in standard RAL9006/RAL9005 with frame illumination, gate end display, and floor illumination
Definitions
- A-module (Basis A): Slave-function, no control unit

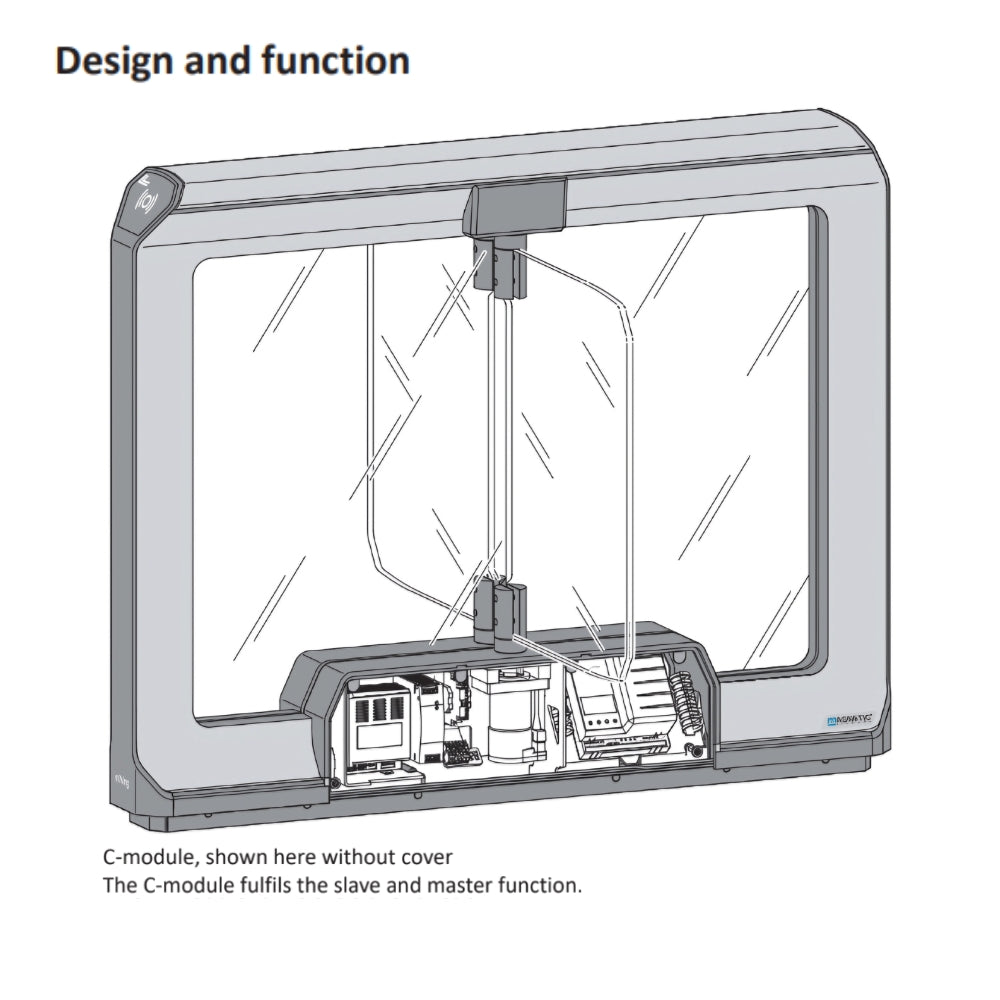

- C-module (Center C): Slave and master function, the control unit is located on the master side
- B-module (End B): Master function, the control unit is located on the master side
Features
- High visitor throughput thanks to rapid opening times and preset operation modes
- Open-gate mode for extra fast throughput
- Optional high barriers for maximum security requirements in monitored and unmonitored areas
- Safe and secure with light-touch, auto-reverse barrier impact detection
- Free passage during power outages
- Designed for 10,000,000 opening and closing cycles
- Escape and rescue route approval
Manufacturer's Warranty Period
- 2 years or 2 million cycles (whichever occurs first)
Technical Specifications
- Application: Indoor and outdoor

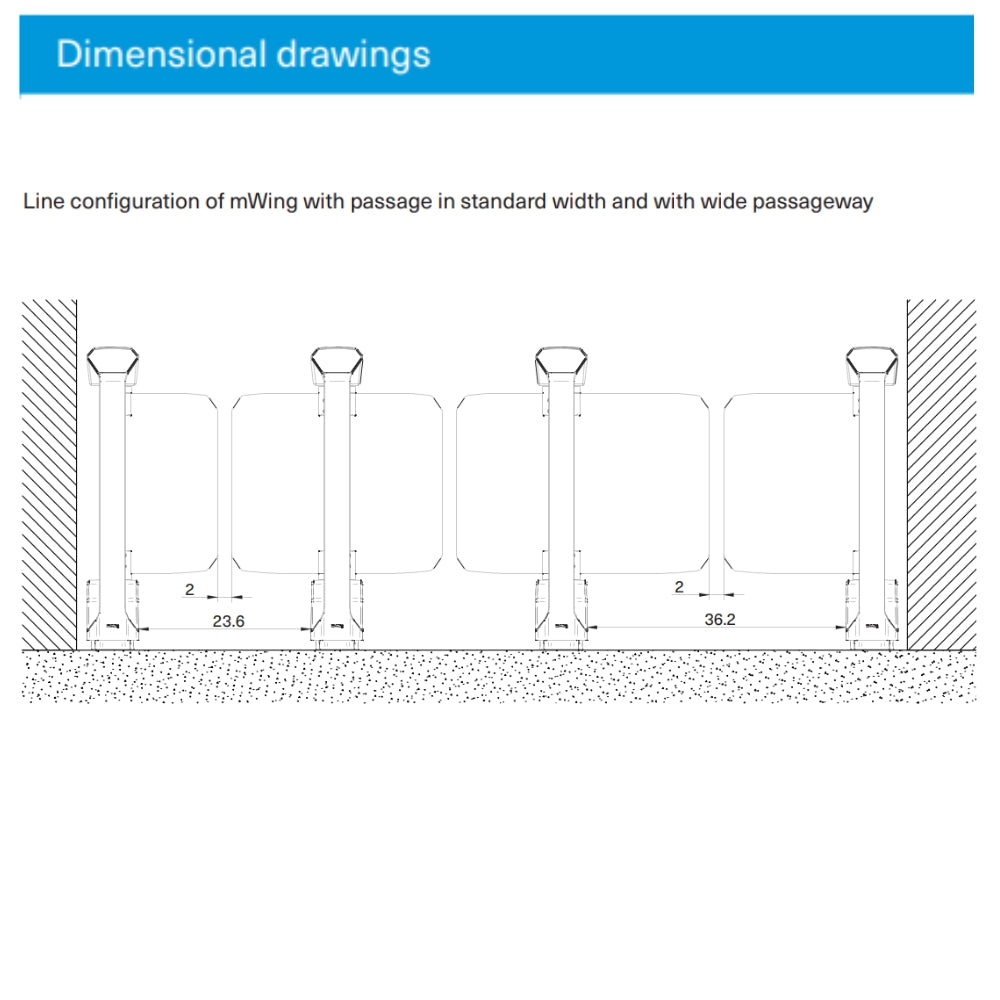

- Passage width: Wide Lane: 36 inches (more on request)
- Total width for 1 line: 51 inches (with 36.2-inch passage width)
- Height of barrier elements: Standard: 35 inches (more on request)
- Opening/closing time 0.6 –1 s, depending on barrier element dimensions
- Drive technology: MHTM™
- Control system: MGC
- Voltage 100–240 VAC, 50/60 Hz
- Power consumption: Maximum 45 W
- Duty cycle: 100 %
- Housing material: mDure

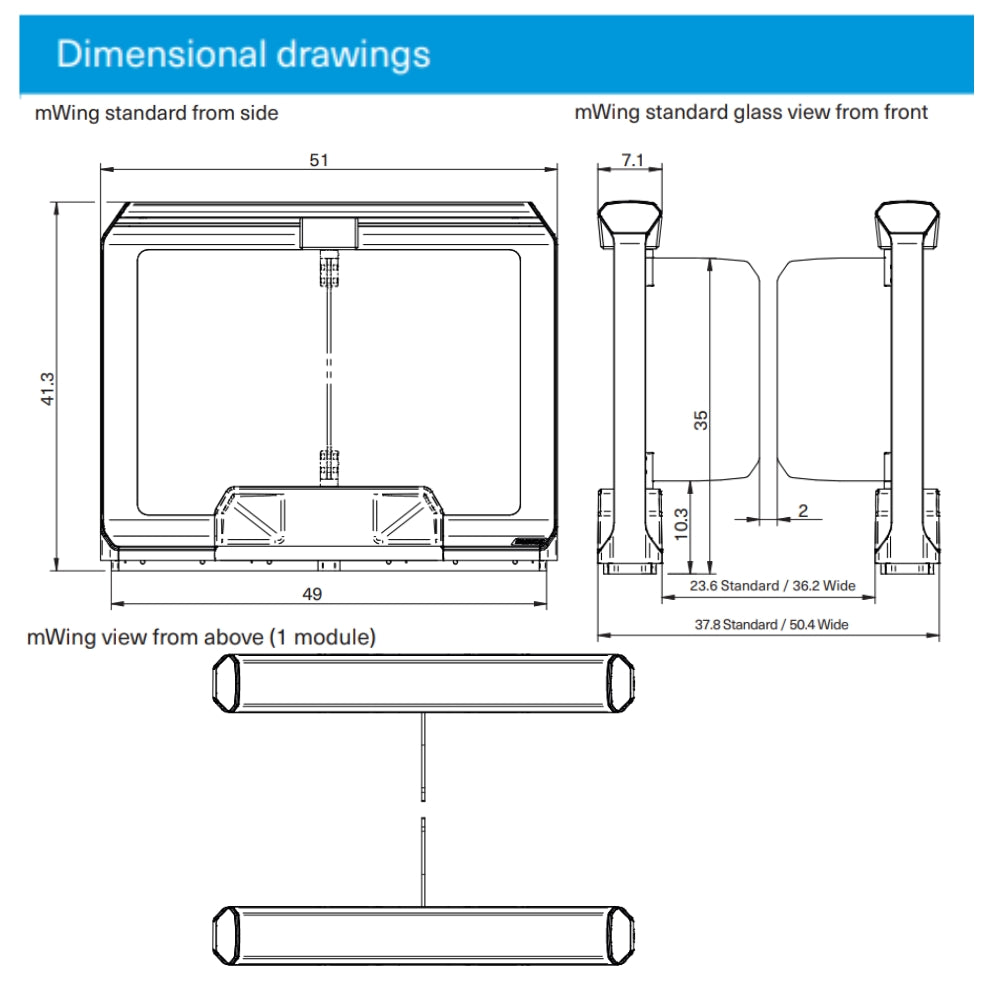

- Housing dimensions (L x W x H): 51.2 x 41 x 71. inches
- Enclosure rating: IP 54
- Weight About: 265 lb per module (glass weight not included)
- Temperature range: −22 to +131°F
- Passage direction indicator: Standard, included
- White LED Floor illumination: Standard, included
- Ethernet connection: Standard, included
