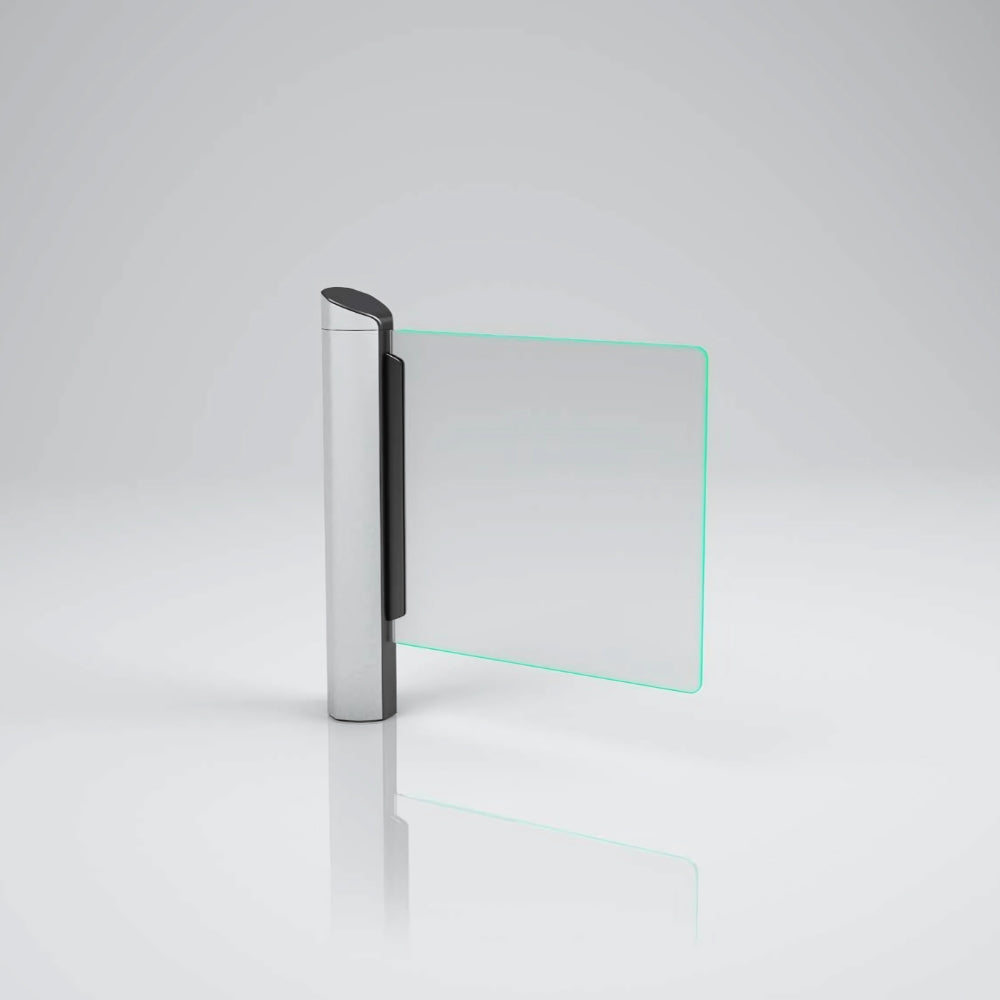

Magnetic Autocontrol mSwing Pedestrian Gate with 38" Safety Panel Glass | MAG-FMSW-MG914
The versatile gate for entrances, wide passageways, and escape routes
The mSwing swing door is our specialist in versatility! This starts at the entrances: mSwing is used wherever passage is authorized by staff at a gate or reception desk. It can be configured as a single or a double swing door, depending on the number of visitors expected. It is not only the right choice for the monitored access of visitors, but also for visitors with baggage and for those delivering materials. Its wide barrier elements also make it ideal for wheelchair access.
mSwing is ideal for locations where many people enter or exit a building at the same time and wide passage lanes are required. It can be set up as a dual-gate, with a passageway width of up to 94 inches for servicing escape paths. mSwing automatically opens if there is a power outage or alarm signal, providing wide egress lanes in emergencies. Thanks to the mPost card-reader pillar, operators can also provide unattended passage using card-reading devices or keypads
Note
Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.
Includes
- mSwing in standard RAL9006/RAL9005 with upper ring LED and LED floor illumination.
Wide Lanes
Passageway widths of up to 94 inches can also be achieved using mSwing as a dual-gate. The swing gates are ideal for groups of visitors, the transport of material, wheelchair access, and also for escape routes.
Easily Access to Components
All the control and drive components necessary for operation are fully contained in the gate’s cylindrical column - considerably simplifying commissioning and maintenance.
Secure Interlocking
An electromagnetic toothed coupling prevents the barrier from being pushed out of its end position or moved against the selected direction of passage.
Features
- As single- or dual-gate for visitor entrances, passage with baggage, transport routes, and wheelchair-friendly access
- Wide, unobstructed escape routes in emergencies
- Ideally complements the family of FlowMotion access gates
- All drive and control systems are located inside the center column
- Low impact forces for maximum personal safety
- Freely swings on power outages
- Designed for 10,000,000 opening and closing cycles
- Escape and rescue route approval
Manufacturer's Warranty Period
- 2 years or 2 million cycles (whichever occurs first)

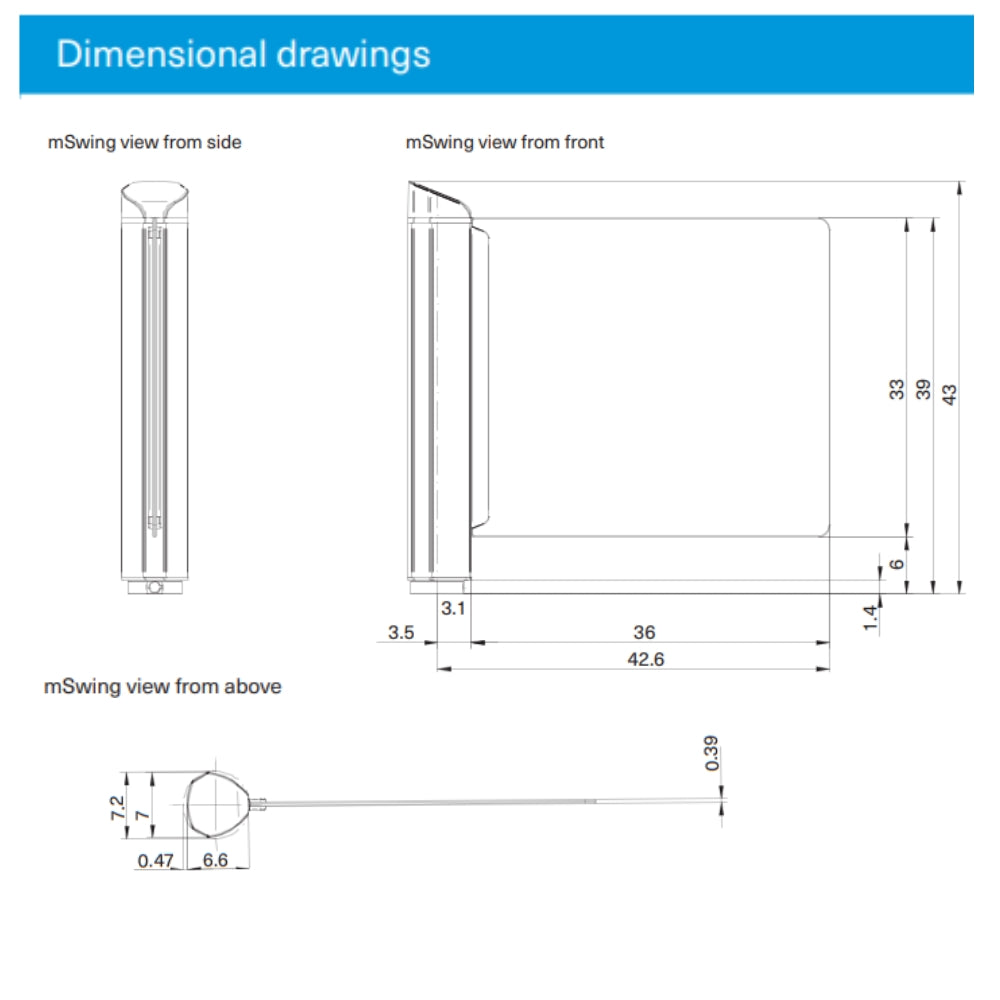

Technical Specifications
- Application: Indoor and outdoor
- Passage width: Standard: 38 inches (w/ 2 in. of space at end of the lane)
- Barrier Type: Safety Glass Panel
- Barrier element height: Standard: 39 inches (more on request)
- Opening/closing time: 1.5–4 s, depending on barrier element dimensions
- Opening angle: Adjustable from 0–300°
- Drive technology: MHTM™
- Control system: MGC
- Voltage: 100– 240 VAC, 50/60 Hz
- Power consumption: Maximum 45 W
- Duty cycle: 100%
- Housing material: Aluminum
- Housing height: 43 inches
- Housing diameter: Maximum 7.2 inches
- Enclosure rating: IP 54
- Approvals: Approved for escape and rescue routes
- Weight: About 88 lb
- Temperature range: −22 to +131°F
- White LED Floor illumination: Standard, included
