Magnetic Autocontrol Access Solar 24V...

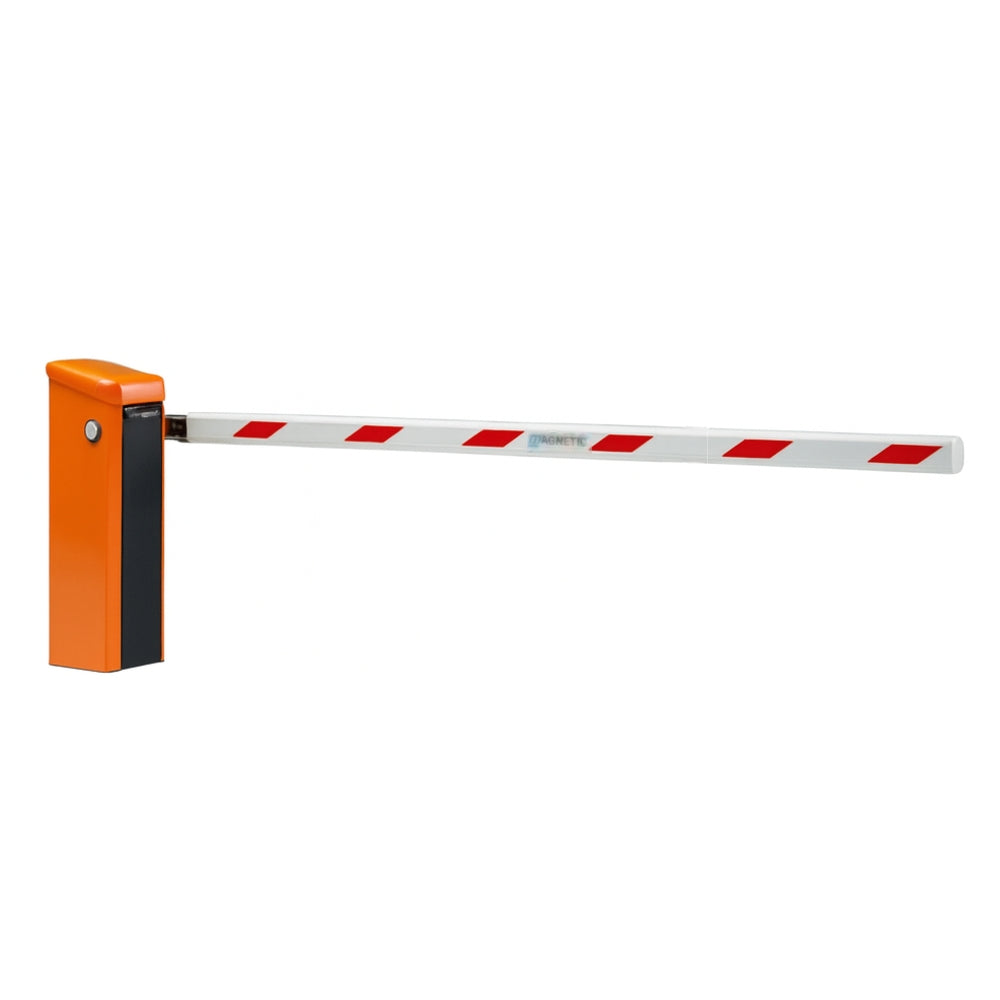

Magnetic Autocontrol 24V Microdrive Access Pro-H Right Hand 12 Ft.

Magnetic Autocontrol Access Solar 24V Barrier Pro-H Right Hand 12ft.

Roll over image to zoom in Click on image to zoom

Magnetic Autocontrol Access Solar 24V Barrier Pro-H Right Hand 12' Opening Width

Write a review

Save $-4,663.71

Magnetic AccessSKU: MAG-ACCESS PRO-H-RE01200

Model: Orange

Orange

White

Variant

Price:

Sale price$4,663.71

Quantity:

Required fence width (Linear feet):

Add a Magnetic Access Special Color

ⓘThis option allows for a customized appearance with a special RAL color applied to the housing and hood of your Magnetic Access system. The doors will remain in the standard color.

Add a Key Operated Switch

ⓘThis externally mounted key switch offers manual control for opening and closing your gate. Choose between momentary or lock open configurations.

Add a Light Barrier / Mounting Post

ⓘThis post provides secure and stable mounting for your photoelectric receiving beam, ensuring accurate and reliable operation of your safety system.

Add a Articulated Barrier Arm Upcharge

ⓘEnables the use of an articulated barrier arm with Magnetic Autocontrol systems, ideal for installations with height restrictions. Maximum arm length of 15 ft.

Add a Custom Arm Upcharge

ⓘThis upcharge allows for a customized passage height with a Magnetic Autocontrol articulated barrier arm, ideal for non-standard installations. Maximum arm length of 15 ft.

Add Barrier Arm Presence Sensor BAK01

ⓘThis contact switch for MicroDrive barrier arms provides an additional layer of safety by detecting obstructions and preventing the boom from closing.

Add Barrier Arm Presence Sensor BAK01+ $104.57

Add Pendulum Support PS01

ⓘProvides essential support for barrier arms exceeding 15 ft., ensuring stability and preventing excessive stress on the operator.

Add Pendulum Support PS01+ $287.14

Add Microdrive Radio Frequency Receiver Module FM02-AM

ⓘThis 433 MHz AM receiver module enables wireless control for your MicroDrive barrier gate operator.

Add Microdrive Radio Frequency Receiver Module FM02-AM+ $305.14

Add Microdrive TCP/IP (Ethernet) Module EM01

ⓘThis module enables network connectivity for your MicroDrive operator, allowing for remote monitoring and control via Ethernet.

Add Microdrive TCP/IP (Ethernet) Module EM01+ $305.14

Add Pendulum Support Bracket Kit AP01

ⓘProvides additional support for LED-equipped barrier arms, ensuring stability and preventing excessive stress on the operator.

Add Pendulum Support Bracket Kit AP01+ $332.57

Add Microdrive Solar Battery Back Up Kit North BAT011-N

ⓘThis kit provides solar-powered backup capabilities for your MicroDrive operator in northern regions, ensuring continuous operation even during power outages.

Add Microdrive Solar Battery Back Up Kit North BAT011-N+ $2677.71

Add Microdrive Solar Battery Back-Up Kit with 100W Panel BAT011-S

ⓘThis kit provides solar-powered backup capabilities for your MicroDrive operator, featuring a 100-watt panel for enhanced performance.

Add Microdrive Solar Battery Back-Up Kit with 100W Panel BAT011-S+ $1744.29

Add Microdrive RS-485 Module RSM01

ⓘ This module enables communication between a MicroDrive operator and other devices using the RS-485 protocol, allowing for integration with building management systems

Add Microdrive RS-485 Module RSM01+ $305.14

Add 2-channel Loop Detector Module DM02

ⓘThis module allows for the integration of two inductive loops, enhancing vehicle detection capabilities for your gate or barrier system.

Add 2-channel Loop Detector Module DM02 Installed (+ $166.29)

More payment options

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Estimated delivery 4 weeks.

Share this product

Magnetic Autocontrol Access Solar 24V Barrier Pro-H Right Hand 12ft. Opening Width

For Access Control

The Access-RE line is specifically designed for facilities that already have a 24V DC power source. The solar power option gives you the ability to use your MHTMTM MicroDrive in remote locations where it is cost-prohibitive to run power. The easily integrated option fits completely inside the gate housing and allows operation of up to 500 cycles per day, depending on the conditions. The solar panel options also include either a 100 or 200-watt solar panel, two 27Ah batteries, and a mounting bracket that allows mounting on a wall or up to a 4” round post.

The Access series barriers from Magnetic are optimized solutions for access control at car parks, company grounds, residential buildings, port facilities and other secured areas with lane widths up to 20 ft.

Note

Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.

Features

Very low operating costs thanks to efficient and durable MHTMTM drive.
Ease-of-use and optimum accessibility thanks to well thought-out design.
High level of functionality for numerous applications.
Solar power option allows for up to 500 cycles per day in remote locations, where it is cost-prohibitive to run power.

Manufacturer's Warranty Period

2 years or 2 million cycles (whichever occurs first)

Technical Specifications

Barrier width: Max. 20 ft
Opening Width: 12 ft
Opening/closing time: 4 s
Power consumption: Max. 25 W
Drive technology: MHTMTM
Voltage: 21-26V DC
Duty cycle: 100 %
Housing dimensions: (LxWxH) 12.4 x 14.2 x 36.0 in
Enclosure rating: IP 54
Temperature range: −22 to +131 °F
Weight without barrier arm: 97 lb
Standard colors: Orange (RAL 2000), White (9010)
Barrier arm type: MicroBoom
Control system: MGC Pro
Integrated 2-channel detector for induction loops: Standard
Variable I/O assignment: Standard
No. of digital inputs: 8
No. of relays/digital outputs: 6/4
Selectable closing speed: Standard
Selectable opening speed: Standard
