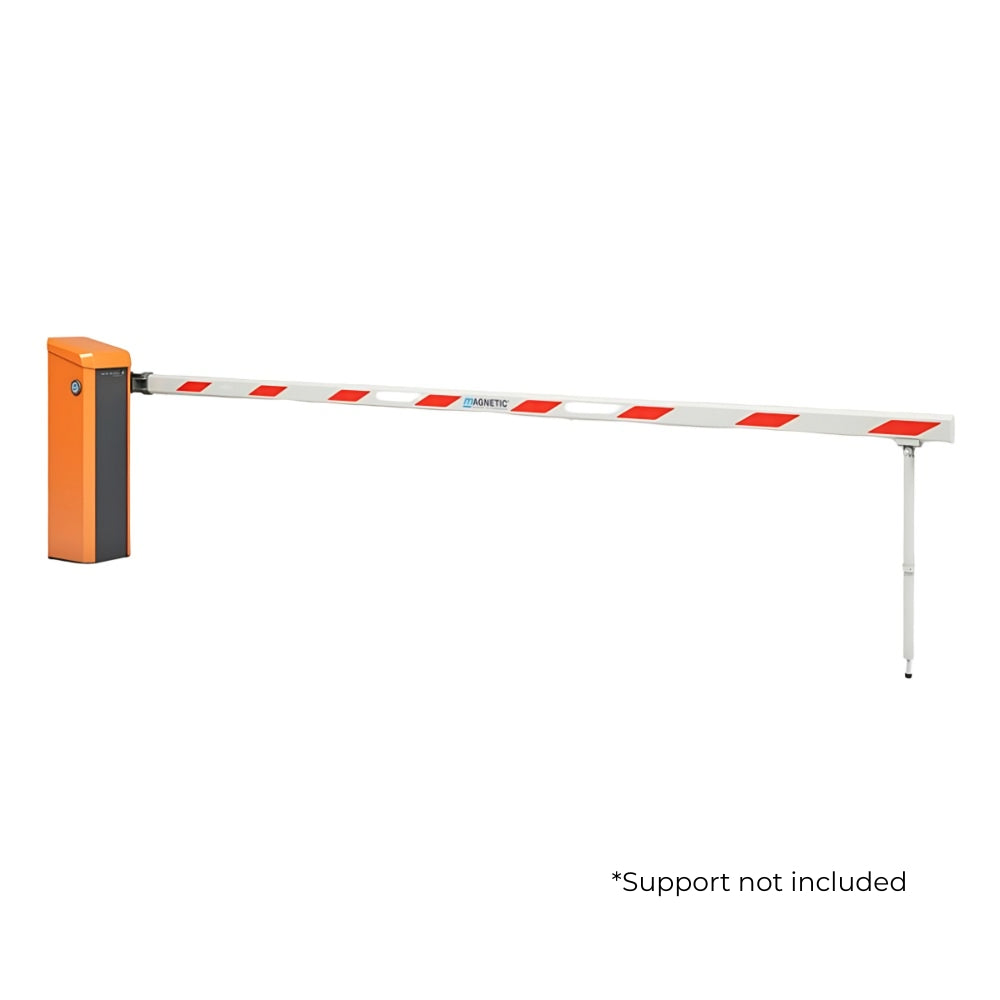

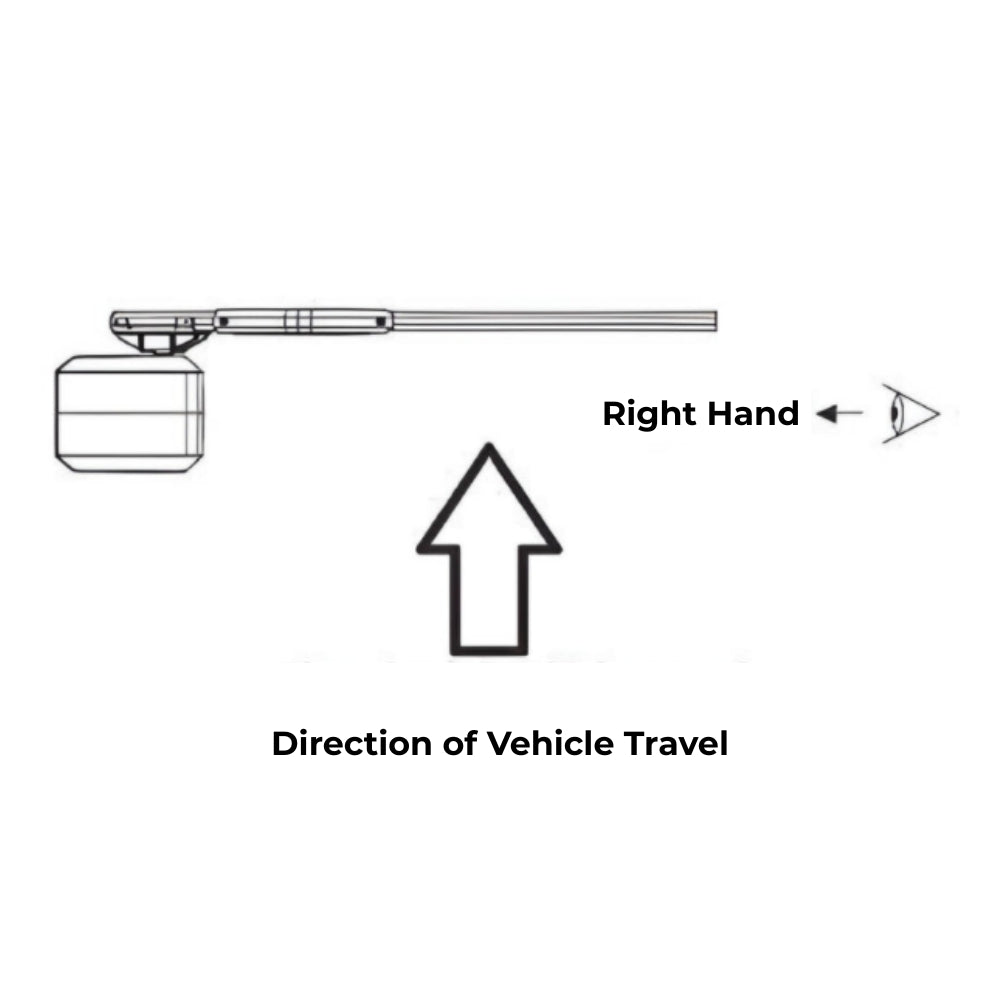

Magnetic Autocontrol Access Pro-H Right-Hand Barrier Gate with 20' MicroBoom Arm

For access control

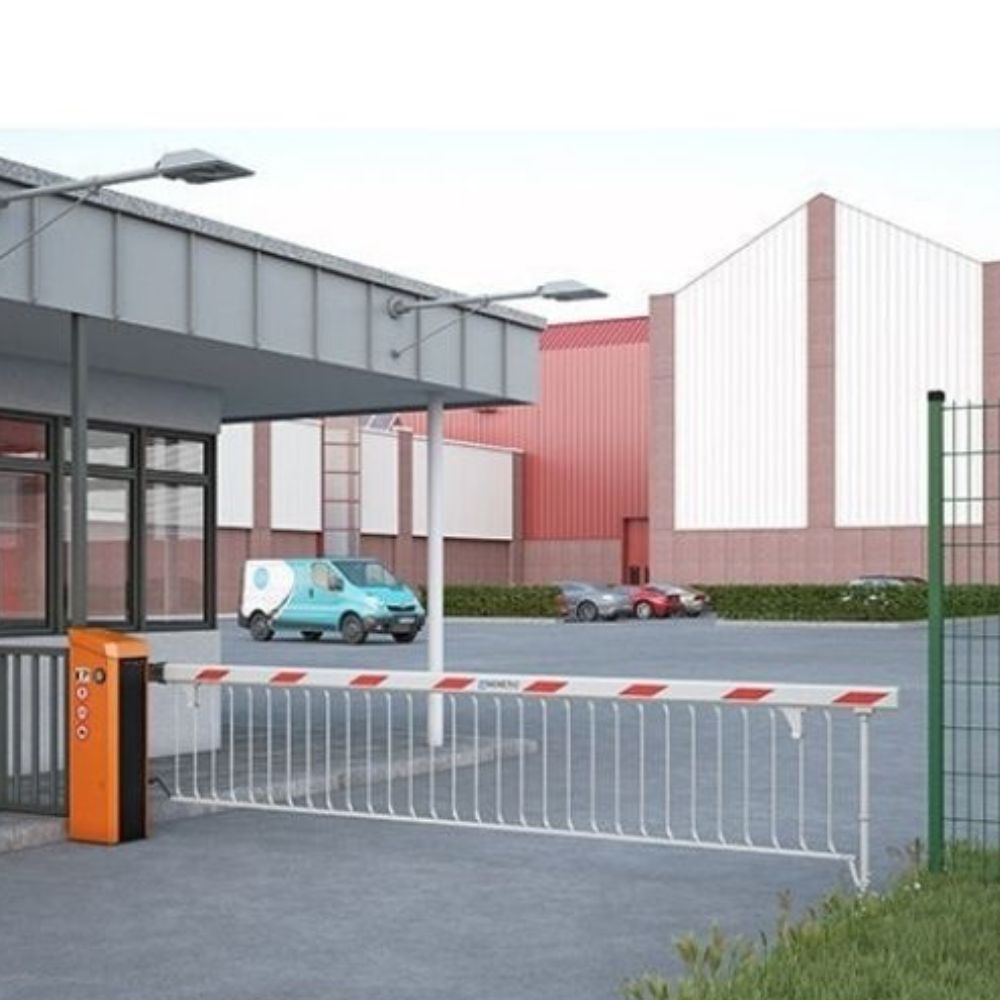

The Access series barriers from Magnetic are optimized solutions for access control at car parks, company grounds, residential buildings, port facilities, and other secured areas with lane widths up to 20 ft. The Access Pro-H includes a taller cabinet, with more room for accessories, and a straight MicroBoom arm. Combine the Access Pro-H with the optional barrier arm skirt (with or without climb-over prevention) to effectively stop intruders from crawling under and/or climbing over the barrier.

At the heart of the Access series is the innovative MHTM™ drive that is distinguished by its energy efficiency, lack of maintenance, and long service life – the Access series is designed for 10 million opening and closing cycles. The Access Pro-L and Access Pro-H are characterized by a high level of functionality and offer expansion potential with plug-in modules and exclusive accessories. Magnetic quality lies not just in the detail, but is also easily recognizable thanks to its stylish design. The Access series has already been awarded two design prizes.

Note

Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please get in touch with customer support at (800) 730-8382.

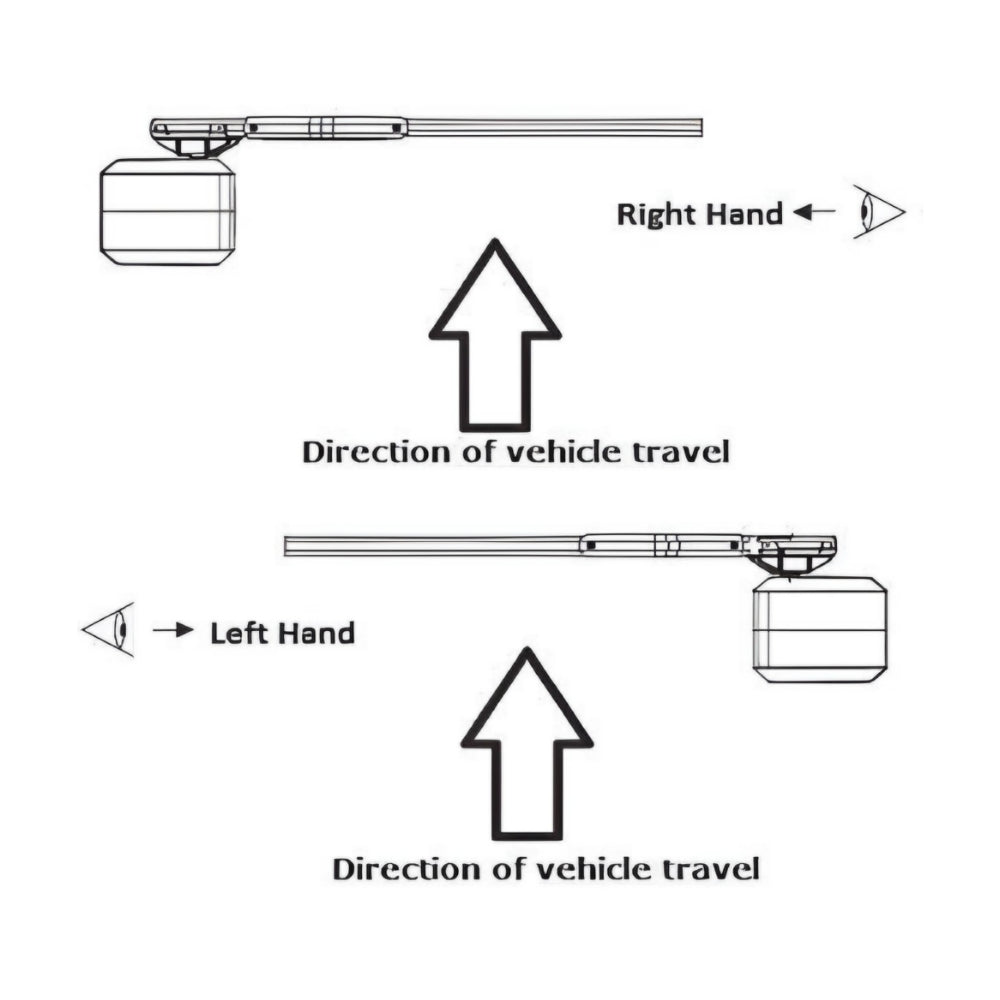

If you need the left-hand version, click here.

This product is a special order only, and it is not eligible for returns or refunds.

*Barrier arms over 15' must be supported with pendulum support or with a support post.
*Barrier skirts and barrier arm lights/LEDs cannot be combined.
*All 3 require additional parts for operation.

Low operating costs

With arm lengths up to 20 ft, the Access Pro series is perfectly suited for a wide variety of applications. Thanks to their high energy efficiency, extremely long service lives, and simple maintenance, barriers from Magnetic are particularly cost-effective – an investment that will certainly pay off!

Innovative drive technology

The MHTM™ drive unit is maintenance-free, energy-efficient, and quiet. The high torque guarantees the best possible operation even under extreme weather conditions.

Legal security

Magnetic vehicular lift barriers have always been UL 325 compliant. UL 325 ensures that our product guards against entrapment, fire, and electrical shock.

Easy access to components

Two simple steps: control systems and the drive unit are easily reached by removing the top cover and front plate. This increases user-friendliness and accelerates commissioning and service.

Features

• High level of functionality for numerous applications
• High security with optional barrier arm skirts
• Very low operating costs thanks to efficient and durable MHTM™ drive
• Ease-of-use and optimum accessibility thanks to a well-thought-out design
• Acclaimed design: German Design Award 2014 and Red Dot Design Award 2012
• Designed for 10 million opening and closing cycles

Manufacturer's Warranty Period

• 2 years or 2 million cycles (whichever occurs first)

Technical Specifications

• Barrier opening width: 20 ft.
• Opening/closing time: 4.0 s
• Power consumption: Max. 25 W
• Drive technology: MHTM™
• Voltage: 85–264 VAC, 50/60 Hz

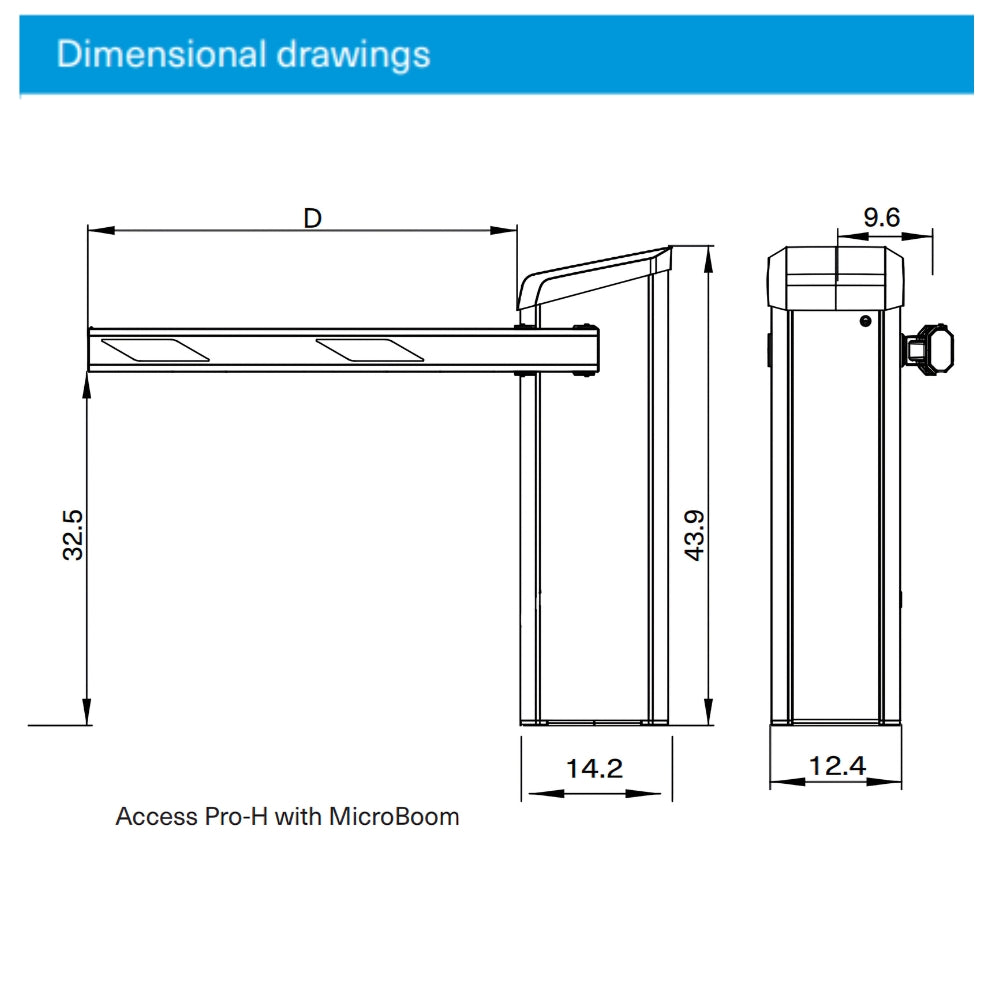

• Housing dimensions (L x W x H): 12.4 x 14.2 x 43.9 in.
• Enclosure rating: IP 54
• Temperature range: −22 to +131°F
• Weight without barrier arm: 97 lb.
• Opening Width: Max 20 ft.
• Color: Orange, Dark Grey, Light Grey, White
• Barrier arm type: MicroBoom
• Control system: MGC Pro
• Integrated 2-channel detector for induction loops: Standard
• Modular expansion of control system: Freely expandable
• Variable I/O assignment: Standard
• No. of digital inputs: 8
• No. of relays/digital outputs: 6/4
• Input for safety light barrier with test: Standard
• Selectable closing speed: Standard
• Selectable opening speed: Standard
