Magnetic Autocontrol Access Pro-H Left-Hand Barrier Gate Operator Only

Magnetic Autocontrol Access Pro-H Left-Hand Barrier Gate Operator Only

For special security requirements

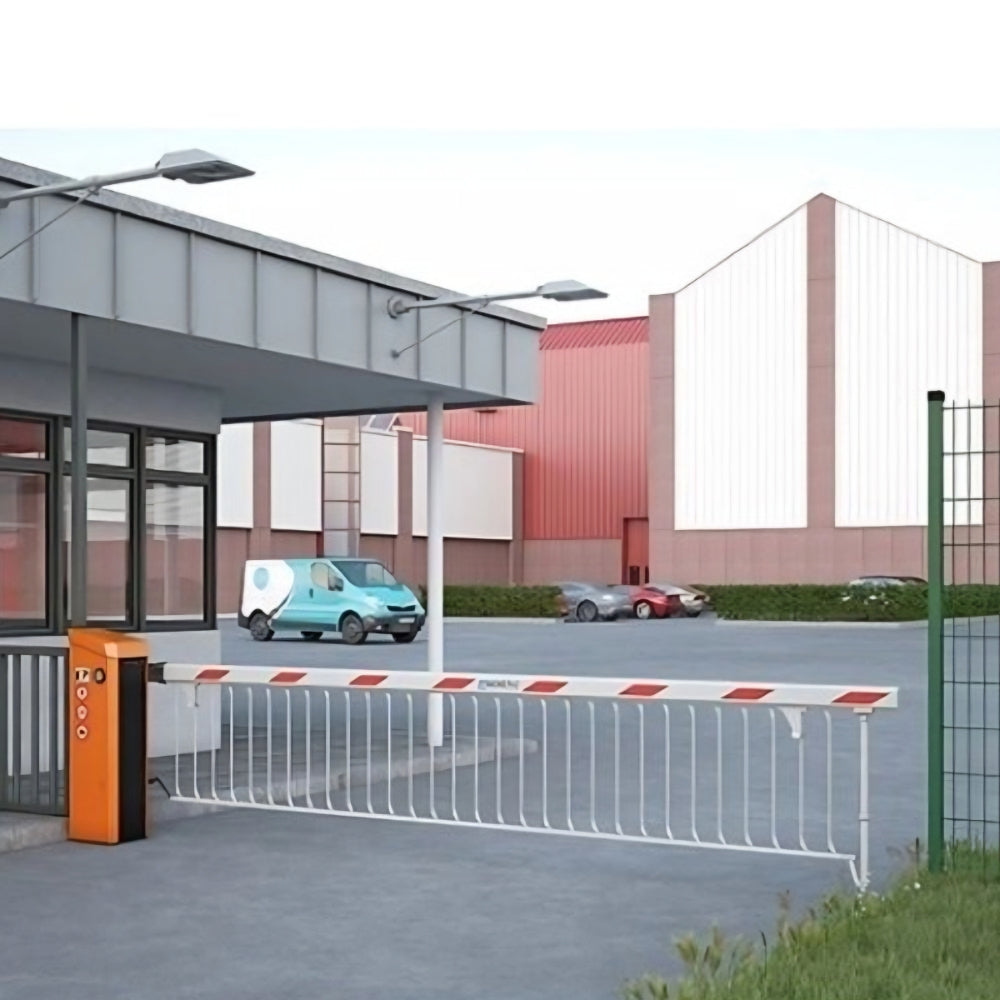

With its opening width of up to 20ft and the option for a barrier arm skirt with climb-over prevention up to a height of 70 inches, the Access Pro-H is the ideal solution for all entrances that require effective prevention of unauthorized pedestrian access in addition to controlled vehicle access. The control system of the Access Pro-H offers a large range of functions and expansion potential through the use of plug-in modules. The five expansion slots can be used for an Ethernet interface, a radio module, or a counting module to determine the number of parking spaces still available. The user can individually configure all input and output functions. The opening and closing times can each be selected from three levels independently of one another.

At the heart of the Access series is the innovative MHTM™ drive that is distinguished by its energy efficiency, lack of maintenance, and long service life – the Access series is designed for 10 million opening and closing cycles. The Access Pro-L and Access Pro-H are characterized by a high level of functionality and offer expansion potential with plug-in modules and exclusive accessories. Magnetic quality lies not just in the detail, but is also easily recognizable thanks to its stylish design. The Access series has already been awarded two design prizes.

Note

Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.

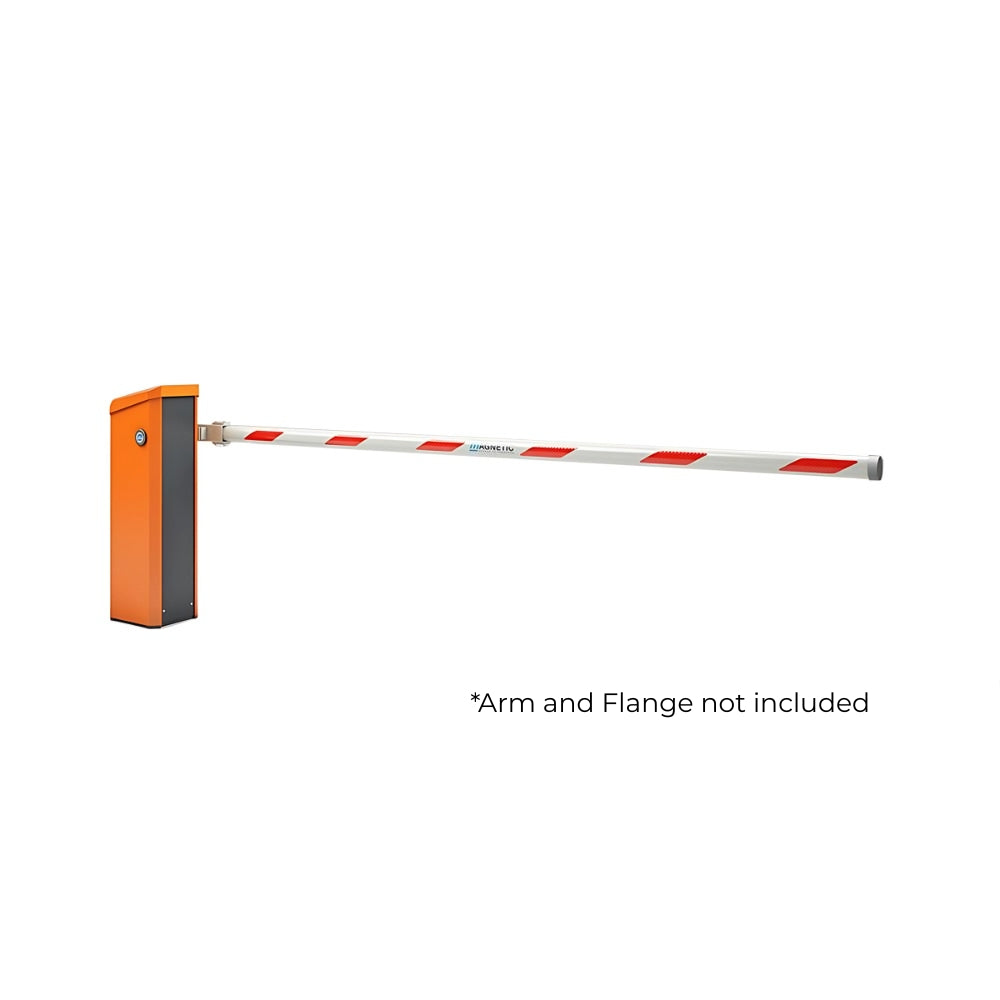

*MicroBoom Arm and Flange are not included

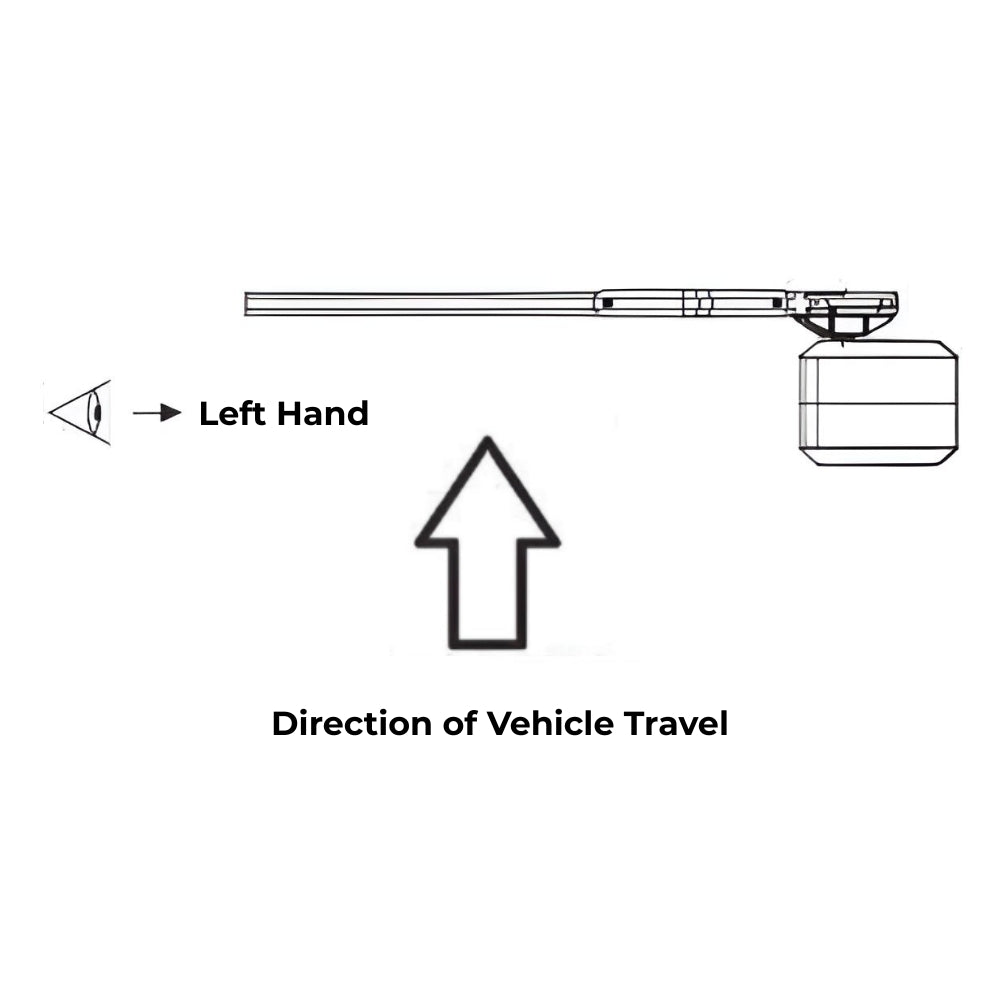

This configuration is for the left-hand operator version of the product.

If you need the right-hand version, click here.

Low operating costs

With arm lengths up to 20 ft, the Access Pro series is perfectly suited for a wide variety of applications. Thanks to their high energy efficiency, extremely long service lives, and simple maintenance, barriers from Magnetic are particularly cost-effective – an investment that will certainly pay off!

Innovative drive technology

The MHTM™ drive unit is maintenance-free, energy-efficient, and quiet. The high torque guarantees the best possible operation even under extreme weather conditions.

Legal security

Magnetic vehicular lift barriers have always been UL 325 compliant. UL 325 ensures that our product guards against entrapment, fire, and electrical shock.

Easy access to components

Two simple steps: control systems and the drive unit are easily reached by removing the top cover and front plate. This increases user-friendliness and accelerates commissioning and service.

Features

• The opening width of up to 20 ft
• High security with optional boom skirts
• Opening and closing times of a minimum of 4.0 s
• High security with optional barrier arm skirts
• Very low operating costs thanks to efficient and durable MHTM™ drive
• Ease-of-use and optimum accessibility thanks to a well-thought-out design
• Acclaimed design: German Design Award 2014 and Red Dot Design Award 2012
• Designed for 10 million opening and closing cycles
• UL Approved

Manufacturer's Warranty Period

• 2 years or 2 million cycles (whichever occurs first)


Technical Specifications

• Barrier width: Max. 20 ft.
• Opening/closing time: 4.0 s
• Power consumption: Max. 25 W
• Drive technology: MHTM™
• Voltage: 85 – 264 VAC, 50/60 Hz
• Duty cycle: 100%

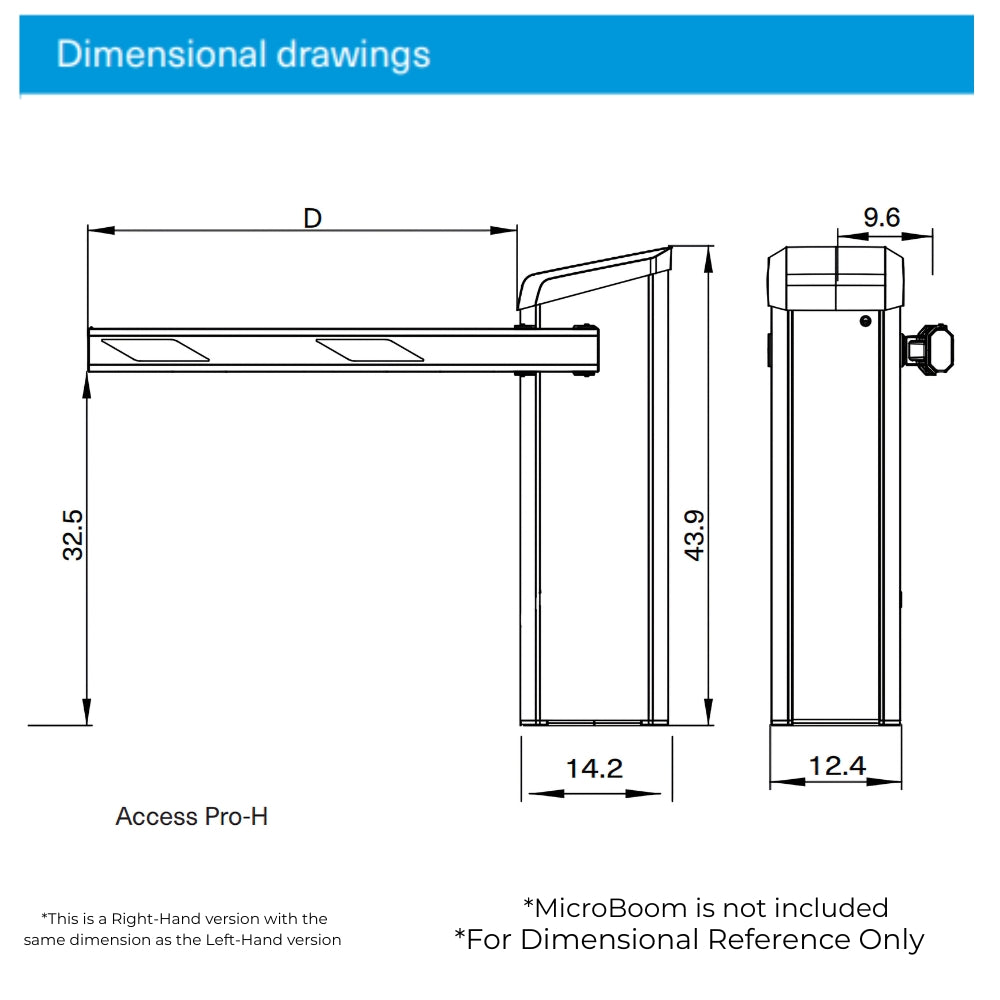

• Housing dimensions (L x W x H): 12.4" x 14.2" x 43.9"
• Enclosure rating: IP 54
• Temperature range: -22 to +131°F
• Weight: 97 lb.
• Color: Orange, Dark Grey, Light Grey, White (RAL 2000, 9006, 9007, 9010)
• Barrier arm type: MicroBoom (Excluded)
• Control system: MGC Pro
• Integrated 2-channel detector for induction loops: Standard
• Modular expansion of the control system: Freely expandable
• Variable I/O assignment: Standard
• No. of digital inputs: 8
• No. of relays/digital outputs: 6/4
• Selectable closing speed: Standard
• Selectable opening speed: Standard

Product Literature

• Magnetic Autocontrol Microdrive Access Pro-H Brochure
• Magnetic Limited Warranty Policy
