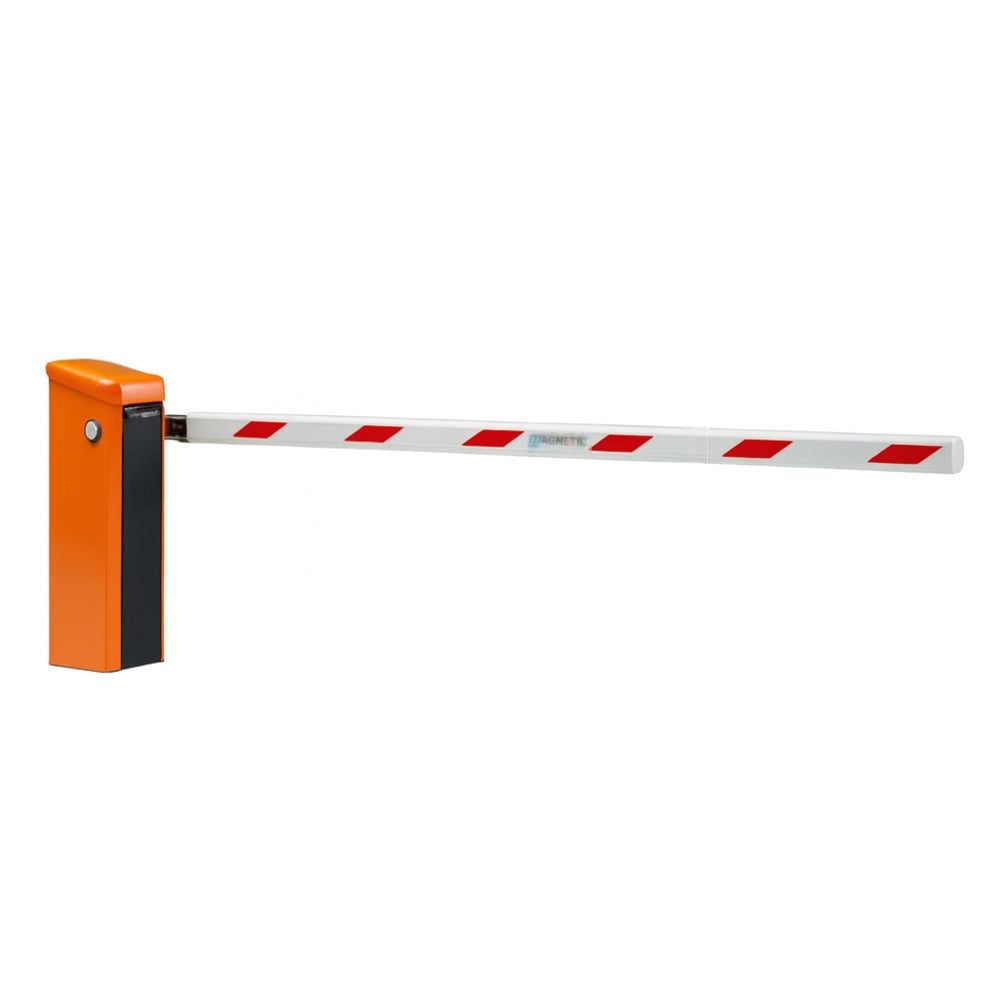

Magnetic Autocontrol Access Solar Left-Hand Barrier Gate with 10' MicroBoom Arm
For access control
The Access-RE line is specifically designed for facilities that already have a 24V DC power source. The solar power option gives you the ability to use your MHTM™ MicroDrive in remote locations where it is cost-prohibitive to run power. The easily integrated option fits completely inside the gate housing and allows operation of up to 500 cycles per day, depending on the conditions. The solar panel options also include either a 100 or 200-watt solar panel, two 27Ah batteries, and a mounting bracket that allows mounting on a wall or up to a 4” round post.
The Access series barriers from Magnetic are optimized solutions for access control at car parks, company grounds, residential buildings, port facilities, and other secured areas with lane widths up to 20 ft. At the heart of the Access series is the innovative MHTM™ drive that is distinguished by its energy efficiency, lack of maintenance, and long service life – the Access series is designed for 10 million opening and closing cycles.
Note
Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.
If you need the right-hand version, click here.
**Barrier arms over 15 ft. must be supported with pendulum support or with a support post.
This product is a special order only, and it is not eligible for returns or refunds.
Features
- Autonomous energy supply via solar panel
- Very low operating costs thanks to the efficient and durable MHTM™ drive.
- Ease-of-use and optimum accessibility thanks to a well-thought-out design.
- High level of functionality for numerous applications.
- Solar power option allows for up to 500 cycles per day in remote locations, where it is cost-prohibitive to run power.
- High security with optional boom skirts
Manufacturer's Warranty Period
- 2 years or 2 million cycles (whichever occurs first)
Technical Specifications
- Barrier width: Max. 12 ft
- Opening Width: 10 ft
- Opening/closing time: 2.2 s
- Power consumption: Max. 25 W
- Drive technology: MHTM™
- Voltage: 21-26V DC
- Duty cycle: 100 %
- Housing dimensions: (LxWxH) 12.4 x 14.2 x 36.0 in
- Enclosure rating: IP 54
- Temperature range: −22 to +131°F
- Weight without barrier arm: 96 lb
- Standard colors: Orange (RAL 2000), White (9010)
- Barrier arm type: MicroBoom
- Control system: MGC
- Integrated 2-channel detector for induction loops: Standard
- Variable I/O assignment: n/a
- No. of digital inputs: 8
- No. of relays/digital outputs: 6/4
- Selectable closing speed: Standard
- Selectable opening speed: n/a
