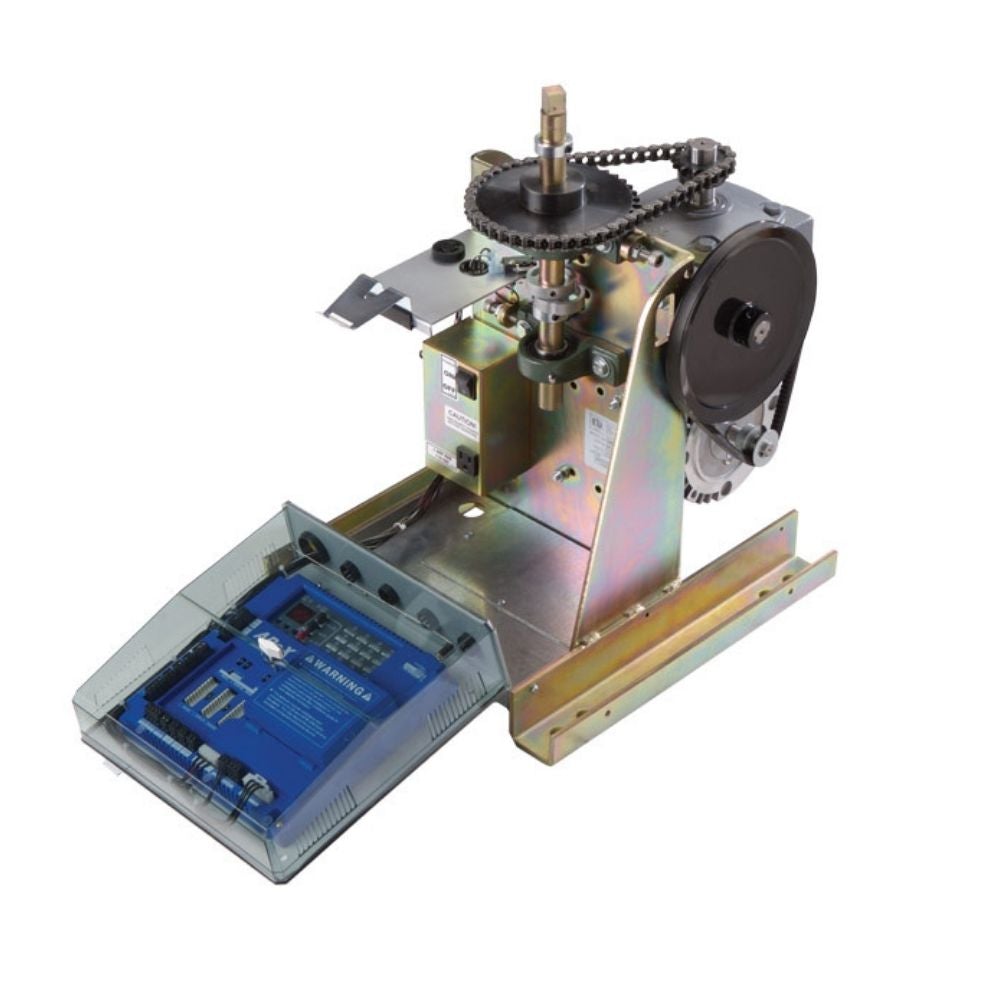

Linear SWC 1HP Commercial Swing Gate Operator

LinearSKU: LIN-SWC-121

Model: 230V - 1PH
Price:
Sale price$2,565.67

Estimate shipping

Linear SWC 1HP Commercial Swing Gate Operator

Commercial duty swing gate operator series, available in 1/2 and 1 horsepower, 115V or 230V supply voltage, 11-14 second gate opening speed.

Features
  • APeX Controller
  • Black polyethylene cover
  • Built-in MegaCode receiver
  • Gear reducer, size 60 (1/2 HP), size 70 (1 HP)
  • Quick disconnect crank assembly
  • Exterior reset button
  • Pad mount standard – optional post mount kit available
  • High starting torque – heavy-duty PSC motor
  • ETL Listed for UL 325 (Class I-IV) for U.S. and Canada
Electrical
  • Integral entrapment sensing system with a digital set point for quick accurate adjustment and enhanced safety
  • Continuous-tone entrapment alarm with reset button
  • LED diagnostic display for ease of setup and troubleshooting
  • Selectable pre-start and run alarm with provision for ADA-compliant visual pre-start and run alarm
  • Regulated 24 Volt DC power available for access control accessories
  • Integrated maximum run and auto close timer (0-9 minutes)
  • Built-in networked dual-gate capability using 3-wire shielded cable
Mechanical
  • Heavy-duty, zinc-plated, steel chassis
  • Lockable steel access door
  • Universal pad mount standard
Warranty
  • 5 years

Technical Specifications

  • HP: 1
  • Voltage and Phase: 115V - 1PH, 230V - 1PH
  • Drive Type: Crank
  • Max. Gate Length: 19 Ft.
  • Max Gate Weight: 1000 Lbs.
  • Secs. to Open: 12-16 seconds
  • Maximum duty cycle: Continuous
