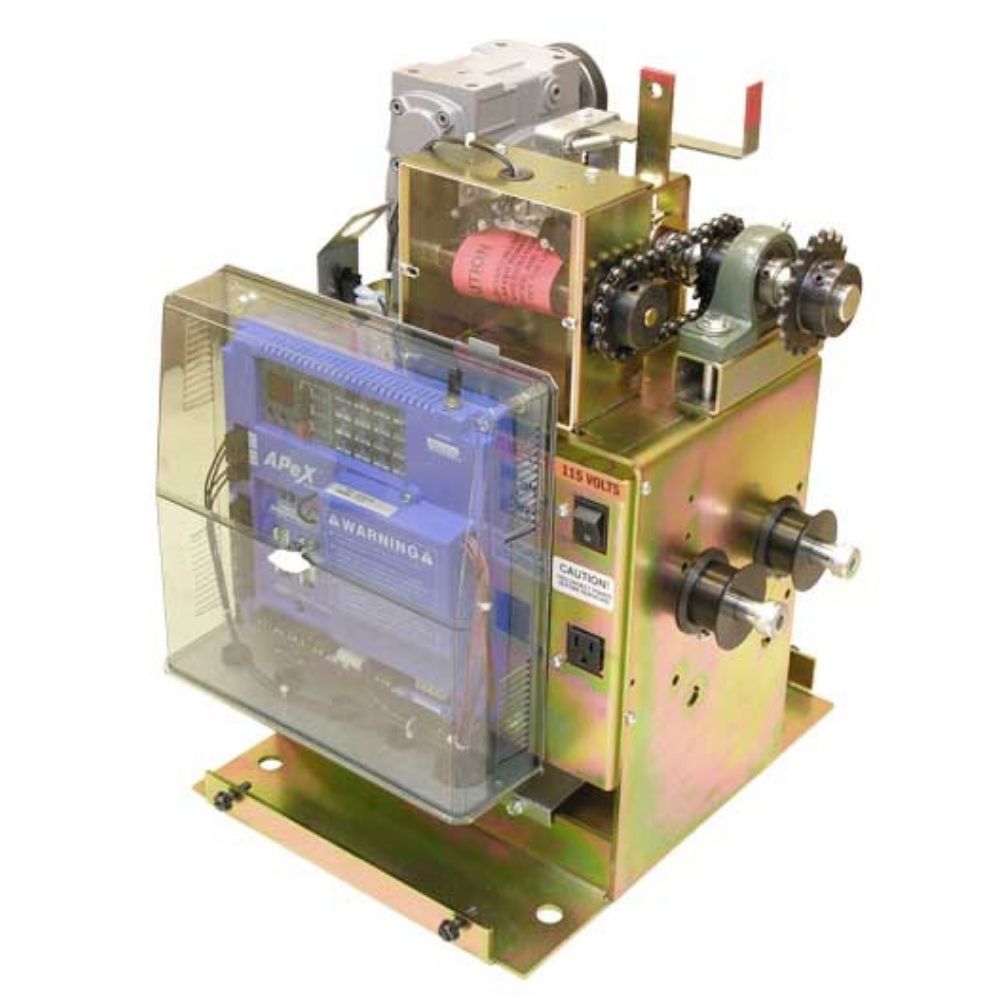

Linear SLC 1/2HP Commercial Slide Gate Operator

Linear SLC 1/2HP Commercial Slide Gate Operator

Linear SLC Series 1/2 HP slide gate opener (also known as a Linear slide gate operator or Linear slide gate motor) is a commercial slide gate opener available in a single phase in 115V and 230V. 11" per second. for slide gates up to 37 feet and 1000 lbs.

Note: This product has already been discontinued and replaced with SlideSmart DC 15 (HYS-SLIDESMARTDC15).

Features

• APeX Controller
• Black polyethylene cover
• Gear reducer, size 60, 20:1
• Built-in Mega Code receiver
• Easy-to-operate emergency manual disconnect handle
• Exterior reset button
• Pad mount standard – optional post mount kit available
• ETL Listed for UL 325 (Class I-IV) for U.S. and Canada

Electrical

• Integral entrapment sensing system with a digital set point for quick accurate adjustment and enhanced safety
• Continuous-tone entrapment alarm with reset button
• LED diagnostic display for ease of setup and troubleshooting
• Selectable pre-start and run alarm with provision for ADA-compliant visual pre-start and run alarm
• Regulated 24 Volt DC power available for access control accessories
• Integrated maximum run and auto close timer (0-9 minutes)
• Built-in networked dual-gate capability using 3-wire shielded cable

Mechanical

• Heavy-duty, zinc-plated, steel chassis
• #41 Drive chain on 1/2 HP (31’ included)
• #40 Drive chain on 1 HP (31’ included)
• Universal pad mount standard; optional post-mount kit

Factory Options

• Optional heavy-duty pad mount pedestal
• Optional thermostatically-controlled strip heater

Warranty

• 5 years

Technical Specifications

• HP: 1/2
• Voltage and Phase: 115V 1PH, 230V 1PH
• Max. Gate Weight: 1000 Lbs.
• Max. Gate Length: 37 Ft.
• Maximum Duty Cycle: Continuous

Product Literature

• Linear SLC Series Installation Manual
• Linear SLC Series Product Brochure
