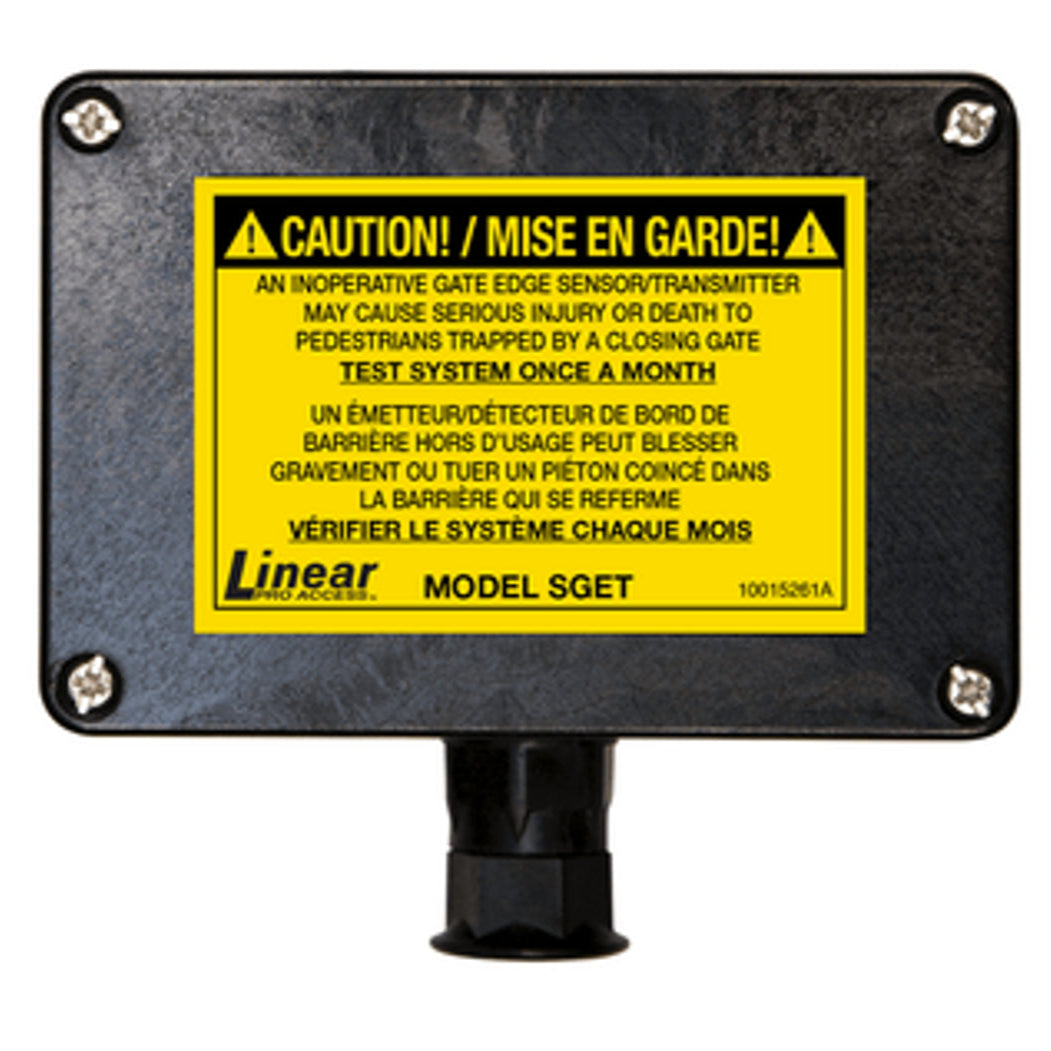

Linear Gate Edge Radio Extra Transmitter | LIN-SGET

The SGET is part of Nortek Security and Control control product line. In a typical
installation, the SGET is mounted on a motorized gate, door, or barrier arm and wired
to a 10K exterior safety edge sensor which presents a closed circuit across the
connecting wires when an object is hit during the closing of a gate.

To ensure full compatibility with all gate edge supervision features, NSC recommends
Miller gate edge sensors with 10K only. Please specify when ordering the sensor. If the edge sensor is pressed for 1/4 second, the SGET transmits a message to the SGER to reverse the movement of the gate.

The SGET circuit board has been coated to prevent moisture damage and is mounted inside a weather-resistant fiberglass box. The mounting box attaches to the gate through sealed interior mounting screws.

Features
  • Works with all 10K monitored gate operators
  • Uses 10K terminated edges
  • 2 channels for up to 2 edges and transmitters per receiver
  • Low Battery alert before failure
  • Receiver powered by 12-30 VDC
  • 2 output relays 10K during normal conditions, shorted during sense or power fail
  • Simple setup and programming
  • Audio and LED feedback for installation and troubleshooting
  • UL325 2016 approved for APeX2 operators
  • Hard wired motor sensing for 12-24 volt DC motors; non-contact ACSENS module for high voltage AC motors (115-460VAC)
