Linear PRO-SW Swing Gate Operator For Single Gate Use - 16' / 650Lbs. | RET-LIN-PRO-SW3000XLS

ClearanceSave $218.20
LinearSKU: RET-LIN-PRO-SW3000XLS

Price:
Sale price$872.79 Regular price$1,090.99
  • Final sale. No returns or exchanges.

Estimate shipping

Linear PRO-SW Swing Gate Operator For Single Gate Use - 16' / 650Lbs. | RET-LIN-PRO-SW3000XLS

Final Sale. No Returns or Exchanges.
Linear Pro SW3000XLS gate operator in use on a gate

The Linear PRO SW3000XLS series will operate a gate up to 16 ft. (4.9 m) long and weighing 650 lbs. (294.8 kg) per leaf if all proper installation procedures have been followed. Ball bearing hinges should be used on all gates weighing over 250 lbs. (113.4 kg).

Please Note

This item is a returned product but remains in good condition. It has been inspected for functionality; however, it may show minor signs of handling. This product is sold as-is as a final sale. No returns, refunds, or warranties are included.

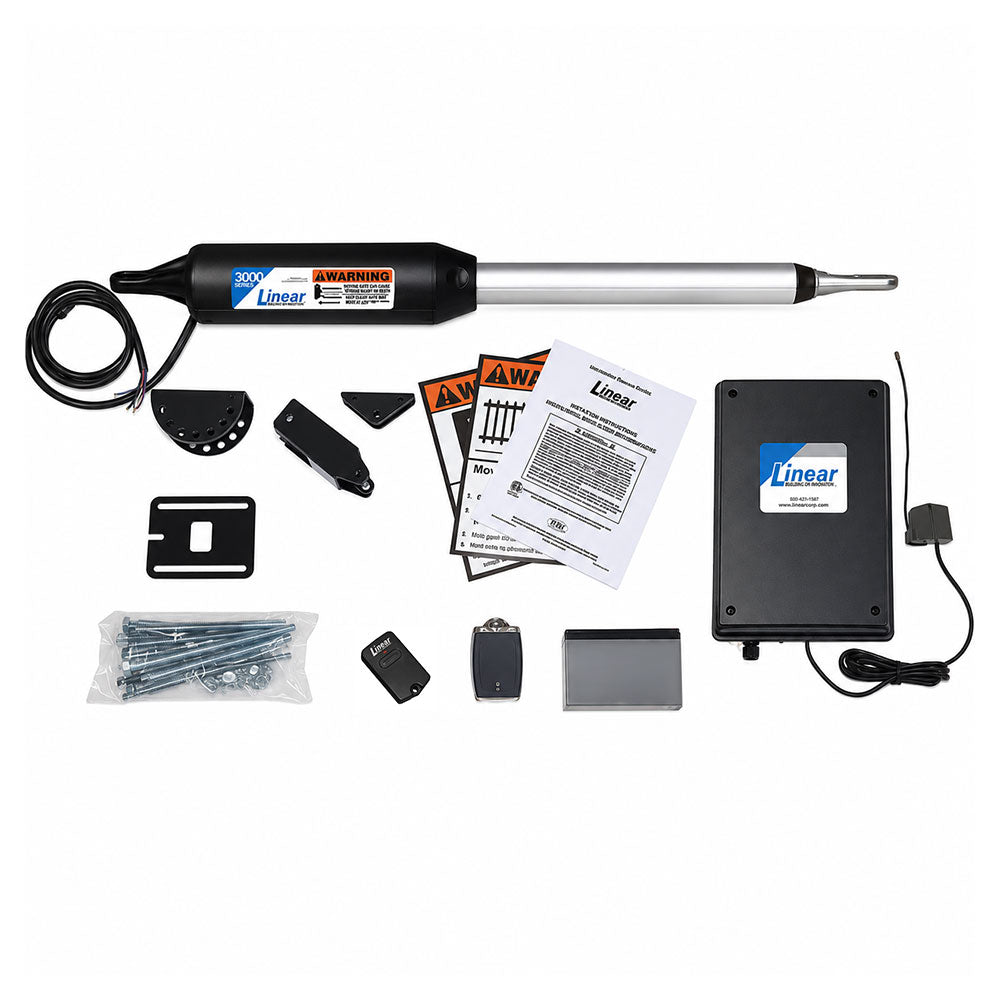

Includes
  • Master Operator Arm (1)
  • Control Box (1)
  • Receiver (1)
  • Transmitter (1)
  • Battery (1)
  • Bracket Box
  • Hardware Bag
  • Warning Signs (2)
Features
  • Solar Compatible
  • Increased operating speed by 10%
  • Rev-counter board with reed switch technology
  • IMPROVED front mount and scraper seal design
  • Features smooth start/soft stop operation
  • Extended Cycle Life – Enhanced motor design makes this opener ideal for today’s single-family homes or ranches
  • Works on all types of gates: chain link, tube, panel, ornamental, wood and vinyl
  • Full systems capable, control board includes adjustable obstruction sensing, gate sequencing, and auto-close settings
  • U.L. rated for Class I. System certified to be in compliance with U.L. 325, revision
Electrical
  • 12 Volt DC / 7.0 amp hour, sealed, rechargeable battery (included). Battery charge is maintained by a 120V AC/60 Hz input, 18V AC, 40 VA. output, transformer-rectified to 14V DC through control board
  • Powered by a reliable 12 Volt (120-Watt) DC motor, 16:1 planetary gear drive system.
  • Charging regulated circuit on control board. “Sleep draw” is 15 mA; “active draw” is 3 to 7 amps.
Mechanical
  • The Linear control board can be programmed for pull-to-open or push-to-open.
  • Operating temp -5 F (-21C) to +160 F (71 C).
  • Opening time: From 15 to 18 seconds.
  • Range of arm stroke: up to 16˝ (41 cm).
  • Operator length: with arm fully retracted is 40.25˝ (102 cm), mounting point to mounting point.
  • Operation, diagnostic and safety alarms.
  • Inherent obstruction sensing.
  • Soft start/soft stop—for long mechanical life expectancy.
  • Auto-close adjustable 3–120 seconds delay.
Linear Pro SW3000XLS gate operator diagram in closed position
