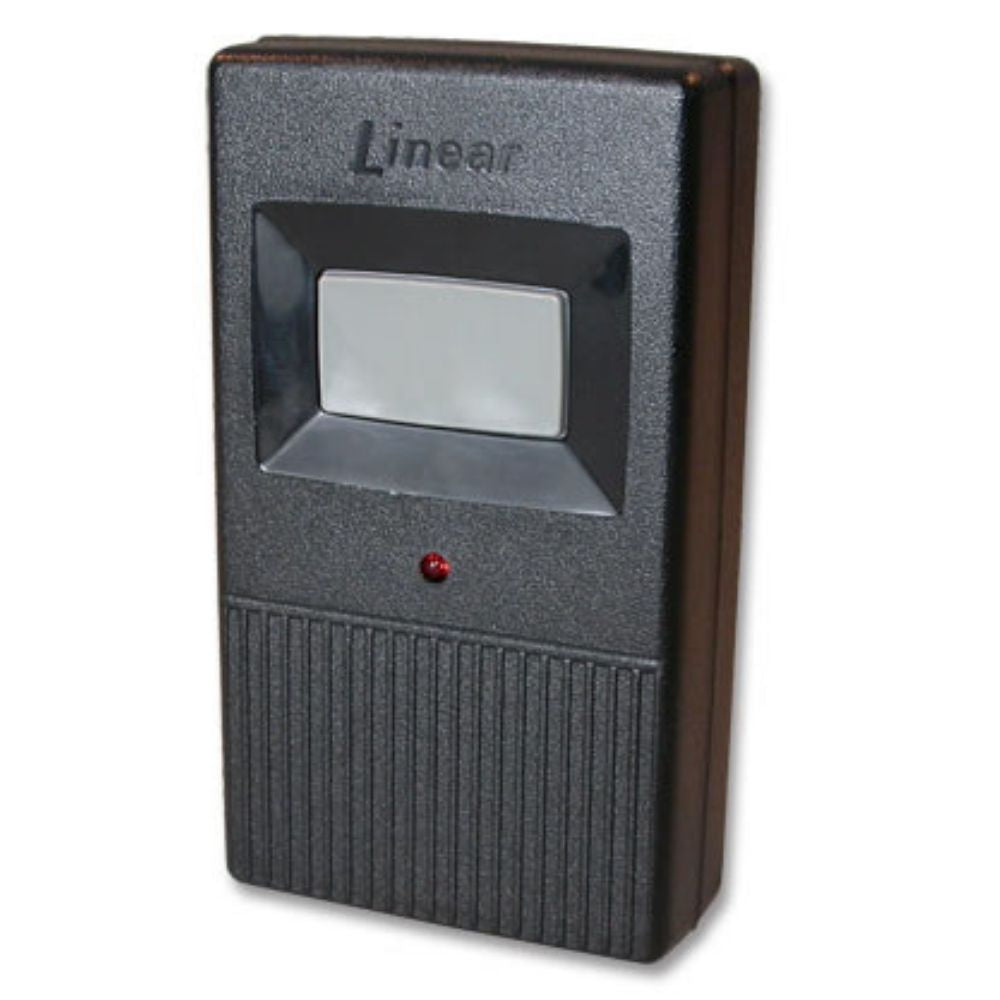

Linear 1-Channel Block Coded Visor Transmitter | LIN-MT-1B

Designed for use with Linear’s access control products. The Model MT-1B is a single-channel device. Pressing the button on the transmitter will send a signal. A visor clip is included.

The transmitter is MegaCode format, which means each transmitter is factory preprogrammed with one of over 1,000,000 codes, virtually eliminating the possibility of code duplication. Because the receiver ”learns” each specific code, no unauthorized person can gain access to the system by reprogramming a transmitter.

Block coded transmitters are factory programmed to a sequential series of transmitter ID codes. When used with a Linear access controller, transmitters can be locally or remotely programmed into memory by entering the first and last codes of the block into the system. Facility codes can be selected to further customize the system.

Includes
  • Visor clip
Features
  • Superior transmission range
  • Operate LED
  • Sold in lots of 10
Technical Specifications
  • RF Frequency: 318 MHz
  • Number of Codes: 1,000,000 plus ID codes
  • Code Set Method: Factory programmed
  • Channels: one channel
  • Power: one 9 V battery (supplied)
  • Dimensions: 2.2″ W x 3.8″ H x 0.9″ D (56 x 97 x 23 mm)
Compatibility
  • Linear AE1000Plus
  • Linear AE2000Plus
  • Linear AKR-1
  • Linear AM-RPR
  • Linear AMRRR
  • Linear MDR,
  • Linear MDR-2
  • Linear MDRG
  • Linear SMDRG
  • Linear WOR
  • All Linear access receivers and controllers
