LiftMaster Industrial Slide Gate Opener | SL595UL

LiftMasterSKU: LIF-SL595101UL

Model: SL595101UL/ 1 HP/ Dual Voltage/ Single Phase (115V/208V/230V)
Price:
Sale price$2,597.70

LiftMaster SL595UL Slide Gate Opener (2018 UL325 Compliant)

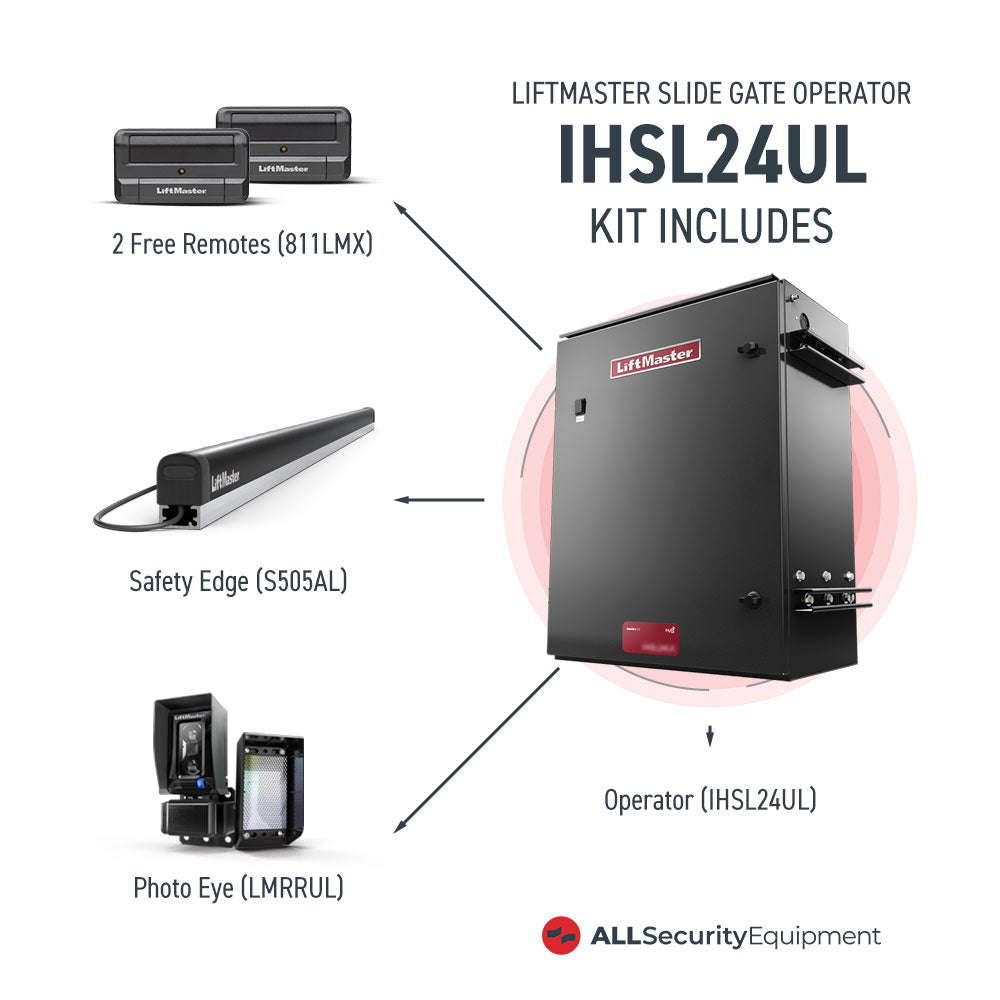

Includes:

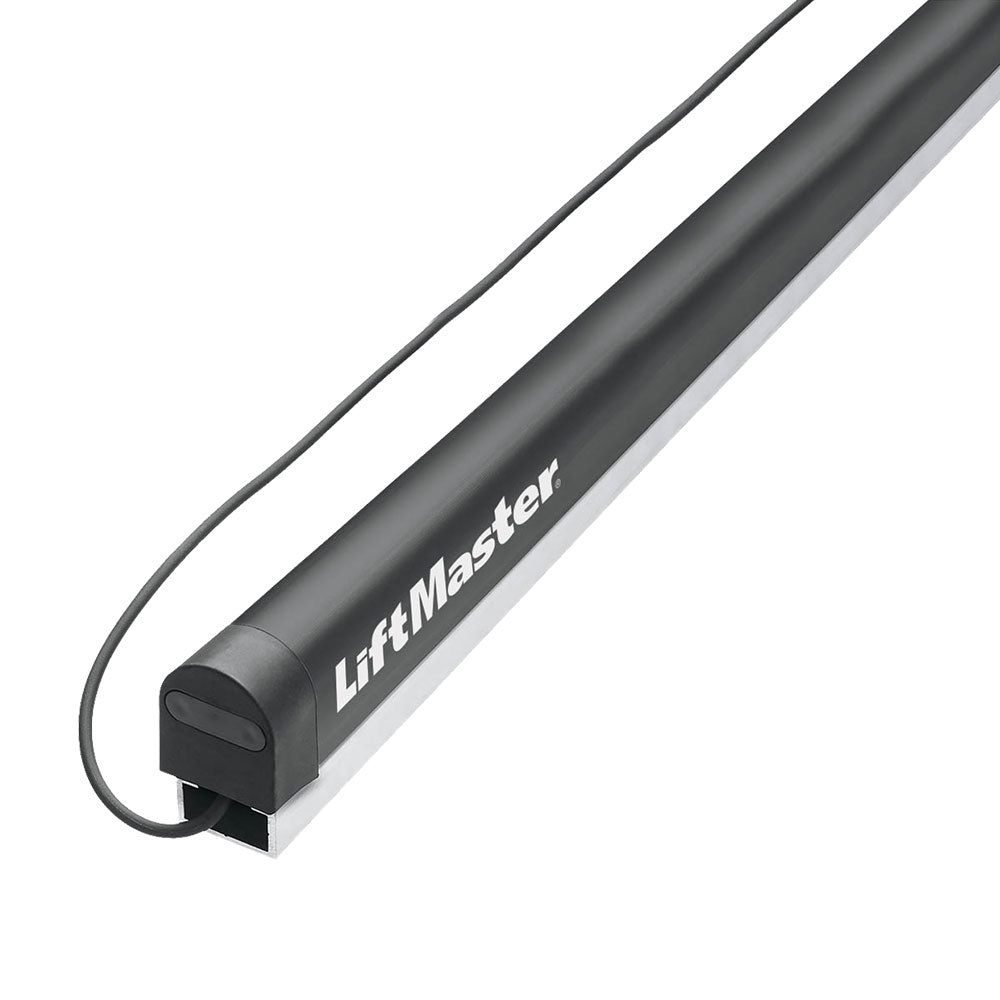

  • 5’ Resistive Safety Edge (Model S505AL)

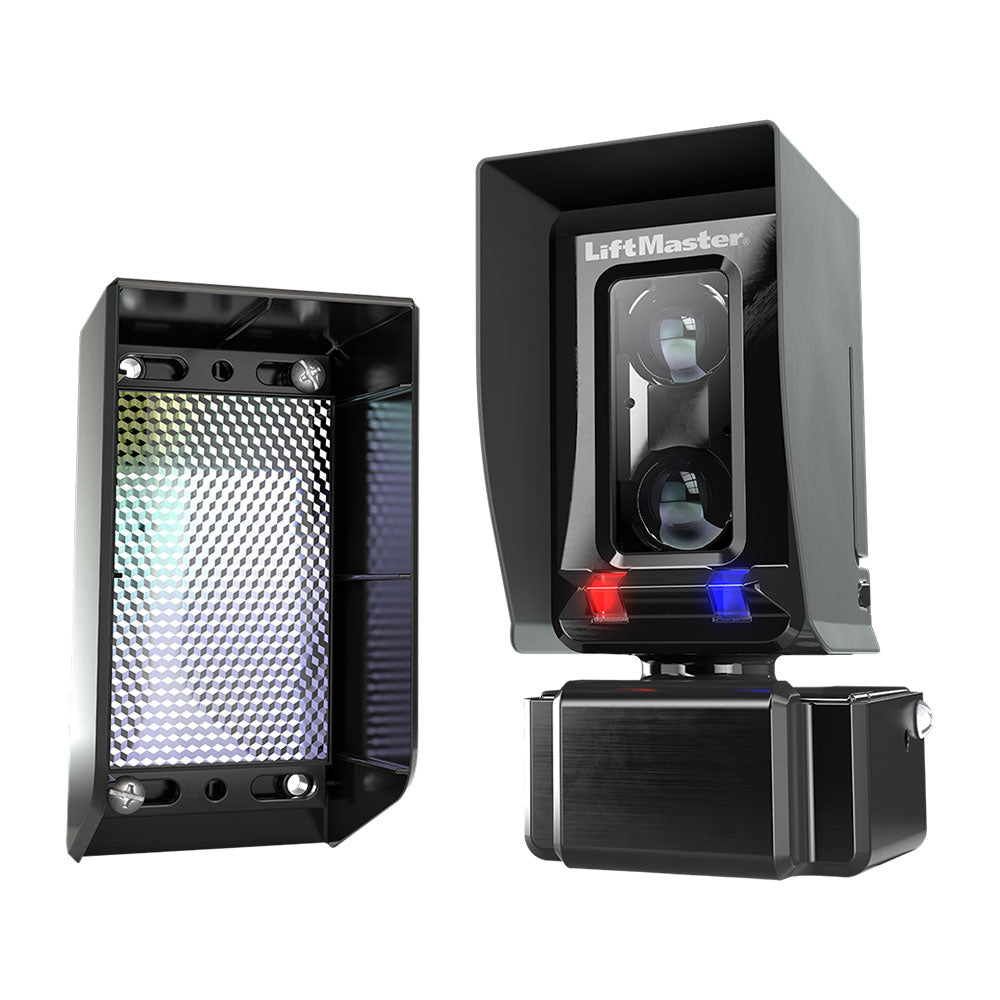

  • Photocell Model LMRRUL with protective hoods
  • 25 ft. Chain #50 Nickel-Plated

PLEASE NOTE: This is LiftMaster’s most recent version of this model which is now 2018 UL325 Compliant. To be 2018 UL325 Compliant it is mandatory for each slide gate system to have at least two functioning SAFETY DEVICES. Therefore LiftMaster’s new UL control board, improved photo eye sensor (Model LMRRUL / with protective hoods) and 5’ Resistive Safety Edge (Model S505AL) are ALL INCLUDED at no additional cost.

It is recommended you add LiftMaster Wireless Receiver & Transmitter Kit (LMWEKITU) for convenience and/or to minimize complications involving the wire from the included Safety Edge. These accessories are available in the product options below.

The LiftMaster SL595UL is an extreme heavy-duty operator for industrial locations such as manufacturing plants and truck depots.

LiftMaster SL595UL Slide Gate Opener Features:

  • LED DIAGNOSTIC DISPLAY Simplifies installation and troubleshooting.
  • DUAL VOLTAGE CONNECTIONS Increase flexibility by enabling the installer to select the required voltage, within phase, to meet job-site requirements. Voltage is selectable within phases at the time of installation with the placement of a connector. • Single Phase: 115V, 208V and 230V • 3 Phase: 208V, 230V and 460V • 3 Phase: 575V is a discrete model without field-selectable voltage. Includes factory installed heater kit.
  • PROGRAMMABLE AUXILIARY RELAYS Easily add additional features, such as warning lights/alarms.
  • MECHANICAL LIMIT SYSTEM Maintains accurate gate position throughout gate travel, even after using manual disconnect.
  • PRE-MOTION WARNING ALARM Activates onboard alarm three seconds prior to gate motion.
  • MECHANICAL BRAKING SYSTEM Adds substantial gate position control at all points in travel. This solenoid-actuated brake system also prevents the gate from being back-driven.
  • MAXIMUM RUN TIMER Protects against damage to the gate and operator by limiting the unit’s runtime to 120 seconds.
  • EXTERNAL ALARM RESET BUTTON Allows for quick reset of the gate operator when the alarm has been activated.
  • ADJUSTABLE FRICTION CLUTCH Helps to protect gate and operator from damage should the door meet an obstruction.
  • ANTI-TAILGATE Prevents unauthorized access. Gate will pause when closing as vehicle pulls onto interrupt loop or breaks photo beam. Once vehicle backs up, gate will continue to close.
  • QUICK CLOSE Closes the gate immediately after a vehicle pulls off the interrupt loop.
  • HOMELINK® COMPATIBLE Version 4 and higher.
  • SECURITY+ 2.0® ON-BOARD RADIO RECEIVER Up to 50 remote controls (unlimited with 811LM/813LM).
LiftMaster Feature Access Connectivity

LiftMaster SL595UL Slide Gate Opener Specifications:

  • POWER 115/208/230 VAC. Single Phase. 208/230/460/575 VAC. 3 Phase.
  • ACCESSORY POWER 24VAC, 500mA max.
  • MONITORED SAFETY INPUTS 3 Main Board, 3 Expansion Board.
  • TEMPERATURE SPECIFICATIONS Without Heater: -4°F (-20°C) to 140°F (60°C). With optional heater (HTRNB: HTR460 for 460V operators): -40°F (-40°C) to 140°F (60°C). UL
  • USAGE CLASSIFICATION I, II, III, and IV.
  • GATE TRAVEL SPEED 12 in. per second.
LiftMaster SL595UL Slide Gate Opener Construction:
  • P3 MOTOR® High starting torque continuous-duty motor.
  • OPERATOR DUTY RATING 25 cycles per hour.
  • METAL FRAME 7-gauge pre-galvanized steel.
  • WORM GEAR REDUCTION 20:1 worm gear reducer.
  • CHAIN #50 nickel-plated (25 ft. supplied).
  • COVER Powder-coated, pre-galvanized 16-gauge steel oiltight, weatherproof NEMA 3R lockable cabinet.
  • OPERATOR WEIGHT 270 lbs
Capacity
LiftMaster SL595 Capacities
