LiftMaster MT5011U MT Medium-Duty Logic Trolley Operator
LiftMaster MT5011U MT Medium-Duty Logic Trolley Operator
LiftMaster MT5011U MT Medium-Duty Logic Trolley Operator
Roll over image to zoom in Click on image to zoom
LiftMaster MT5011U MT Medium-Duty Logic Trolley OperatorLiftMaster MT5011U MT Medium-Duty Logic Trolley OperatorLiftMaster MT5011U MT Medium-Duty Logic Trolley Operator

LiftMaster MT5011U MT Medium-Duty Logic Trolley Operator

Write a review
LiftMasterSKU: LIF-MT5011U
Model: Trolley M-Duty MT5011U
Price:
$559.00
  • Estimated delivery 2 weeks.

Estimate shipping

LiftMaster MT5011U MT Medium-Duty Logic Trolley Operator

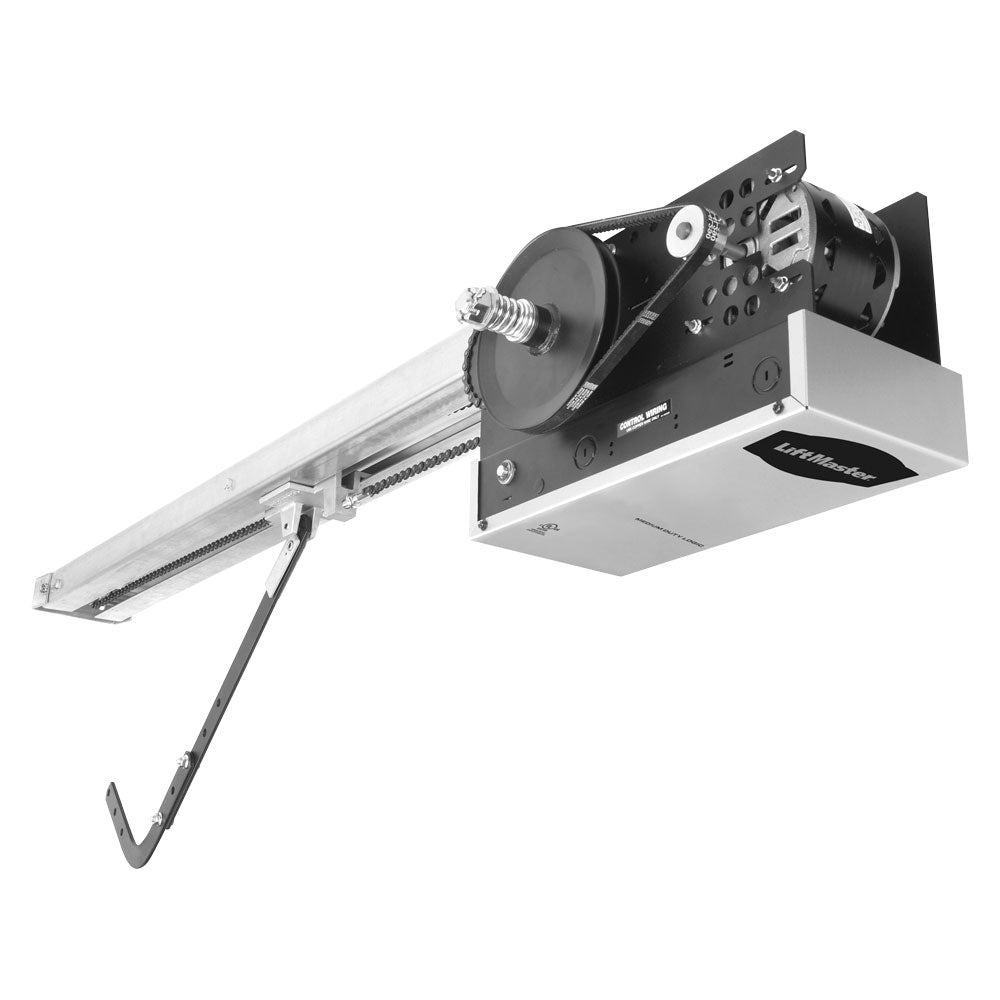

The LiftMaster MT is ideal for standard-lift sectional overhead doors with mid-range duty-cycle requirements up to 12 cycles/hour and up to 50 cycles/day (using intermittent-rated motor). This commercial door operator suspends from the ceiling and directly attaches and controls a sectional door. Trolley with disconnect disengages operator for manual lifting in an emergency.

Please note

The following options are mandatory to purchase a Commercial Door Operator, any order not containing these options will not be processed:

  • Door Height
  • Photo Eyes

If you need more information or a custom configuration, please call our technical support team at (800) 730-8382.

This product is a special order only and it is not eligible for returns or refunds.

Make sure to calculate the door area to ensure compatibility*

Includes

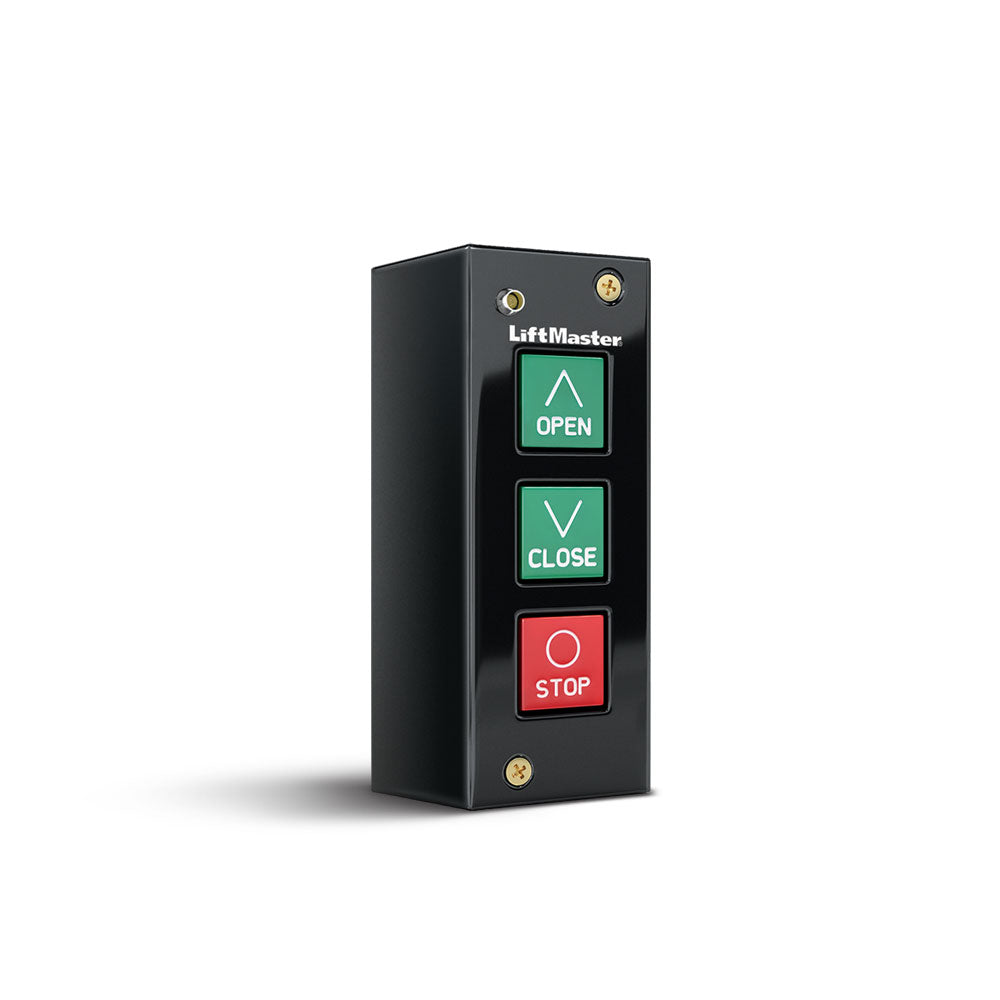

  • 3-Button Station 02103
  • FREE Digital Multimeter
Features
  • Operator Speed: 8-10 Inches per second
  • Limit Settings: Mechanical
  • Emergency Disconnect for Manual Operation: Floor-level emergency release sash chain.
  • Emergency Disconnect with Auto-Reconnect: Reconnects when tension is removed from the emergency release rope.
  • Programming: Tactile buttons
  • Circuit Board: Solid-state medium-duty logic circuit board
  • Timer-to-Close: Programmable from 5-60 seconds in 5-second increments
  • Clutch: Standard adjustable friction clutch
  • Motor Operator Wall Control: 3-Button control station
  • Trolley Track: Dual L-rail trolley track
  • Push Button Station: 3-Push button station (Open/Close/Stop)

Installation Features

  • Maximum Door Height: 14 feet
  • Maximum Door Width: 22 feet
  • Maximum Allowable Square Footage: 310 square feet
Commercial Door Operator Lifestyle Facility

SAFE AND SECURE

  • Security+ : Built-in 3-Channel Security+ Receiver allows you to learn/program up to 20 LiftMaster 315 MHz remote controls.
  • Safety Standards: Meets UL 325 Safety Standards.
  • Commercial Safety Sensors: Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.
  • Timer to Close: Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the full open position.

RELIABLE

  • High-starting torque motor with overload protection
  • Warranty: 2 years

* Please refer at the table below to ensure compatibilityLiftMaster Medium-Duty Trolley Operators
