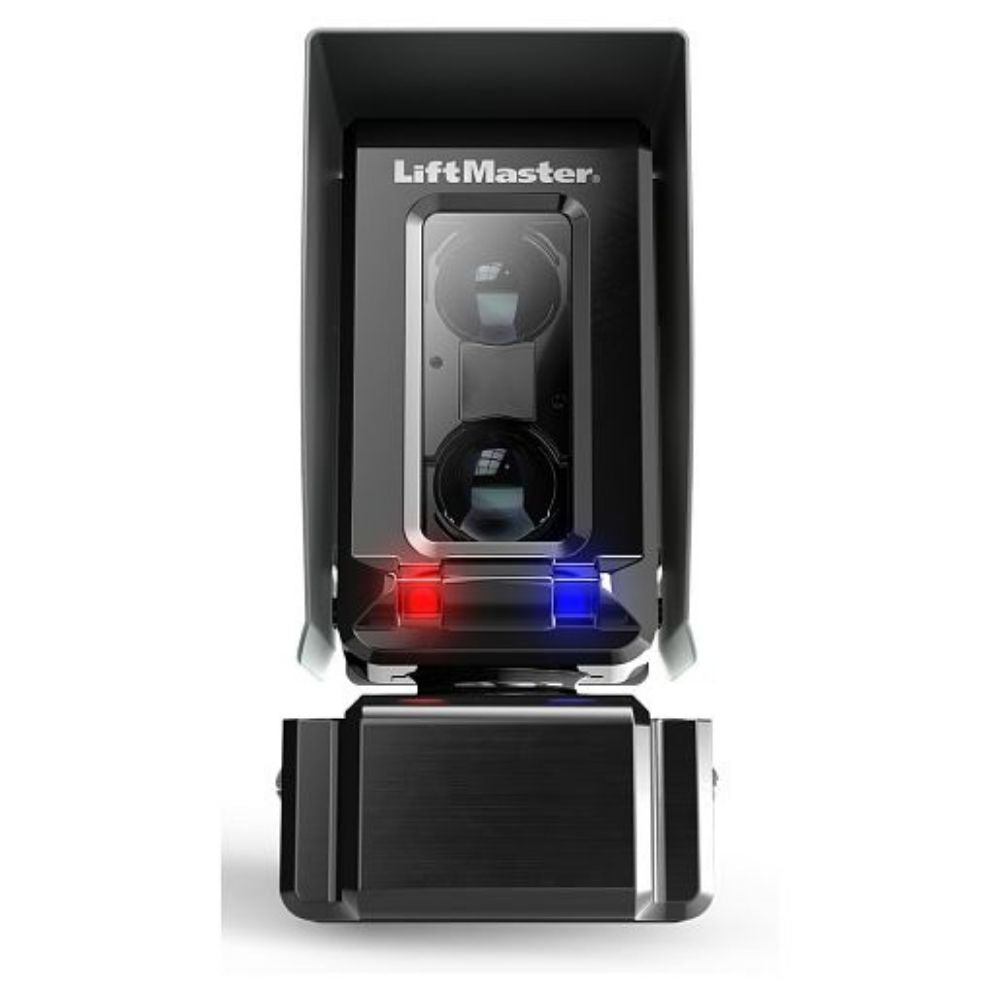

LiftMaster Monitored Through Beam Photo Eyes with Wider Beam | LIF-LMTBUL
LMTBUL features integrated diagnostics with our 2018 UL® 325 Gate Operators.
Includes
- Brackets
- Hardware
- 10ft. wire and hoods
Features
Reliable
- Versatile Solution for entrapment protection.
- Long-Range Sensing Distance of up to 90 ft. (LMTBUL)
- Built-In Heater for dependable performance in most environments.
- Increased Beam Angle for simple, reliable alignment.
- Versatile Gimble Bracket for fine alignment and adjustability.
- With 2 years warranty.
Smart
- Alignment Strength Indicator signals optimal beam alignment.
- Multi-View Led Lights indicate sensor status, simplifying installation.
- Wireless Network Capability eliminates the need to wire between operators in dual-gate applications (LMTBUL).
Safe and Secure
- Secure Mounting Hardware for versatile performance in harsh applications.
- Hoods are included for durability and shielding from elements.
- NEMA 4X Rated for superior weather resistance.
- UL Recognized: tested and evaluated by UL and meet UL 325 requirements.
Diagnostics
- Solid Blue—optimal alignment
- Blinking Blue—LED blinks faster to indicate near alignment
- Solid Red—misaligned or obstructed
Technical Specifications
- Outdoor Rating: NEMA 4X
- Cable Length: 10 ft. (3m)
- Operating Temperature: -40 ̊C to 65 ̊C (-40 ̊F to 149 ̊F)
- Max Range: 90 ft. (27.4 m)
- Input Voltage and Current Draw Sensor: Black/Red Wires: 6.8V DC, 20mA
- Heater: Green/White Wires: 10–40V DC or 8–28V AC, 2 Watts Max., 170mA at 120V DC/AC, 85mA at 24V DC/AC. Thermostatically controlled, NOT recommended for solar applications
- Monitoring Technology: Pulsed system
- Interface: 4-Wire connection (2 for Eye; 2 for heater)
- Sensor Compatibility: LMRRUL emitter is not interchangeable with the LMTBUL emitter
- Weight: 4.3 lbs.
- Dimensions Photo Eye with Hood (H x W x D): 4.6” x 2.45” x 2.76”
- Dimensions Photo Eye without Hood (H x W x D): 4.56” x 2.35” x 1.97”
- Dimensions Reflector with Hood (H x W x D): 4.72” x 2.01” x 2.61”
- Cover: Stainless steel sensor hood, durable polycarbonate reflector hood, powder-coated galvanized mounting brackets.
