Yale LiftMaster Smart Touchscreen Deadbolt | LIF-LM-YRD256-MQ1-619
Unlock your door with a touchscreen keypad that wakes with a touch and has backlit numbers that won’t wear off.
What's In The Box
- Key Free Touchscreen Keypad

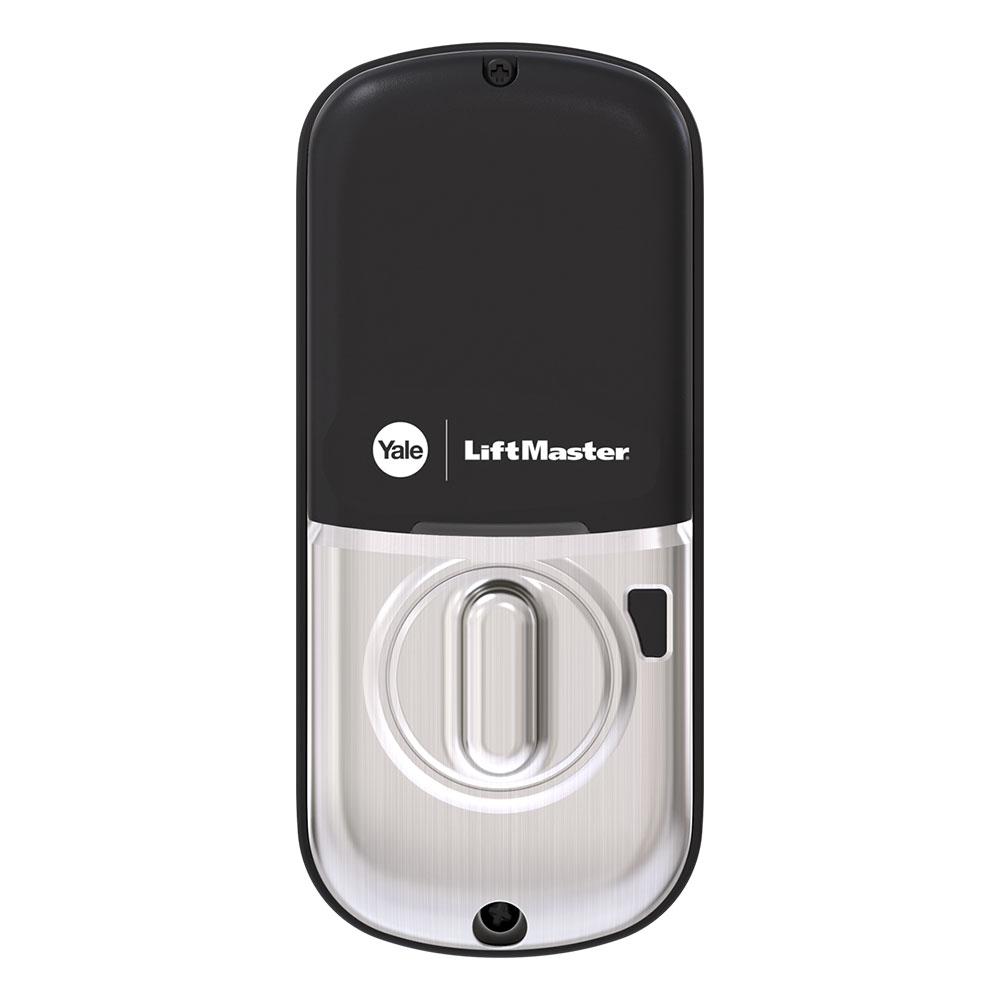

- Interior of Lock
- Battery cover
- Mounting plate
- Installation Guide and door template
- 4 AA batteries
- Strike Plate
- Deadbolt
- 2 inside lock screws
- 4 strike plate and deadbolt screws
- 6 through bolt screws (use one set, depending on door thickness)
- A myQ module
Features
- Compatible with myQ: Pair with Next Gen GDO or the Smart Garage Control (purchased separately) to securely lock/unlock, enable Delivery Auto Lock feature for Amazon Key, view door activity, and alerts all in the myQ® app from anywhere. *Lock must be in Bluetooth range of the GDO or Smart Garage Control for remote features.
- Easy Pin Code Management: Unlock the door by entering your 4-8 digit entry code.
- Easy Install: Simple to install on any door and replaces your existing deadbolt in minutes with just a screwdriver.

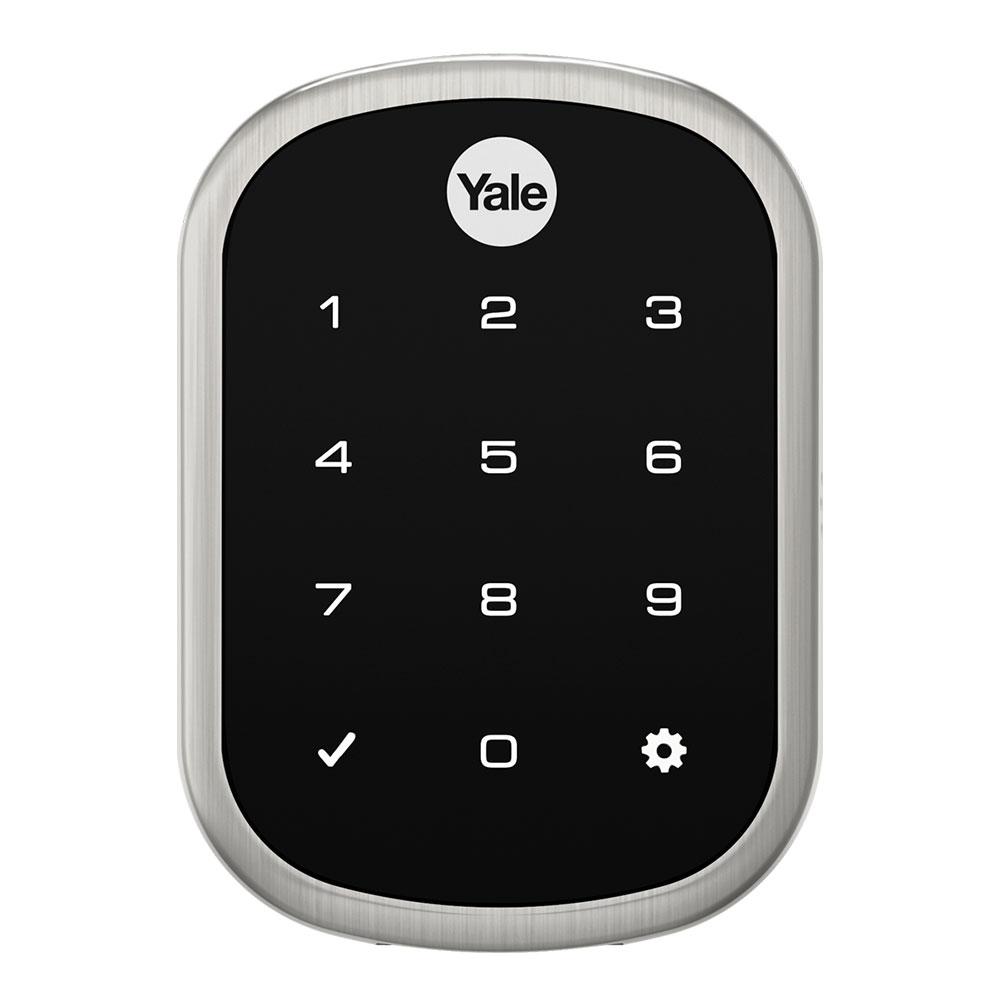

- Touchscreen Keypad: Wakes with a touch, one touch locking, and has backlit numbers that won’t wear off.
- Key Free: No keyhole means no lock picking or keys to lose.
- 9V Battery Backup: With tamper resistant battery cover. Never worry about getting locked out due to dead batteries.
- Works on most standard doors with deadbolt prep.
Technical Specifications
- Handing: Reversible and self-handling
- Certifications: A156.36 ANSI/BHMA, UL/cUL: 20 minute UL fire rated when installed on correctly rated/specified door
- Environmental -22F to 140F
- Warranty: 1 Year Electronics, Unlimited Lifetime on Finish and Mechanical
- Power Source: 4 AA Batteries, 9V Battery can be used as a backup
- Battery Life: Approximately 12 months with regular use
- Key Pad Type: Touchscreen
- Thickness: 1-3/8" to 2-1/4"
- Edge borehole: 1"
- Face borehole: 2-1/8"
- Backset (distance from the edge of the door to the center of borehole): 2-3/8" or 2-3/4"
How to Set up a Yale | LiftMaster Smart Lock With the Smart Garage Control in the myQ App
Product Literature
Find answers to our most frequently asked questions below. Got more questions? Reach out to our friendly customer service team, they will be more than happy to assist you.
