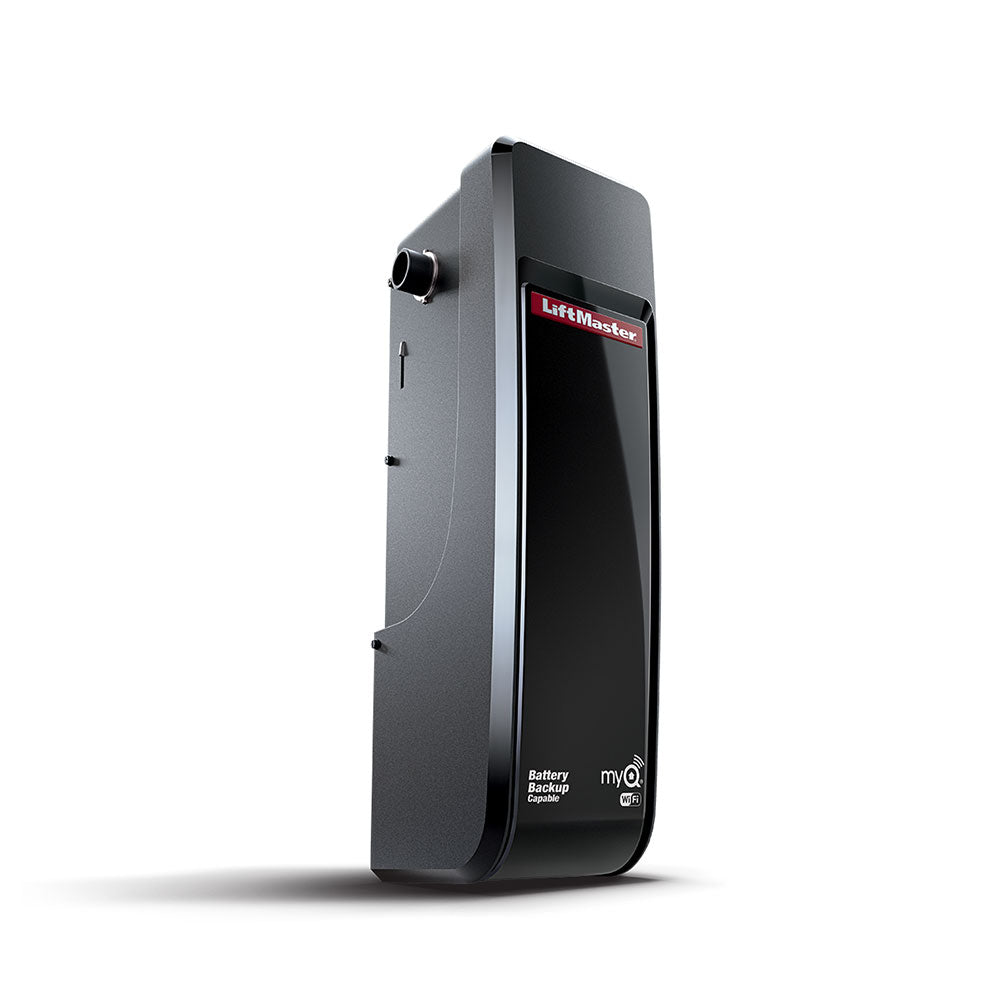

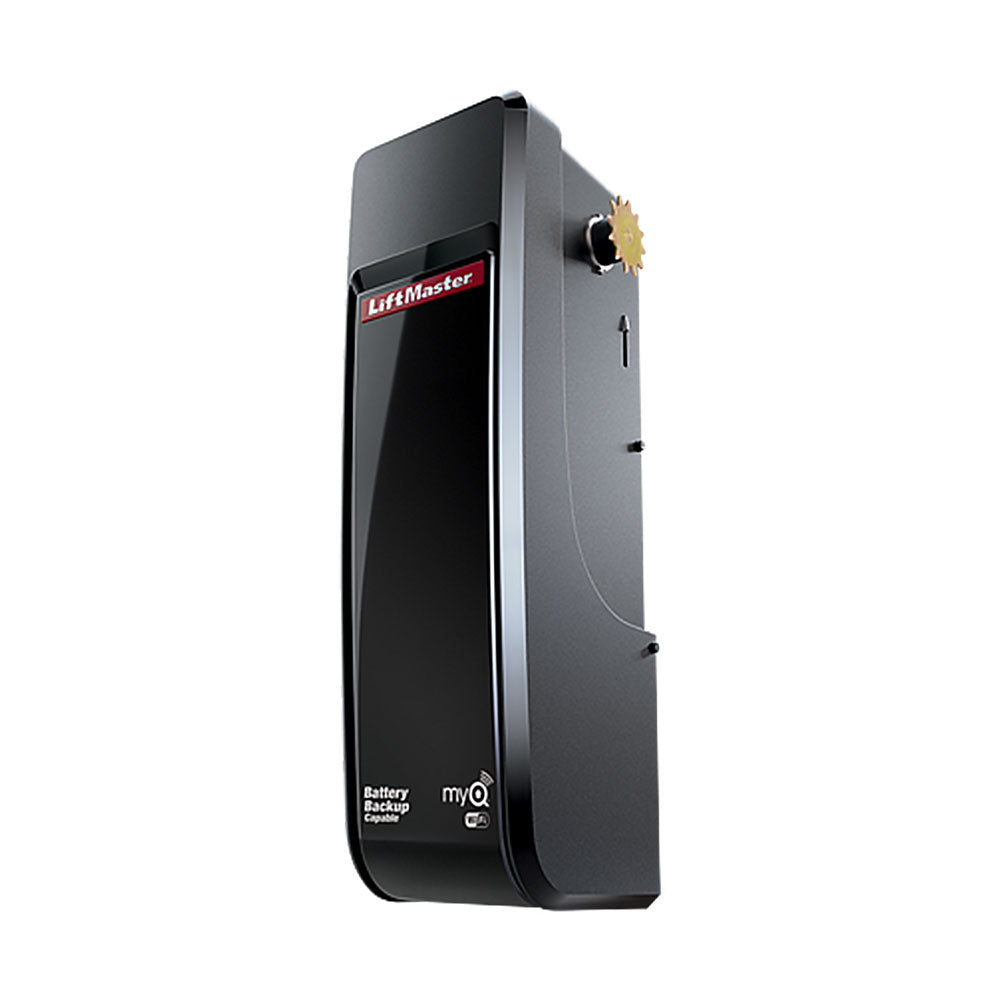

LiftMaster LJ8950W Light-Duty Commercial Operator for Rolling Doors
The LiftMaster LJ8950W is ideal for applications using smaller, lighter commercial rolling overhead doors and grilles with light-duty cycle requirements. Light-Duty cycles up to 10 cycles/hour; fewer than 25 cycles per day. This operator is ideal for dock doors, small warehouses, self-storage, and counter shutters.
Please note: This product is special order only and it is not eligible for returns or refunds.
Includes

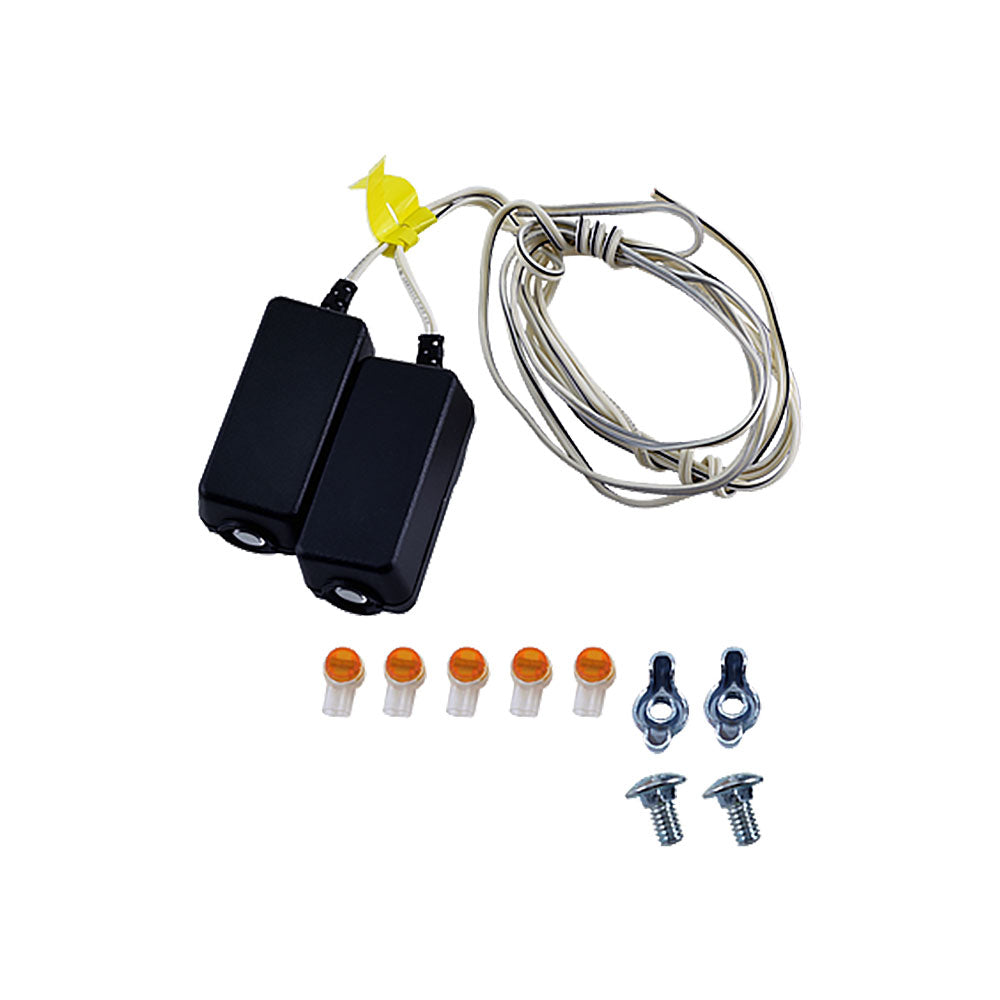

- Safety Sensor Kit 041A5034
- FREE Digital Multimeter
Features
- Operator Speed: 7.5-8.5 Inches per second
- Limit Settings: Electronic
- Emergency Disconnect for Manual Operation: Emergency release rope with handle
- Emergency Disconnect with Auto-Reconnect: To reconnect, pull down on the handle again to re-engage
- Programming: Tactile buttons
- Circuit Board: Solid-state circuit board
- Motor Operator Wall Control: Single-button control station
- Push Button Station: Single-push button control
Business Connectivity
- Monitor and Control: myQ® technology enables monitoring and control of the operators through a mobile app.
- Facility's Network: Easily connect the operator to the facility's network with built-in Wi-Fi.
- Real-time alerts: Indicate the status of doors via email.
Installation Features
- Universal Mounting: Yes, can be mounted to either the right or left side of the door without the need for any special accommodations.
- Maximum Door Height: 12 feet
- Maximum Door Width: 18 feet
- Maximum Allowable Square Footage: 180 square feet
- Internet Connectivity: myQ Technology enables remote monitoring and control of the commercial door via a smartphone, tablet, or computer (operator directly connects via built-in wi-fi, myQ app required).
SMART
- myQ Technology enables monitoring and control of the facility operators through a mobile app.
- Built-In WI-FI for simple operator internet connection.
- Real-Time Alerts indicate the status of doors via email or push notifications.
QUIET AND SECURE
- Smooth Start/Stop reduces wear of your door system for lasting performance.
- Battery Backup Capable ensures access even when the power is out
- Security+ 2.0 safeguards facility access with rolling code technology, opening for registered devices only.
- The Protector System auto-reverses the door if an entrapment protection device detects an obstruction.
RELIABLE
- Warranty: 2 years
Capacity
Product Literature
- LiftMaster Light-Duty Commercial Door Operator LJ8950W Product Guide
- LiftMaster Light-Duty Commercial Door Operator LJ8950W Data Sheet
- LiftMaster Light-Duty Commercial Door Operator LJ8950W Installation Manual
- LiftMaster Light-Duty Commercial Door Operator LJ8950W Product Drawing
- LiftMaster myQ Business Facility
Find answers to our most frequently asked questions below. Got more questions? Reach out to our friendly customer service team, they will be more than happy to assist you.
