HySecurity SwingRiser 30 | HYS-SWINGRISER-30

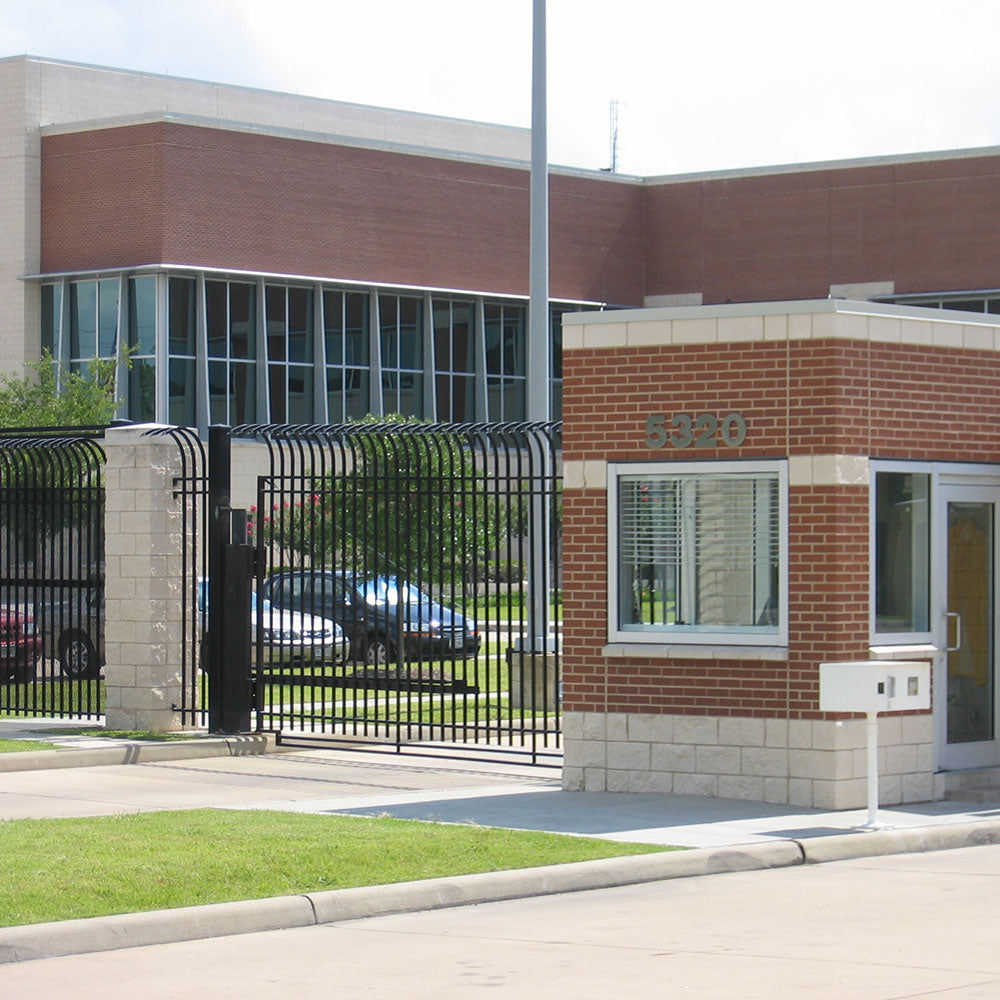

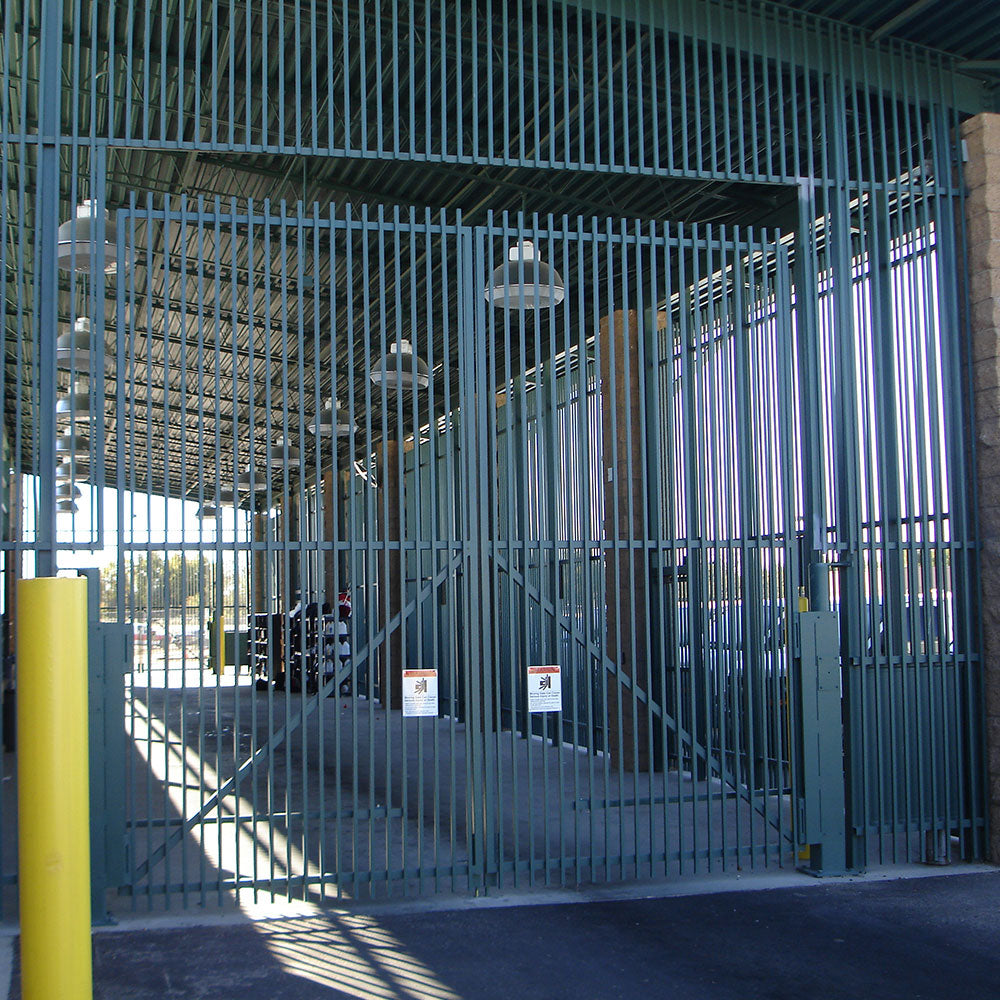

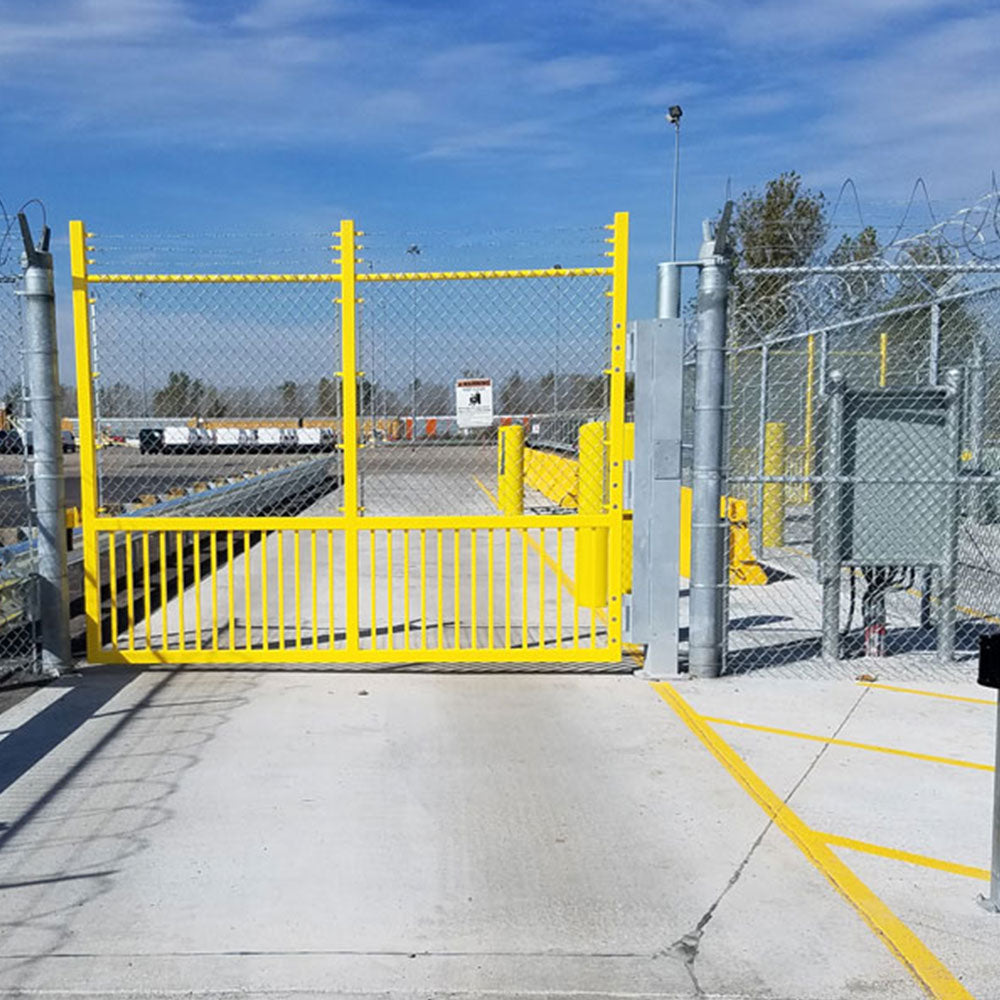

HySecurity’s unique single or twin post swing gate operator moves gate leaf with graceful, smooth lift and swing. Gate leaf is raised a full 12 inches during the gate open cycle to clear obstacles like snow, rocks, curbs and road inclines. Gate locks mechanically with optional locking pin that locks into receptacle when gate gently lowers at end of its cycle.

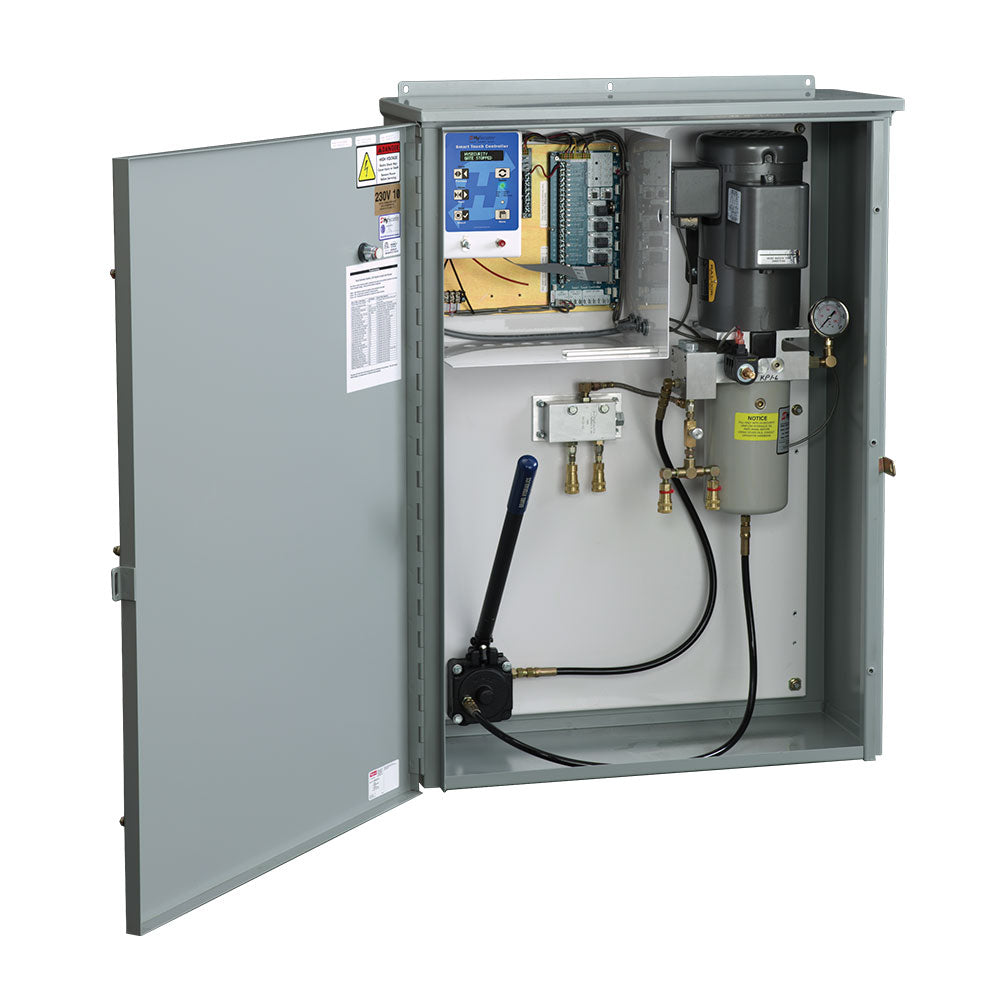

Cycle up to 3,000 lb (1,361 kg) gate leaf in 30 seconds. Maximum gate length is 16 ft (5 m). A separate HydraSupply enclosure containing Smart Touch Controller and hydraulic power unit is remotely located, up to 100 ft, from the gate.

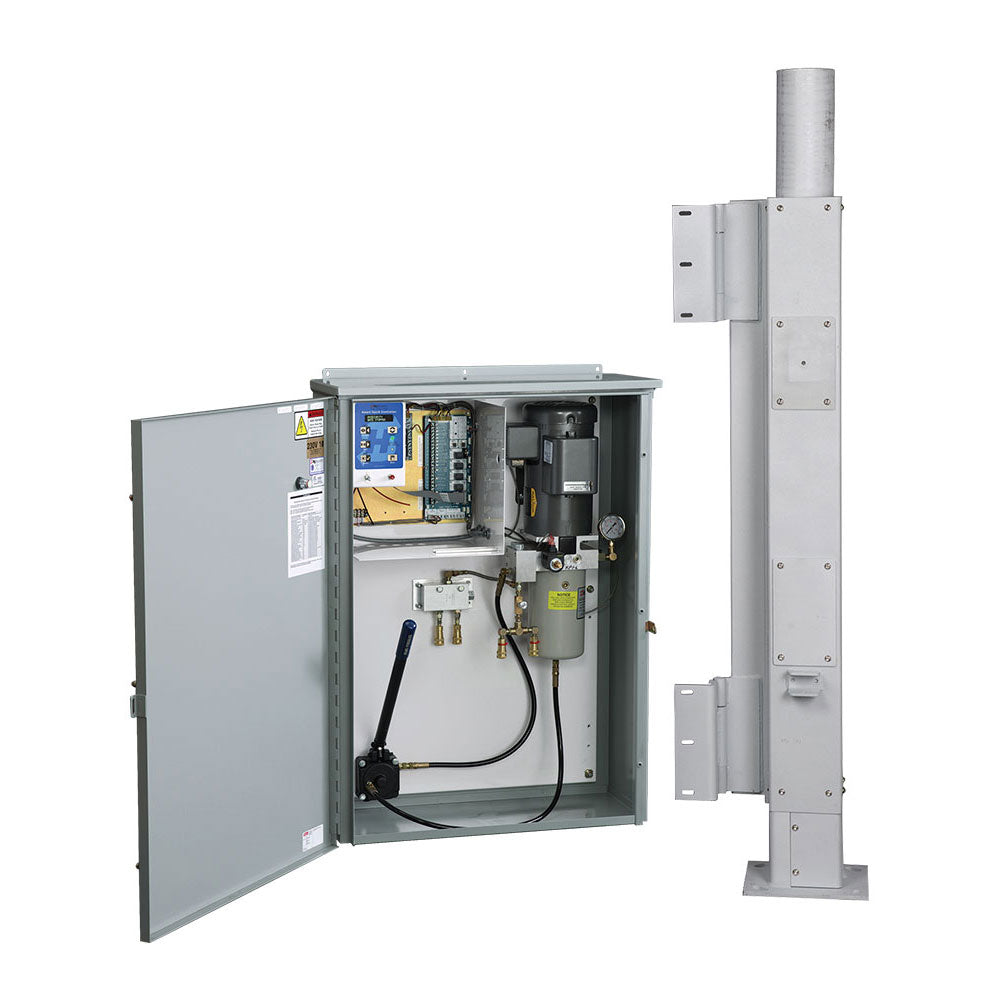

Note: Separate HydraSupply contains Smart Touch Controller, electric motor, and pump pack. Submit completed and signed SwingRiser operator and hose order forms with each order.
Note: Please note that all operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.
Features
- Fast 14 to 30 second open/close time depending on gate length.
- Ultra-reliable hydraulics contain only one gallon of high performance hydraulic fluid.
- HySecurity’s innovative solid state Smart Touch Controller offers 70+ configurable settings from a simple automatic Close Timer to saving and reporting critical date and time stamped security breach & system events, alerts and faults. PC interface provided for easy operator configuration and quick troubleshooting using Smart Touch Analyze and Retrieve Tool (S.T.A.R.T.). Three configurable user relays.
- Seamless synchronization with all HySecurity operators for dual gate, sally port or sequenced gate applications.
Operator Components

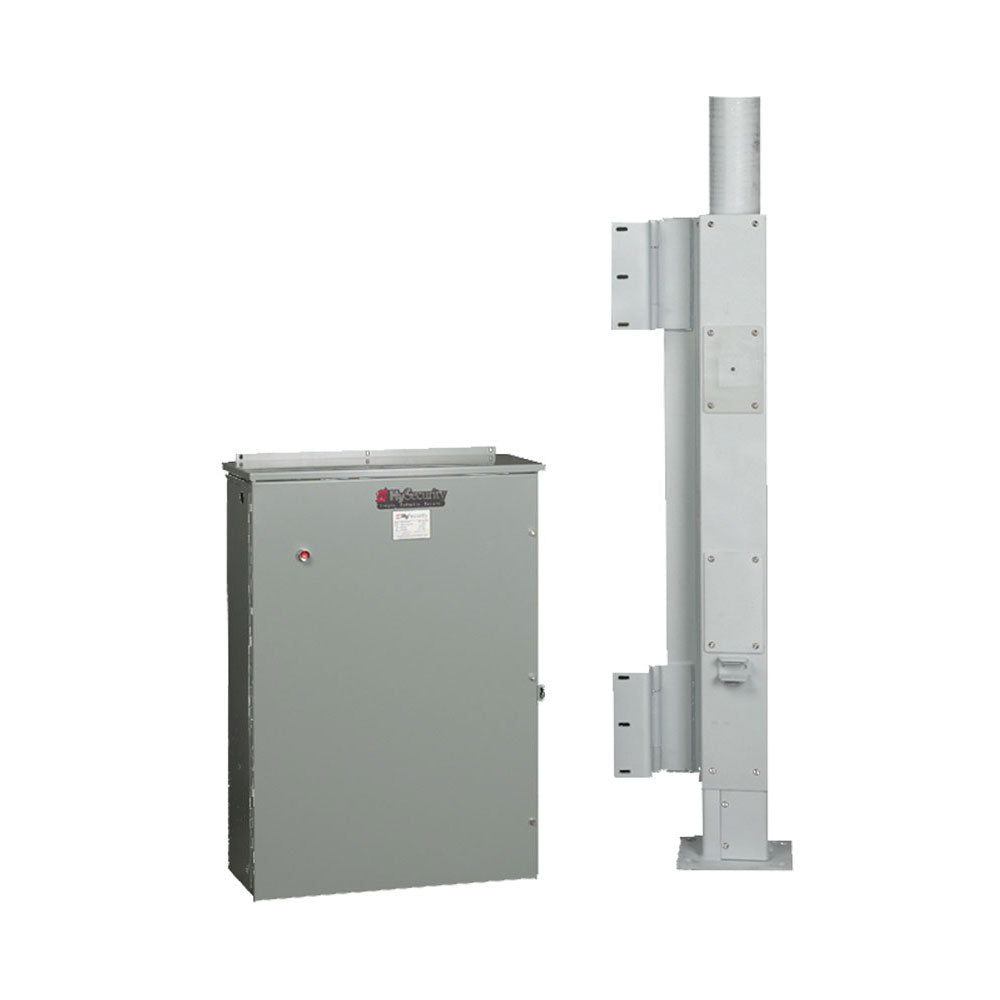

Model: SwingRiser 30 Power Unit
- Part Number: HRG 220-C ST
- Est. Ship Weight: 261 lb
- Shipping Dimensions: 40"w x 40"d x 50"h
- Shipping Class: 70
Model: SwingRiser Post
- Part Number: HRG 220 POST
- Est. Ship Weight: 500 lb
- Shipping Dimensions: 96"w x 26"d x 23"h
- Shipping Class: 70
