HySecurity StrongArmDOT 28 | HYS-O-STRONGARMDOT28
StrongArm traffic barrier arm operators meet the demanding reliability requirements of corporate, industrial and government users. Tens of thousands of StrongArms get the job done across the world from corporate parking lots and business parks to airport runways.
StrongArmDOT model is specifically designed for Department of Transportation applications and features standard galvanized steel chassis and breakaway arm bracket.

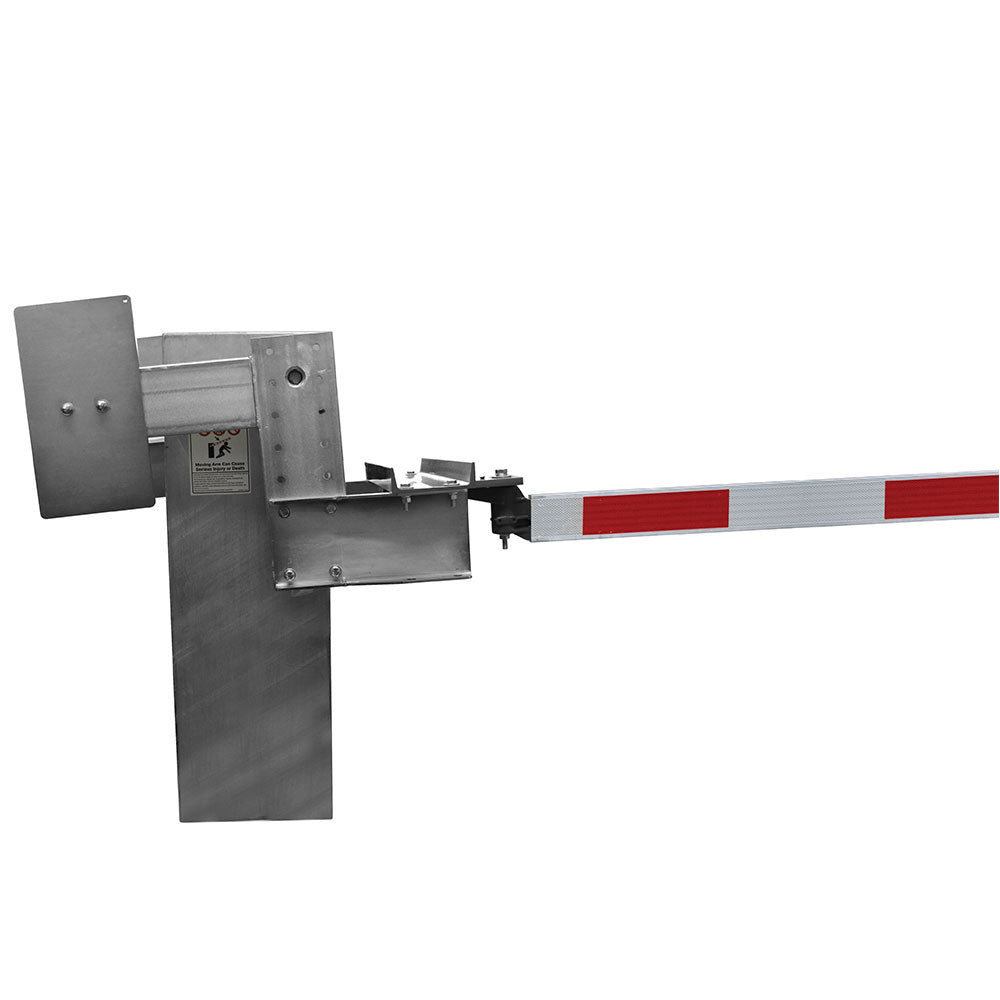

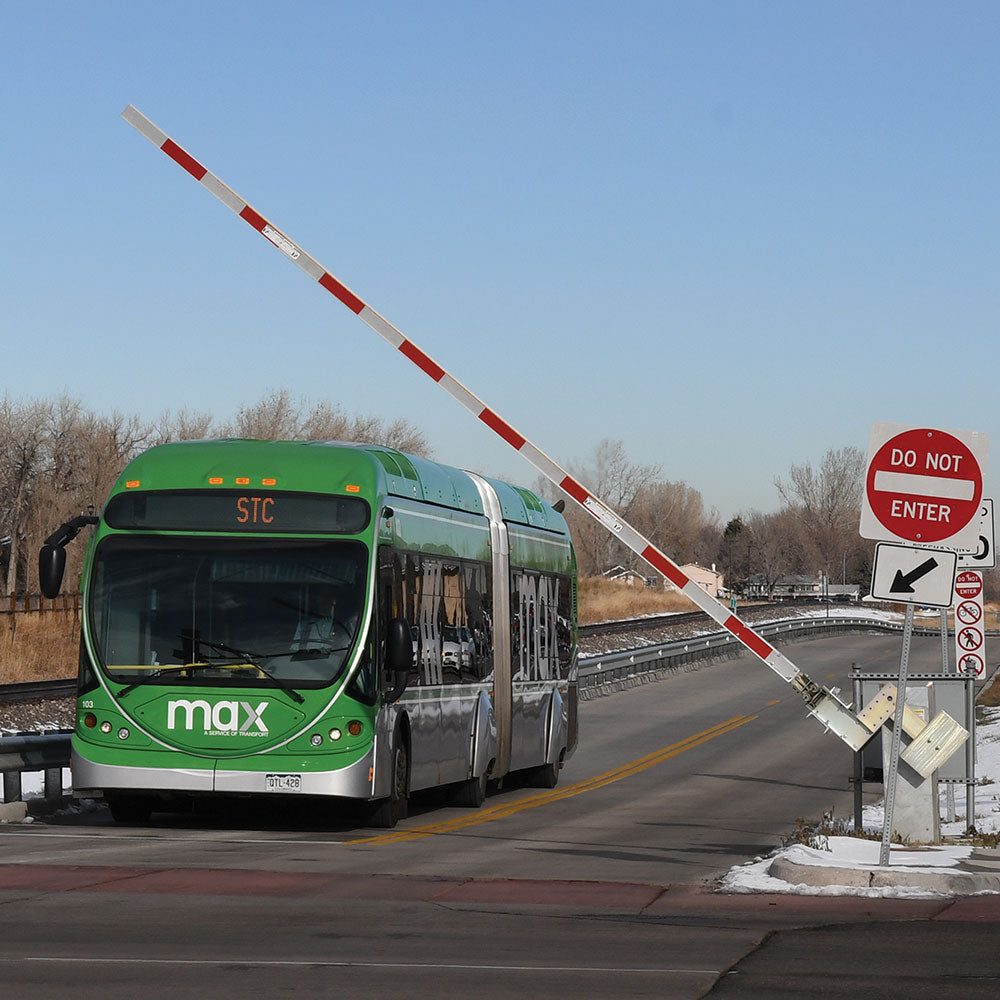

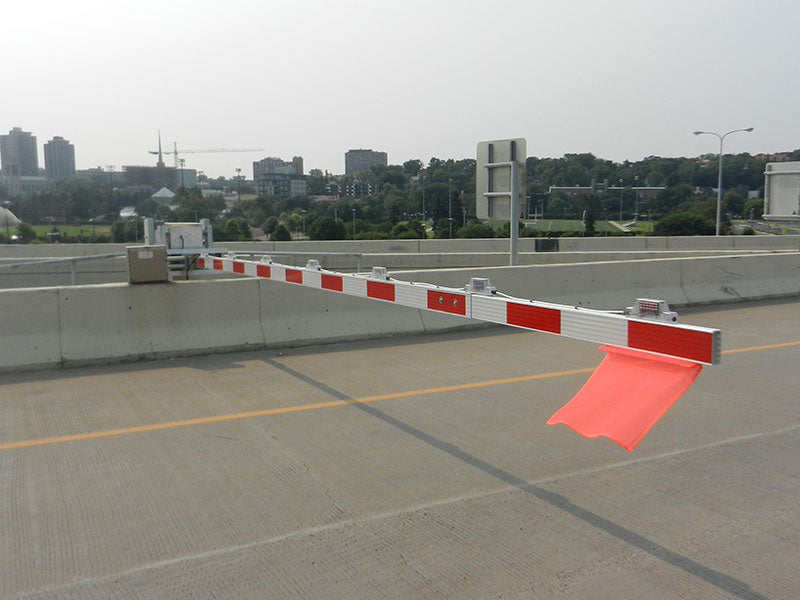

StrongArmDOT features a breakaway arm bracket that shears bolts and pivots out of the way after being hit. Perfect for reversible traffic lanes, traffic metered highway on-ramps and other controlled roadway applications. Open arms up to 28 ft (8.5 m) in 5 seconds. Arm will remain vertical, at a full 90°, when held open. Center yoke, breakaway arm bracket for aluminum or aluminum/fiberglass arm options. Operator comes standard with hot dipped galvanized steel chassis with stainless steel cover for superior anti-corrosion protection.
StrongArmDOT must be configured with galvanized chassis and stainless-steel cover option, SA-4-02. Arms 20 ft or longer require counterweights.
Please Note: Barrier arm is not included with the purchase of the operator. We offer a wide range of possible options to best suit your needs, click here to get more information and call us at (800)-730-8382 to speak with one of our representatives who will be happy assist you configuring your order.
All operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.
Features
- Very long arms from 10 to 36 ft
- Full 90° open on arms up to 28 ft prevents tall vehicles from clipping arm
- Heavy duty, secure chassis and industrial grade components
- UPS models retain full functionality during an AC power outage
Operator Components
Model: StrongArmDOT
- Part Number: HTG 320-6 DOT ST
Product Literature
Find answers to our most frequently asked questions below. Got more questions? Reach out to our friendly customer service team, they will be more than happy to assist you.
