HySecurity SlideDriver 40 UPS | HYS-222-DE-ST

HySecuritySKU: HYS-222-DE-ST-1PH-115

Size: HySecurity SlideDriver 40 UPS Single Phase 115V
Price:
Sale price$18,553.91
  • Estimated delivery 1 week.

Estimate shipping

HySecurity SlideDriver 40 UPS | HYS-222-DE-ST

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous duty operator is renowned for decades long life and low maintenance.

The Uninterruptible DC Power Supply provides up to 3,000 ft (914 m) of gate travel after AC power loss.* Available in single phase only: Low voltage: 115V 60/50Hz (requires 30A branch circuit) or High voltage: 208-230V 60/50Hz (requires 15A branch circuit). Be certain to order the correct HyCharger DC™ voltage model as chargers are not field convertible. UPS model uses 2 hp 24VDC motor.

Note: Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).

Note: Please note that all operators come in 60 Hz.  If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.

Features
  • Move the longest, heaviest gates up to 20,000 lb
  • DC Power Supply (UPS): Uninterruptible Power Supply provides a minimum of 3,000 ft (914 m) of gate travel using 24VDC batteries.

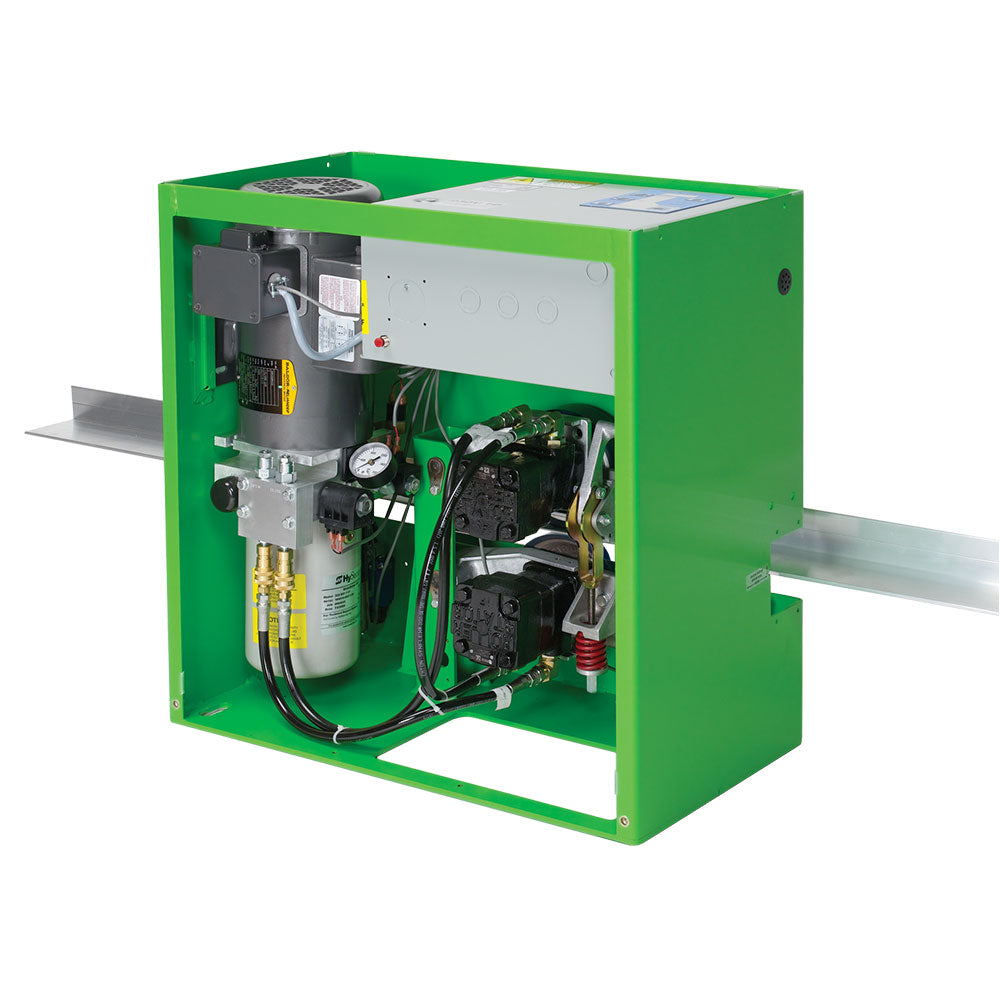

Operator Components

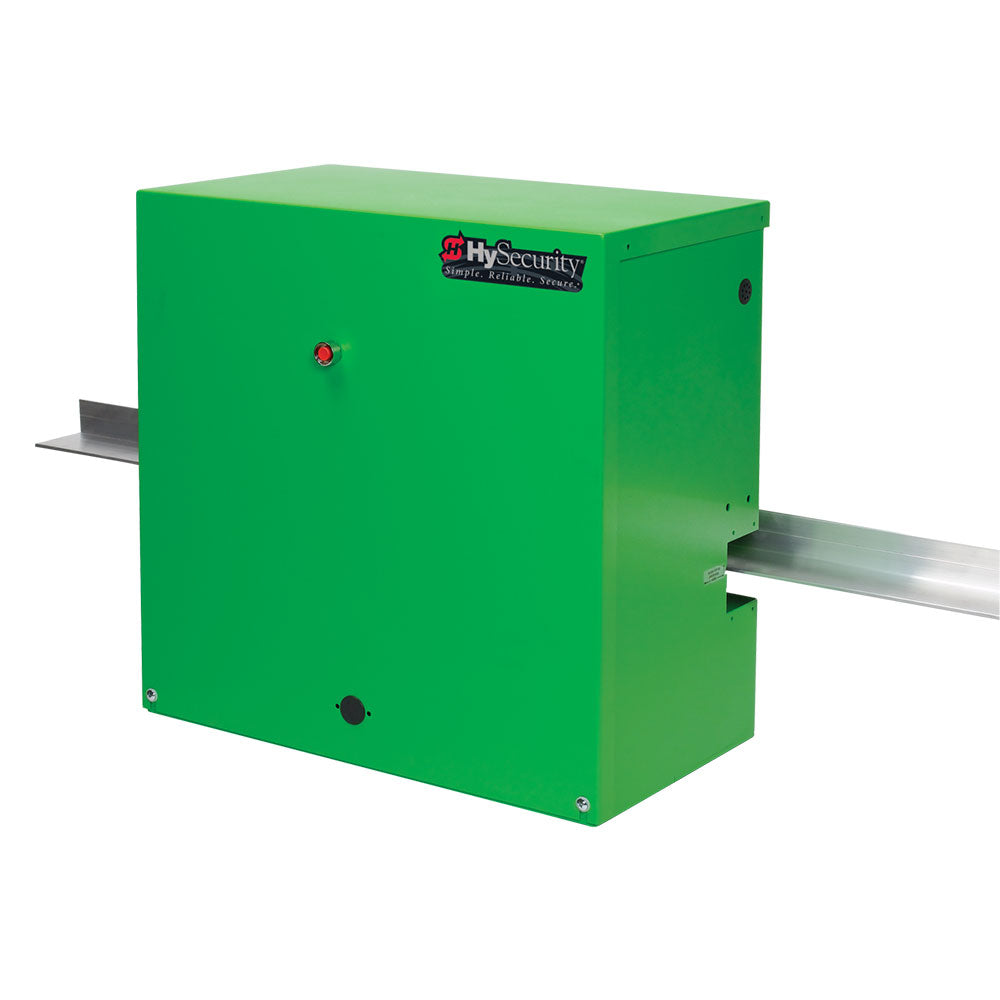

Model: SlideDriver 40 UPS

  • Part Number: 222 DE ST
  • Est. Ship Weight: 245 lb
  • Shipping Dimensions: 26"w x 30"d x 35"h
  • Shipping Class: 70

Model: DC Power Supply 60

  • Part Number: DCPS-60
  • Est. Ship Weight: 335 lb
  • Shipping Dimensions: 39"w x 28"d x 39"h
  • Shipping Class: 70
Product Literature
