HySecurity SlideDriver 40-C UPS | HYS-SlideDriver40-C-UPS

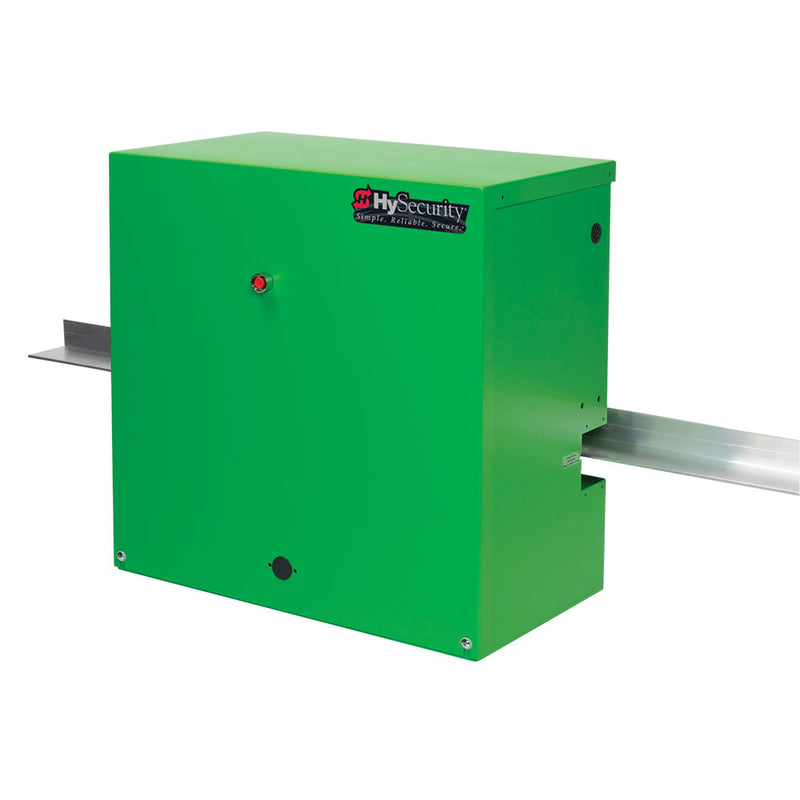

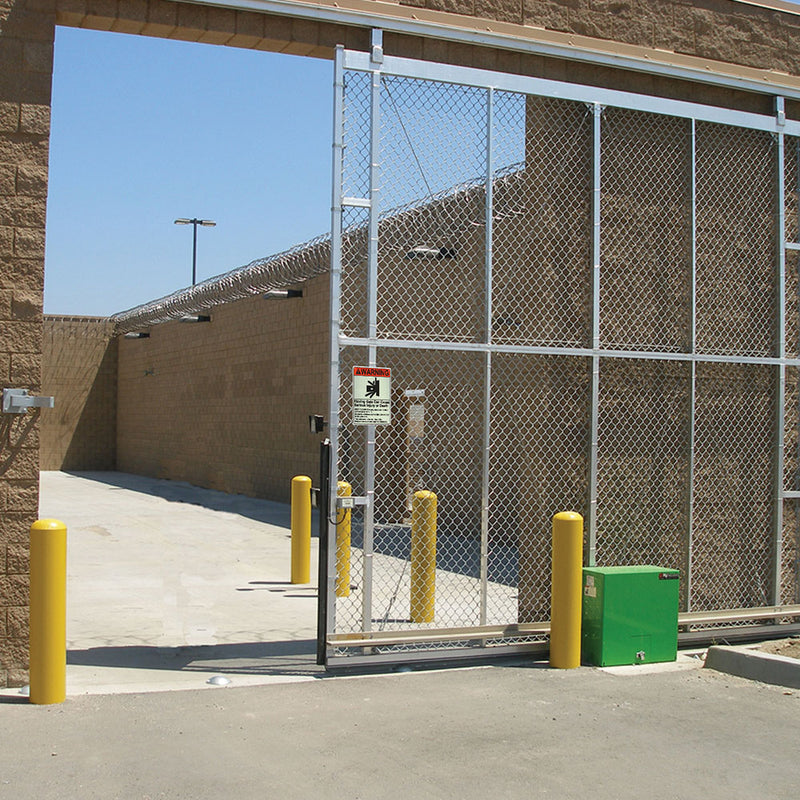

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous duty operator is renowned for decades long life and low maintenance.
The Uninterruptible DC Power Supply provides up to 3,000 ft (914 m) of gate travel after AC power loss.* Comes standard with all the software and additional control wiring needed to interface with the many options and interlocks commonly used at correctional facilities. Available in single phase only: Low voltage: 115V 60/50Hz (requires 30A branch circuit) or High voltage: 208-230V 60/50Hz (requires 15A branch circuit). Be certain to order the correct HyCharger DC™ voltage model as chargers are not field convertible. UPS model uses 2 hp 24VDC motor.
Note: See Options & Accessories for high security lock options. Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).
Note: Please note that all operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.
- Move the longest, heaviest gates up to 20,000 lb
- DC Power Supply (UPS): Uninterruptible Power Supply provides a minimum of 3,000 ft (914 m) of gate travel using 24VDC batteries.
- Correctional Facility Model (-C): The correctional facilities model comes standard with all the software and additional control wiring needed to interface with the many options and interlocks commonly used at correctional facilities.
Model: SlideDriver 40-C UPS
- Part Number: 222 DCE ST
- Est. Ship Weight: 276 lb
- Shipping Dimensions: 26"w x 30"d x 35"h
- Shipping Class: 70
Model: DC Power Supply 60
- Part Number: DCPS-60
- Est. Ship Weight: 335 lb
- Shipping Dimensions: 39"w x 28"d x 39"h
- Shipping Class: 70
