HySecurity Nice L9BAR | HYS-O-LBAR/V1
Advanced traffic control solutions Sleek, energy saving, modular traffic barrier with built-in control units. Digital motion control technology provides graceful, smooth movement through full cycle.
Includes
- BCU1 Controller
Features
- Battery: 24VDC operator
- Design: Arm lengths from from 8 to 29 ft
- Reliable: Available battery backup maintains operations in case of power outage
- Efficient: Automatically switches to standby mode when idle to reduce consumption and save energy
- Swift: Smooth, graceful movement through full cycle using motion control technology for long service life
- Visible: Optional integrated flashing or traffic light
- Intelligent: Obstacle detection reverses arm on contact
- Gate types: Dual gate pairing through primary/secondary communication
- Applications: Solar option available
Technical Specifications
- Model: Nice L9BAR

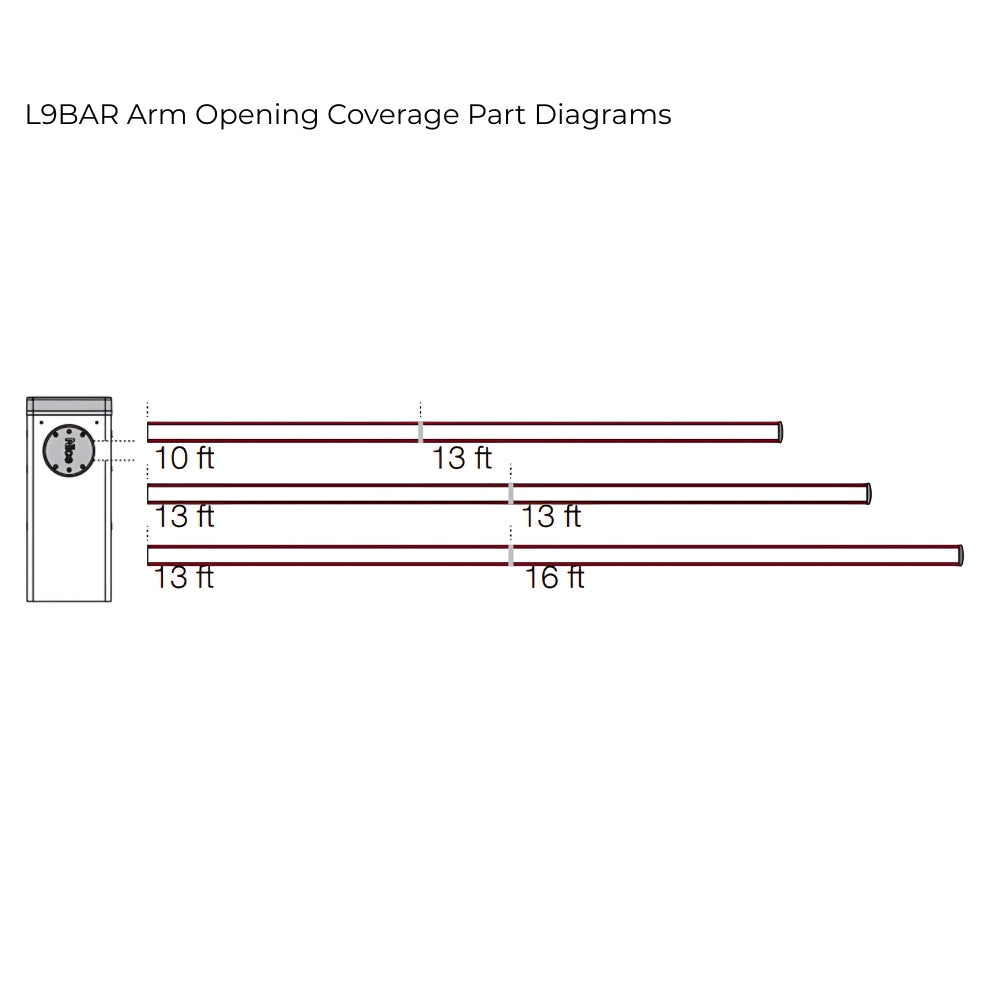

- Arm Length Max.: 23 to 29 ft (7 to 8.9 m)
- Arm Design: Aluminum arm with red adhesive reflector and optional lights/bumper strips
- Full Open Angle: Adjustable to 90º (recommended to limit at 87º
- Duty Cycle: 150 cycles/hrs.
- Drive: Electromechanical
- Open/Close Time: 8 - 10 seconds. Field adjustable.
- Ingress Protection: IP44
- Handing: Universal: fi eld adaptable for left hand or right hand installations
- Temperature Rating: -4º to 122º F (-20º to 50º C)
- Operating Voltage: 24VDC
- Input Voltage: 120VAC 60/50Hz
- Accessory Power: 24VDC
- Communication: Optional Oview programmer, OVBT
- User Controls: BCU1 Control Board
- Relays: 4 programmable voltage outputs
- Finish: Cataphoretic coating and paint finish
- ETL Listed (UL 325): Usage Class I, II, III, IV
- Cycle Tested: 1 million cycles
- Warranty: 3 year w/product registration
