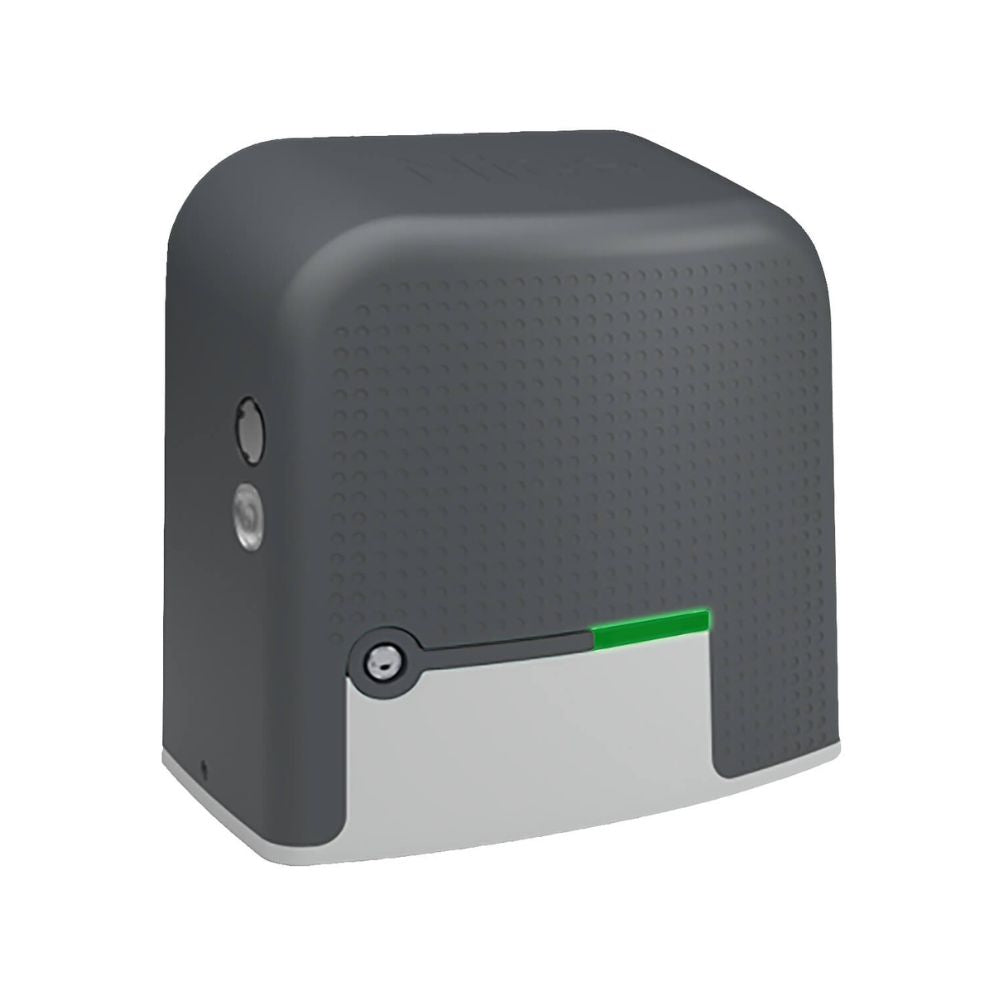

Nice Juno 310 Solar Residential Slide Gate Operator | HYS-O-Juno-310-Solar
The Nice Juno slide gate operator is a modern, compact powerhouse for moving residential gates.
Programmed and controlled using the integrated Nice Mercury 310 controller, Juno utilizes a motor, gearbox, and output sprocket to smoothly move a chain attached
to a sliding gate. The Juno system runs on a 12VDC battery with battery charger and MPPT solar controller built into the control board.
Full open and close positions are established with magnetic targets installed at each end of the drive chain. Automatic gate position sensing technology allows for smooth gate slowdown when traveling to full open or close positions.

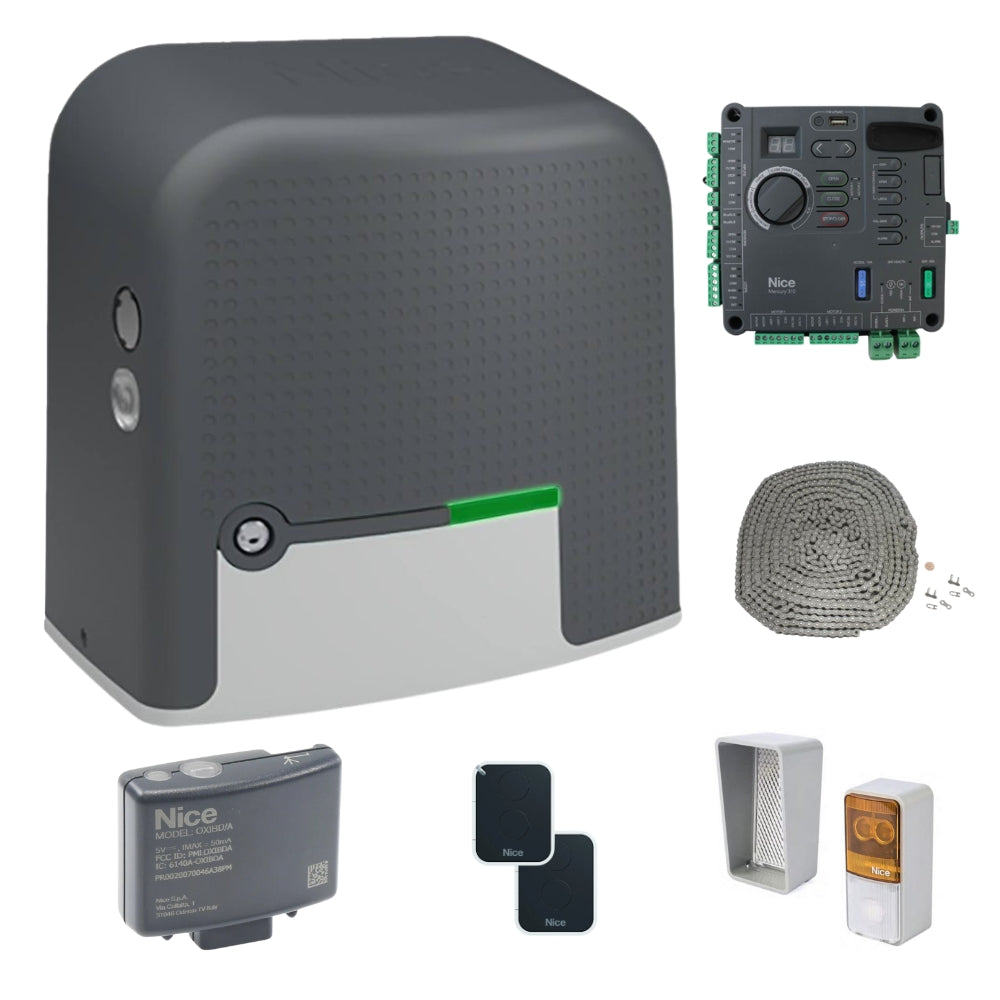

Includes
- (2) 8Ah Battery (16Ah total)

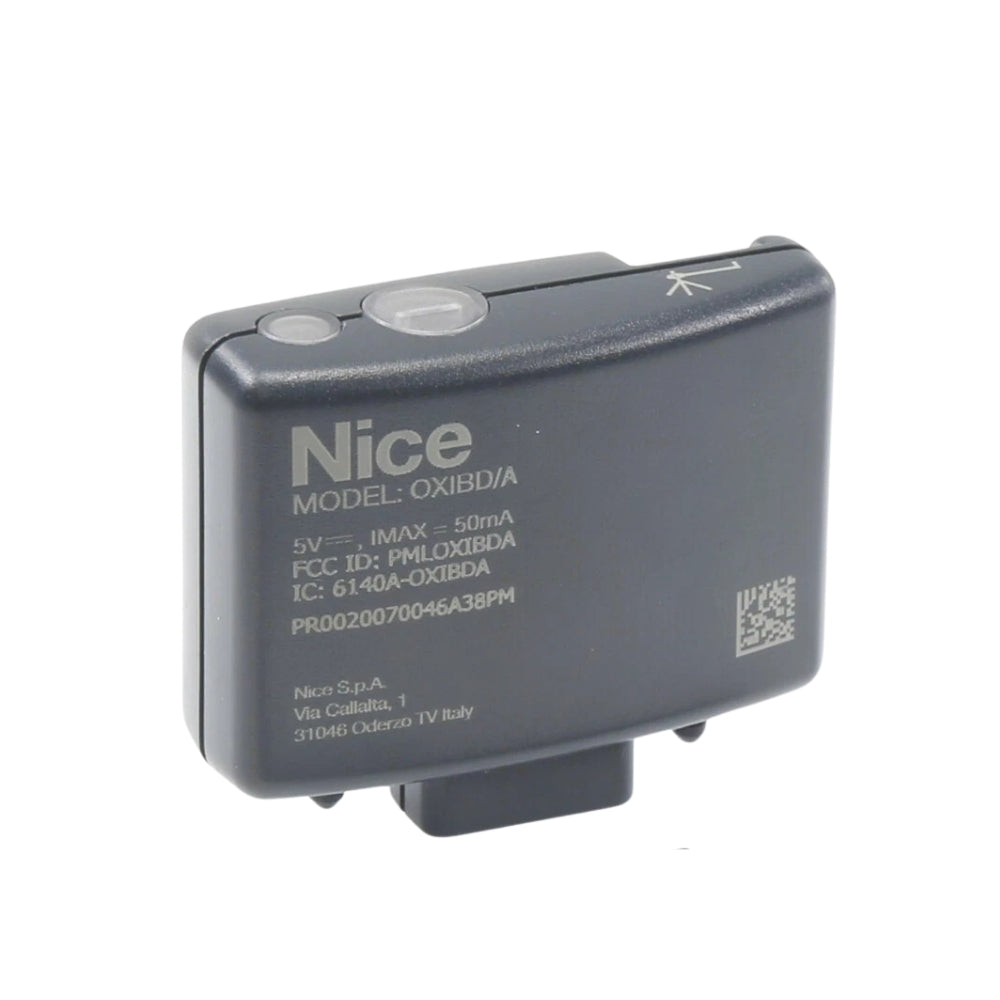

- (1) OXIBD/A Receiver

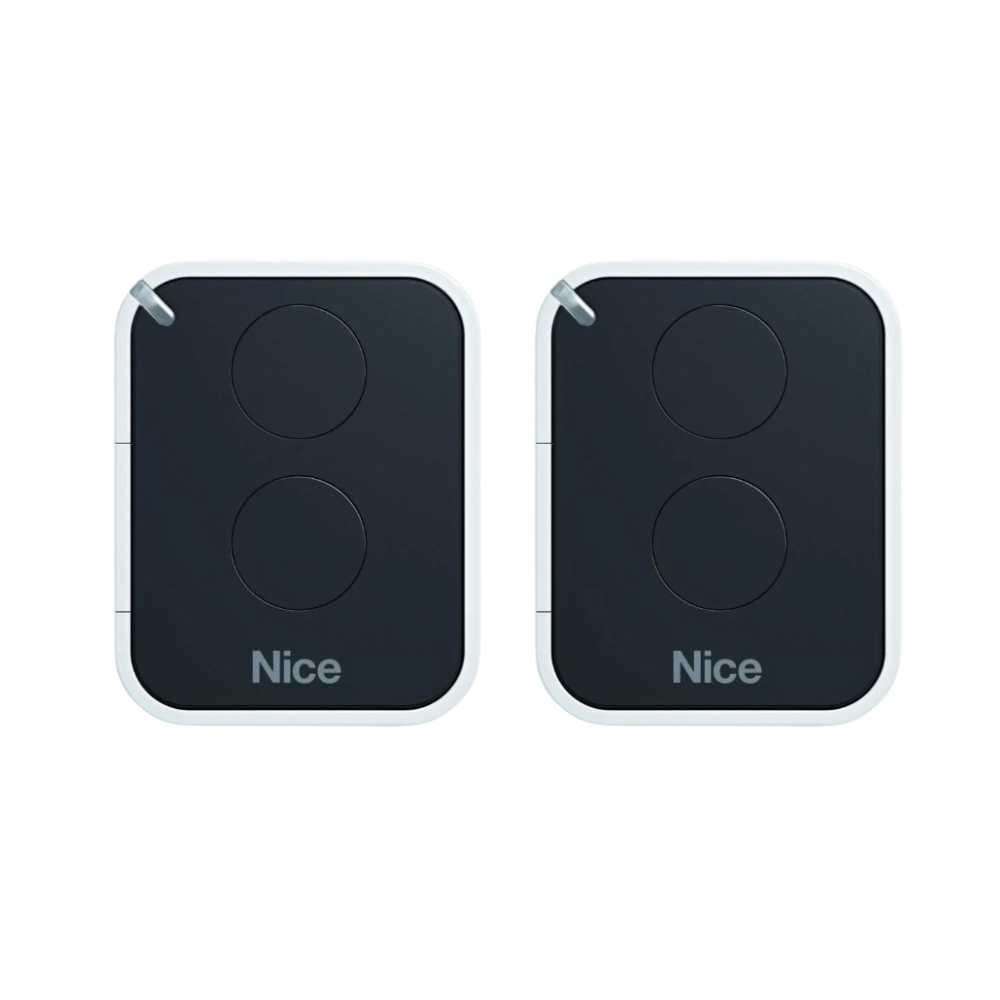

- (2) ON2E/A Transmitters

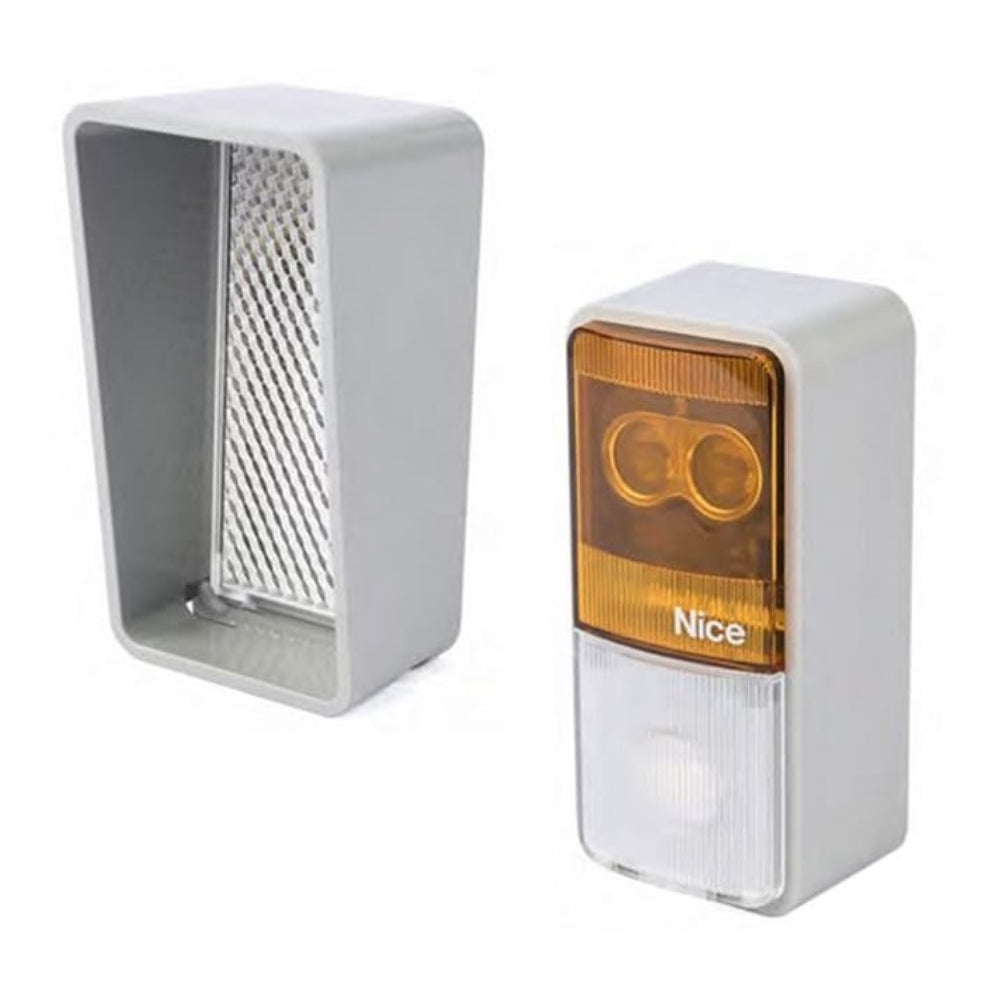

- (1) BlueBUS Reflective Photo Eye
- (1) Internally Mounted BlueBUS Reflective Photo Eye and Light

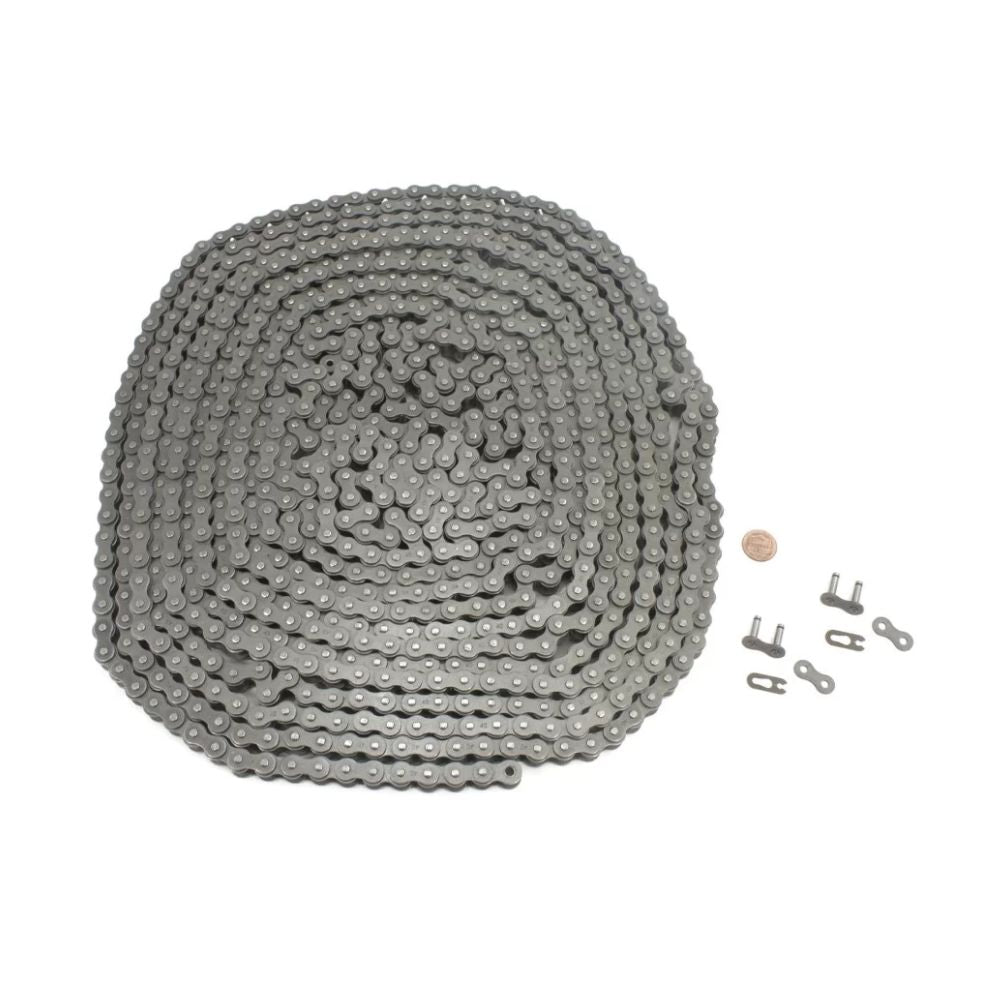

- 30' #40 corrosion-resistant chain.
Key Features
- Durable enclosure - UV stabilized enclosure.
- Integrated photo eye for an uncluttered appearance.
- The driveway light enhances visibility while the gate is moving and stays on for 20 seconds after reaching the open or close limit.
- Status Indicator - Red/Green LED operates when the gate is opening or closing.
- Manual Release - Lockable manual release for security and convenience.

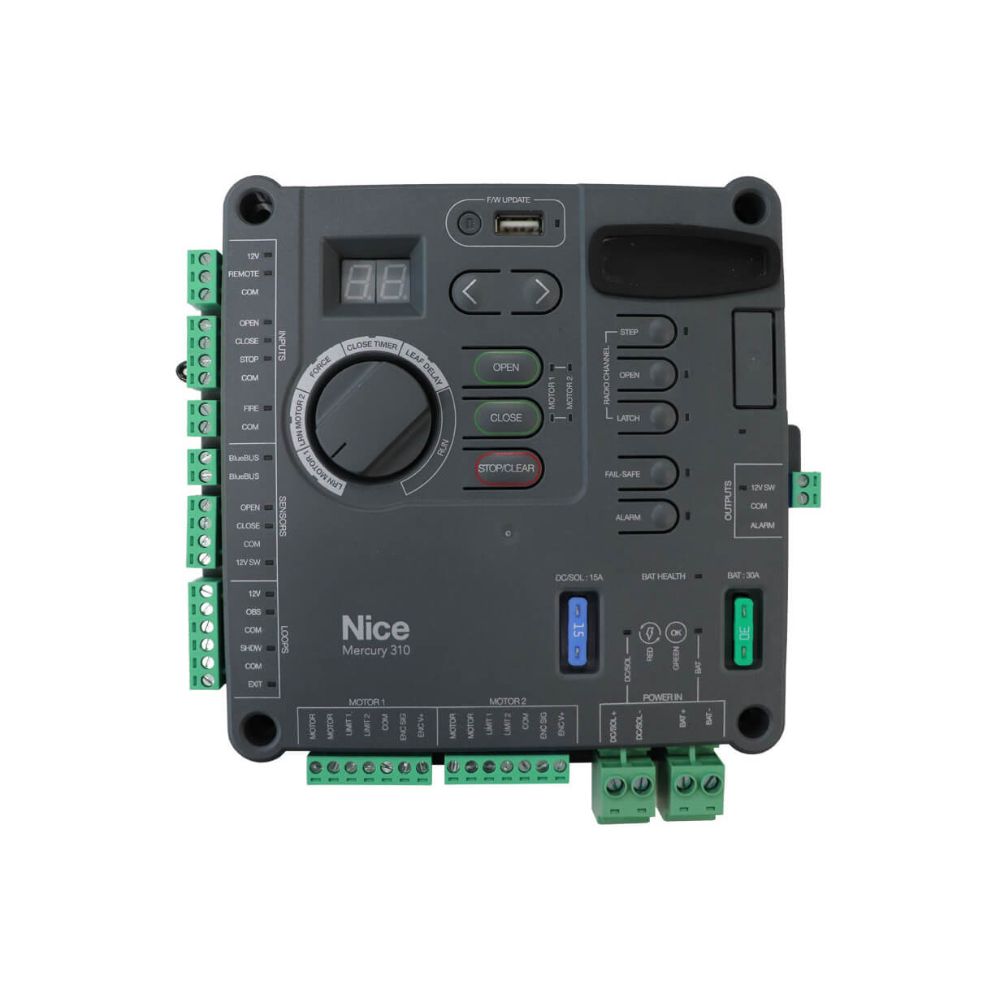

Mercury 310 Controller
- Simple-to-setup controller parameters – no special programming needed
- Solar-ready with integrated battery charger and MMPT technology
- One-step firmware update process
- Very low standby current maximizes battery life in solar installations
- Built-in UL 325 Type C entrapment protection for added safety
