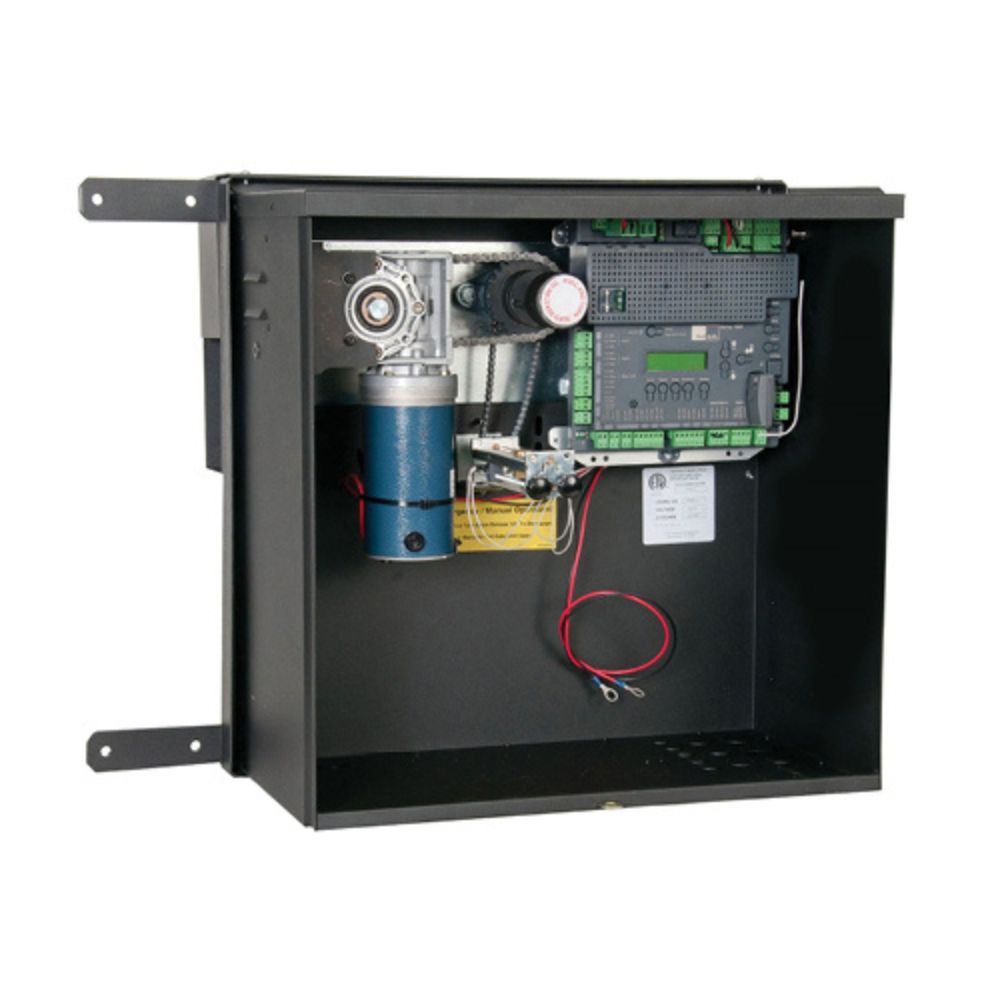

HySecurity 7251 Slide | HYS-O-7251
Residential slide gate. 12VDC battery powered, AC or Solar. Move up to 800 lb/25 ft gate leaf. Easy mechanical chain release allows manual operation of the gate without dropping the chain. The model operates with 1050 controller.
Note: Battery and battery charger or solar panel required for operation are not included.
Includes
- 35 ft #40 roller chain
- OXI receiver
- ABF antenna
- One set of BlueBUS through-beam photo eyes.
Features
- Powerful: Move gates up to 800 lbs and 25 ft long
- Low maintenance: Easy to install and maintain
- Convenience: Designed for easy access to limit switch adjustment
- Battery: 12VDC battery powered
- Chain: Smooth, chain-driven operation for reduced wear and tear
- Flexible: AC or Solar power options
- Performance: Durable components provide all weather operation
- Technology: Nice BlueBUS 2-wire system selfidentifies monitored photo eyes
- Made in USA: Designed, tested and built with global materials
Technical Specifications
- Operator Kit: 7251 - Post Mount
- Duty Cycle: Varies based on charging capacity*
- Drive: Electromechanical
- Rate of Travel: 1 ft/sec (30 cm/s)
- Gate Length: 25 ft (7 m)
- Gate Weight: 800 lb (362 kg)
- Temperature Rating: -4º to 122º F (-20º to 50º C)
- Operating Voltage: 12VDC
- Input Voltage: 12VDC or 24VDC
- Idle Current: 17mA
- Accessory Power: V+/24V/12V, 0.3A each location
- Included Accessories: OXIBD bi-directional receiver, one set of BlueBUS through-beam photo eyes
- Communication: BlueBUS, BUST4, USB port, OXI
- User Controls: 1050US Controller
- Relays: 3 programmable relays
- Finish: Powder-coated black steel
- ETL Listed (UL 325): Usage Class I, II
- Warranty: 3 years w/product registration
