HySecurity SlideDriver 50VF2/3-M | HYS-SlideDriver50VF2/3-M

HySecuritySKU: HYS-SlideDriver50VF2/3-M-1PH-208

Size: HySecurity SlideDriver 50VF2/3-M Single Phase 208V
Sale price$16,629.91
Add to cart
  • Estimated delivery 1 week.


HySecurity SlideDriver 50VF2/3-M | HYS-SlideDriver50VF2/3-M

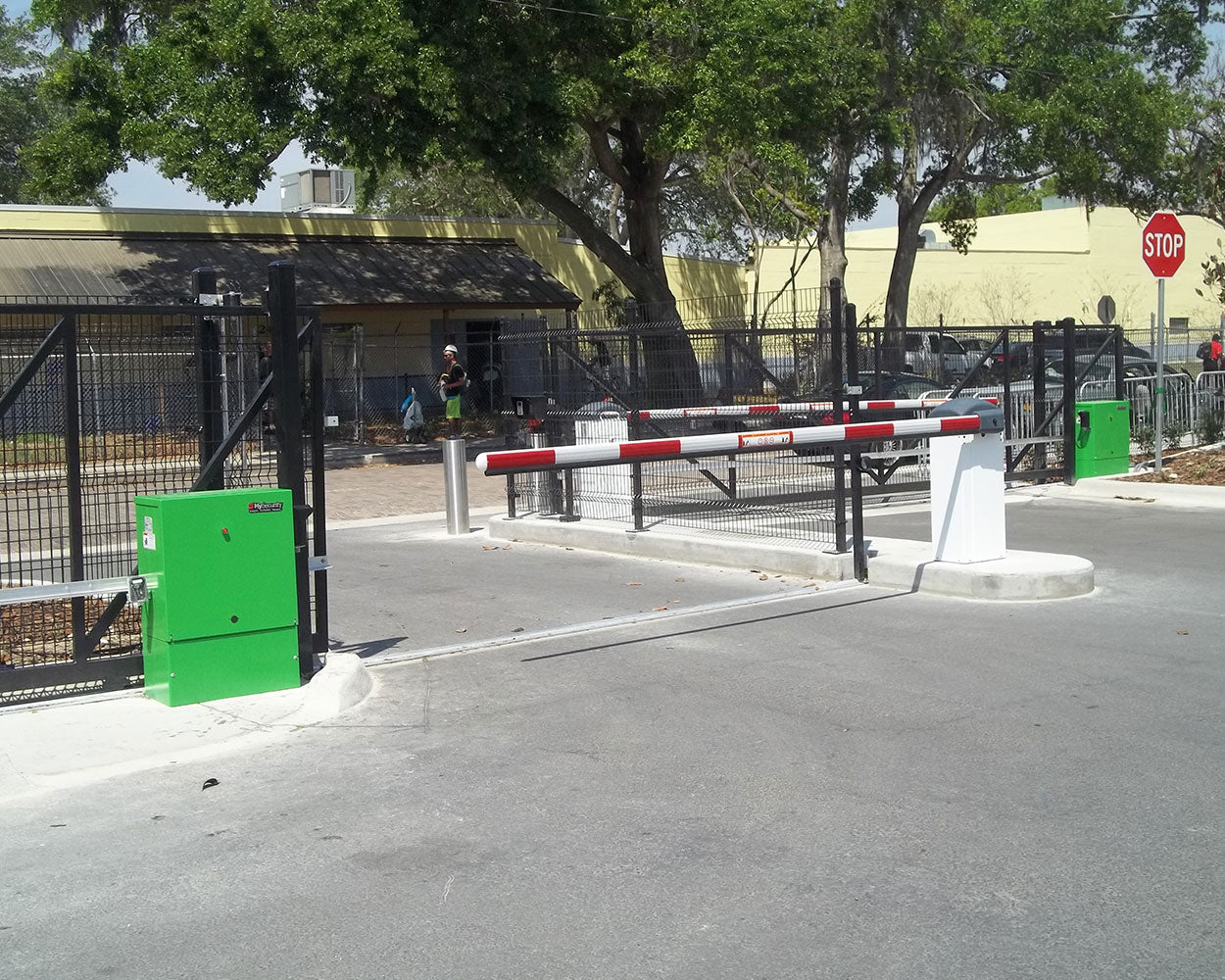

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous duty operator is renowned for decades long life and low maintenance.

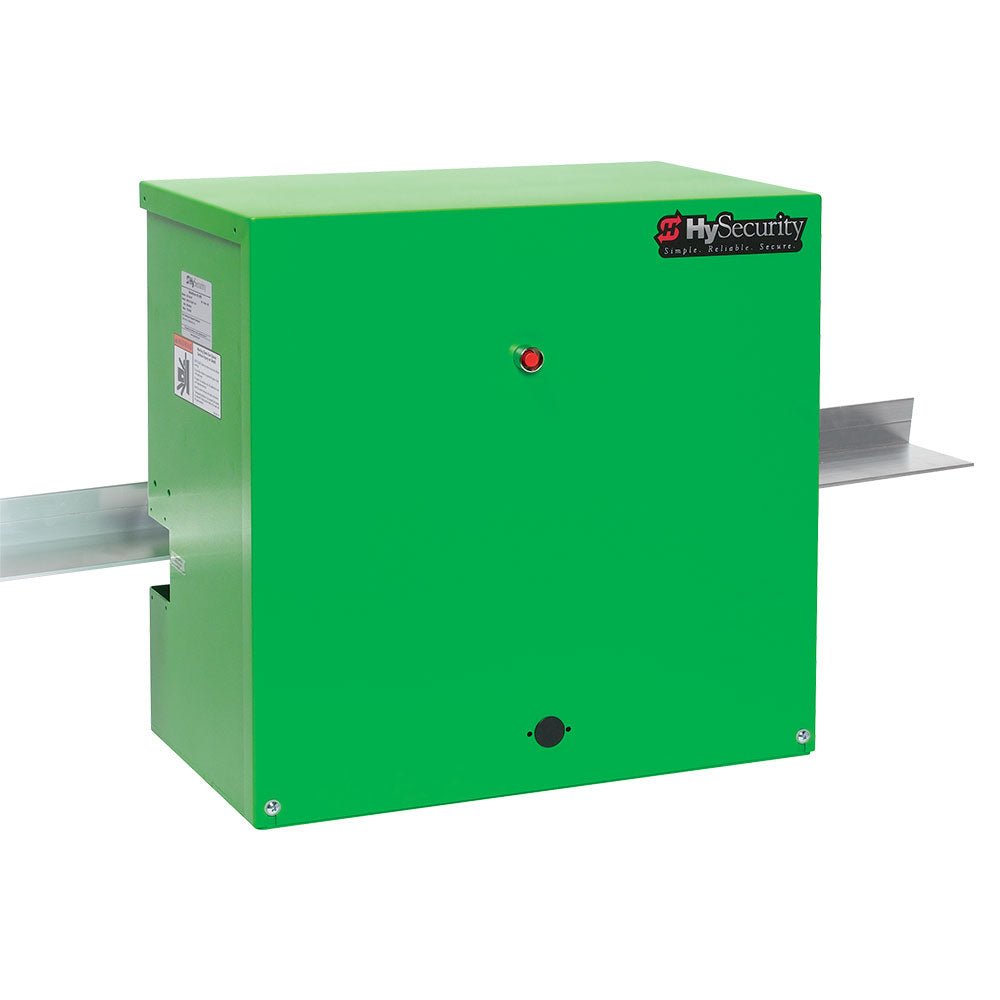

Modular operators locate motor, hydraulic pump, and electric controls in a remote enclosure to accommodate unique mounting, high security or sites requiring quiet operation. Operator closes gate to a precise point and is extremely easy on gate hardware. In an emergency situation, press and hold button for Emergency Fast Operate at 3.3 ft/s.

Note: HySecurity offers an optional AC Power Supply w/HyInverter AC™ which provides UPS battery backup for 208/230VAC, single-phase AC gate operators.* Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).

Listed and restricted to UL 325 usage class III, IV due to high speed.

Note: Please note that all operators come in 60 Hz.  If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.

  • Move the longest, heaviest gates up to 20,000 lb
  • Modular Model (-M): Modular models locate the motor, hydraulic pump, and electrical controls in a separate remote enclosure to accommodate unique mounting, high security or sites requiring a very quiet operator
Operator Components

Model: SlideDriver 50VF2/3-M Drive Unit

  • Part Number: 333 X3
  • Est. Ship Weight: 200 lb
  • Shipping Dimensions: 26"w x 30"d x 35"h
  • Shipping Class: 70

Model: SlideDriver 50VF2/3-M Power Unit

  • Part Number: 333 X3 ST
  • Est. Ship Weight: 261 lb
  • Shipping Dimensions: 40"w x 40"d x 50"h
  • Shipping Class: 70
