HySecurity HydraSwing 40 Gate Operator | HYS-HYDRASWING-40

HySecuritySKU: HYS-HYDRASWING-40-1PH-208

Size: HySecurity HydraSwing 40 Single Phase 208V
Price:
Sale price$18,050.00
  • Estimated delivery 6-8 weeks.

Estimate shipping

HySecurity HydraSwing 40 Gate Operator | HYS-HYDRASWING-40

HydraSwing is the perfect choice of linear actuator for large, heavy swing gates and swing gates subject to extreme wind load factors. Ideal for commercial, industrial or residential sites.

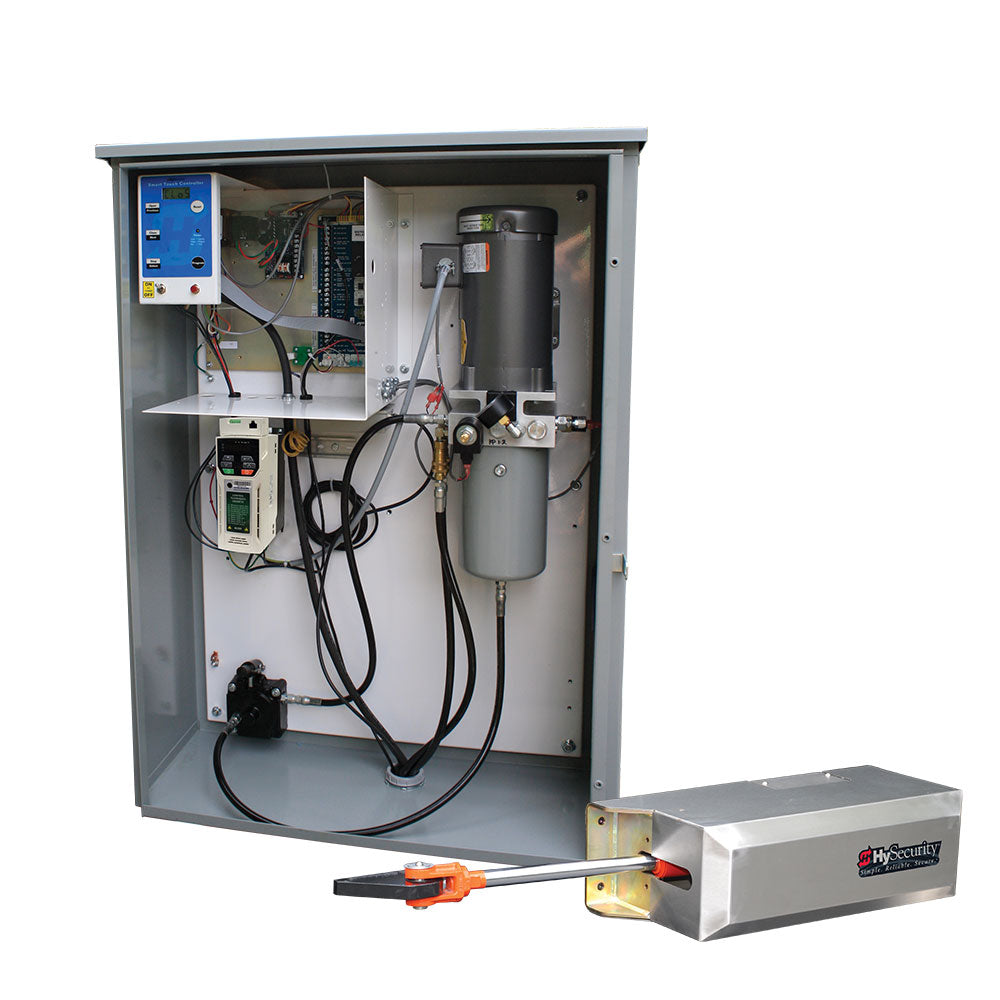

Linear actuator for heavy swing gates and swing gates subject to peak wind loads. Gracefully cycle up to 4,000 lb (1,814 kg) gate leaf in 15-20 seconds.* Maximum single leaf gate length 24 ft (7.3 m). A separate HydraSupply enclosure containing Smart Touch Controller and hydraulic power unit is remotely located, up to 100 ft, from the gate.

Note: Actual open/close time dependent on gate weight/length, percentage of open area on panel and anticipated wind speed.

Features
  • Gracefully move a 16 ft/4,000 lb leaf in 10-15 seconds and a 40 ft/15,000 lb gate leaf in 20-30 seconds.* HydraSwing features symmetrical design for left or right hand mounting and industrial grade components for extremely low maintenance and exceptionally long life
  • Proven reliable hydraulics and industrial grade components mean low maintenance and long operator life
  • Easily configure gate operation to specific site requirements with HySecurity's Smart Touch Controller. PC interface provided for easy configuration and quick troubleshooting using Smart Touch Analyze and Retrieve Tool (S.T.A.R.T.). Three configurable user relays plus optional Hy8Relay™ - an extended relay module providing eight additional programmable relay outputs
  • Seamless synchronization with all HySecurity operators for dual gate, sally port or sequenced gate applications
Operator Components

Model: HydraSwing 40 Drive Unit

  • Part Number: HSG 40 Drive Unit
  • Est. Ship Weight: 150 lb
  • Shipping Dimensions: 44"w x 26"d x 28"h
  • Shipping Class: 70

Model: HydraSwing 40 Power Unit

  • Part Number: HSG 40 Power Unit
  • Est. Ship Weight: 261 lb
  • Shipping Dimensions: 40"w x 40"d x 50"h
  • Shipping Class: 70
