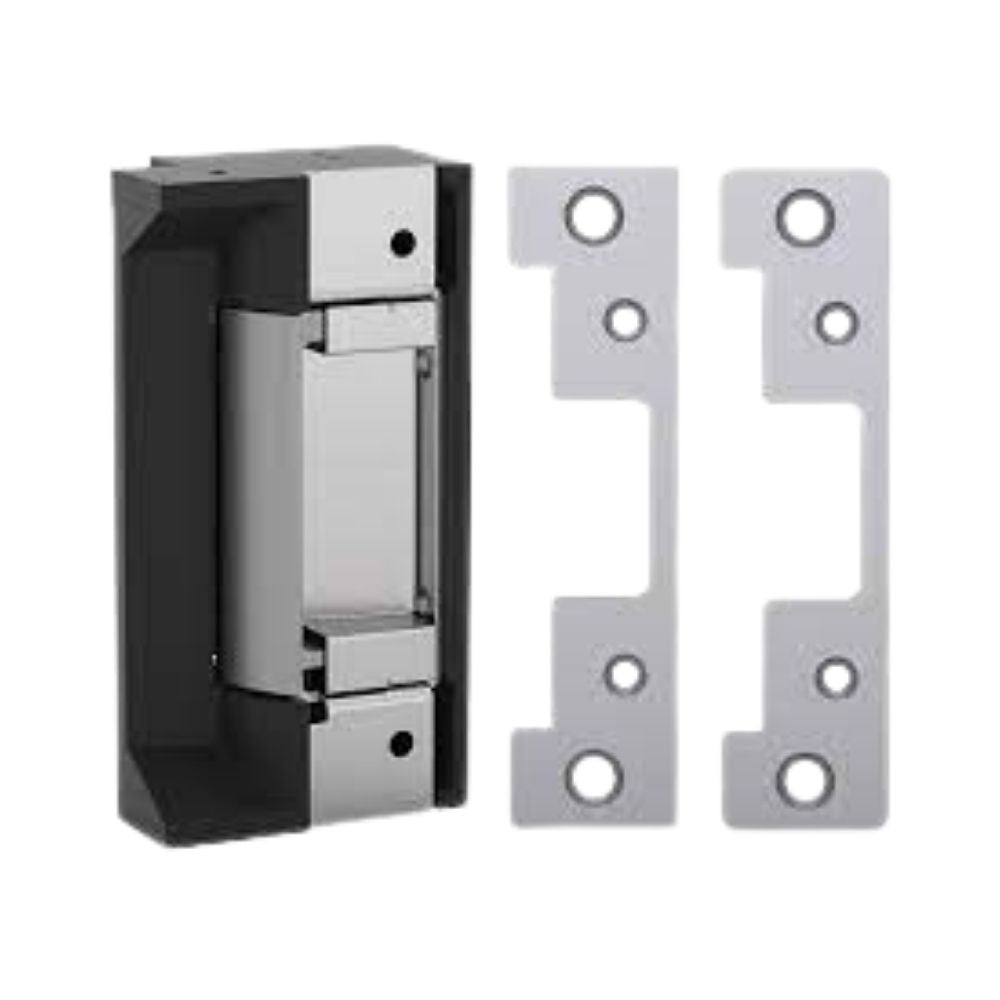

HES Fail Safe/Fail Secure (Complete 12/24VDC Electric Strike, Satin Stainless Steel) | HAN-5000C 630

The 5000 series is a compact, high-performance electric strike designed for low-profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door, and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latch bolts up to a 5/8" throw.

Includes
  • Trim Enhancer
Features
  • Tamper-resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Field selectable fail secure/ fail safe
  • Dual voltage 12 or 24 VDC/VAC
  • Non-handed
  • Fire Rated: No
  • Internally mounted solenoid
  • For use with cylindrical Locks
  • Accommodates 1/2" - 5/8" latch bolt (5/8" with 1/8" door gap)
  • Plug-in connector
  • Five years limited warranty
  • BAA Qualified: Yes
Technical Specifications
  • Application: Multi-Application
  • Base Material: Stainless Steel
  • UPC Code: 7.4009E+11
  • Fire Rated: No
  • Finish: 630/US32D
  • Finish Description: Satin Stainless Steel
  • Function: Field Selectable (Safe/Secure)
  • Operating Voltage: 12VDC/24VDC
  • Amp Draw: .24 @ 12V .12 @ 24V
  • Keeper Size: 1/2 In.
  • Strike body depth: 1-1/16"
  • Configuration: Centered
  • Holding Force: 1500 Lbs.
  • Switch Type: None
  • Frame Application: Metal or Wood
  • Product Type: Electric Strike
