HES 1600 Series Electric Strike | HAN-1600-CS-630
The most advanced, modular electric strikes that work with every brand of cylindrical or mortise locks designed to work with a 4-7/8" strike plate.

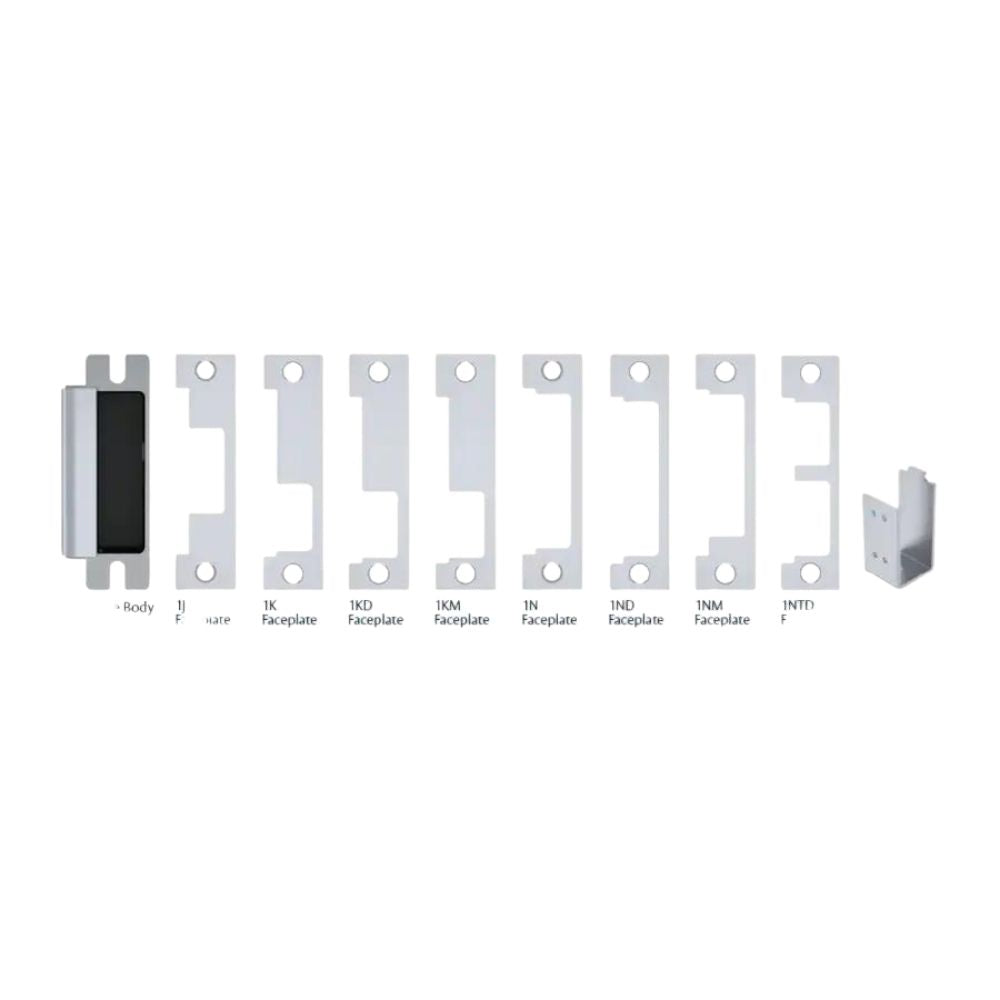

Includes
- 1J Faceplate
- 1K Faceplate
- 1KD Faceplate
- 1KM Faceplate
- 1N Faceplate
- 1ND Faceplate
- 1NM Faceplate
- 1NTD Faceplate
- Trim enhancer
Features
- Satin Stainless Steel Finish
- Field adjustable integrated shim
- Interchangeable faceplates and accessories
- Fully finished faceplate, keeper, case, and trim
- ElectroLynx™ plug-in connectors
-
Non-handed
-
Internally mounted solenoid
-
Tamper-resistant
-
SecuriCare ten-year, no-fault, no questions asked warranty
- For Use With Cylindrical and Mortise Latchbolts and Deadbolts
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- RoHS compliant
- UL 10C fire-rated, 3-hour single door (fail secure only)
- UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
- CAN/ULC-S104 fire door conformant
- NFPA-252 fire door compliant
- ASTM-E152 fire door compliant
- California Fire Marshal listed
- ANSI/SDI A250.13 windstorm resistant
- Florida Building Code approved TAS 201, 202, 203
- ANSI/BHMA A156.31, Grade 1
- ANSI-ASTM E330
- Sustainability documentation
- PoE friendly
- 1-year Limited Warranty
Technical Specifications
- Frame Application: Metal or Wood
- Faceplate Size: 4-7/8 in. x 1-1/14 in.
- Holding force: Static strength - 1,500 lbs
- Strike body depth: 1-5/8"
- Function: Field Selectable (Safe/Secure)
- Operating Voltage: 12VDC/24VDC
- Amp Draw: .24 Amps at 12VDC, .12 Amps at 24VDC
- Faceplate Size: 4-7/8 In. X 1-1/4 In.
- Faceplate Shape: Flat Face, Square Corners
- Frame Depth: 1-5/8 In.
- Fire Rated: Yes
- Switch Type: None
- Frame Application: Metal or Wood
- Product Type: Electric Strikes
