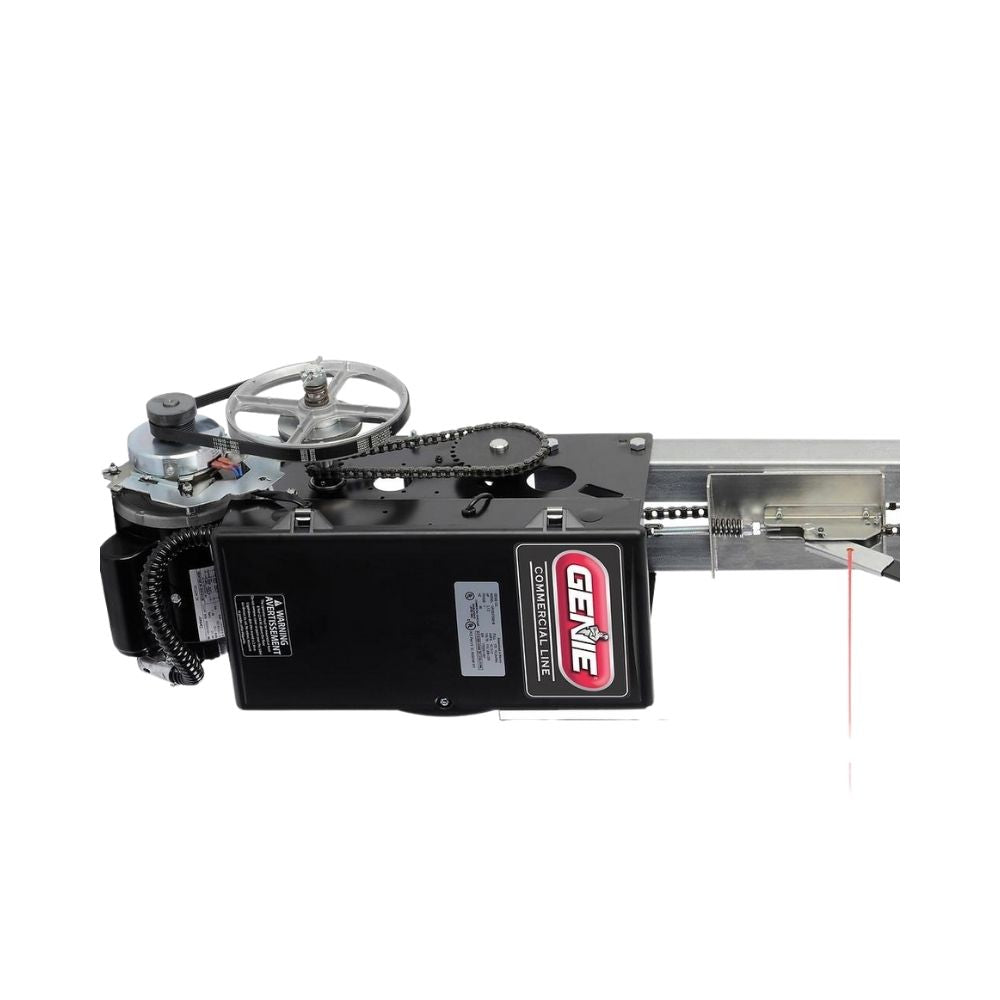

Genie GCL-T Standard Duty Trolley Door Operator with Brake - 1/2HP, 1 Phase

GenieSKU: GEN-OPGSXT5001B10

Model: 10 ft. | Sectional | OPGSXT5001B
Price:
Sale price$983.30

Estimate shipping

Genie GCL-T Standard Duty Trolley Door Operator with Brake - 1/2HP, 1 Phase

The GCL-T is designed for standard lift sectional doors that have 30-cycle or fewer duty requirements. Advanced features and robust mechanical design combine to provide a standard-duty operator that sets a new standard for productivity.

Includes
  • Standard Photo-eyes
  • 3 Button Control Station
  • Disc Brake
  • Chain Guides
  • Drawbar Arm
  • Trolley Chain
  • Rail Pair

This is an All in One Pre-Packaged System

UL 325 2010 APPROVED

Allows for monitored entrapment connections for protection and momentary operation when used with select photo eyes and/or edge-sensing devices.

GCL-T Advantages
  • MultiVolt® - Order phase-specific operator for the job and have the ability to select the right voltage on the job site.
    • Single Phase: 115/208/230V AC
  • Maximum Door Weight:
    • Sectional: 1120 lbs.
  • Modular design with optional expansion boards for an advanced timer to close, and auxiliary output functionality.
  • LCD display with intuitive setup menu. Provides real-time status and trouble-shooting assistance.
  • Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display.
  • EZ Limit® provides for push-to-set limits that stay synchronized with the door through a long-term loss of power.
  • TensiBelt® primary drive reduction eliminates the need to adjust belt tension.
  • Open/close/stop and setup keys are included on the control board. Keeps all controls near the LCD display convenient for set up.
  • The quiet trolley carriage with high-strength wear pads eliminates the need to apply grease to rails.
Standard Features
  • 11.5 inches per second door speed.
  • EZ Limit® electro-mechanical limits.
  • MultiVolt® voltage simplification.
  • Max run timer automatically adjusts to up and down run time.
  • TensiBelt® primary reduction.
  • Delay on reverse.
  • 16-character LCD display.
  • UL 325 2010 approved.
  • Advanced radio receiver displays and stores activation by a transmitter ID number on the LCD screen.
  • 3-button control station.
  • 2-year/20,000 cycle warranty.
  • Programmable mid-stop.
  • Drawbar disconnect for emergency manual operation.
Construction
  • Motor: AC continuous-duty motor. Motor replaceable without changing limits. Thermally protected.
  • Drive: Primary - TensiBelt® auto tensioning poly-V J-belt. Secondary - chain and sprocket reduction.
  • Brake: 24V DC disc brake standard.
  • Friction Clutch: Adjustable clutch to help protect against door and operator damage.
  • Precision Radial Ball Bearings: Included in critical areas throughout the powertrain.
  • Rail Assembly: 2" heavy-gauge roll formed angle with nylon chain guides.
  • Emergency Disconnect: Drawbar disconnect via pull cord for manual operation of the door.
  • Pre-wired to accept: Monitored entrapment devices such as photo eyes. Single or 3-button control stations. External interlock switches.
  • On-Board timed close: Set via LCD display from 2 seconds to 5 minutes.
