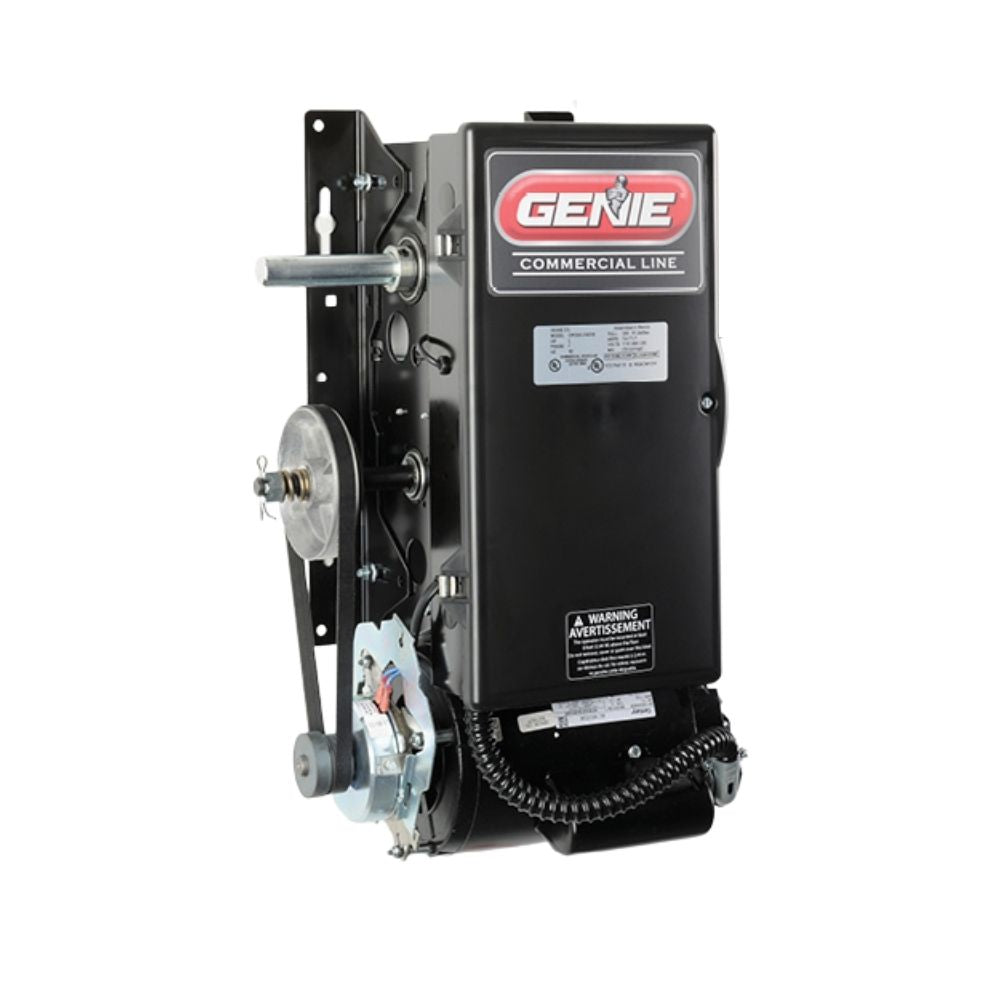

Genie GCL-J Standard Duty Jackshaft Operator Doors with Brake - 1HP
The GCL-J is designed for high or full-lift sectional and rolling doors that have 30-cycle or fewer duty requirements. Advanced features and robust mechanical design combine to provide a standard-duty operator that sets a new standard for productivity.

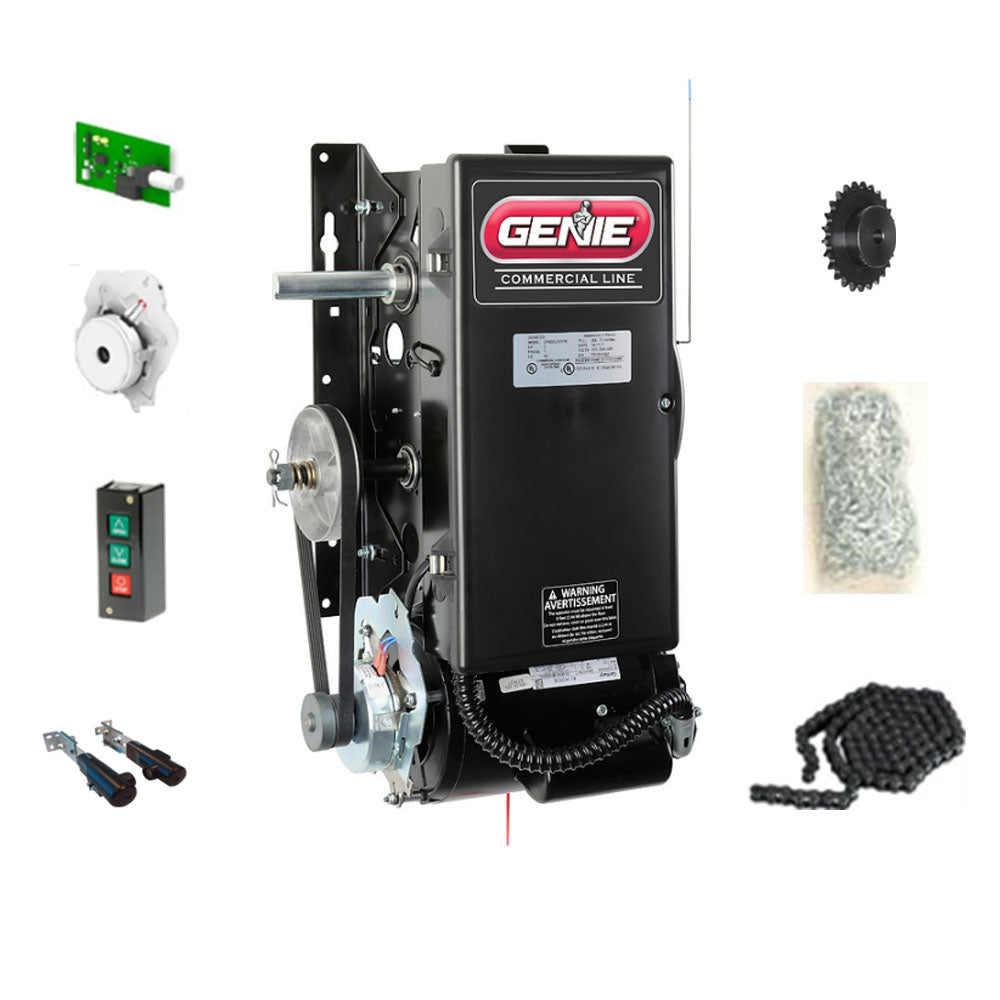

Includes
- Internal Radio
- 3 Button Control Station
- Standard Photo-eyes
- Brake
- Door Sprocket
- Hoist Chain
- Door Chain
All in One Pre-Packaged System
UL 325 Listed
- Allows for monitored entrapment protection and momentary operation when used with select photo eyes and/or edge-sensing devices.
GCL-J Advantages
- MultiVolt® - Order phase-specific operator for the job and have the ability to select the right voltage on the job site.
- Single Phase: 115/208/230V AC
- Three Phase: 208/230/460V AC
- 575V AC voltage models are available separately
- Maximum Door Weight
- Sectional Door: 1620 lbs.
- Rolling Door: 1440 lbs.
- Modular design with optional expansion boards for an advanced timer to close, and auxiliary output functionality.
- LCD display with intuitive setup menu. Provides real-time status and trouble-shooting assistance.
- Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display.
- EZ Limit® provides for the push to set limits that remain synchronized with the door through a long-term loss of power.
- TensiBelt® primary drive reduction eliminates the need to adjust belt tension.
- Open/close/stop and setup keys are included on the control board. Keeps all controls near the LCD display convenient for set up.
Standard Features
- EZ Limit® electro-mechanical limits.
- MultiVolt® voltage simplification.
- Max run timer automatically adjusts to up and down run time.
- TensiBelt® primary reduction.
- Delay on reverse.
- 16-character LCD display.
- UL 325 Listed.
- Advanced radio receiver displays and stores activation by transmitter
- ID number on the LCD screen.
- 3-button control station.
- 2-year/20,000-cycle warranty.
- Programmable mid-stop.
- Pull cord release for emergency manual operation.
- On-board timed close
Construction
- Motor
- AC continuous-duty motor. Motor replaceable without changing limits. Thermally protected.
- Drive
- Primary — TensiBelt® auto tensioning poly-V J belt.
- Secondary — chain and sprocket reduction.
- Brake
- 24 VDC disc brake standard on all models.
- Friction Clutch
- Adjustable clutch to help protect against door and operator damage.
- Precision Radial Ball Bearings
- Included in critical areas throughout the powertrain.
- Emergency Manual Operation
- Pull cord disconnect disengages drive allowing door to be moved manually while maintaining limits.
- Pre-wired to accept:
- Monitored entrapment device such as photo eyes.
- - Single or 3-button control stations.
- External interlock switches.
