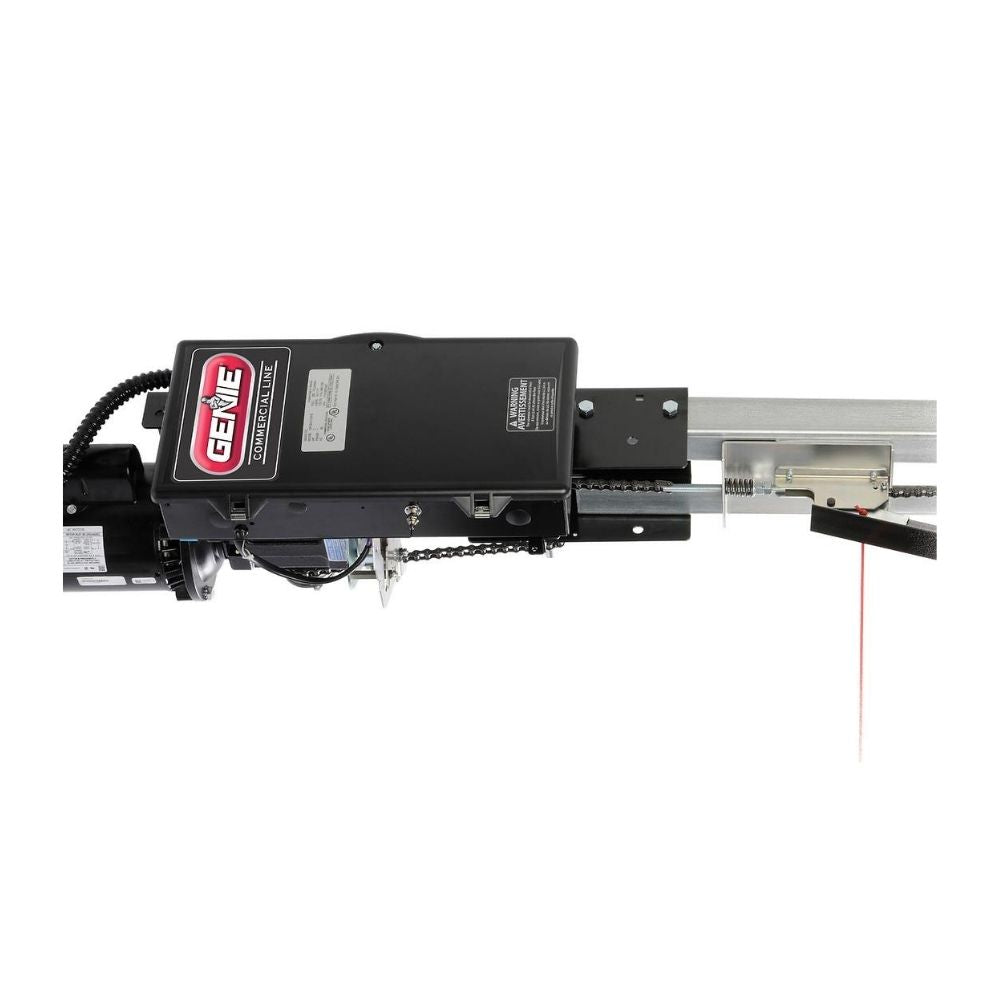

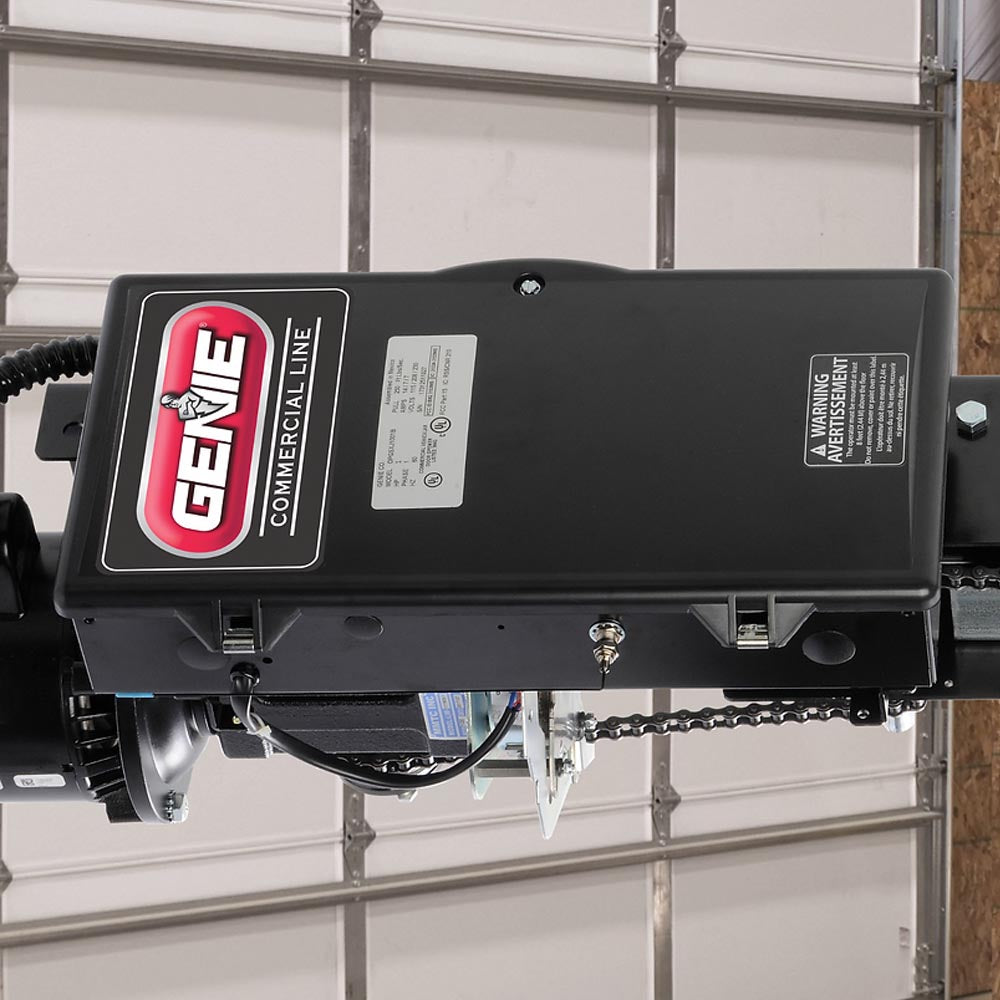

Genie GCL-GT Heavy Duty Trolley Door Operator with Brake - 1HP, 1 Phase
The GCL-GT is designed for standard lift sectional doors that have up to 60-cycle/hour duty requirements. Advanced features and robust mechanical design combine to provide a heavy-duty operator that sets a new standard for productivity.

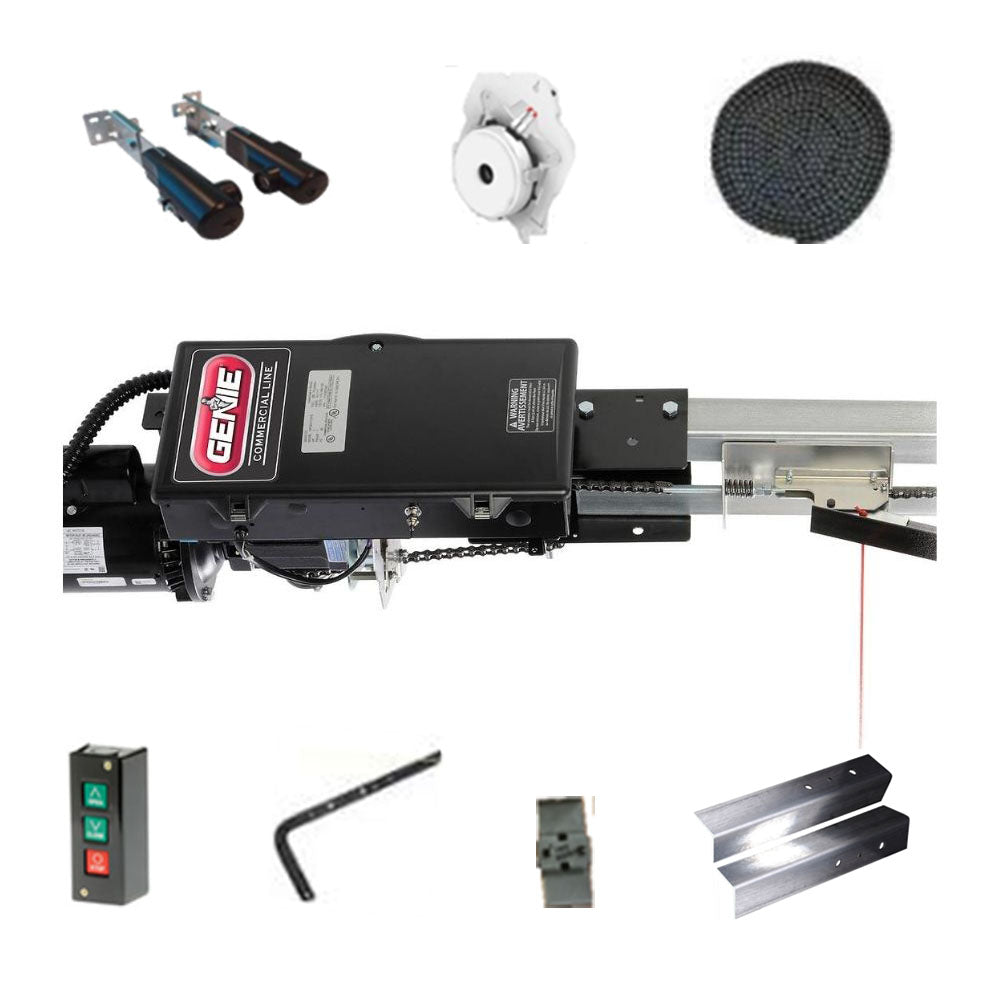

Includes
- Standard Photo-eyes
- 3 Button Control Station
- Disc Brake
- Chain Guides
- Drawbar Arm
- Trolley Chain
- Rail Pair
This is an All in One Pre-Packaged System
UL 325 2010 APPROVED
Allows for monitored entrapment connections for protection and momentary operation when used with select photo eyes and/or edge-sensing devices.
GCL-GT Advantages
- MultiVolt® - Order phase-specific operator for the job and have the ability to select the right voltage on the job site.
- Single Phase: 115/208/230V AC
- Maximum Door Weight:
- Sectional: 1650 lbs.
- Modular design with optional expansion boards for an advanced timer to close, and auxiliary output functionality.
- LCD display with intuitive setup menu. Provides current status and trouble-shooting assistance.
- Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display.
- EZ Limit® provides for push-to-set limits that stay synchronized with the door through a long-term loss of power.
- The low-profile height of the powerhead maximizes the clearance for vehicular traffic.
- Open/close/stop and setup keys are included on the control board. Keeps all controls near the LCD display convenient for set up.
- The quiet trolley carriage with high-strength wear pads eliminates the need to apply grease to rails.
Standard Features
- EZ Limit® electro-mechanical limits.
- MultiVolt® voltage simplification.
- Max run timer automatically adjusts to up and down run time.
- Heavy-duty worm gearbox for primary reduction.
- Delay on reverse.
- 16-character LCD display.
- UL 325 2010 approved.
- Advanced radio receiver displays and stores activation by a transmitter ID number on the LCD screen.
- 3-button control station.
- 2-year/20,000 cycle warranty.
- Programmable mid-stop.
- Drawbar disconnect for emergency manual operation.
- DC disc brake with progressive braking.
Construction
- Motor: AC continuous-duty motor. Motor replaceable without changing limits. Thermally protected.
- Drive: Primary - Heavy-duty worm gear running in oil bath. All-weather synthetic lube for low/high-temperature operation. Secondary - Heavy-duty chain and sprocket reduction.
- Brake: 24V DC disc brake standard.
- Friction Clutch: Adjustable clutch to help protect against door and operator damage.
- Precision Radial Ball Bearings: Used exclusively throughout the operator powertrain.
- Rail Assembly: 2" heavy-gauge roll-formed angle with nylon chain guides.
- Emergency Disconnect: Drawbar disconnect via pull cord for manual operation of the door.
- Pre-wired to accept: Monitored entrapment devices such as photo eyes. Single or 3-button control stations. External interlock switches.
- On-Board timed close: Set via LCD display from 2 seconds to 5 minutes.
- Timer to Close Module: Timed close-set via the LCD display from 2 seconds up to 5 minutes. Includes pre-close warning contacts, timer hold input, auxiliary open input, normally closed safety input, and monitored edge input.
