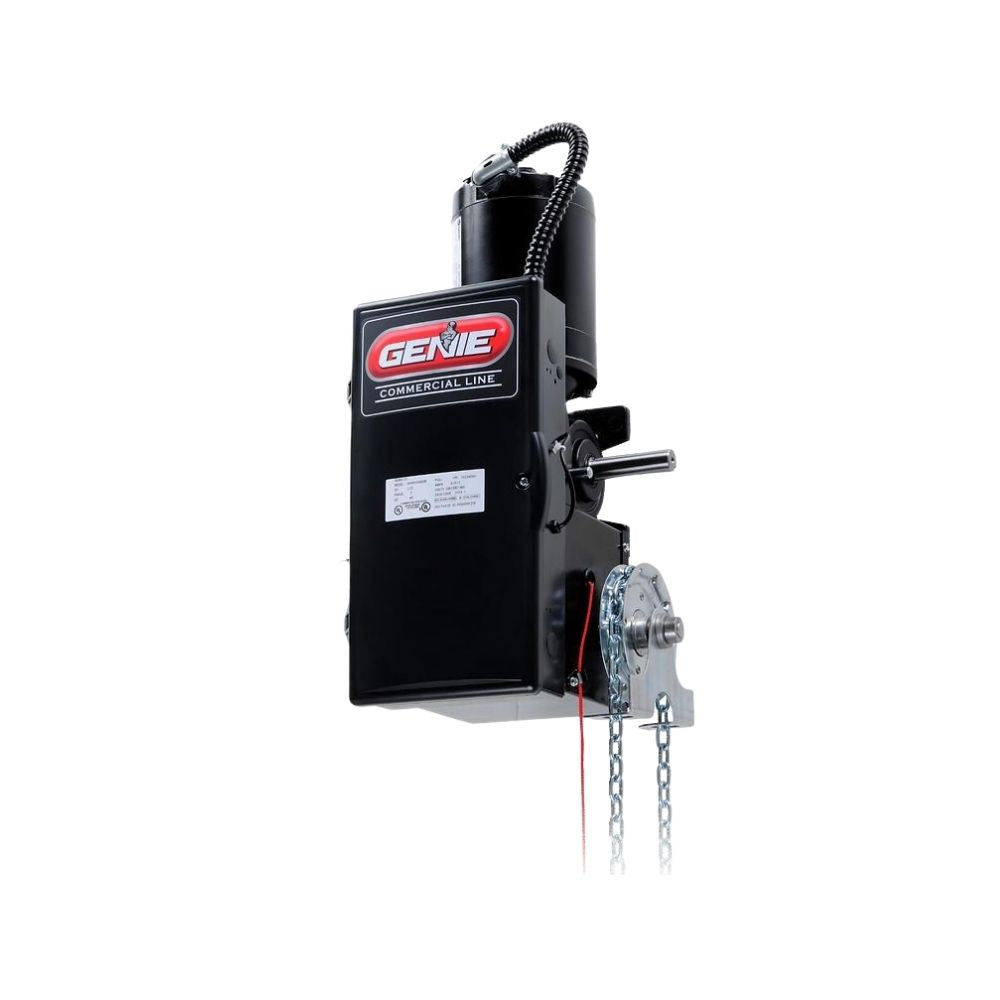

Genie GCL-GH Heavy Duty Hoist Door Operator with Brake - 3HP OPGHXH3003BFC | GEN-112632.3006
The GCL-GH is designed for high or full-lift sectional and rolling doors that have up to 60-cycle/hour duty requirements. Advanced features and robust mechanical design combine to provide a heavy-duty operator that sets a new standard for productivity.
Includes
- Internal Radio
- 3 Button Control Station
- Standard Photo-eyes
- Brake
- Door Sprocket
- Hoist chain
- Door Chain
All in One Pre-Packaged System
UL 325 2010 APPROVED
Allows for monitored entrapment connections for protection and momentary operation when used with select photo eyes and/or edge-sensing devices.
GCL-GH Advantages
- MultiVolt® - Order phase-specific operator for the job and have the ability to select the right voltage on the job site.
- Three Phase: 208/230/460V AC
- Maximum Door Weight:
- Sectional: 3696 lbs.
- Modular design with optional expansion boards for an advanced timer to close and auxiliary output functionality.
- LCD display with intuitive setup menu. Provides current status and trouble-shooting assistance.
- Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display.
- EZ Limit® provides for push-to-set limits that stay synchronized with the door through a long-term loss of power.
- Open/close/stop and setup keys are included on the control board. Keeps all controls near the LCD display convenient for set up.
Standard Features
- EZ Limit® electro-mechanical limits.
- MultiVolt® voltage simplification.
- Max run timer automatically adjusts to up and down run time.
- Heavy-duty worm gearbox for primary reduction.
- Delay on reverse.
- 16-character LCD display.
- UL 325 2010 approved.
- Advanced radio receiver displays and stores activation by a transmitter ID number on the LCD screen.
- 3-button control station.
- 2-year/20,000 cycle warranty.
- Programmable mid-stop.
- Emergency hoist for manual operation. Easily changed infield from left to right hand.
- DC disc brake with progressive braking.
Construction
- Motor: AC continuous-duty motor. Motor replaceable without changing limits. Thermally protected.
- Drive: Primary - Heavy-duty worm gear running in oil bath. All-weather synthetic lube for low/high-temperature operation. Secondary - Heavy-duty chain and sprocket reduction.
- Brake: 24V DC disc brake standard.
- Precision Radial Ball Bearings: Used exclusively throughout the operator powertrain.
- Emergency Hoist Manual Operation: Electrically interlocked manual hoist with floor level disconnect.
- Pre-wired to accept: Monitored entrapment devices such as photo eyes. Single or 3-button control stations. External interlock switches.
- On-Board timed close: Set via LCD display from 2 seconds to 5 minutes.
