General Lock ED2300V-F 689 36 Surface Vertical Rod-Fire Rated Standard Duty Exit Device (Aluminum)

General LockSKU: GNL-ED2300V-F 689 36

Price:
Sale price$240.99

Estimate shipping

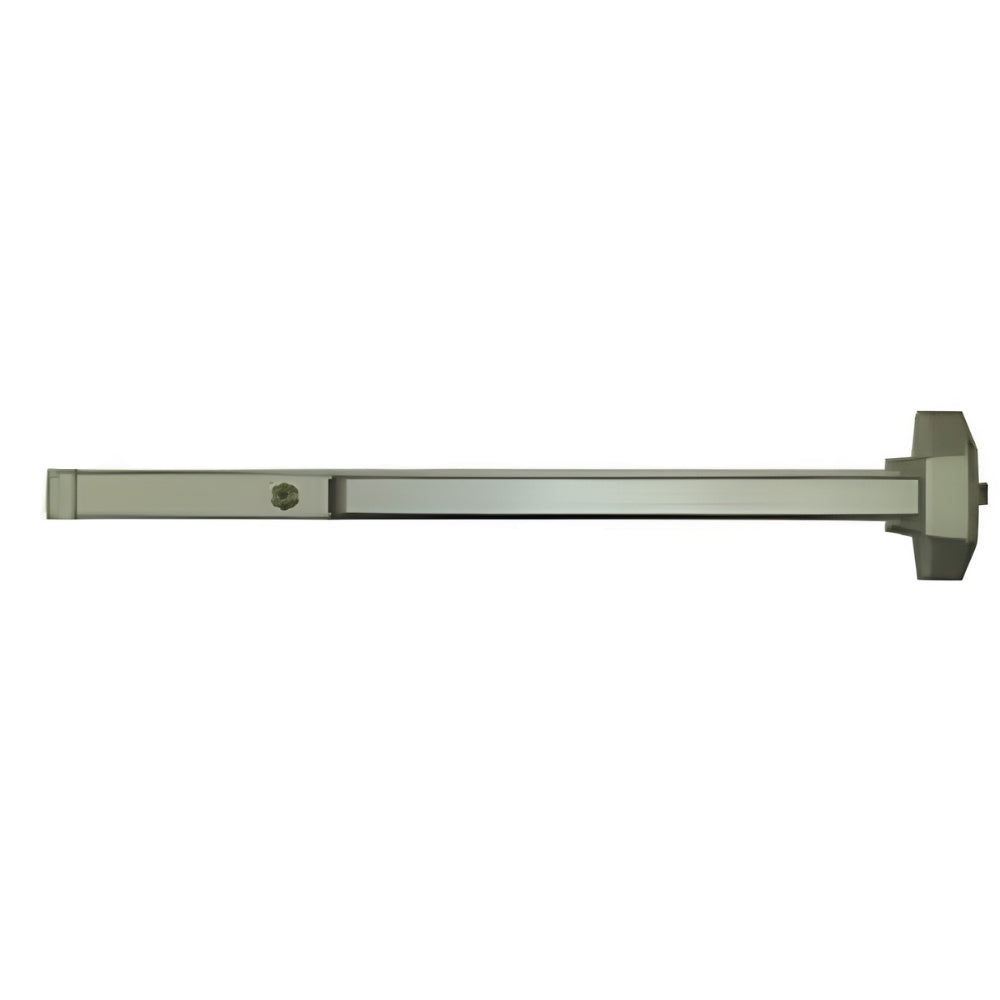

General Lock ED2300V-F 689 36 Surface Vertical Rod-Fire Rated Standard Duty Exit Device (Aluminum)

The General Lock ED2300V-F 689 36 is a Fire-Rated Surface Vertical Rod (SVR) Exit Device designed for life-safety compliance on fire-barrier door openings. Engineered specifically for doors measuring 36 inches wide by up to 84 inches high, this safety hardware provides critical two-point latching (at the top header and bottom threshold) to prevent door warping under extreme heat and ensure strict fire containment.

As a Fire-Rated (F) device, this model features an internal automatic top-latch release and is constructed without mechanical dogging, satisfying strict fire code mandates that require fire doors to remain positively latched at all times. Configured for "Exit Only" (EO) applications, it features a completely smooth, hardware-free exterior profile to eliminate the possibility of unauthorized outside tampering, while the intuitive inside push-pad ensures an unobstructed, instantaneous path of escape during an emergency. It is finished in a tough, clean US28 Painted Aluminum (689) coating that effortlessly matches standard silver commercial hollow metal or wood fire doors.

For use on a 1-door or double doors with or without a mullion. For 1-3/4 in. thick standard RHR or LHR hollow metal doors and wood doors. Minimum stile width: 3-1/2 in. for vertical rod. All devices and accessories are to be used on a 1-3/4 in. standard door.
